Name: BullMach BM-EFH 3H - Single-phase Hot Air Generator with Fan - 3 kW
Brand: BullMach
SKU: 108497
Price: 101.08 EUR
Availability: InStock
Rating: 3.6 (5 reviews)

Description

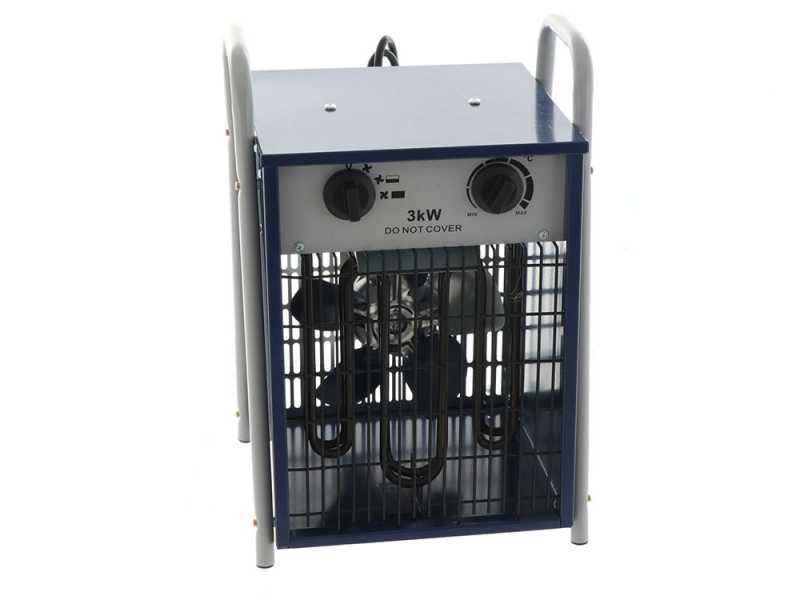

BullMach BM-EFH 3H Electric hot air generator with fan

The BullMach BM-EFH 3H is a portable hot air generator equipped with fan and single-phase power supply.

It is a localised heating system for small-sized industrial, commercial or residential premises.

With no open flame or emissions, this heater can also be operated when the use use fuels, such as gas or oil, is forbidden.

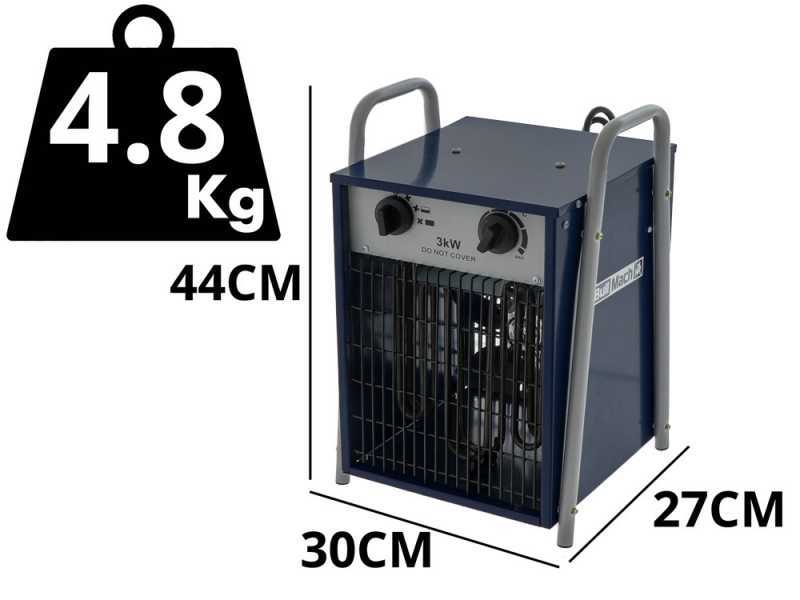

Thanks to its low weight of only 4.8 Kg, it is easy to transport and store even in small spaces.

Characterised by low noise, no smokes, smells emissions or condensation, it is powered by a thermally protected motor.

3 different power levels:

30W (summer ventilation mode)
1500 W
3000 W

It can heat environments up to 40 s.q. m. large.

BullMach BM-EFH 3H - Single-phase Hot Air Generator with Fan - 3 kW

Main features

BullMach BM-EFH 3H technical features:

Max. thermal power: 3 kW
Power supply: 220-240/50 V/Hz
Power required: 3 kW
Power levels: 30/1500/3000 W
No oxygen consumption
No smokes, smells and condensation
100% efficiency
Thermally-protected motor
Adjustable heat level
Made of sturdy and long-lasting steel
Rear electric cable

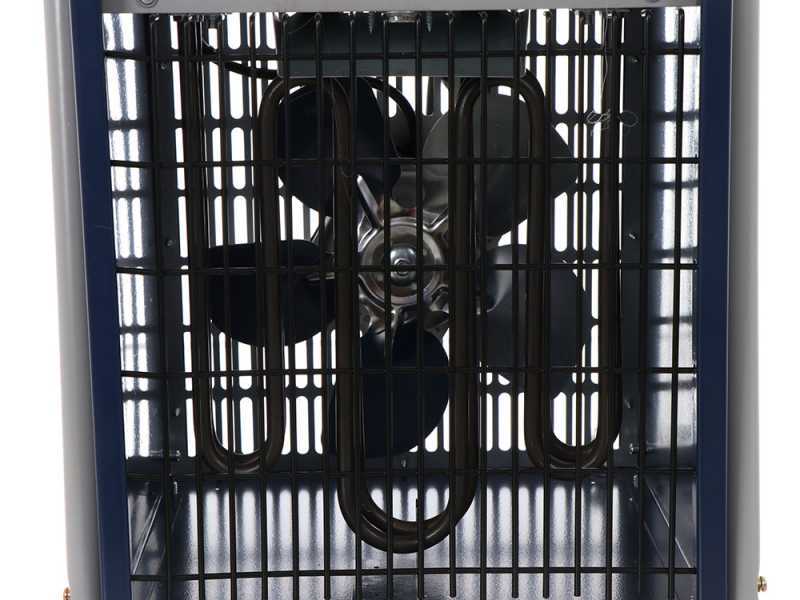

The operating principle of these portable hot air generators is based on the Joule effect of the current flowing through the heating elements, which heat the air by means an axial fan. The heating function is also controlled by the room and overheat prevention thermostat.

Focus on the controls

Upper carrying handle

Focus on the plug

How to select the ideal hot air generator

Important features that the Operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up:

Dimensions of the area that has to be heated up [V]
The ideal temperature [ΔT] that has to be reached
Room thermal insulation [K]

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low levels thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can be also calculated by using the following formula:

V x ΔT x K [kcal/h]

For example:

V = width 4 m width, 12 m length, 3 m height, room volume = 144 m³

ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC

K = 4 not-insulated room

The formula above mentioned brings to the following result: 144 x 23 x 4 = 13 248 kcal / h, which has to be compared with the data written on the machine serial no. plate, which highlights this heater functionality being able to produce larger volumes of instant heat compared to that one needed.

Converting to kW is easy, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW

Free items & Standard equipment

Free items included

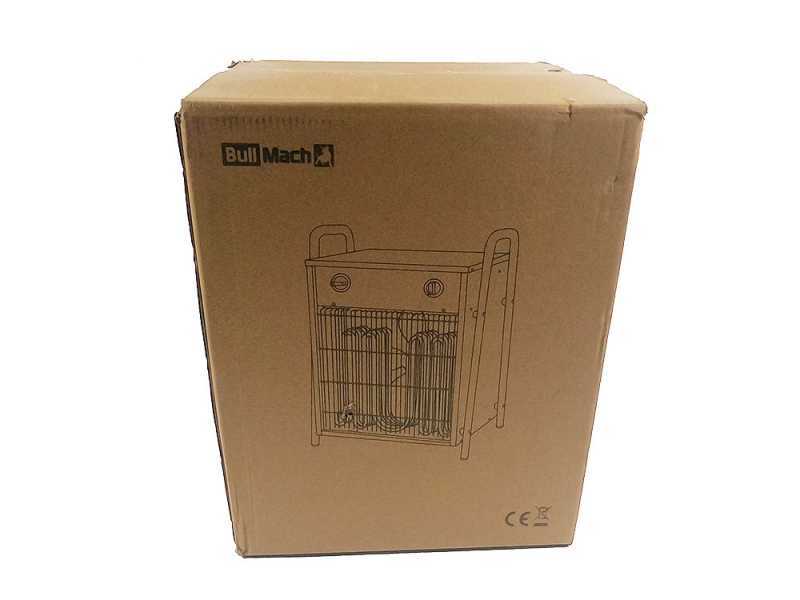

The hot air generator is shipped in its original packaging.

Instructions manual included in the packaging.
