BullMach BM-LS-E 11V - Electric Log Splitter - Vertical - 230V

Questions & Answers (4)
ID: 108109

EAN: 8054141543690

MPN: BM-LS-E 11 V

9,0/10
After-sales assistance & Spare parts
BullMach BM-LS-E 11V - Electric Log Splitter - Vertical - 230V
+90 sold
Max. trunk diameter
30 cm
Piston stroke
84 cm
Ground splitting system
Yes
Trunk lifting system
Yes
Retractable piston for transport
Yes
Double speed
Yes
Operating mode
Single-phase 230 V
Nominal power
4 HP
Engine
Induction
Nominal power (W)
3000 W
Nominal splitting force
11 t
Nominal power
3000 W
Product Features
Model:
BM-LS-E
Type:
Vertical
Double speed:
Yes
Operating mode:
Single-phase 230 V
Nominal splitting force:
11 t
Piston stroke:
84 cm
Adjustable piston stroke (for short logs):
No
Worktop log cutting:
No
Ground splitting system:
Yes
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
4 HP
Nominal power (W):
3000 W
Nominal power :
3000 W
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump type:
Hydraulic
Oil tank:
Yes
Piston diameter:
32 mm
Manufacturing country:
China
Cutting data
Max. trunk length:
104 cm
Max. trunk diameter:
30 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
Yes
Retaining side arms:
Yes
Retaining side supports:
Yes
Trunk lifting system:
Yes
Retractable piston for transport:
Yes
Tractor three-point hitch:
No
Replaceable wedge guides:
No
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
20
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
134x100x230 cm
Net weight:
173.4 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
75.5x50x170 cm
Gross weight (packaging included) :
177 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
15 minutes
Out of stock
Free Shipping
Suggested price:
€ 1.186,10
€ 889,58
Vat included
You're viewing:
Customers also viewed:
Description

BullMach BM-LS-E 11V Electric Vertical Log Splitter

The BullMach BM-LS-E 11V is a vertical log splitter, designed for a domestic and semi-professional use. It is powered by a single-phase electric motor.

The cylinder features a diameter of 80.5 mm, the hydraulic piston has a diameter of 32 mm and a length of approx. 1 m.

The wedge, with a splitting force of 11 tons,, capable of splitting long logs up to 100 cm, placing the log on the base (35x54 cm). The diameter of the logs which can be cut goes from 8 cm to 35 cm.

Thanks to the wheels, it is possible to easily move the log splitter.


Thrust horse power: 11 tons

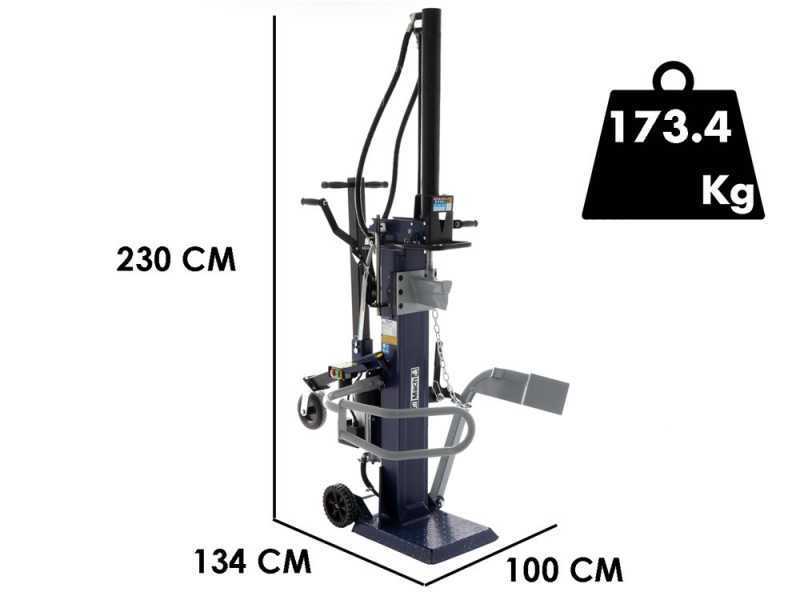

Dimensions: L 134 cm x W 100 cm H 230 cm

Weight: 173.4 KG


WARNING:

The log splitters of this category are not suitable for working with particularly convoluted wood fiber such as poplar or pine, with large diameters and types of wood, however, with frequent presence of the wood knots. In this case, it is highly recommended to address the choice to professional models. In addition, the logs should be split only once they have been dried, and not green. When the wood is green it has less tendency to split and open and therefore less suitable for use with the log splitter. By contrast, once dried, it can be split and becomes ready for use in fireplaces, stoves, ovens, and many others.

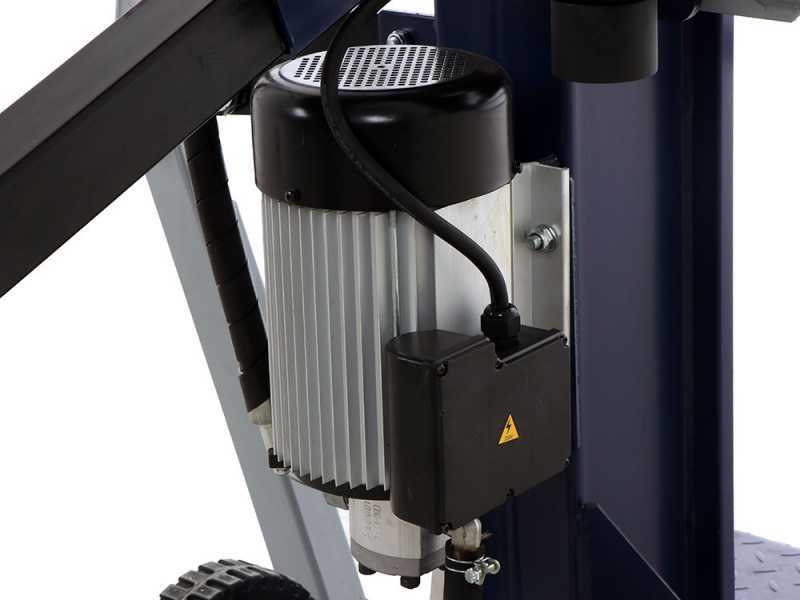

Electric motor and hydraulic pump

Electric motor 3000 W 230V that guarantees a sturdy splitting force of 11 tons.

The oil tank is located at the base of the machine. Focus on the plug to unscrew during use to allow the air discharge from the unit while in operation.

The base of the machine also acts as an oil tank, with a capacity of 7.5 L.

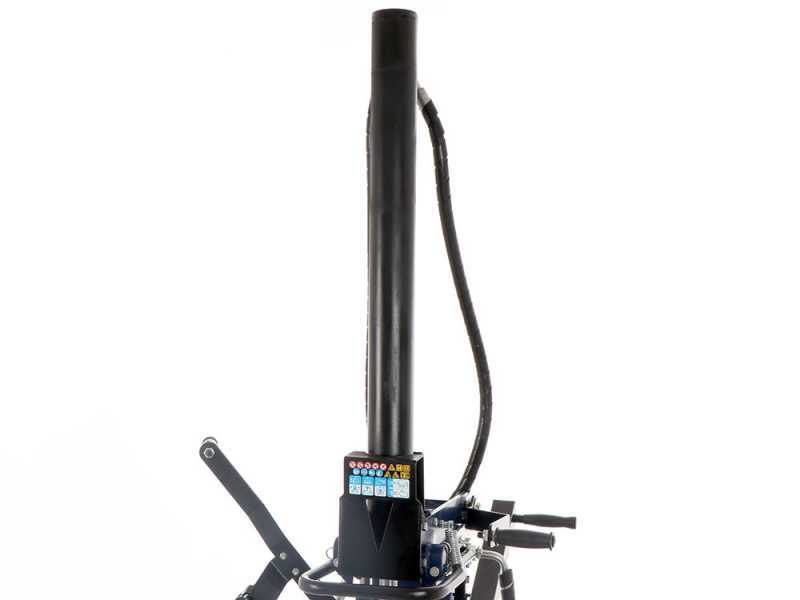

Wedge and piston

Featuring a splitting force of 11 tons, this log splitter model is capable of splitting logs from 10 to 30 cm diameter, up to 104 cm high.

Focus on the wedge of the log splitter of 17 cm length.

The length of the piston stroke is 84 cm

The internal piston is very thick, 3.2 cm, so it is able to withstand the 11 tons working pressure applied by the equipment.

The outer piston has a diameter of 80.5 mm

Focus on the descent guide of the splitting wedge.

Main features

Integrated oil tank located on the base of the log splitter.

CE-compliant power switch

Schuko plug integrated in the switch box.

CE-compliant operating handles.

Log side fixing support integrated and and adjustable through the special mechanism.

Log lifting system with locking system

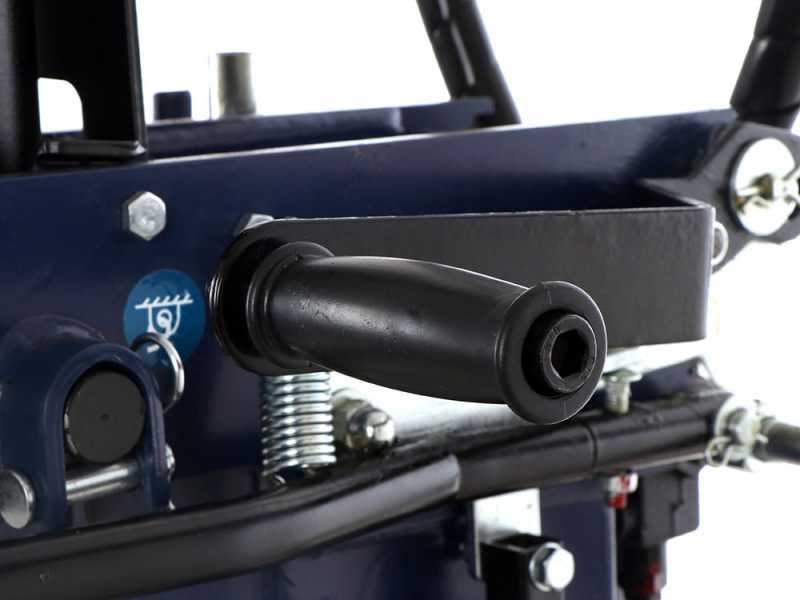

Focus on the wedge and the rear handle (adjustable in 2 positions). The handle is intended for tilting and moving the equipment, even thanks to lower wheels and the pneumatic wheel (adjustable in two positions), intended to easily move and transport the unit.

Focus on the wheels integrated in the base of the log splitter.

Focus on the lever, intended to raise the piston and to manage the double speed.

Free items & Standard equipment

Extra features

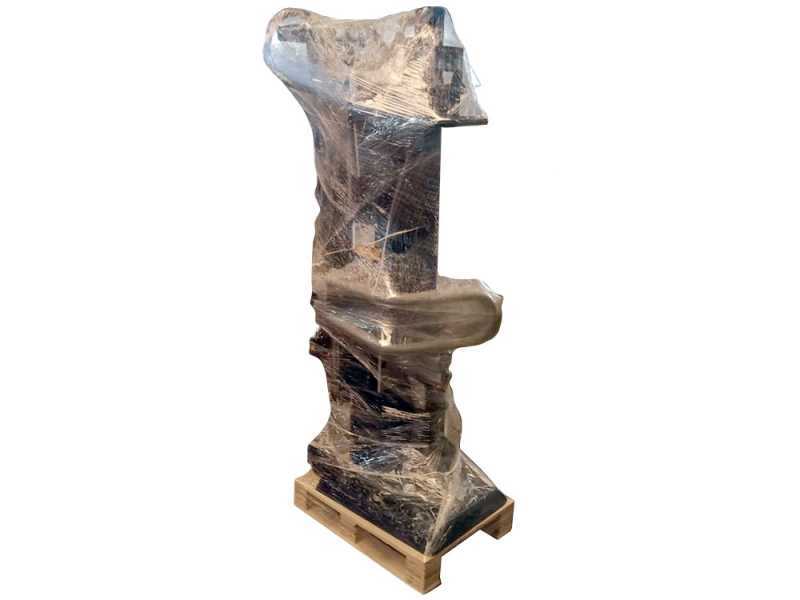

The log splitter is shipped with careful packaging and placed on a pallet.

It comes complete with instructions.
for the correct operation and maintenance
