HOME Felling, cutting and splitting wood Log Splitters Petrol Log Splitters Vertical Petrol Log Splitters BullMach BM-LS-BS 16 V

BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950

Semi-Pro
Questions & Answers (10)
ID: K603555

EAN: 8054141543768

MPN: BM-LS-BS 16 V

BullMach
Catalogue BullMach
9,0/10
After-sales assistance & Spare parts
57Pictures
3Videos
5Customer pics
BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950
BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950
BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950
BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950
BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950
BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950
+80 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Max. trunk diameter
30 cm
Piston stroke
94.8 cm
Ground splitting system
Yes
Trunk lifting system
Yes
Retractable piston for transport
Yes
Double speed
Yes
Motor type
4-stroke
Motor brand
Briggs&Stratton
Motor Model
CR950
Cubic capacity
208 cm³
Nominal power
7 HP
Nominal splitting force
16 t
Product Features
Model:
BM-LS-BS 16 V
Type:
Vertical
Double speed:
Yes
Operating mode:
Spark ignition
Nominal splitting force:
16 t
Piston stroke:
94.8 cm
Adjustable piston stroke (for short logs):
No
Worktop log cutting:
No
Ground splitting system:
Yes
Manufacturing country:
China
Motor data
Motor brand:
Briggs & Stratton
Motor Model:
CR950
Motor type:
4-stroke
Cubic capacity:
208 cm³
No. of cylinders:
1
Nominal power:
7 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Tank capacity:
3.5 L
Oil tank capacity:
0.6 L
Manufacturing country:
USA
Pump data
Pump type:
Hydraulic
Oil tank:
Yes
Hydraulic cylinder outer diameter:
90 mm
Piston diameter:
45 mm
Manufacturing country:
China
Cutting data
Max. trunk length:
110 cm
Max. trunk diameter:
30 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
Yes
Retaining side arms:
Yes
Retaining side supports:
Yes
Trunk lifting system:
Yes
Retractable piston for transport:
Yes
Tractor three-point hitch:
No
Replaceable wedge guides:
No
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
4.00-8
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Oil bottle:
Yes
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
153x104x250 cm
Net weight:
247.5 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
90x57x201 cm
Gross weight (packaging included) :
249 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Prompt Delivery
59 items in stock
Free Shipping
Estimated delivery: 15/04/2025 - 17/04/2025
Free returns (up to 30 days after receipt) *
Suggested price:
€ 2.223,38
€ 1.667,53
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

BullMach BM-LS-BS 16 V Log Splitter

The BullMach BM-LS-BS 16 V is a vertical petrol log splitter intended for semi-professional use.

The wedge, with a splitting force of 16 tons, is capable of splitting long logs up to 110 cm, placing the log on the base. The diameter of the logs which can be cut goes from 8 cm to 30 cm.

Thanks to the wheels, it is possible to easily move the log splitter.

Splitting force: 16 tons

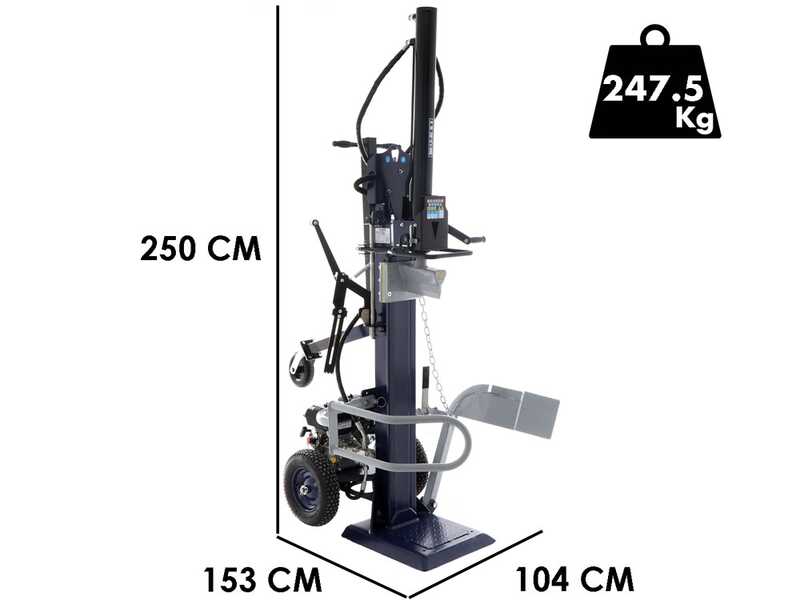

Dimensions: L 153 cm x W 104 cm H 250 cm

Weight: 247.5 KG

WARNING:

The log splitters of this category are not suitable for working with particularly convoluted wood fiber such as poplar or pine, with large diameters and types of wood, however, with frequent presence of the wood knots. In this case it is advisable to look at professional models. In addition, the strains should be split only once they have been dried, and not in the green state; when the wood is green it has less tendency to split and open and therefore less suitable for use of the log splitter. Once dried instead, it can be split and becomes ready for use in furnaces, stoves, ovens, etc ..

BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950
BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950

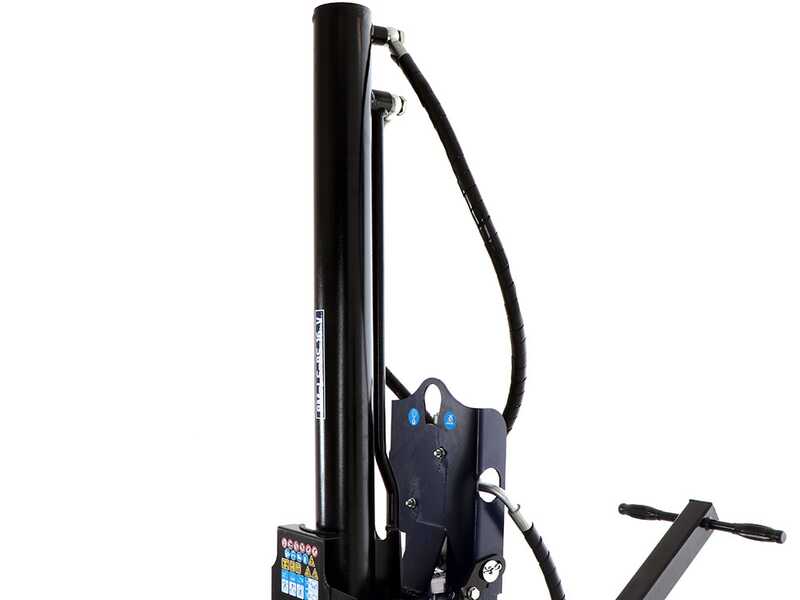

Wedge and piston

Featuring a splitting force of 16 tons, this log splitter model is capable of splitting logs from 8 to 30 cm diameter, and up to 110 cm high.

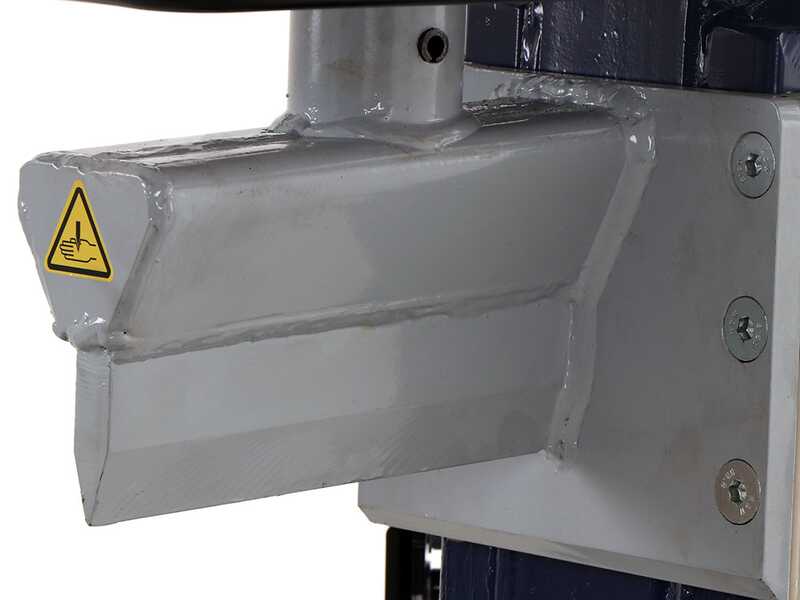

Focus on the wedge of the log splitter of 21.5 cm length.

The length of the piston stroke is 94.8 cm

The internal piston is very thick, 45 mm, so it is able to withstand the 14 tons working pressure applied by the equipment.

The outer piston has a diameter of 90 mm

Focus on the descent guide of the splitting wedge.

BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950
BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950

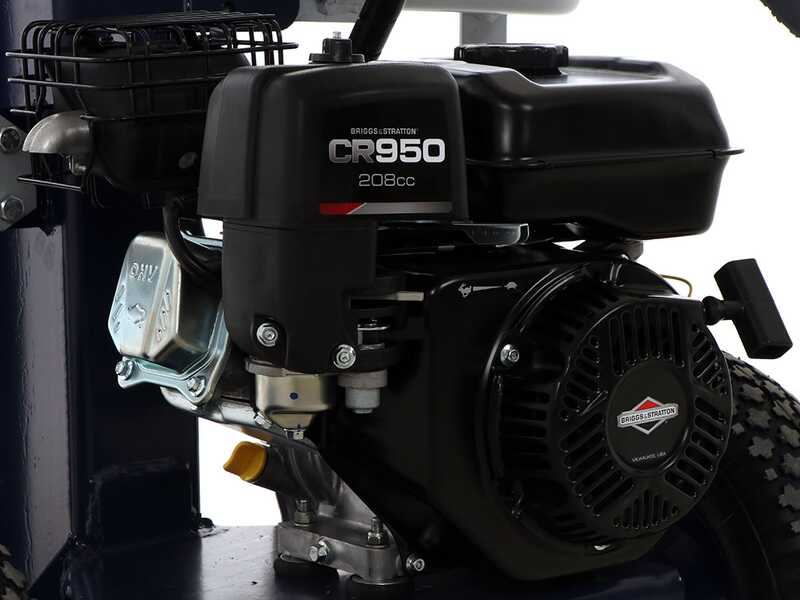

Briggs & Stratton Engine CR950 Series

The Briggs & Stratton Series 950 engine guarantees high performances and it is suitable for works where high power is required achieved thanks to the high 208 cc displacement

Features:

Engine type: Single-cylinder 4-stroke - OHV
Cylinder type: Cast Iron
Cubic Capacity: 208cm³
Fuel: Petrol

Brand new 4-stroke engine (overhead valve shaft OHV - recoil ignition ).

Easy re-coil start thanks to the automatic fuel priming system.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Nominal power: 7 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.70 Hp (at 2600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950
BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950

Standing out features

Integrated oil tank located on the base of the log splitter.

CE-compliant operating handles.

Log side fixing support integrated and adjustable through the special mechanism.

Log lifting system with locking system

Focus on the wedge and the rear handle (adjustable in 2 positions). The handle is intended for tilting and moving the equipment, even thanks to lower wheels and the pneumatic wheel (adjustable in two positions), intended to easily move and transport the unit.

Focus on the integrated wheel.

Focus on the support platform (Overall dimensions L 58 cm x W 50 cm x H 6 cm).

Focus on the lever, intended to raise the piston and to manage the double speed.

BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950
BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950
Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950
BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950

Extra features

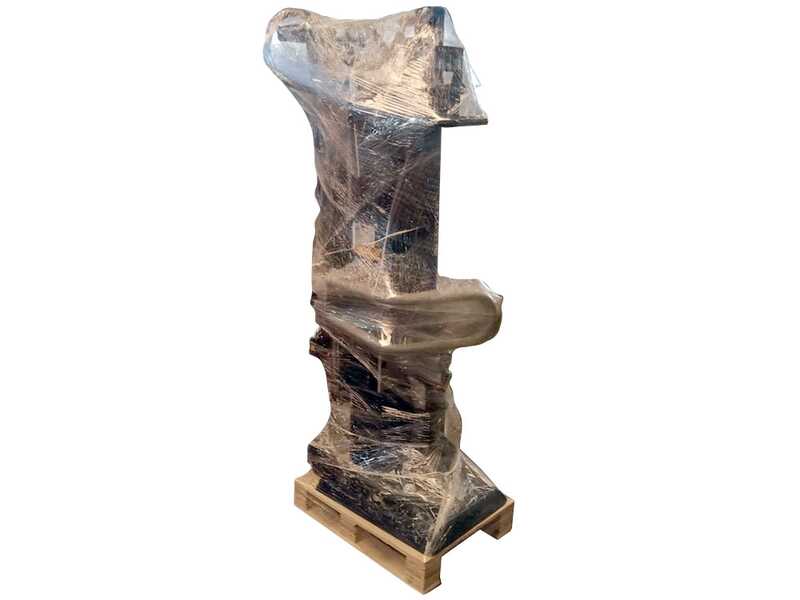

The log splitter is shipped with careful packaging and placed on a pallet.

It comes complete with instructions.
for the correct operation and maintenance

BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950
BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950 BullMach BM-LS-BS 16 V - Petrol Log Splitter - Vertical B&S CR950
