BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V

Semi-Pro
Add a question
ID: 108114

EAN: 8054141543744

MPN: BM-LS-ET 22 V

BullMach
Catalogue BullMach
9,0/10
After-sales assistance & Spare parts
60Pictures
1Videos
BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V
BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V
BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V
BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V
BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V
BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V
+50 sold
Max. trunk diameter
35 cm
Piston stroke
94.8 cm
Ground splitting system
Yes
Trunk lifting system
Yes
Retractable piston for transport
Yes
Double speed
Yes
Operating mode
Three-phase 400 V
Nominal power
6.8 HP
Engine
Induction
Nominal power (W)
5100 W
Nominal splitting force
22 t
Nominal power
5100 W
Product Features
Model:
BM-LS-ET 22 V
Type:
Vertical
Double speed:
Yes
Operating mode:
Three-phase 400 V
Nominal splitting force:
22 t
Piston stroke:
94.8 cm
Adjustable piston stroke (for short logs):
No
Worktop log cutting:
No
Ground splitting system:
Yes
Manufacturing country:
China
Motor data
Motor type:
Electric three-phase
Engine:
Induction
Nominal power:
6.8 HP
Nominal power (W):
5100 W
Nominal power :
5100 W
Power supply:
400 V electric
Manufacturing country:
China
Pump data
Pump type:
Hydraulic
Oil tank:
Yes
Hydraulic cylinder outer diameter:
115 mm
Piston diameter:
63 mm
Manufacturing country:
China
Cutting data
Max. trunk length:
110 cm
Max. trunk diameter:
35 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
Yes
Retaining side arms:
Yes
Retaining side supports:
Yes
Trunk lifting system:
Yes
Retractable piston for transport:
Yes
Tractor three-point hitch:
No
Replaceable wedge guides:
No
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
4.00 - 8
Rubber-coated soft grip:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
150x100x250 cm
Net weight:
296.5 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
87x58x204 cm
Gross weight (packaging included) :
309 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Prompt Delivery
19 items in stock
Free Shipping
Estimated delivery: 15/04/2025 - 17/04/2025
Free returns (up to 30 days after receipt) *
Suggested price:
€ 2.346,48
€ 1.759,86
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

BullMach BM-LS-ET 22 V Electric Vertical Log Splitter

The BullMach BM-LS-ET 22V is a vertical log splitter, designed for semi-professional use. It is powered by a single-phase electric motor.

The wedge, with a splitting force of 22 tons, capable of splitting long logs up to 110 cm, placing the log on the splitting base. The diameter of the logs which can be cut goes from 8 cm to 35 cm.

Thanks to the wheels, it is possible to easily move the log splitter.

Thrust horse power: 22 tons

Dimensions: L 150 cm x W 100 cm H 250 cm

Weight: 296.5 KG

WARNING:

The log splitters of this category are not suitable for working with particularly convoluted wood fiber such as poplar or pine, with large diameters and types of wood, however, with frequent presence of the wood knots. In this case, it is highly recommended to address the choice to professional models. In addition, the logs should be split only once they have been dried, and not green. When the wood is green it has less tendency to split and open and therefore less suitable for use with the log splitter. By contrast, once dried, it can be split and becomes ready for use in fireplaces, stoves, ovens, and many others.

BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V
BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V

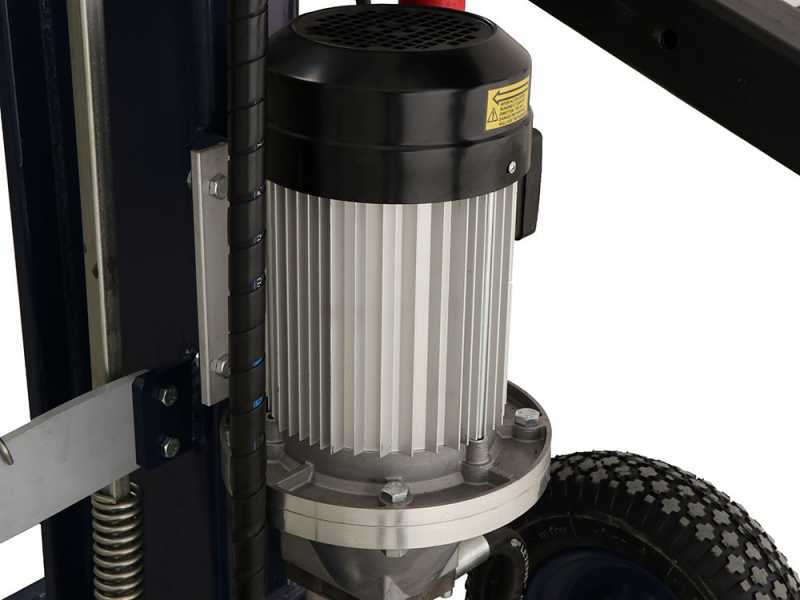

Electric motor and hydraulic pump

Electric motor 5100 W 400V that guarantees a sturdy splitting force of 22 tons.

The oil tank is located at the base of the machine. Focus on the plug to unscrew during use to allow the air discharge from the unit while in operation.

The base of the machine also acts as an oil tank, with a capacity of 24 L.

Focus on the three-phase male plug.

BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V
BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V

Wedge and piston

Featuring a splitting force of 22 tons, this log splitter model is capable of splitting logs from 8 to 35 cm diameter, up to 110 cm high.

Focus on the wedge of the log splitter of 22 cm length.

The length of the piston stroke is 94.8 cm

The internal piston is very thick, 63 mm, so it is able to withstand the 22 tons working pressure applied by the equipment.

The outer piston has a diameter of 115 mm

Focus on the descent guide of the splitting wedge.

BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V
BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V

Main features

Integrated oil tank located on the base of the log splitter.

CE-compliant power switch

Three-phase plug integrated in the switch box.

CE-compliant operating handles.

Log side fixing support integrated and and adjustable through the special mechanism.

Log lifting system with locking system

Focus on the wedge and the rear handle (adjustable in 2 positions). The handle is intended for tilting and moving the equipment, even thanks to lower wheels and the pneumatic wheel (adjustable in two positions), intended to easily move and transport the unit.

Focus on the wheels integrated in the base of the log splitter.

Focus on the support platform (Overall dimensions L 63.5 cm x W 52 cm x H 7 cm).

Focus on the lever, intended to raise the piston and to manage the double speed.

BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V
BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V BullMach BM-LS-ET 22 V - Electric Log Splitter - 400V
Free items & Standard equipment

Extra features

The log splitter is shipped with careful packaging and placed on a pallet.

It comes complete with instructions.
for the correct operation and maintenance
