BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted

Professional
Questions & Answers (8)
ID: 108115

EAN: 8054141543751

MPN: BM-LS-ET-T 22 V

BullMach
Catalogue BullMach
9,0/10
After-sales assistance & Spare parts
64Pictures
2Videos
11Customer pics
BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted
BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted
BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted
BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted
BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted
BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted
+70 sold
Max. trunk diameter
35 cm
Piston stroke
94.8 cm
Ground splitting system
Yes
Trunk lifting system
Yes
Retractable piston for transport
Yes
Double speed
Yes
Operating mode
Three-phase + tractor-driven PTO
Nominal power
6.8 HP
Engine
Induction
Nominal power (W)
5100 W
Nominal splitting force
22 t
Tractor three-point hitch
Yes
Nominal power
5100 W
Product Features
Model:
BM-LS-ET-T 22 V
Type:
Vertical
Double speed:
Yes
Operating mode:
Three-phase + tractor-driven PTO
Nominal splitting force:
22 t
Piston stroke:
94.8 cm
Adjustable piston stroke (for short logs):
No
Worktop log cutting:
No
Ground splitting system:
Yes
Manufacturing country:
China
Motor data
Motor brand:
BullMach
Motor type:
Electric three-phase
Engine:
Induction
Nominal power:
6.8 HP
Nominal power (W):
5100 W
Nominal power :
5100 W
Motor speed:
560 RPM
Power supply:
Electric - tractor-driven PTO
Oil tank capacity:
24 L
Manufacturing country:
China
Pump data
Pump type:
Hydraulic
Oil tank:
Yes
Hydraulic cylinder outer diameter:
115 mm
Piston diameter:
63 mm
Manufacturing country:
China
Cutting data
Max. trunk length:
110 cm
Max. trunk diameter:
35 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
Yes
Retaining side arms:
Yes
Retaining side supports:
Yes
Trunk lifting system:
Yes
Retractable piston for transport:
Yes
Tractor three-point hitch:
Yes
Replaceable wedge guides:
No
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
30
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
145x100x250 cm
Net weight:
319.9 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
94x68x200 cm
Gross weight (packaging included) :
328 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Prompt Delivery
36 items in stock
Free Shipping
Estimated delivery: 15/04/2025 - 17/04/2025
Free returns (up to 30 days after receipt) *
Suggested price:
€ 2.848,96
€ 2.149,26
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

BullMach BM-LS-ET-T 22 V Three-phase and Tractor Log Splitter

The BullMach BM-LS-ET-T 22 V electric three-phase and tractor log splitter is a vertical log splitter intended for semi-professional and professional use.

This log splitter model can be either cardan-driven and connected to the tractor PTO, or current-driven, using its three-phase 6.8 HP electric motor.

Featuring a splitting force of 22 tons, and it allows splitting even knotty wood logs, ranging in size up to a maximum height of 110 cm.

Foldable piston for easy storage.

Thrust horse power: 22 tons

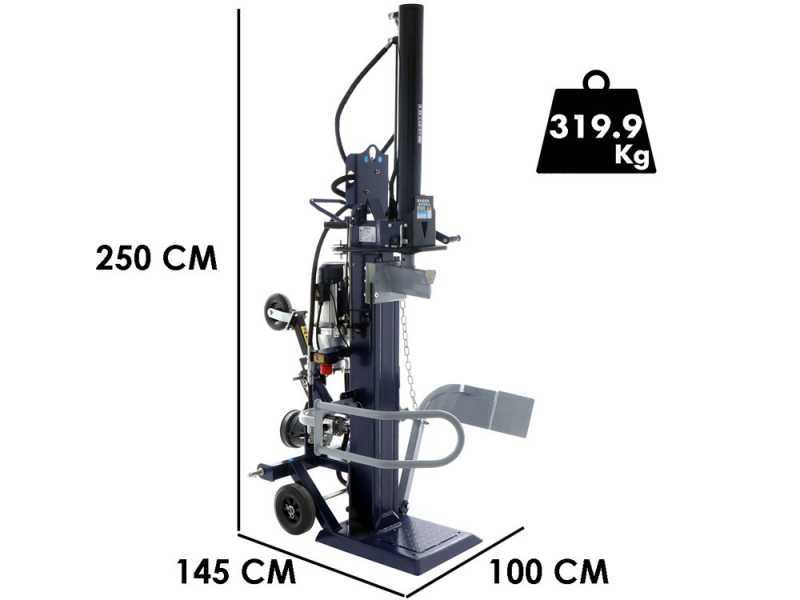

Dimensions: L 145 cm x W 100 cm H 250 cm

Weight: 319.9 KG

BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted
BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted

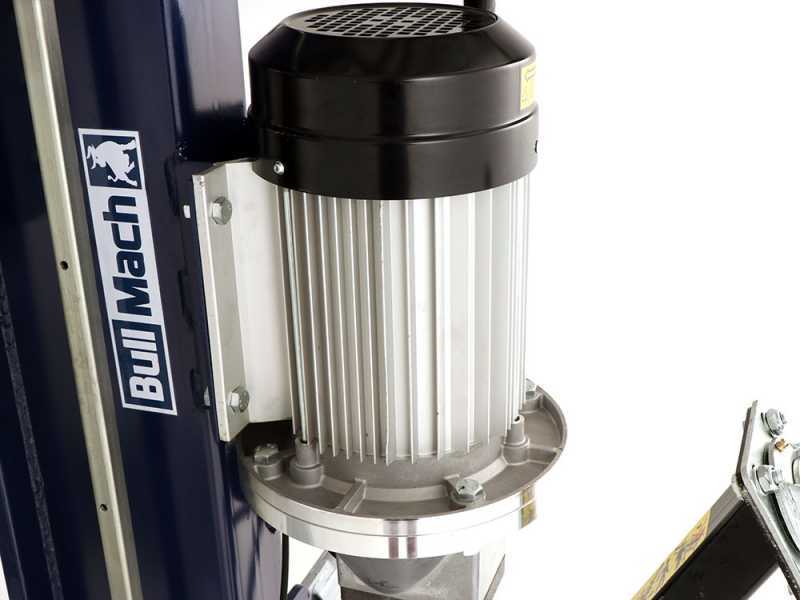

Tractor Cardan PTO and Electric Motor

This splitter is used by connecting it to the universal cardan tractor joint.

The log splitter uses the action of an hydraulic high performance pump operating at a controllable pressure by means of pressure gauge and which provides oil, collected from the tank to the hydraulic cylinder which acts as a pusher.

The body of the machine structure itself has the function of hydraulic oil tank .

The tractor connection is guaranteed by means of the three-point hitch of which the sturdy frame is provided.

Focus on the steel gear multiplier.

This multiplier transfers the torque from the tractor (via the universal joint) to the hydraulic pump.

This log splitter can also be used by connecting it to the standard household power supply through the three-phase 400 V 6.8 Hp electric motor that has a power of 5.1 kW.

BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted
BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted

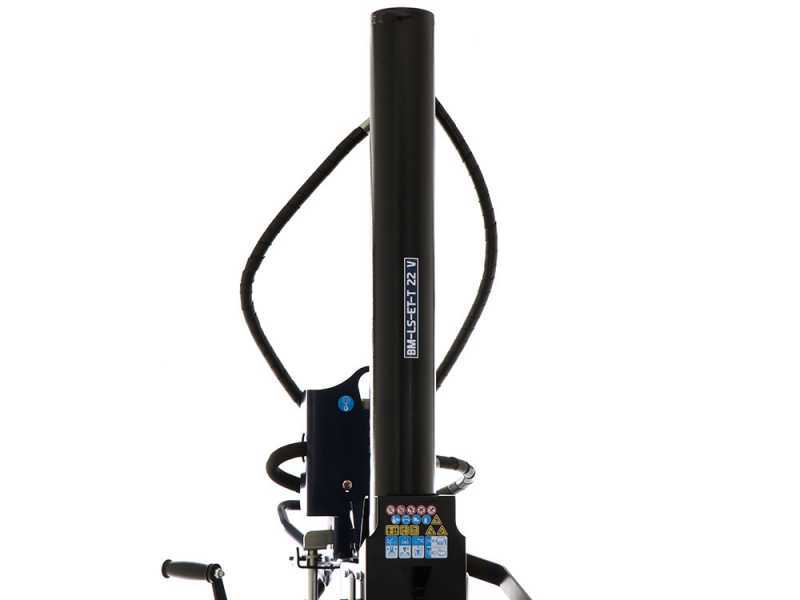

Wedge and piston

Featuring a splitting force of 22 tons, this log splitter model is capable of splitting logs from 8 to 35 cm diameter, and up to 110 cm high.

Focus on the wedge of the log splitter of 22 cm length.

The length of the piston stroke is 94.8 cm

The internal piston is very thick, 63 mm, so it is able to withstand the 22 tons working pressure applied by the equipment.

The outer piston has a diameter of 115 mm

BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted
BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted

Main features

Integrated oil tank located on the base of the log splitter.

CE-compliant power switch

Three-phase plug integrated in the switch box.

CE-compliant operating handles.

Log side fixing support integrated and adjustable through the special mechanism.

Log lifting system with locking system

Focus on the wedge and the rear handle. The handle is intended for tilting and moving the equipment, even thanks to lower wheels and the pneumatic wheel (adjustable in two positions), which are intended to easily move and transport the log splitter.

Focus on the wheels integrated in the base of the log splitter.

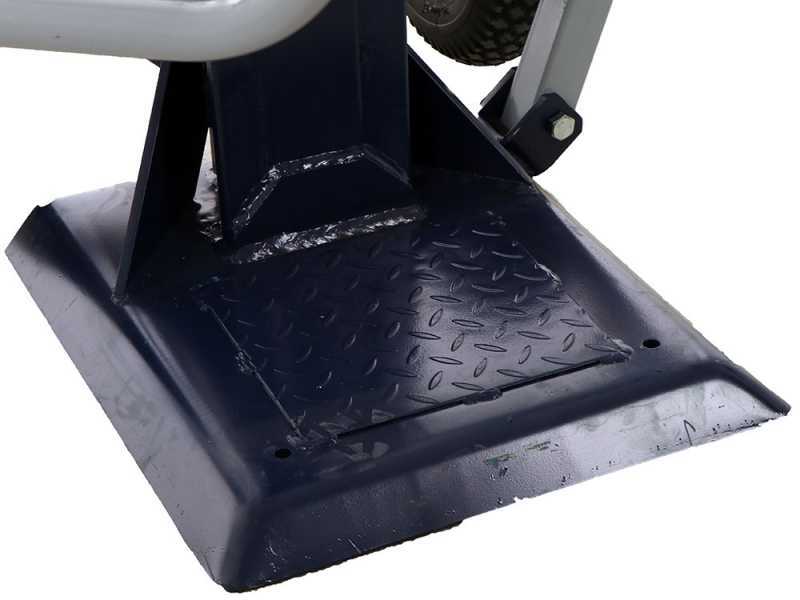

Focus on the support platform (Overall dimensions L 67 cm x W 54 cm x H 6 cm).

Focus on the lever, intended to raise the piston and to manage the double speed.

BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted
BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted
Free items & Standard equipment

Extra features

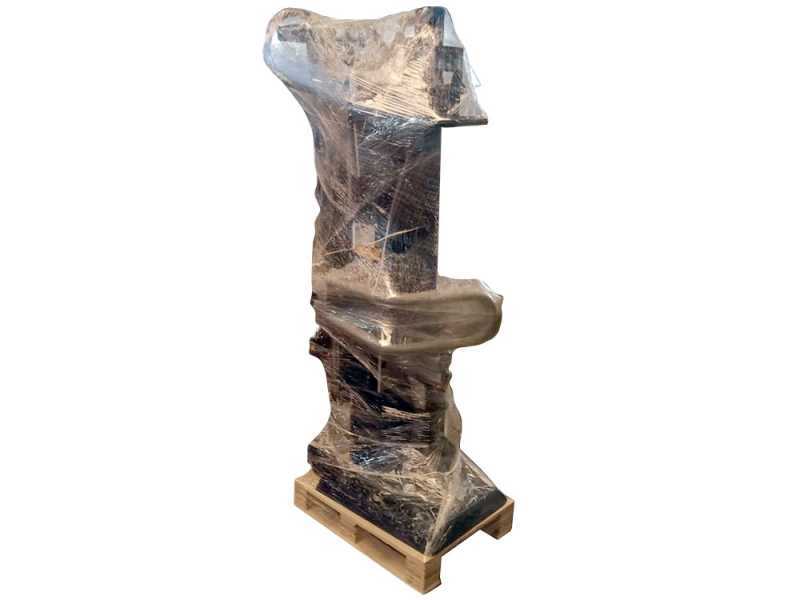

The log splitter is shipped with careful packaging and placed on a pallet.

It comes complete with instructions
for the correct operation and maintenance

BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted
BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted BullMach BM-LS-ET-T 22 V - Hybrid Log Splitter - Vertical - Electric and Tractor-Mounted
