BullMach BM-LS-PTO 30 V - Tractor-Mounted Log Splitter - Vertical

Questions & Answers (3)
ID: 108119

EAN: 8054141543799

MPN: BM-LS-PTO 22 V

9,0/10
After-sales assistance & Spare parts
BullMach BM-LS-PTO 30 V - Tractor-Mounted Log Splitter - Vertical
+100 sold
Max. trunk diameter
35 cm
Piston stroke
94.8 cm
Ground splitting system
Yes
Trunk lifting system
Yes
Retractable piston for transport
Yes
Double speed
Yes
Operating mode
Tractor-driven PTO
Nominal splitting force
22 t
Tractor three-point hitch
Yes
Product Features
Model:
BM-LS-PTO
Type:
Vertical
Double speed:
Yes
Operating mode:
Tractor-driven PTO
Nominal splitting force:
22 t
Piston stroke:
94.8 cm
Adjustable piston stroke (for short logs):
No
Worktop log cutting:
No
Ground splitting system:
Yes
Manufacturing country:
China
Motor data
Power supply:
Tractor-driven PTO
Oil tank capacity:
18 L
Manufacturing country:
China
Pump data
Pump type:
Hydraulic
Oil tank:
Yes
Hydraulic cylinder outer diameter:
113 mm
Piston diameter:
61 mm
Manufacturing country:
China
Cutting data
Max. trunk length:
110 cm
Max. trunk diameter:
35 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
Yes
Retaining side arms:
Yes
Retaining side supports:
Yes
Trunk lifting system:
Yes
Retractable piston for transport:
Yes
Tractor three-point hitch:
Yes
Replaceable wedge guides:
No
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
30
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
160x104x250 cm
Net weight:
287 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
84x68x200 cm
Gross weight (packaging included) :
292 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Prompt Delivery
45 items in stock
Free Shipping
Estimated delivery: 15/04/2025 - 17/04/2025
Suggested price:
€ 2.527,98
€ 1.895,98
Vat included
You're viewing:
Customers also viewed:
Description

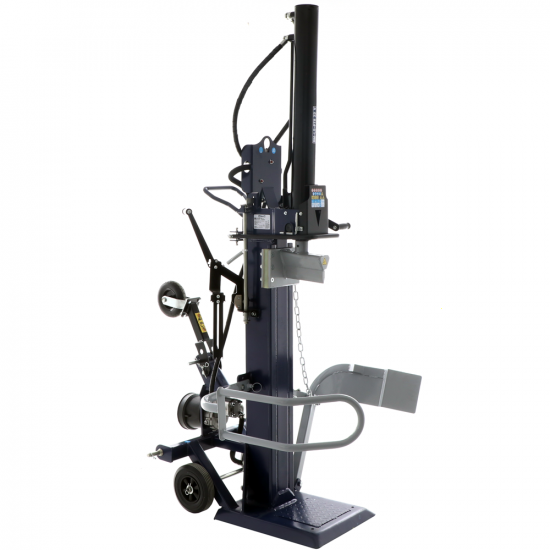

BullMach BM-LS-PTO 22 V Tractor Log Splitter

The BullMach BM-LS-PTO 22 V tractor log splitter is a vertical unit intended for semi-professional and professional use.

It can be operated either through the cardan shaft by connecting it by means of the PTO to the tractor.

Featuring a splitting force of 22 tons, and it allows splitting even knotty wood logs, ranging in size up to a maximum height of 110 cm.

Foldable piston for easy storage.

Splitting force: 22 tons

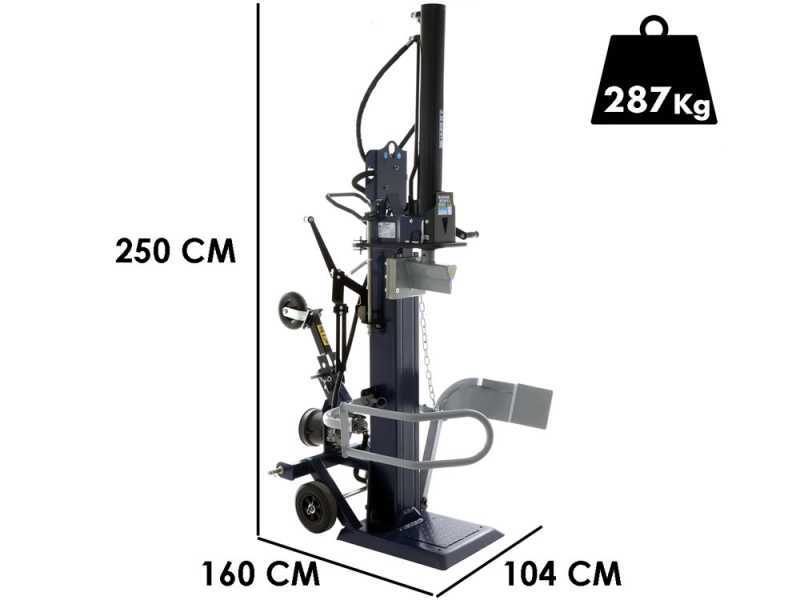

Dimensions: L 160 cm x W 104 cm H 250 cm

Weight: 287 KG


WARNING:

The log splitters of this category are not suitable for working with particularly convoluted wood fiber such as poplar or pine, with large diameters and types of wood, however, with frequent presence of the wood knots. In this case it is advisable to look at professional models. In addition, the strains should be split only once they have been dried, and not in the green state; when the wood is green it has less tendency to split and open and therefore less suitable for use of the log splitter. Once dried instead, it can be split and becomes ready for use in furnaces, stoves, ovens, etc .

Tractor PTO cardan connection

This log splitter can be used by connecting it to the tractor through the universal cardan joint. Max. Power <560 rpm

The tractor connection is guaranteed by means of the three-point hitch located in the machine frame.

The log splitter exploits the action of a hydraulic pump that draws oil from the tank housed at the base of the machine body, of 18.0 L capacity, and moves the hydraulic cylinder which acts as a pushing device.

The body of the machine structure itself has the function of hydraulic oil tank.

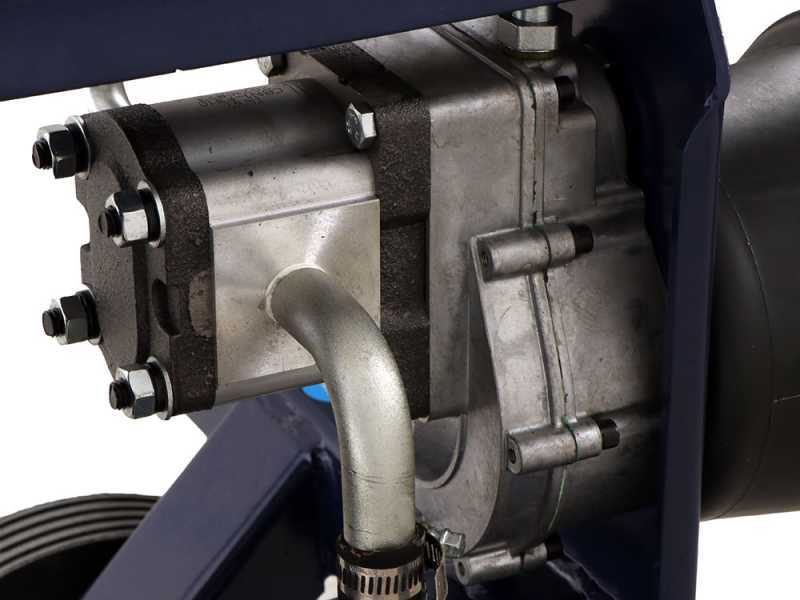

Focus on the gear multiplier.

This multiplier transfers the torque from the tractor to the hydraulic pump (through the universal joint).

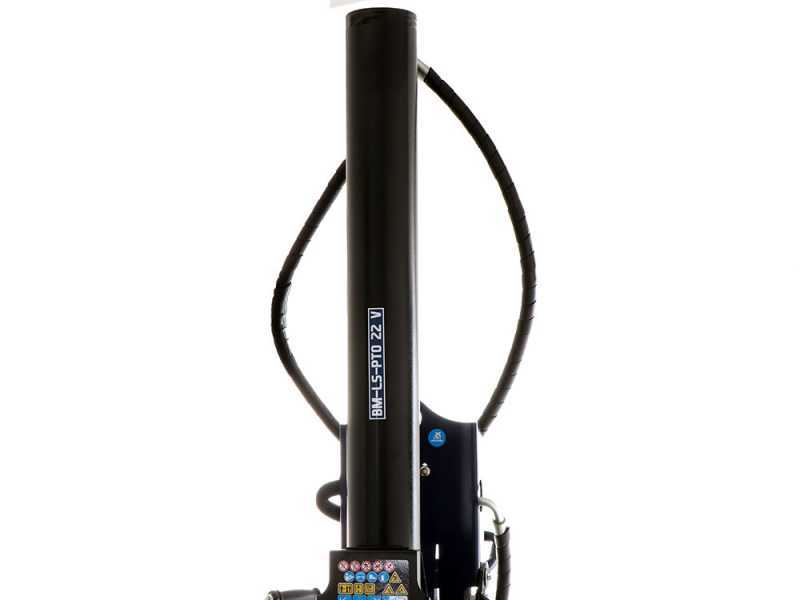

Wedge and piston

Featuring a splitting force of 22 tons, this log splitter model is capable of splitting logs from 8 to 35 cm diameter, and up to 110 cm high.

Focus on the wedge of the log splitter of 22 cm length.

The length of the piston stroke is 94.8 cm

The internal piston is very thick, 61 mm, so it is able to withstand the 22 tons working pressure applied by the equipment.

The outer piston has a diameter of 113 mm

Main features

Integrated oil tank located on the base of the log splitter.

CE-compliant operating handles.

Log side fixing support integrated and adjustable through the special mechanism.

Log lifting system with locking system

Focus on the wedge and the rear handle. The handle is intended for tilting and moving the equipment, even thanks to lower wheels and the pneumatic wheel (adjustable in two positions), which are intended to easily move and transport the log splitter.

Focus on the wheels integrated in the base of the log splitter.

Focus on the three-point hitch for the tractor connection, the diameter of the three hitches is 21 mm - hitch overall space: 6.8 cm.

Focus on the support platform (Overall dimensions L 63 cm x W 52.5 cm x H 6.5 cm).

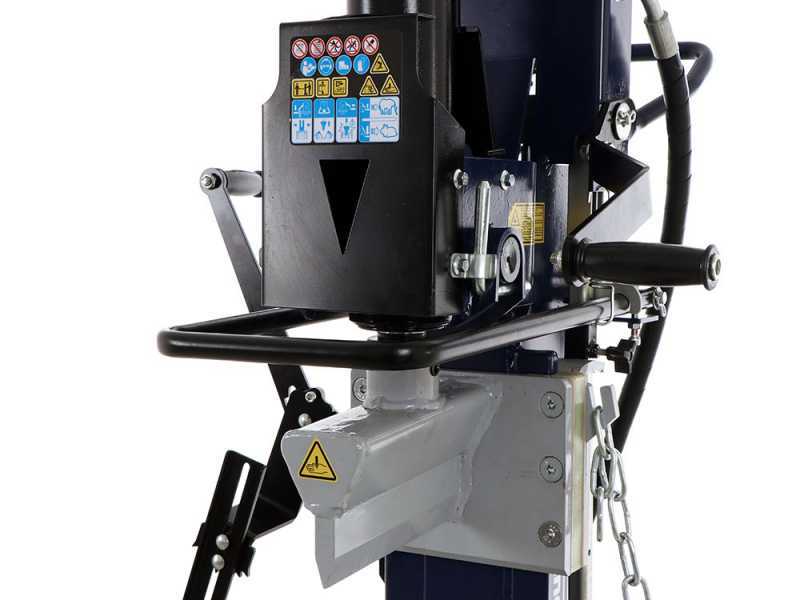

Focus on the lever, intended to raise the piston and to manage the double speed.

Free items & Standard equipment

Extra features

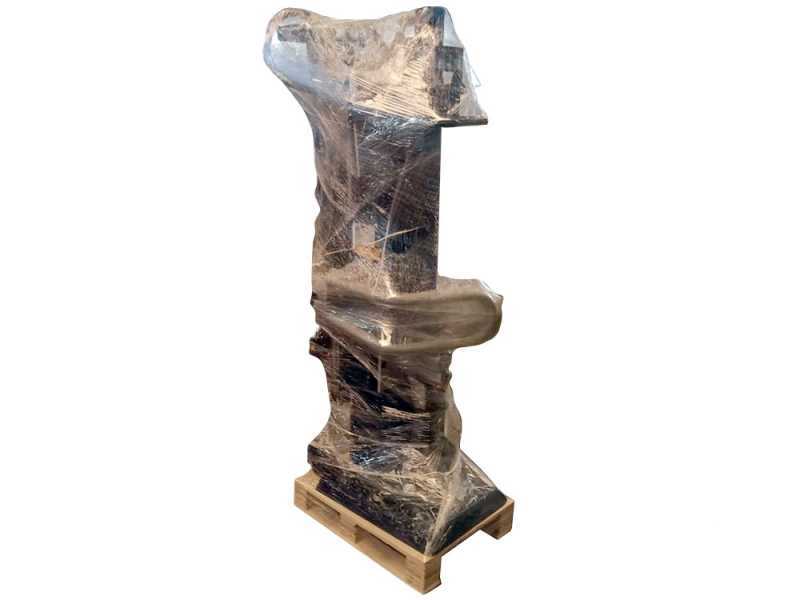

The log splitter is shipped with careful packaging and placed on a pallet.

It comes complete with instructions
for the correct operation and maintenance
