BullMach Fulgor 3000 - 3,3 kW Inverter Power Generator - DC 3 kW Single-phase

The BullMach Fulgor 3000 power generator emerges as a choice for those looking for an inverter power generator that is both reliable and high-performance. It is particularly suitable for safely powering sensitive electronic equipment, including computers and televisions, and is essential in a variety of scenarios such as camping, boating, street vending, and attending events of various kinds.

Ideal for camping enthusiasts, boaters, participants at fairs and events, or for those engaged in touring sales.

Technical Specifications:

• Power: The 3.3 kW delivery capacity makes the BullMach Fulgor 3000 suitable to cover the basic energy needs of a wide range of users.
• Type of power: The single-phase power output makes it perfectly suitable for both domestic and leisure applications, offering a wide flexibility of use.
• Portability: A design optimised for maximum compactness, combined with an integrated handle, makes it easy to carry the device, making it an ideal travel companion.
• Stabilisation: The adoption of inverter technology ensures a clean and stabilised output power, crucial for the optimal operation of sensitive electronic equipment.

Strengths:

• Reliability: The generator guarantees a stable and reliable source of electricity in a wide range of contexts and conditions.
• Versatility: Adaptable to diverse scenarios, it ranges from domestic to light professional use, demonstrating exceptional operational flexibility.
• Quietness: Designed to operate at a low noise level, the generator is perfectly suited for use in public environments and contexts where discretion is crucial.

Beyond its core functions, the BullMach Fulgor 3000 stands out in the panorama of portable generators as of its ability to respond effectively to any power need in the absence of access to the conventional power grid. Its reliability in delivering quality power makes it an irreplaceable ally for anyone needing safe power for precision electronic equipment, eliminating the risk of damage due to voltage instability.

The inverter technology:

This generator produces electrical energy with a constant frequency and voltage, regardless of the variation of the load and the engine speed; this is made possible by the use of an electronic converter that disengages the amplitude of the input voltage from the output.

Unlike traditional generators, a permanent magnet generator is used together with a speed monitoring system of the engine rpm according to the actually used power, which allows a significant reduction of fuel consumption and less noise with the use of average loads downs.

Main applications:

The reliability and the quality of the energy produced with this system allows the power supply of electronic equipment such as computers, medical equipment, measuring instruments and any special equipment that is particularly sensitive to voltage and frequency variations.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

WARNING: All power generators like this, belonging to one of the lower product levels of the PROFESSIONAL (reference to the product level rating scale used on this site) must not work for sessions longer than 3–4 hours continuously, in order not to compromise in the medium to long term durability of the alternator and other components due to overheating or wear. The same problem would present itself if these products were to be used daily or at least frequently. In all these cases, we recommend opting for generators classified as least as PROFESSIONAL, as listed on the rating scale on this website.

Max. output power: 3,3 Kw

Nominal power in continuous service (COP): 3 KW

This is the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration)

Voltage: 230 V

Operating frequency: 50 Hz

Fuel tank capacity: 6.3 litres

Oil tank capacity: 0.4 litres

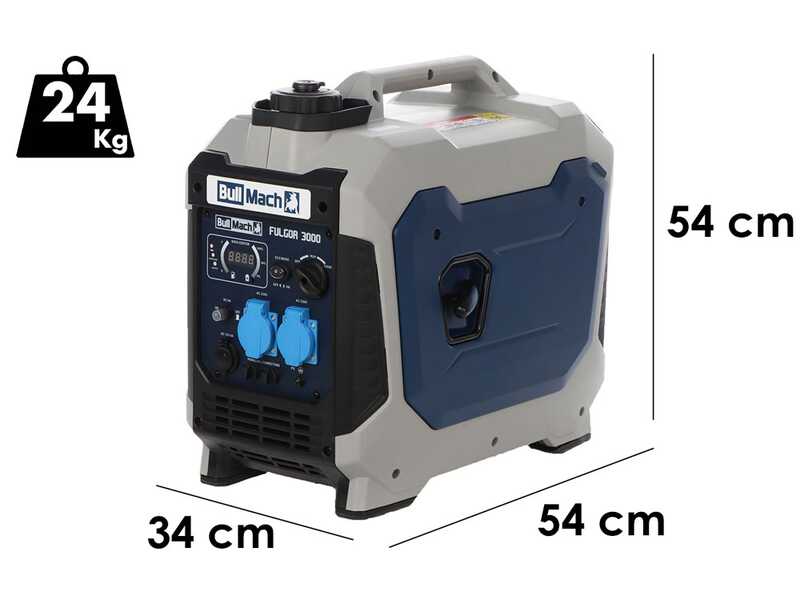

Weight: 24 kg

Noise level: 95 dB[A]

Noise level at a distance of 7 metres: 68.3 dB(A)

Engine type: 4-stroke petrol

Displacement 140 cc

Fuel tank capacity: 6.3 litres

Type of cooling: air-cooled

Type of starting: recoil start with self-recovery

WARNING: the engine is provided without oil
(fill with oil for 4-stroke engines before starting the unit)

Major advantages over conventional 2-stroke mixture engines:

• Greater reliability
• Higher durability
• Easier start-up (especially after long periods of storage)
• Lesser problems related to the preparation and to the fuel freshness
• Lower fuel consumption (less than half!).
• Less maintenance

Silenced Generator

The silencer allows you to use the current generator for camping, camper, in public places, homes, condos, villas, town houses, hobby or wherever it is required silent electricity.

ECON.SW switch:

When no equipment is connected to the generator, or when the generator is switched off and there is no power consumption from the generator, it operates in fuel-saving mode. This device is used to minimise fuel consumption and reduce noise levels when no load is applied to the generator. When power consumption is restored by plugging in or switching on equipment, the generator automatically switches to the correct speed to deliver sufficient power. * this function is only to be used with the 220-volt power supply (not with the charger)

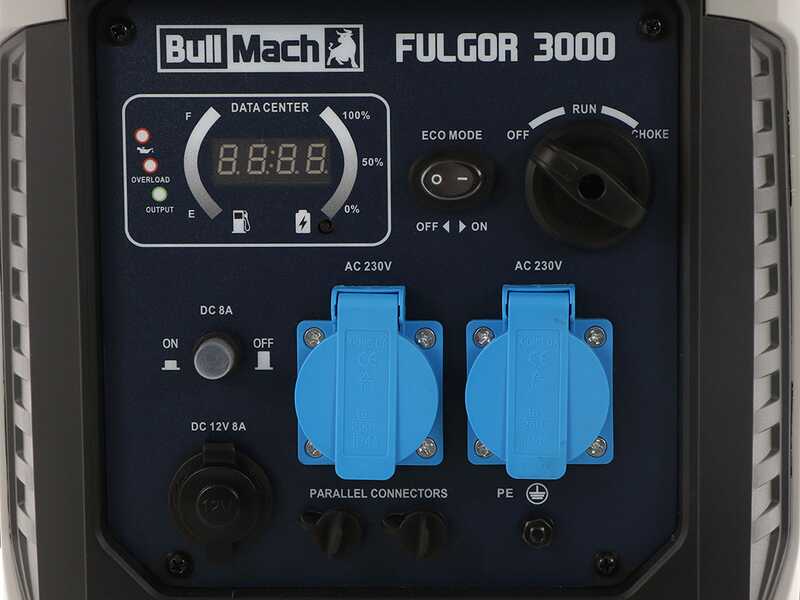

Indicator lights:

-Power supply. It comes on after the power switch is activated. Under normal conditions, only this green light should be on.

- Overload signalling. If the generator is overloaded, or if there is a malfunction or short-circuit in a connected piece of equipment, this red overload lamp lights up. After a few seconds, the power supply will be cut off and the green light will go out. In this case, the engine must be switched off and the reason for the overload must be found out.

- Oil warning system. Designed to prevent engine damage caused by an insufficient amount of oil. Before the oil level can drop below the safety limit, the red oil warning light turns on and the oil alarm system will automatically stop the engine. * Warning: the engine is provided without oil.

Simply press the little black button next to the battery icon to access the following functions:

• Remaining working time according to fuel
• Power output
• Residual fuel capacity
• Voltage:
• Accumulated working time

Coupling for parallel connection

Sockets:

- No. 2 Schuko sockets with 220 volts of supply

Other features of the machine include:

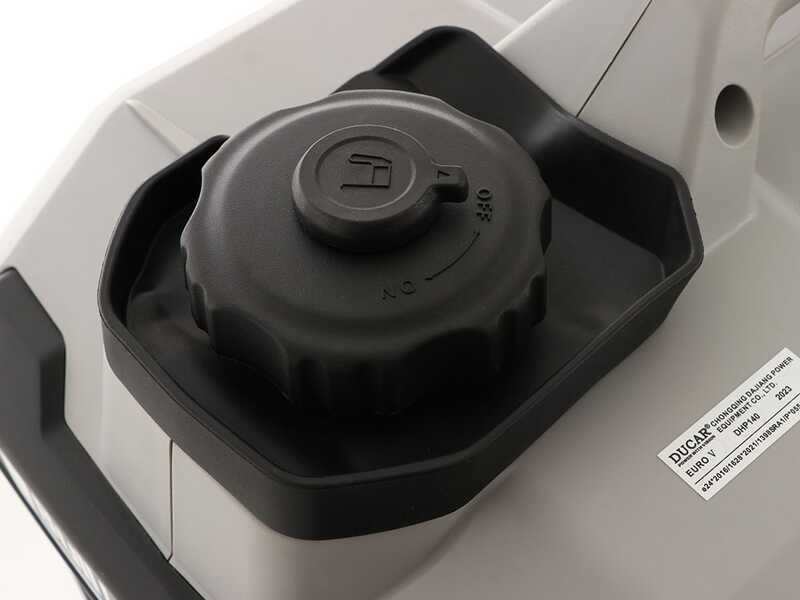

Fuel cap with lever for activating fuel passage

Upper access flap to the spark plug compartment

Support feet

Carrying handle

As far as the needed power is concerned, we now provide you with a handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATTS are necessary during the start-up operations.

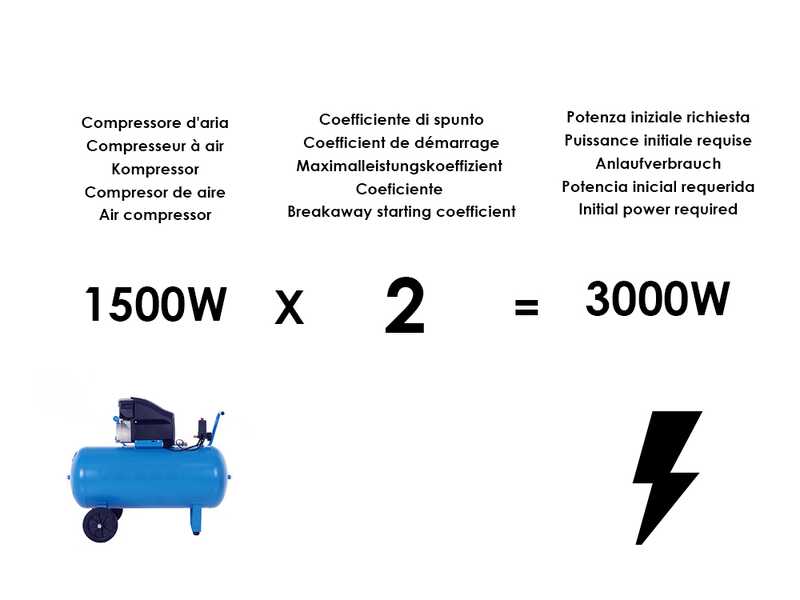

Example: Compressor (1500 Watt) X Starting coefficient (2) = 3000 Watt, Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instructions and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above, you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs. And remember that to operate the electronic equipment (computers, televisions and all the equipment equipped with an electronic card) must purchase a current with "inverter" generator (which stabilizes the output power).

• This inverter generator is equipped with an ELECTRONIC CARD in order to stabilise the output current, generating an almost perfect wave.
  This makes it particularly suitable for application in certain uses, but also not suitable for others.

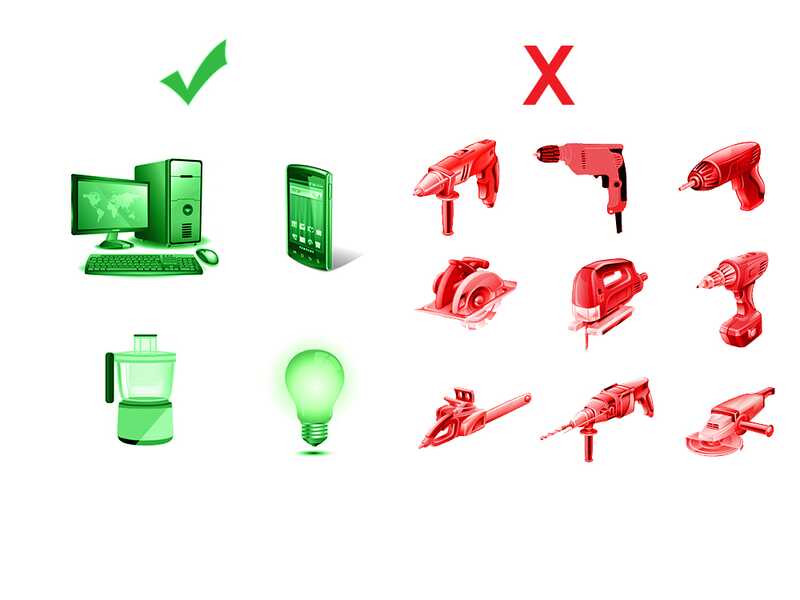

  Some examples of FIELD OF APPLICATION : Feeding of all kinds of electronic equipment (being equipped with electronic card which consequently require a very stable power to avoid the risk of damaging such cards), appliances, equipment and kitchen and domestic equipment, lights and lamps; In conclusion they are specific to a strictly domestic use or for holiday and leisure use (in a camper, boat, etc ...)

  Some examples of NON APPLICATION FIELDS : Construction equipment, workshop equipment, do-it-yourself, welding machines, equipment of any kind equipped with brush motors (which in the event of wear on the brushes can move back towards the generator some power surges that can damage the the generator electronic card); basically, for all this list of working, construction or artisan equipment, an inverter generator is too delicate and therefore inadequate, therefore it is necessary to focus on a classic generator, not with inverter card, but equipped with the classic alternator with stator and heavy rotor, most suitable for powering this equipment.

  We remind you that the inverter generator was designed for NOT PROFESSIONAL use, it is therefore apt for occasional use (not frequent). The working sessions must no be over 3-4 continuous hours (which would cause the alternator to overheat and wear) If you need a generator for frequent use (for example once a week), the user should look towards another type of generator, specifically intended for a frequent use and precisely a PROFESSIONAL or even INDUSTRIAL quality-level generator;

  The generator is not designed to be installed in photovoltaic or solar energy systems for energy production, nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
