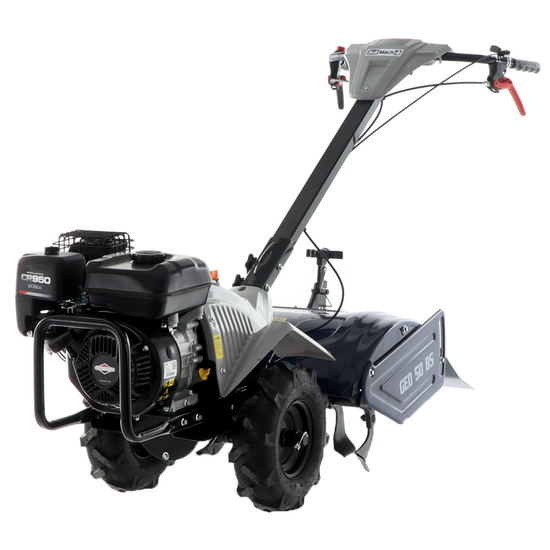

BullMach GEO 50 BS - Petrol Two-wheel Tractor - Brigs&Stratton CR950 - 7HP

The BullMach GEO 50 BS two wheel tractor is equipped with a Briggs&Stratton 7 HP 4-stroke petrol engine 208 cc.

Thanks to the large tractor wheels, the self-propulsion is easy on all types of terrain and soil.

The reverse clutch allows safe working, safeguarding the health of the Operator in all cases.

This is also facilitated by the large rear stone guard and height-adjustable fairing sides.

This machine is designed to work on soft, non-stony soils.

Thanks to the large wheels, 3 over-sized hoes and the height-adjustable sidewalls, the machine is very comfortable to operate and limits the annoying skipping effect when working.

Working in shallow depths, two wheel tractors have the ability to break up the soil very finely, more than the results achieved by any garden tiller.

Therefore, two-wheel tractors are mostly intended for working in vegetable gardens for all kinds of crops planted there.

On the other hand, in case you have particularly hard (or even never worked) or fairly stony ground, or with sloping terrain, we recommend you to address your choice on a rotary tiller, which is better suited to working in these conditions.

The machine is equipped with a 50 cm tiller, which consists of 4 elements with 3 hoes each (12 hoes in total).

WARNING!

Engine and transmission provided without oil. Make sure to add oil before the first use.

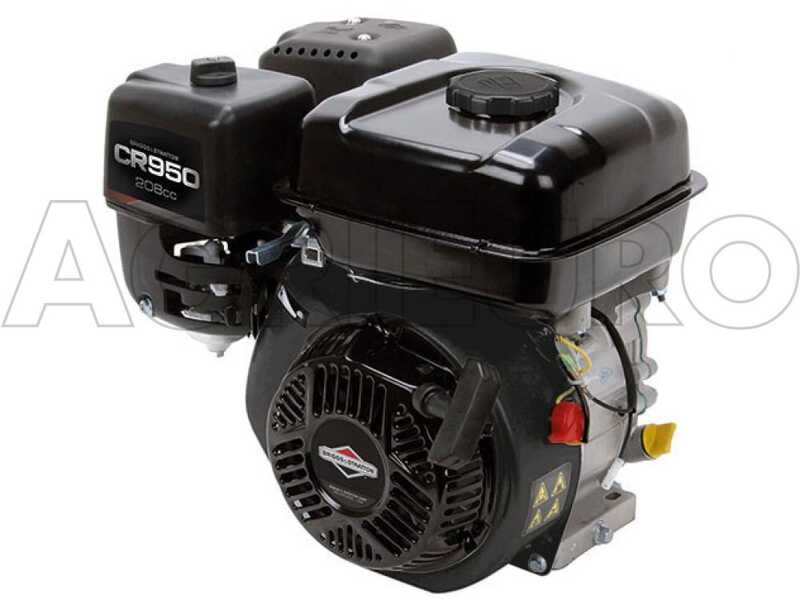

The Briggs & Stratton Series 950 engine guarantees high performances and it is suitable for works where high power is required achieved thanks to the high 208 cc displacement

Features:

Brand new 4-stroke engine (overhead valve shaft OHV - recoil ignition ).

Easy re-coil start thanks to the automatic fuel priming system.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Nominal Power: 7 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.70 Hp (at 2600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

This machine is equipped with a 2-speed gearbox that can be selected using the 2 levers on the handlebars.

The black lever is used to activate the tiller motion and the frontal movement of the two-wheel tractor.

The red lever operates the reverse gear without activating the movement of the hoes. This will ensure to carry out manoeuvres in complete safety.

Sturdy and reliable central transmission.

Oil filler cap

It is possible to move the machine even with the engine switched off and without operating the cutter by simply disconnecting the wheel stop plug, thus allowing the wheel to turn freely on the hub.

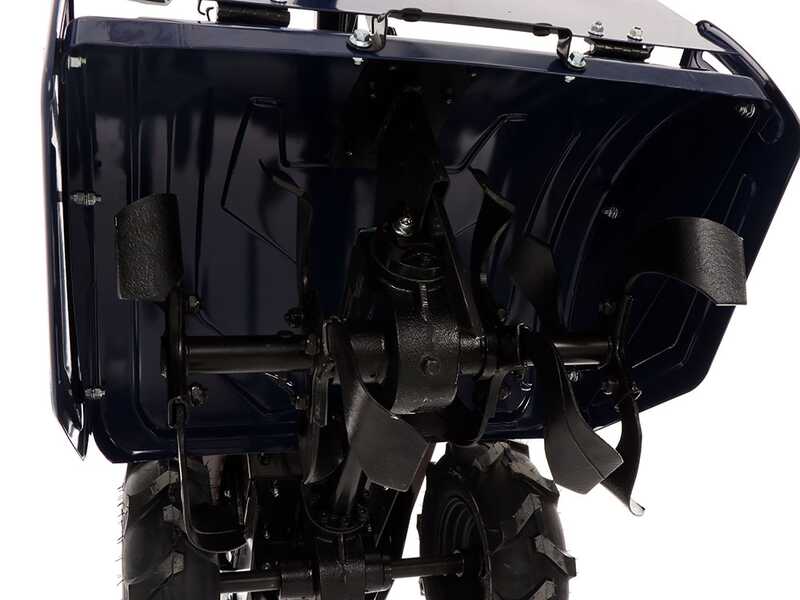

The tiller has a working width of 500 mm and it consists of 4 elements with 3 hoes each.

These hoes are oversized (very large in size). They feature a special shape that allows them to enter the soil gradually, so that the working process can be also carried out on firm and somewhat more compact soils.

The outer bonnet is made of painted sheet steel and it is fitted with a very large accident prevention guard.

The side threads are height-adjustable so that the working depth can be adjusted in any situation.

The machineries manufactured by most competitors do not have this feature.

The hoes have a working diameter of 28 cm.

Focus on the spur, equipped with various positions, which determines the working depth of the tiller(remember that all self-propelled cultivators on the market tend to break up the soil very finely, but by their nature they carry out fairly superficial work, i.e. they have a more limited working penetration into the soil than rotary tillers)

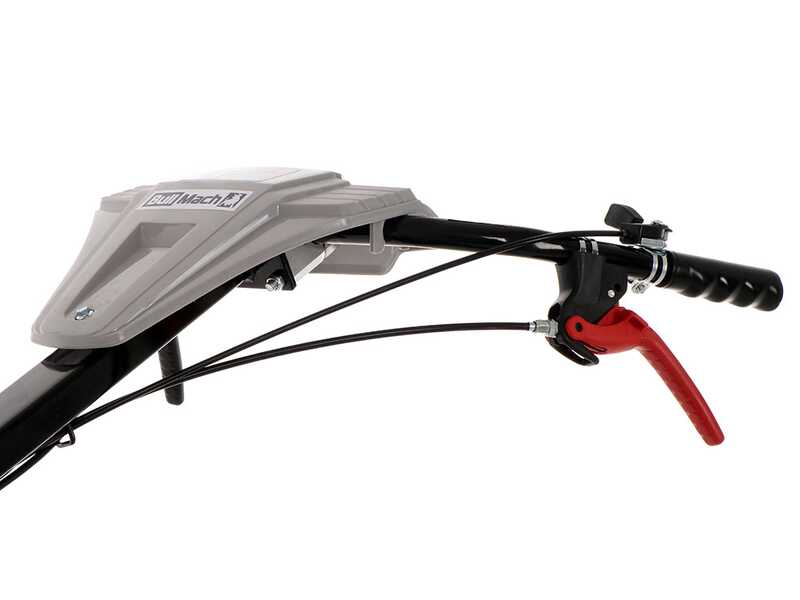

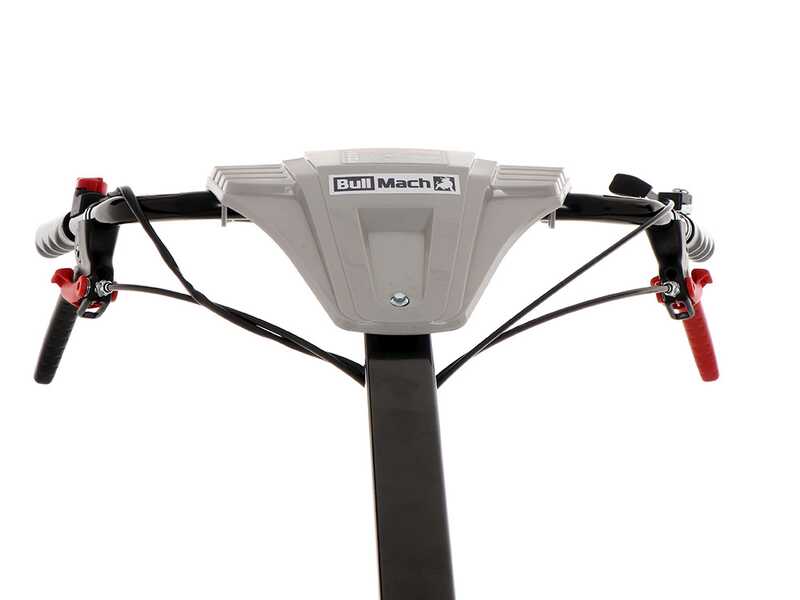

Focus on the steering handles (handlebars) where all the main controls are placed.

Black lever: for forward motion and the activation of the tiller motion.

Red lever: for reverse motion

Throttle lever

ON/OFF switch

Large Tractor wheels

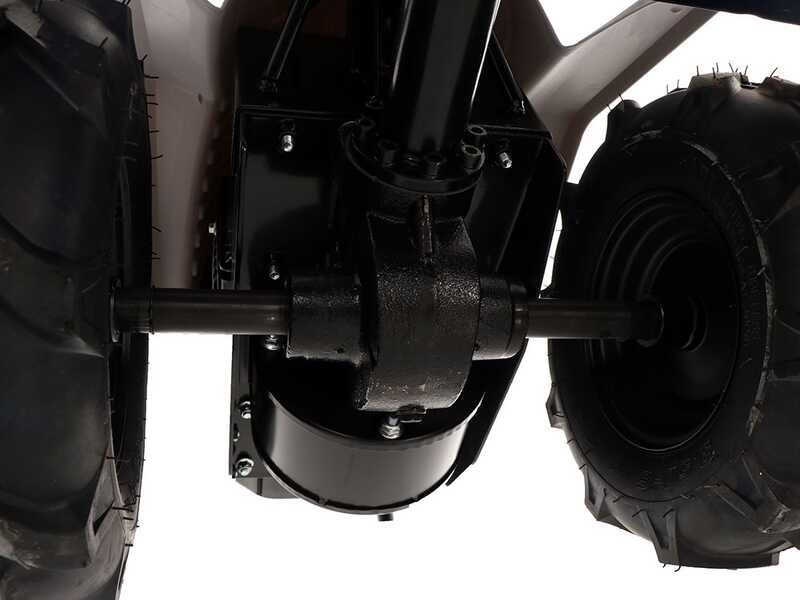

Wheel transmission

Stone guard

Height-adjustable threads:

• High
• Low
