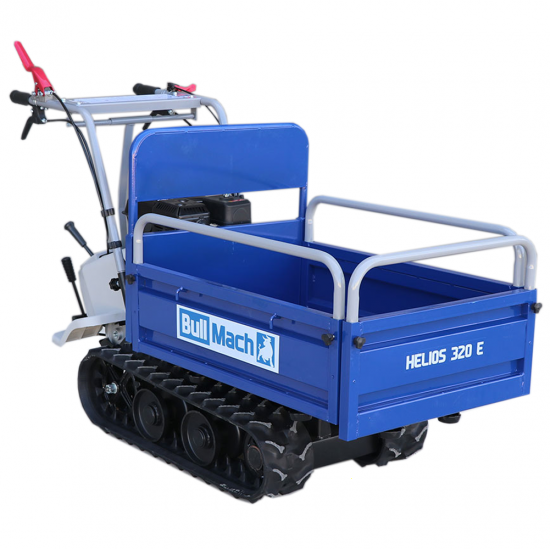

BullMach Helios 320 E Tracked Power Barrow - Extandable Manual Barrow 320 Kg

Tracked power barrow with extendable tipping with an actual capacity of 320 kg. The robust steel frame and the gearbox with six forward and two steps back make this tracked power barrow versatile and efficient.

The tipping of this tracked power barrow is extensible, and this allows to greatly increase the load carrying capacity of this machine, also another great advantage is the provision of additional removable sides, which could achieve an extraordinary versatility of work. Among the other features of this tracked power barrow it is possible to find its tracks, that ensure stability and safety during use of the machine even with a heavy load and gradients that normal tracked power barrow fail to address. The very sturdy steel frame with six forward gears and two back make this tracked power barrow very versatile and efficient.

Thanks to the self-propelled on tracks and to the engine of 6.5 HP and 196 cc of displacement this tracked power barrow is able to carry loads

• Up to a maximum of 320 kg on flat ground
• Up to a maximum of 250 kg on grounds with a maximum slope of 14 °, thus it is an indispensable tool for each type of transport.

We remind you that it is always good to:
1) check the engine oil level
2) put oil in the filter because it is not present (in case of filter in oil bath)
3) carefully read the instructions manual before carrying out any oil check and topping up operation (the manufacturer can modify the supply modalities specified in the two upper points without any prior notice).

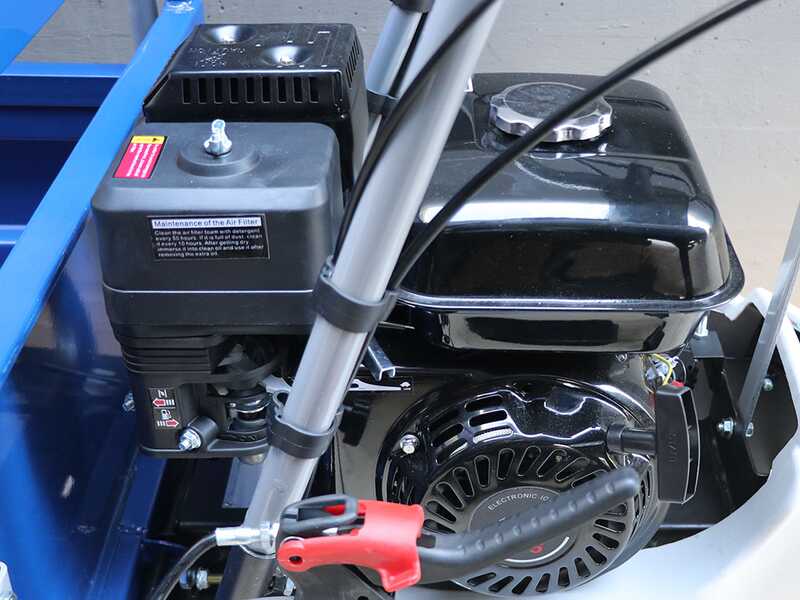

The 168F engine is suitable for works where a great power is required obtained thanks to the high displacement of 196 cc

Features:

4-stroke petrol engine of the latest technology overhead valve shaft “OHV” and automatic decompression ignition.

Easy re-coil start thanks to the automatic fuel priming system.

ATTENTION The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the unit.

Air filter

Barrow made in high-resistance steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress.

The load floor is at the minimum distance from the ground both to facilitate the operations of loading / unloading that to keep low the center of gravity of the machine.

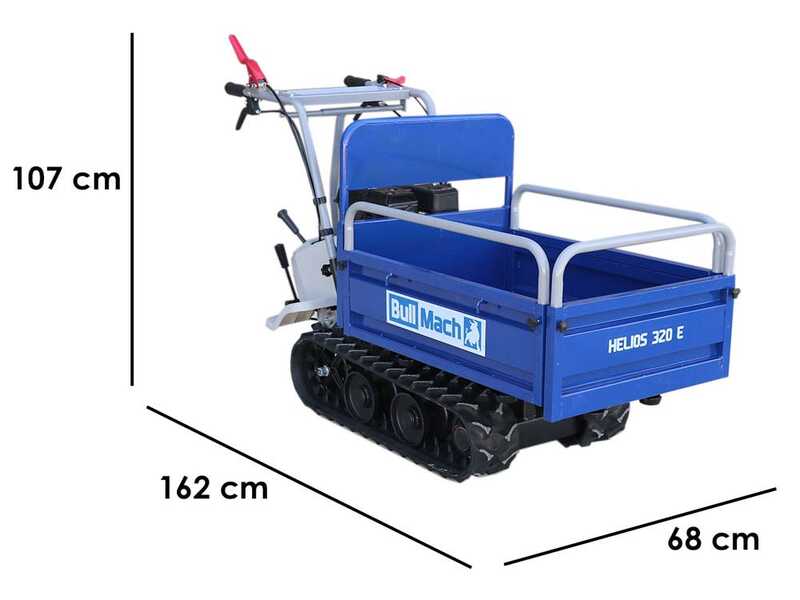

Closed barrow measurements: 850x570x560 mm

Extended barrow measures: 1070x790x560 mm

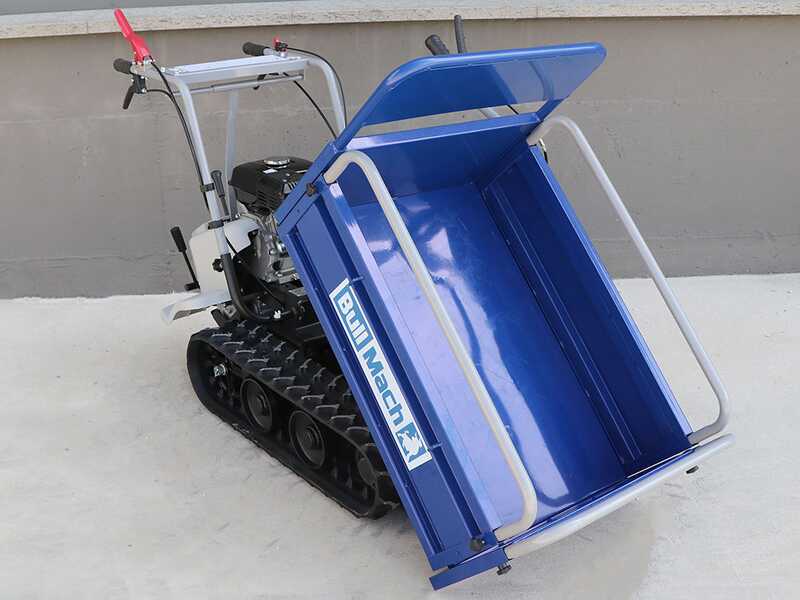

The body is able to tilt up to 60 °.

For the barrow extension you will only have to unscrew knobs placed under and laterally to the barrow, and screw them back on once it reaches the size that you need.

The mechanical tilting of the body is activated manually with the special rubber release lever placed on the side of the barrow.

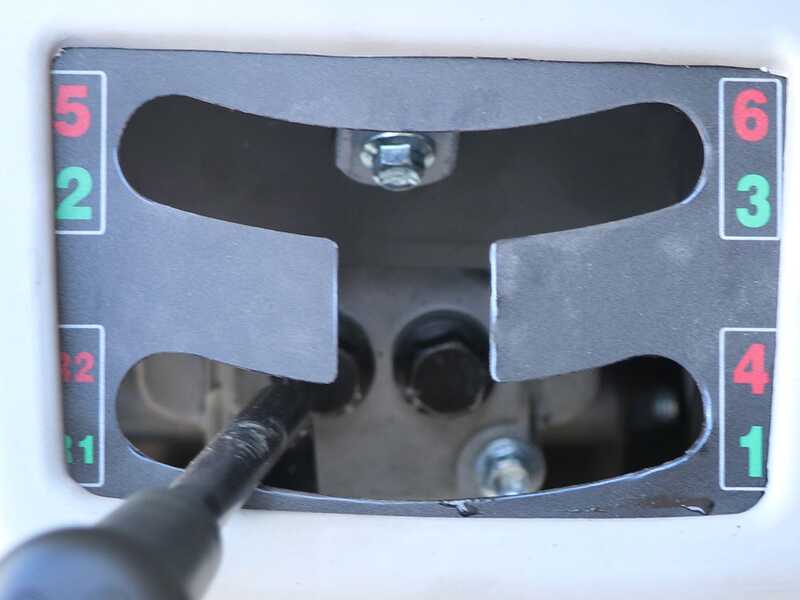

Gearbox : large, reliable and accurate.

The tracked power barrow is provided with reducer gears, which allows him to double the gears and get to 6 for the advancement and 2 for reverse. Thanks to the regulator will be able to always have the right traction in any situation. It uses the same concept as off-road vehicles. The two new levers allow a fast and convenient insertion of the desired gear. One to enter the 3 gears (forward and reverse), the other to select fast or slow mode.

The engageable gears are a total of 8 ( 6 + 2 ) Allowed by this adjustable speed from low to high of each gear. Through the lever located to the right of gearbox it will be possible to choose between two speeds. The fastest gears are indicated for the sliding portions while setting the low speed (Low range) it will be possible to cross with ease even the roughest spots.

Parking brakes :
annexes to the gearbox, for greater stability and security.
These are automatically activated to release the command (leaving the car in neutral, even in strong gradient, the machine remains perfectly blocked)

Transmission :
Robust and resistant, it allows to manage the steering acting on the single track deactivating the rotation

The width and profile of the tread guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

Total track width: 180mm

The width and profile of the tread guarantee perfect grip and stability on all types of terrain. Tracks made in high-density rubber to ensure a longer life and greater efficiency, with teeth designed to have a good adhesion on rough terrains, provided with 2 Rollers .

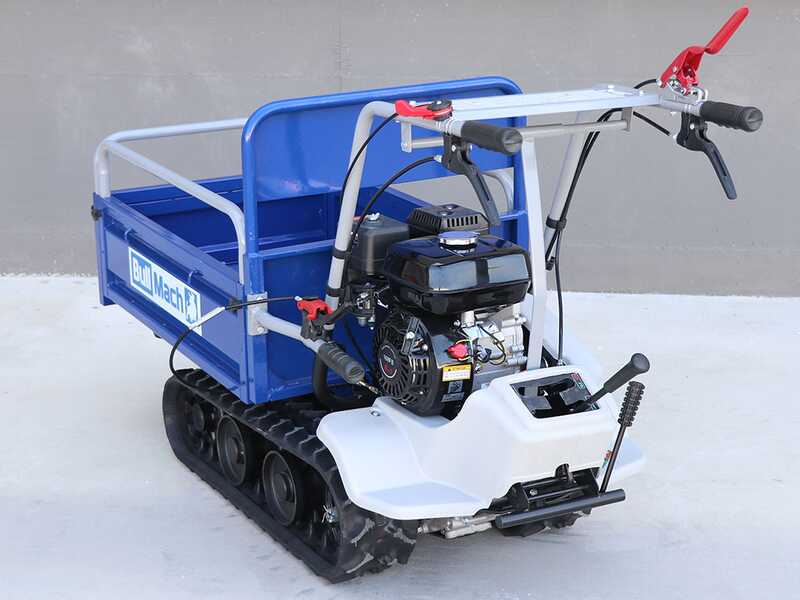

Control: easy to operate and ergonomic, they offer precision and can be controlled in the work.

Large red lever for motion activation .

The two lower levers are for the steering, respectively right and left.

The steering is modulated as a function of the control lever and allows it to move smoothly. By partially pulling one or the other lever also the steering of the affected track, right or left, will be partial.
This allows the steering of the tracked power barrow in an extremely easy way, without causing any sudden movements.

Safety brake that allows the immediate arrest.

Lever for the lifting of the barrow.

Ignition switch;

Throttle
