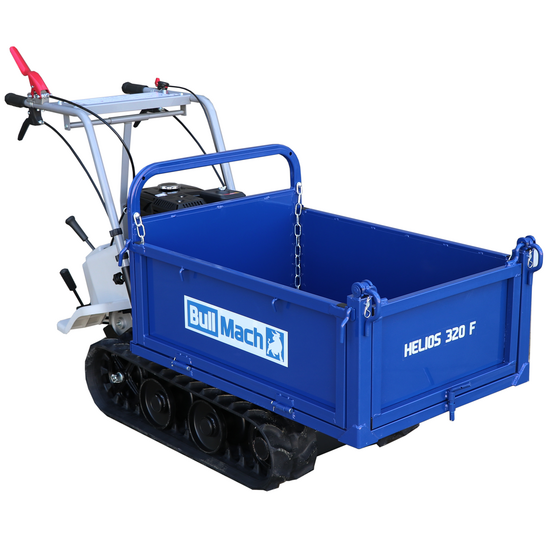

BullMach Helios 320 F Tracked Power Barrow with Tipping Sides - 320 Kg Capacity

Tracked power barrow with a tipper body with a actual capacity of 320 kg. Thanks to its own wheels on tracks and to the engine from 196cc this tracked power barrow is capable of carrying loads of 320 Kg also on sloping grounds, thus being an indispensable tool for each type of transport (wood, concrete, bricks, rubble, debris, etc.)

The robust steel frame and the gearbox 6 forward and 2 back make this tracked power barrow versatile and efficient.

It is equipped with tipping with 3 openable and removable sides which allow to considerably increase the load carrying capacity of this tracked power barrow. Moreover, another great advantage is the tilting front panel that allows to obtain an extraordinary versatility of work.

The mechanical overturning by means of a lever and the barrow with hinged sides make this model extremely versatile and easy to use.

Thanks to the self-propelled on tracks and to the engine of 6.5 HP and 196 cc of displacement this tracked power barrow is able to carry loads

• Up to a maximum of 320 kg on flat ground
• Up to a maximum of 320 kg on grounds with a maximum slope of 20 °, thus it is an indispensable tool for each type of transport.

We remind you that it is always good to:
1) check the engine oil level
2) put oil in the filter because it is not present (in case of filter in oil bath)
3) carefully read the instructions manual before carrying out any oil check and topping up operation (the manufacturer can modify the supply modalities specified in the two upper points without any prior notice).

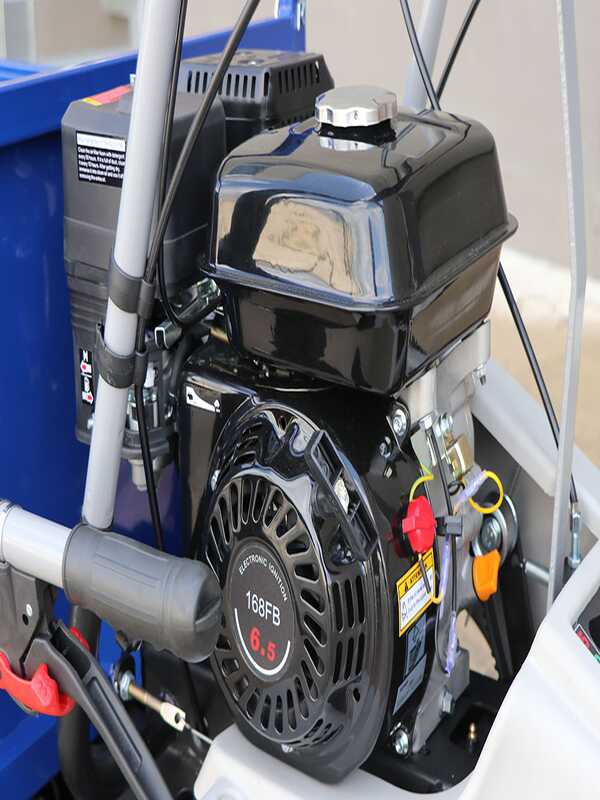

The engine is a 4 stroke petrol engine and features the OHV overhead valve technology.

It is positioned in the front area of the tracked power barrow so as to be able to gain immediate access to all mechanical parts and facilitate maintenance operations.

Traditional recoil starter with self-retracting lanyard

Features:

ATTENTION

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

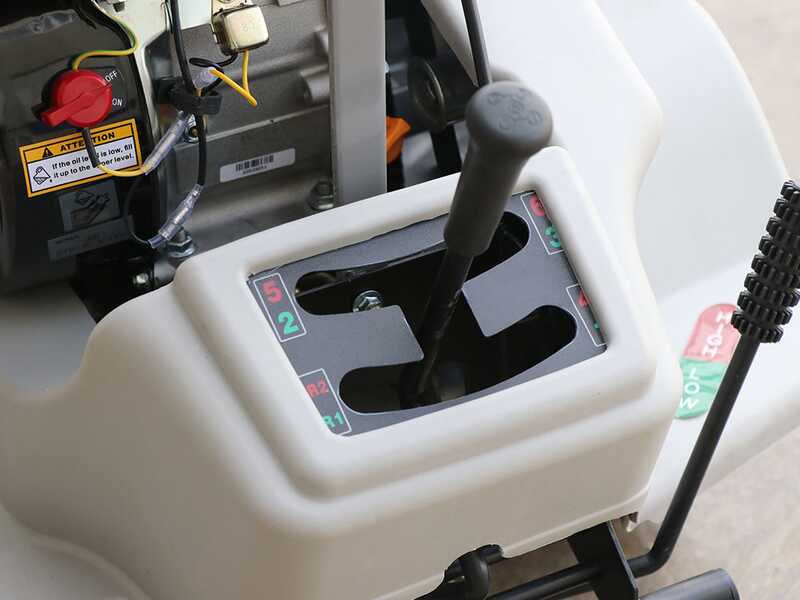

Gearbox: Large, reliable and accurate.

Speed:
6 forward 2 reverse gears

Gearbox large, robust and reliable with thick protection from stones or other objects present on the ground

Parking brakes:
annexes to the gearbox, for greater stability and security.
These are automatically activated to release the command (leaving the car in neutral, even in strong gradient, the machine remains perfectly blocked)

Transmission:
Robust and resistant, it allows to manage the steering acting on the single track deactivating the rotation

Handy lever to change from lower gears (1, 2, 3) and higher gears (4, 5, 6).

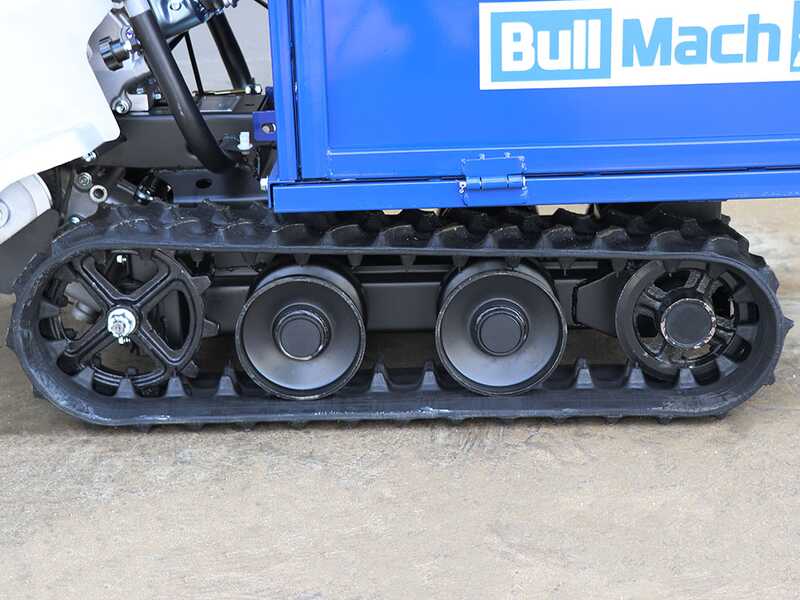

The width and profile of the tread guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

The perfect front / rear balance ensures the distribution of loads and a perfect adherence to the ground.

Track Width: 160mm

High resistance steel barrow. The loading platform is at the minimum distance from the ground to facilitate loading / unloading operations

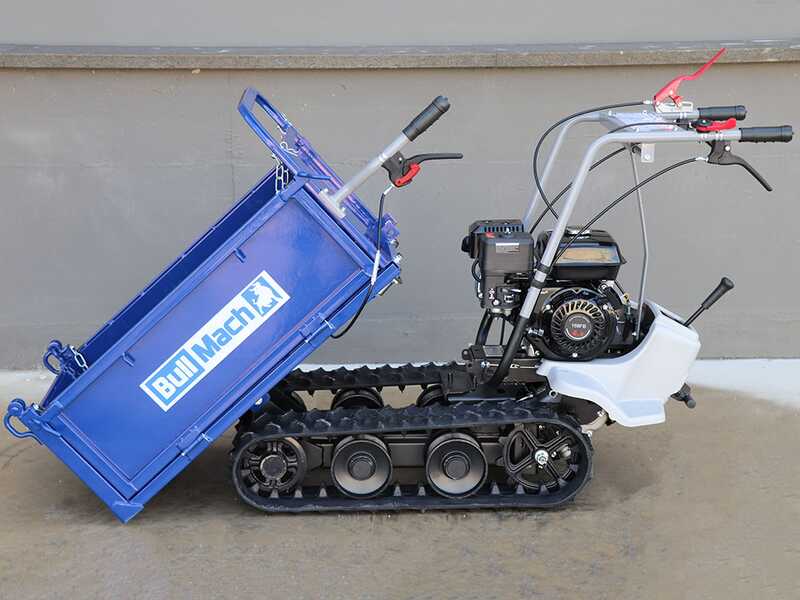

Mechanical Tipping: Manually activated with the appropriate rubberized release lever with spring, and facilitated (in case of heavy loads) from the lifting tipping lever placed on the side.

Opening sides: to significantly increase the size of the load floor, it allows to also optimize the most bulky transport.

Moreover, another great advantage is the tilting front panel which allows to obtain an extraordinary versatility of work during unloading of materials such as sand, earth, debris etc.

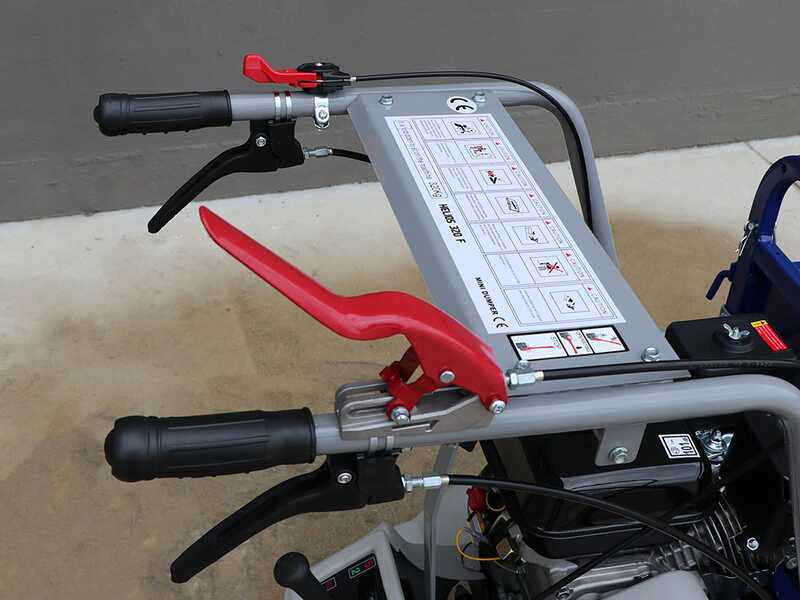

Control: easy to operate and ergonomic, they offer precision and can be controlled in the work

Large red lever for motion activation.

The two lower levers are for the steering, respectively right and left.

The steering is modulated as a function of the control lever and allows it to move smoothly. By partially pulling one or the other lever also the steering of the affected track, right or left, will be partial.
This allows the steering of the tracked power barrow in an extremely easy way, without causing any sudden movements.

Safety brake that allows the immediate arrest.

Accelerator lever

Focus on the lever for adjusting the petrol
