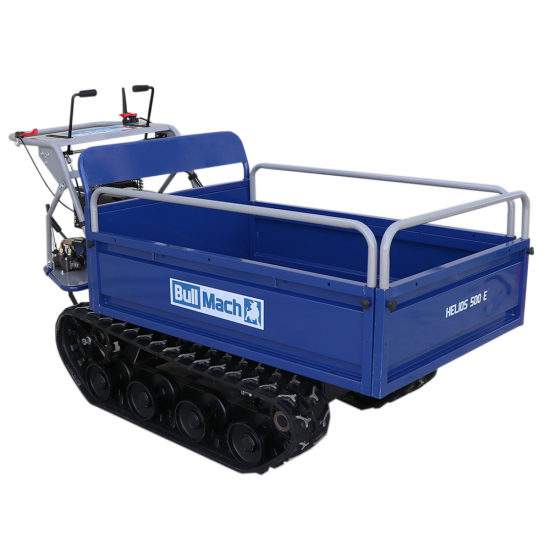

BullMach Helios 500 E Tracked Power Barrow - Hydraulic Extendable Barrow 500 Kg

Tracked power barrow with extendable tipping with an actual capacity of 500 kg. The robust steel frame and the gearbox with three forward gears and one backward make this tracked power barrow versatile and efficient.

The tipping of this tracked power barrow is extensible, and this allows to greatly increase the load carrying capacity of this machine, also another great advantage is the provision of additional removable sides, which could achieve an extraordinary versatility of work. Among the other features of this tracked power barrow it is possible to find its tracks, that ensure stability and safety during use of the machine even with a heavy load and gradients that normal tracked power barrow fail to address.

The frame of the machine is designed and built so as to make it lightweight and robust.

Thanks to the self-propelled track drive and the 7 HP, 212 cc engine, this power barrow is capable of transporting loads of up to 500 kg on flat and sloping surfaces of up to 20 degrees.

We remind you that it is always good to:
1) check the engine oil level
2) put oil in the filter because it is not present (in case of filter in oil bath)
3) carefully read the instructions manual before carrying out any oil check and topping up operation (the manufacturer can modify the supply modalities specified in the two upper points without any prior notice).

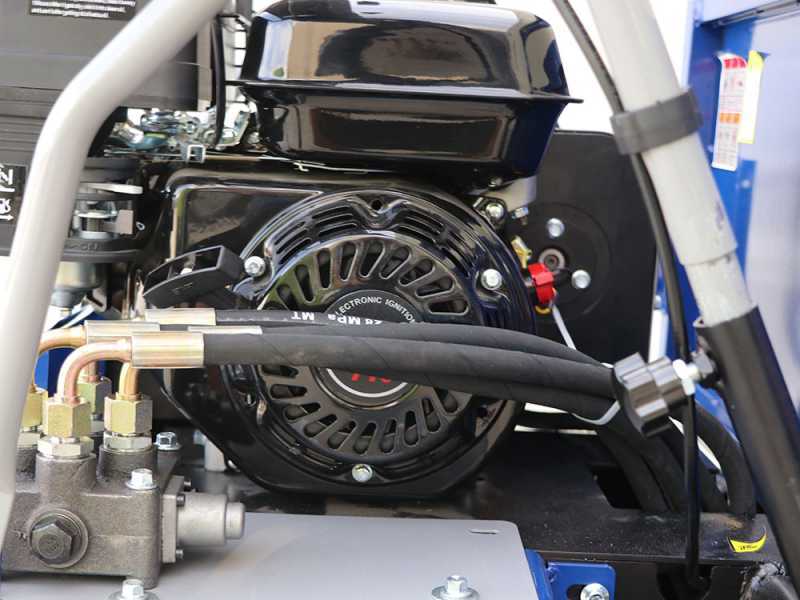

The170F engine is suitable for works where a great power is required obtained thanks to the high displacement of 212 cc

Features:

Brand new 4-stroke engine overhead valve shaft OHV starting with automatic decompressor.

Easy recoil start thanks to the automatic fuel priming system.

ATTENTION The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the unit.

Cable retainers

Air filter

Barrow made in high-resistance steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress.

The load floor is at the minimum distance from the ground both to facilitate the operations of loading / unloading that to keep low the center of gravity of the machine.

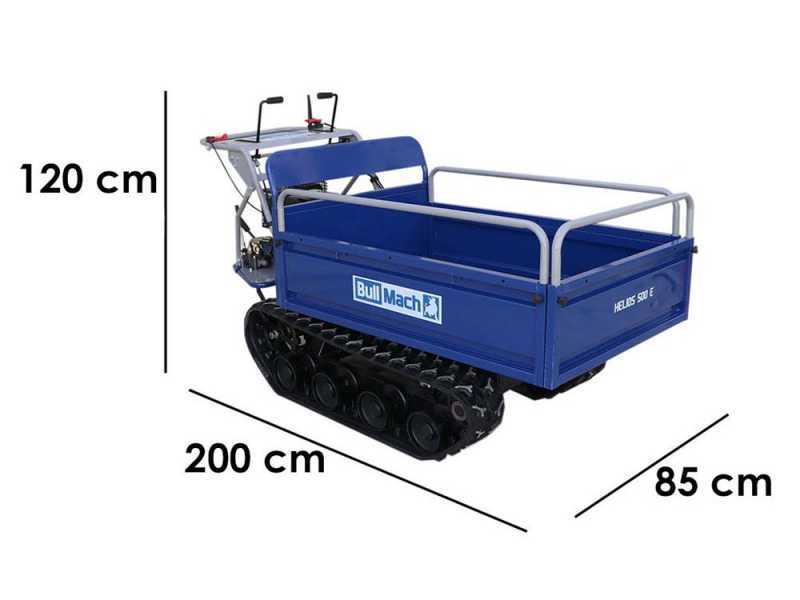

Closed barrow dimensions: 1190 x 790 x 420 cm

Extended barrow dimensions: 1410 x 1230 x 420 cm

To extend the barrow you will only need to unscrew the knobs placed under and laterally to the body, and screw them back on once it reaches the size that you need.

The box is also equipped with removable overlays that can be used or not depending on the needs.

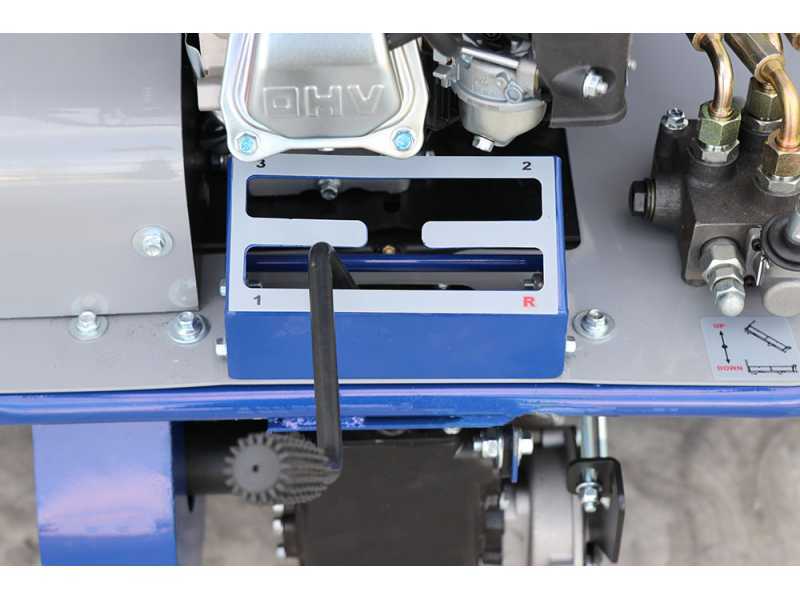

Gearbox: Large, reliable and accurate.

Speed:
3 forward
1 reverse

Parking brakes:
annexes to the gearbox, for greater stability and security.
These are automatically activated to release the command (leaving the car in neutral, even in strong gradient, the machine remains perfectly blocked)

Transmission:
Robust and resistant, it allows to manage the steering acting on the single track deactivating the rotation

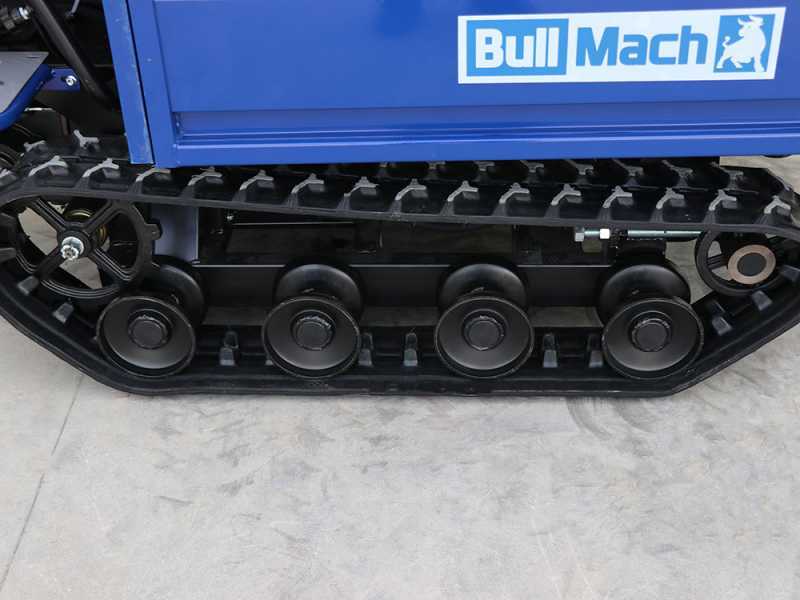

The width and profile of the tread guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

Total track width: 180mm

The width and profile of the tread guarantee perfect grip and stability on all types of terrain. Tracks made in high-density rubber to ensure a longer life and greater efficiency, with teeth designed to have a good adhesion on rough terrains, provided with 4 Rollers .

This model also has a tracked power barrow tall wagon and higher tracks than many of the tracked power barrows on the market. The wagon so high, no less than 13 cm from the ground allows the tracked barrow to travel even on more uneven road and disconnected always with the maximum safety and adhesion since, given the large gap, the lower part of the tracked barrow not scrape the ground.

The tracked power barrow is able to go up without problems on steps up to 18 cm in height.

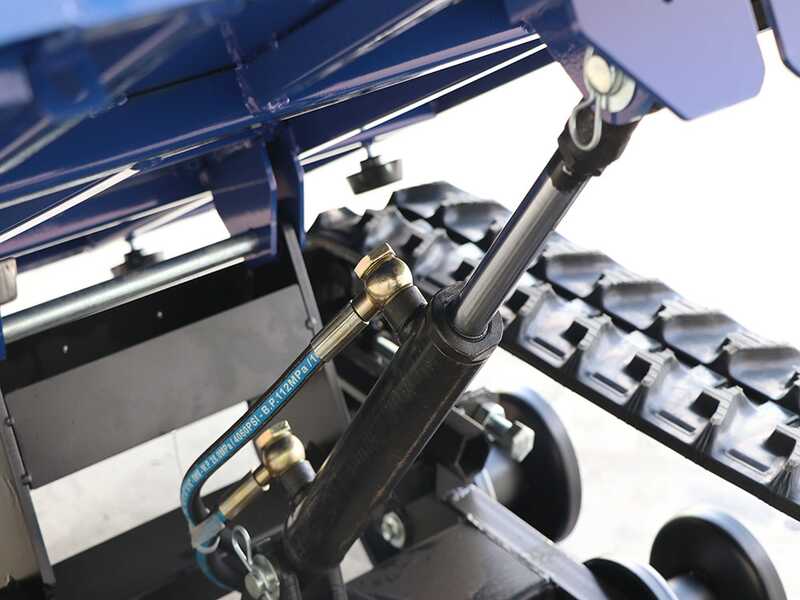

Powerful hydraulic circuit characterized by:

- oversized hydraulic pump

- distributor has a lever to start the pump

- sturdy hydraulic cylinder fitted with a blocking valve that ensures the blocking of the tipping in the case of sudden pressure loss

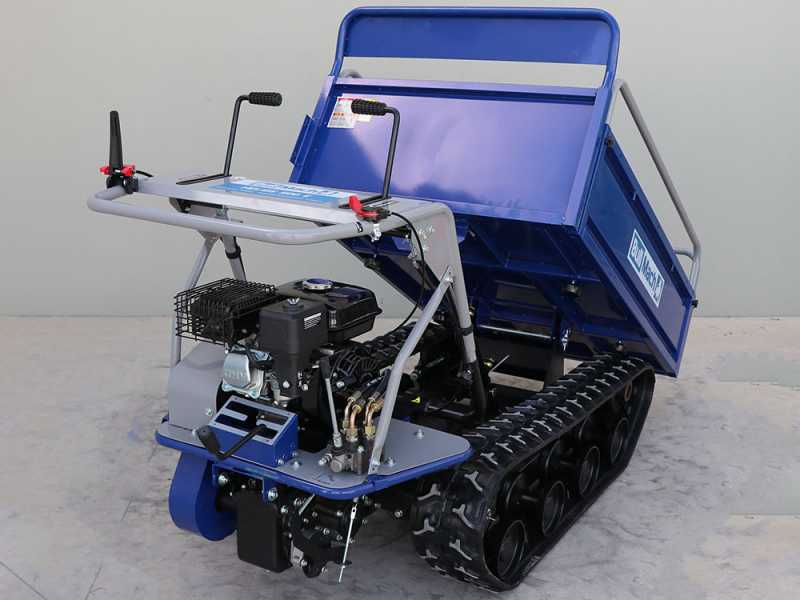

- maximum tilting angle 25°

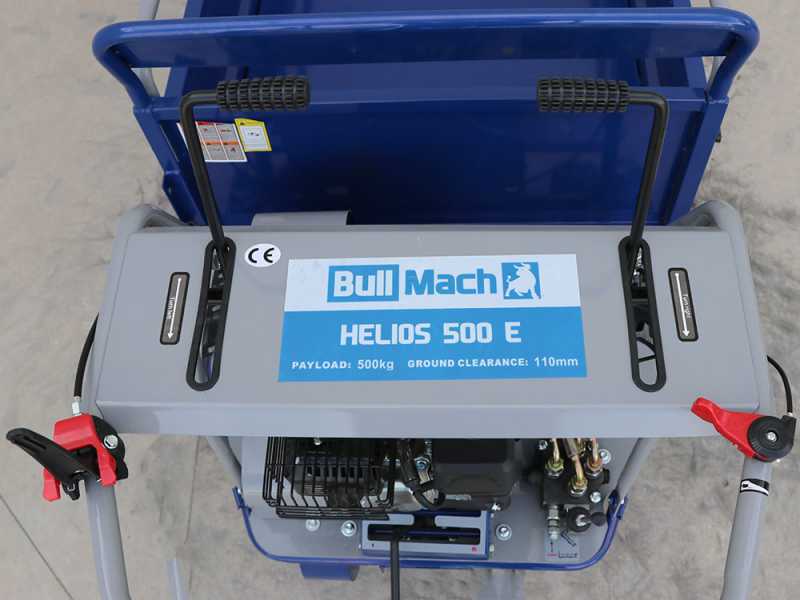

Control: easy to operate and ergonomic, they offer precision and controllability in the work

Large black lever for motion activation.

The two lower levers are for the steering, respectively right and left.

Speed regulator

The steering is modulated as a function of the control lever and allows it to move smoothly. By partially pulling one or the other lever also the steering of the affected track, right or left, will be partial.
This allows the steering of the tracked power barrow in an extremely easy way, without causing any sudden movements.

Safety brake that allows the immediate arrest.

Lever for the hydraulic lifting tipping.

Ignition switch;

Knob for the opening of the barrow

Knob for removing overlays

Gear lever
