BullMach NAYLA 50 - Petrol Water Pump - High Head Lift - with 50/40/40 mm Fittings

Add a question
ID: K608428

EAN: 8053435097949

MPN: NAYLA 50

9,0/10
After-sales assistance & Spare parts
BullMach NAYLA 50 - Petrol Water Pump - High Head Lift - with 50/40/40 mm Fittings
Special offer
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Motor brand
Producer-manufactured
Motor Model
FC170F-1
Cubic capacity
212 cm³
Nominal power
7 HP
Power supply
Petrol
Double delivery mode
Yes
Water pump type
Self-priming
Pump material
Aluminium
Flow rate
300 L/min
Fittings diameter
50 mm / 40 mm
Max. head lift
78 m
High delivery head
Yes
Max. suction height
6 m
Aluminium fittings
Yes
Product Features
Model:
NAYLA 50
Power supply:
Petrol
Fuel:
Petrol
Starting mode:
Recoil
Double delivery mode:
Yes
Manufacturing country:
China
Motor data
Motor brand:
BullMach
Motor Model:
FC170F-1
Cubic capacity:
212 cm³
No. of cylinders:
1
Nominal power:
7 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.6 L
Oil tank capacity:
0.6 L
Manufacturing country:
China
Pump data
Pump brand:
BullMach
Water pump type:
Self-priming
Pump material:
Aluminium
Fittings diameter:
50 mm / 40 mm
Flow rate:
300 L/min
Max. head lift:
78 m
High delivery head:
Yes
Max. suction height:
6 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
China
Equipment
Recoil start system (with rope):
Yes
Aluminium fittings:
Yes
Free gifts/extra features
Oil bottle:
Yes
Suction filter:
Yes
Instructions manual:
Yes

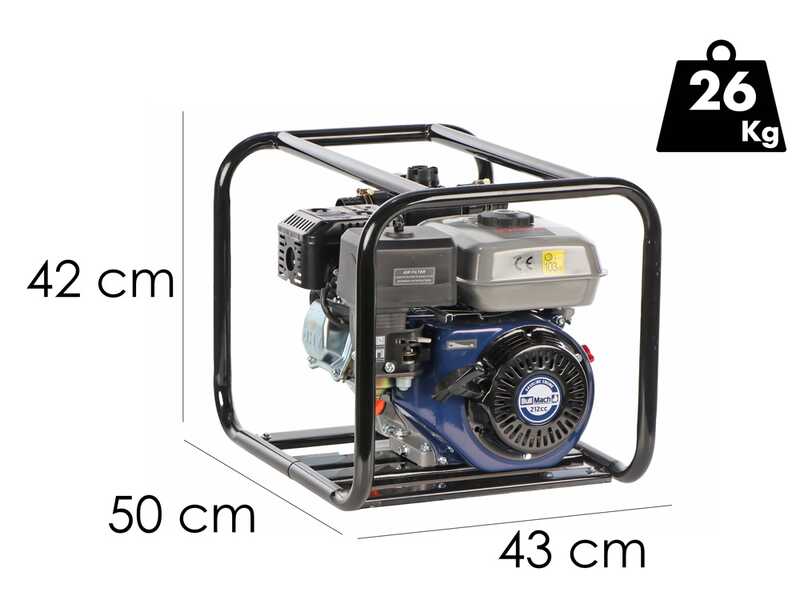

Dimensions and logistics
Product dimensions in cm (L x W x H):
54x43x42 cm
Net weight:
26 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
52x43x44 cm
Gross weight (packaging included) :
27 Kg
Assembly time:
5 minutes
Prompt Delivery
90 items in stock
Free Shipping
Estimated delivery: 09/04/2025 - 11/04/2025
Lowest price:
€ 235,10
-4 %
€ 224,65
Vat included

You're viewing:
Customers also viewed:
Description

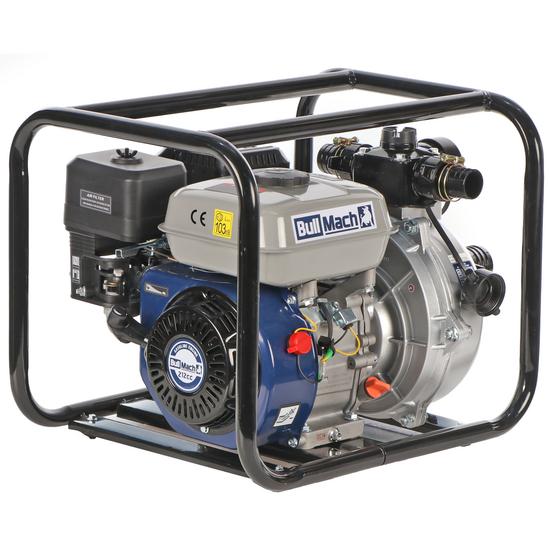

BullMach NAYLA 50 Irrigation Water Pump

The BullMach NAYLA 50 high-head water pump is designed to meet the most demanding watering needs. Equipped with an aluminium self-priming pump, it guarantees robustness and durability. With 50 mm and 40 mm fittings, it offers a flow rate of 300 litres per minute, ensuring efficient irrigation.

This high-pressure water pump achieves a maximum head of 78 metres, ideal for operations requiring pumping water at great heights. With a maximum draft height of 6 metres, it can draw water from deep wells. Manufactured in China, the BullMach NAYLA 50 is equipped with a pair of aluminium ferrule couplings and recoil starter with rope, ensuring ease of use and reliability.

Distinctive features:

  • Pump type: Self-priming
  • Pump material: Aluminium
  • Fitting diameter: 50 mm / 40 mm
  • Flow rate per minute: 300 L/m
  • Maximum head lift: 78 metres
  • Maximum suction height: 6 m
  • Pair of fittings with ring nut: Yes
  • Recoil start (with rope): Yes
  • Aluminium fittings: Yes

These specifications make the BullMach NAYLA 50 an excellent choice for those needing a reliable and powerful motor pump for high head irrigation. Its aluminium design and high flow rate set it apart from other water pumps, offering a durable, high-performance solution for all irrigation needs.


These water pumps are suitable for transferring water (for example, from one cistern to another) of for furrow irrigation in fields and gardens.
We do not guarantee their suitability for use in combination with sprinklers or sprinkler systems of various types (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head, pressure, pipe diameters, valves, nozzles, and so on), which may require more specific types of pumps for water systems.

Engine Technical Specifications

Engine specifications:

Model: FC170F-1
Type:
4-stroke, single cylinder, forced-cooled, OHV
Displacement: 212 cc
Power: 7 Hp
Fuel: petrol
Tank: 3.6 L

The engine features a recoil start and a metal tank.

Detail of the engine adjustment controls, including the air adjustment and the engine throttle adjustment.

Water Pump Technical Features

The pump fitted on the NAYLA 50 is entirely made of cast aluminium alloy, making it light, yet strong and able to withstand prolonged pumping work.

Pump features:

Suction: 50mm
Delivery: 50mm
Side fittings: 2x 40 mm
Maximum suction height: 6 m
Max. flow rate: 300 L/min
Max. head: 78 m

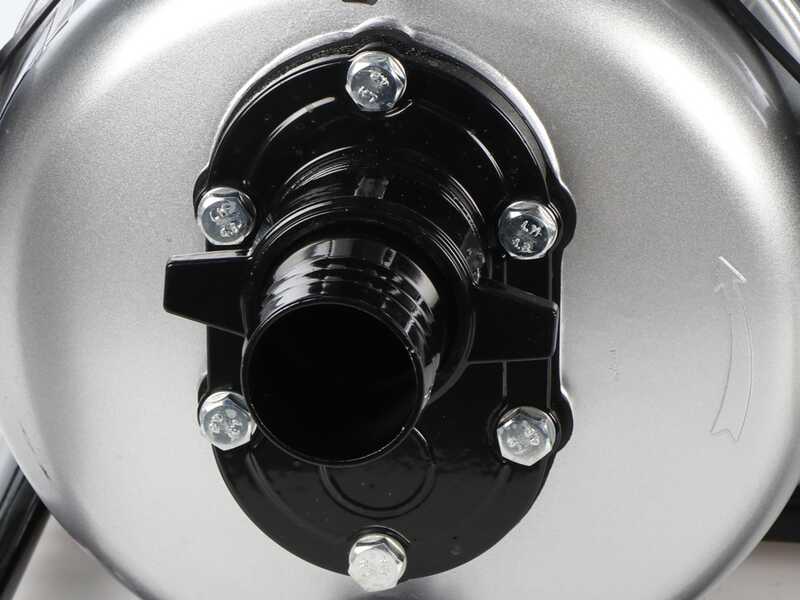

Detail of the 50 mm suction and delivery fittings.

Detail of the 40 mm suction and delivery fittings.

Detail of the storage plugs, to keep the pump clean when not in use.

The water pump's side delivery is crucial for the optimal operation of the equipment. They offer a choice of two connection alternatives, ensuring a wide versatility of use.


Options for Use

  1. 50 mm single delivery: The use of a single 50 mm pipe allows direct connection to the 40 mm central delivery fitting. This configuration ensures a powerful and constant flow of water, ideal for applications requiring high water flow rates.

  2. 40 mm twin delivery: Using two smaller pipes, 40 mm each, it is possible to achieve a distribution of water over two separate points. Appropriate plugs close unused delivery outlets, ensuring that there is no loss of pressure and that the water is directed correctly.

WARNING:

In order to reach the maximum draft height, we recommend using a foot valve

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Standard Equipment

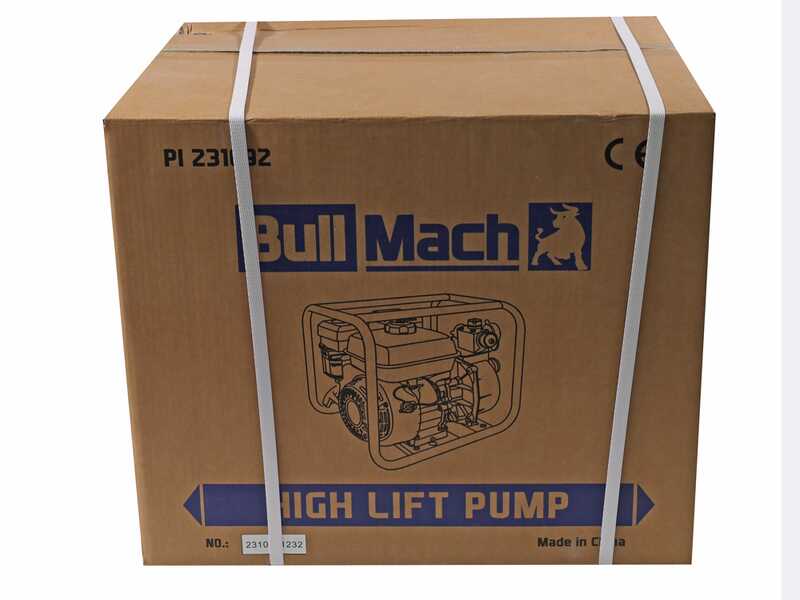

The water pump is shipped in its original packaging, equipped with tools for assembly and maintenance, 2x 50 mm fittings, 2x 40 mm fittings, metal clamps and 4 rubber gaskets for the fittings, as well as the foot valve for draining.

All this is provided with instructions for use
