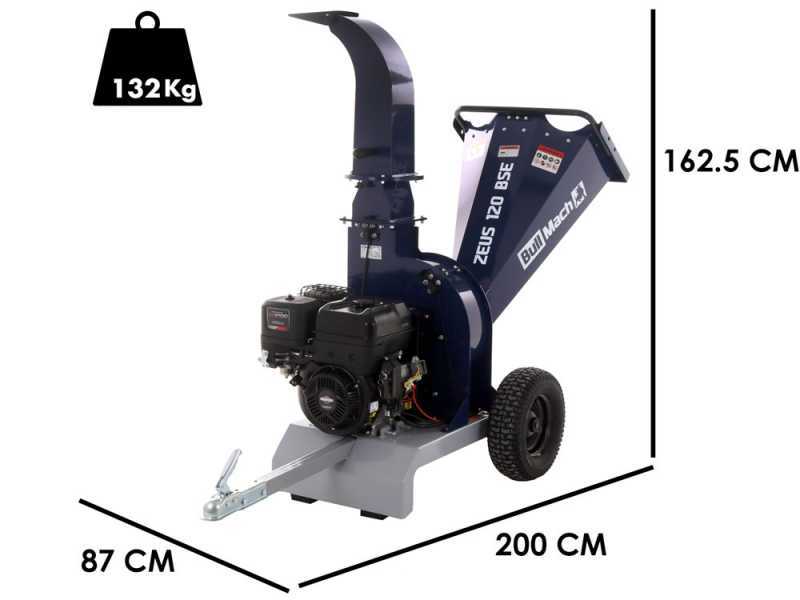

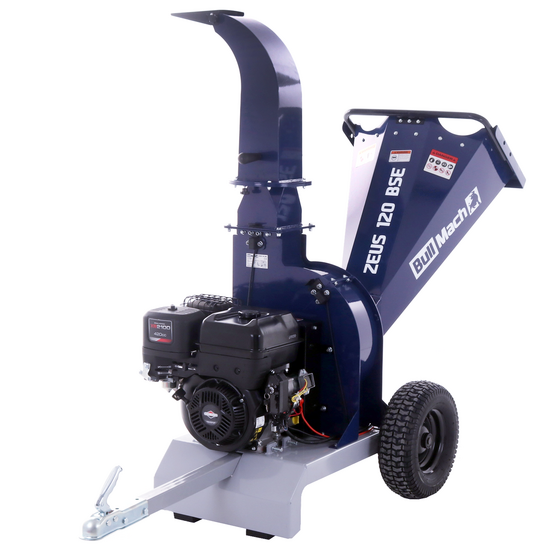

BullMach ZEUS 120 BSE - Professional petrol wood chipper - B&S XR2100 13.5 HP engine with electric start

The BullMach ZEUS 120 BSE petrol wood chipper / shredder allows reducing the weeds and twigs to an easy to handle and suitable size for composting. The tiny wood chips crushing also reduces the time required for the decomposition of the latter.

The large steel hopper can process even very bulky branches and leaves without having to pre-shred them. Thus, it also features a large capacity that allows entering large volumes of material at a time.

Cutting diameter: 80 mm

This garden shredder is equipped with three safety switches or 'sensors' that stop the machine or do not allow it to be switched on if only the three the controls correctly pressed; one of them is located at the end of the hopper, another one at the discharge discharge chute connection to the main body and the last one on the housing covering the central rotor.

Thanks to the wheels and handles at the ends of the hopper, moving the machine is easy and effortless.

This petrol wood chipper features the quality of large-sized shredders, thus ensuring maximum results in terms of cutting, speed and reliability; The machine is compliant with the CE standards.

Powered by a Briggs & Stratton XR2100 (13.5 Hp), which is both powerful and reliable.

The machine also features a safety system near the battery that can be easily reached with the foot.

Warning: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and others)

NOT SUITABLE FOR SMALL AND UNSUFFICIENT BRANCHES,ESPECIALLY FOR OLIVE BRANCHES!

Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper);

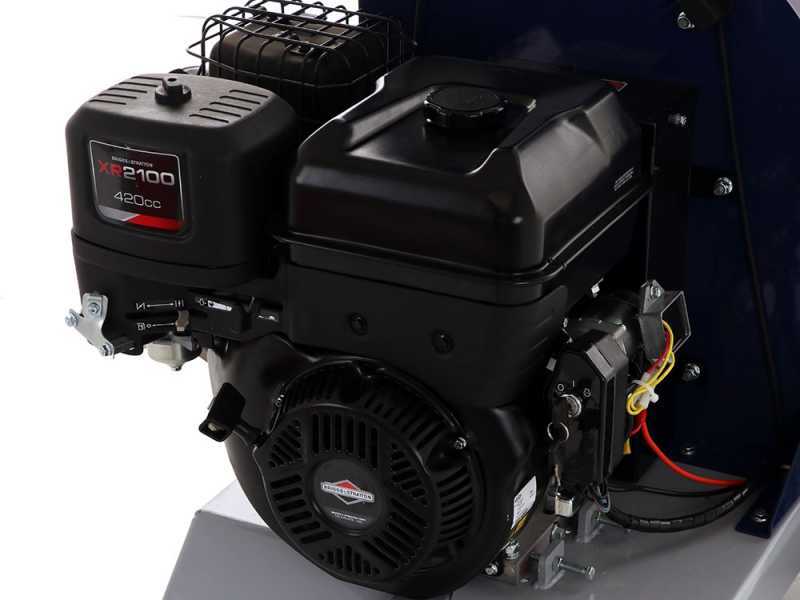

Powerful Briggs & Stratton 420 cc petrol engine:

Features:

Electric start with key

Fuel tank.

Nominal power: 13.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 12.06 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

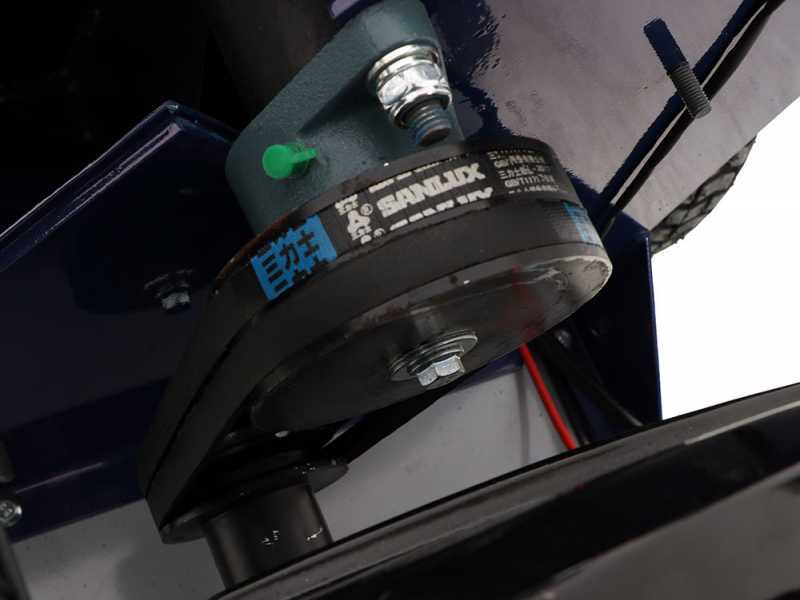

It is the only machine of its category with intermediate 2-belt drive transmission

This feature gives high sturdiness to the unit, protecting both the engine and all the shredding system from every possible internal hit or kickback.

Higher durability over time compared to the standard system of all the manufacturers of petrol-powered machineries, as the transmission is directly connected to the shredding cutting system.

In case of a rotor clogging caused, for example, by a too large branch, stones, etc. there is no risk of breaking the drive shaft and the motor, but the intermediate belt will slip or at least will brake down.

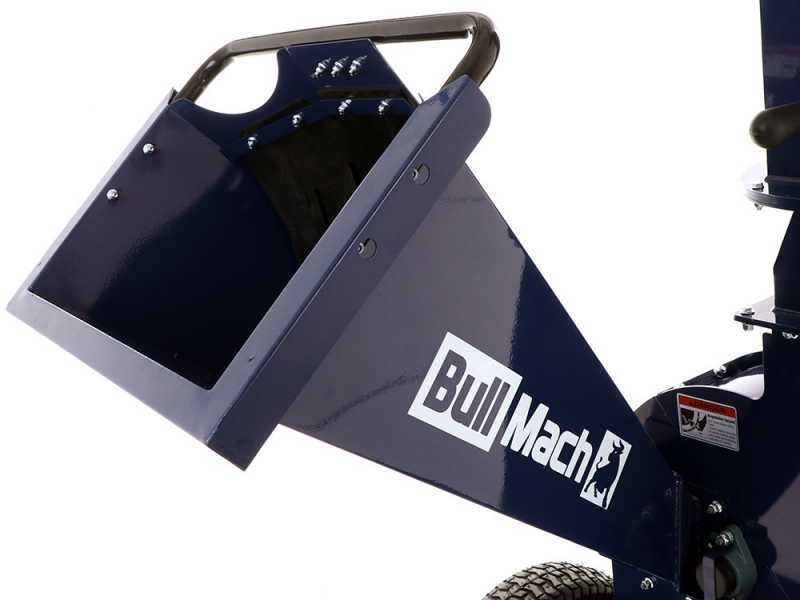

UNIFIED: considerably simplifies and speeds up operations compared to shredders featuring two feeding hoppers.

SIZE: (Wx H) 53.5 x 36 cm * This value refers to the useful inlet size of the hopper

SAFETY SISTEMS: Hopper opening sensor, discharge chute opening sensor, rotor housing opening sensor. It prevents the machine operating if at least one of these parts is opened.

SAFETY SYSTEM: emergency button In case of danger it is possible to immediately stop the machine both for personal safety, and in case of clogging.

Focus on the rubber bulkheads on the hopper opening.

The cutting system consists of:

• 3 large blades, mounted on a swivelling steel plate placed at the end of the hopper.

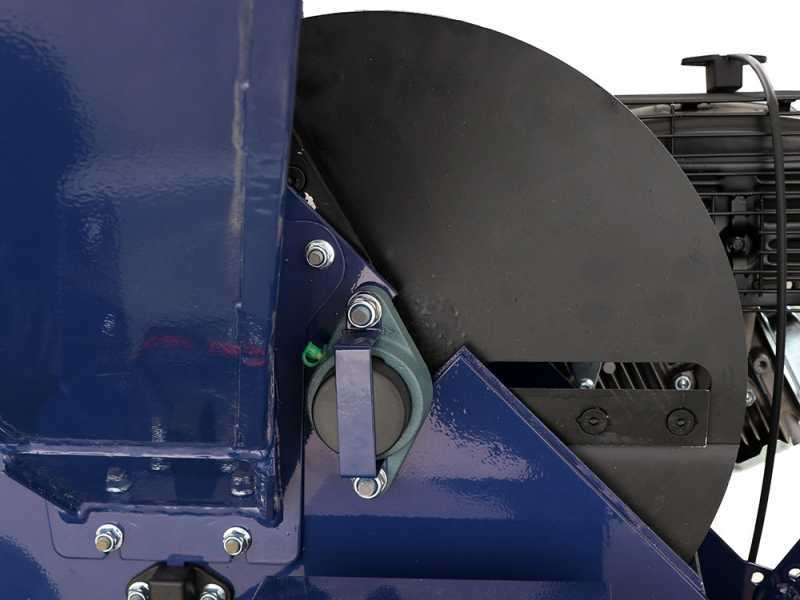

Equipped with large and sturdy shredding chamber. It features a rounded shape that ensures great productivity and long durability of the cutting system.

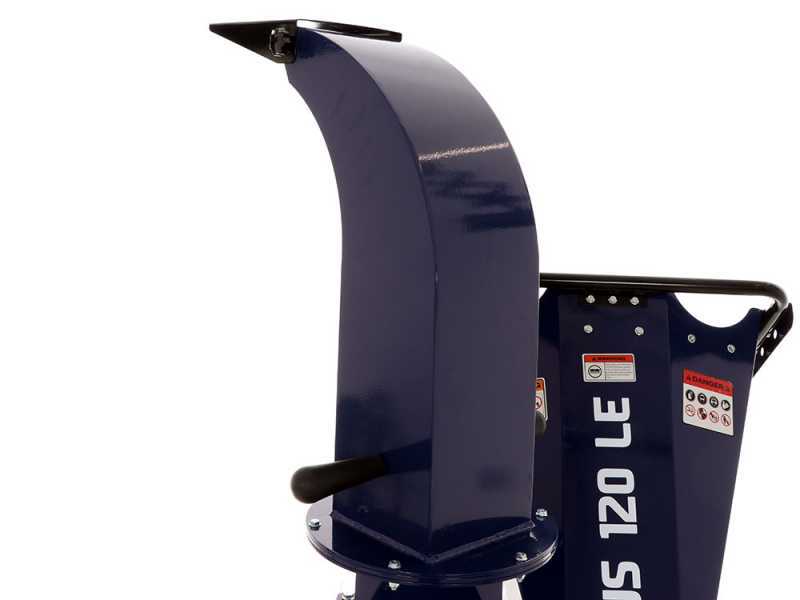

Provided with 180° rotating discharge chute.

Simply grab the two handles on the side of the chute and rotate it to the desired direction.

Thanks to its 1.63 cm height, the discharge chute allows you to throw out the wood chips straight into a tractor trailer or truck.

The inclination of the discharge chute is also adjustable in order to control the distance of the discharged shredded material.

Adjustable discharge chute, 1.6 m from the ground, equipped with adjustable-tilting deflector.

It allows discharging the wood chips directly into a box.

Further to the deflector tilt, it is also possible to adjust the discharge chute: indeed it can rotate and simply adjusted either to right or left by means the proper lever.

Focus on the tow hitch

Focus on therubber feet.

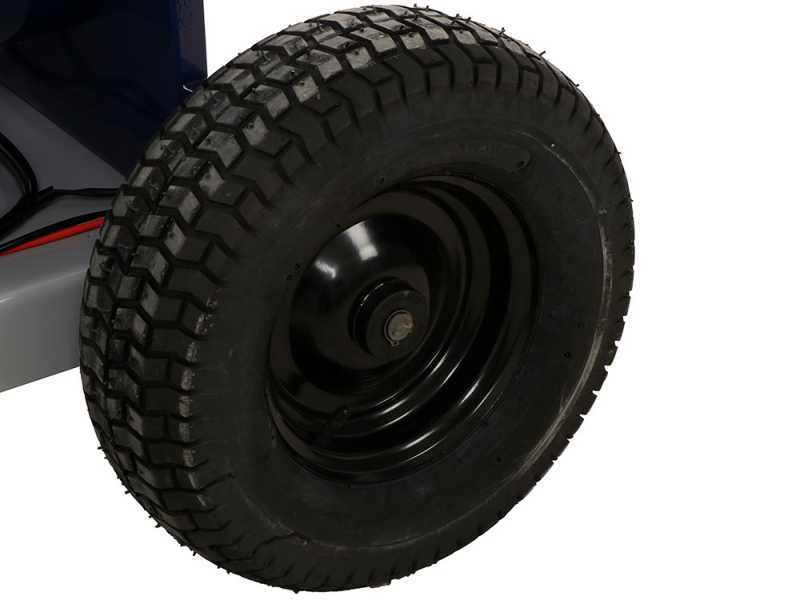

The wood chipper is also provided with large wheels that ensure easy transport.

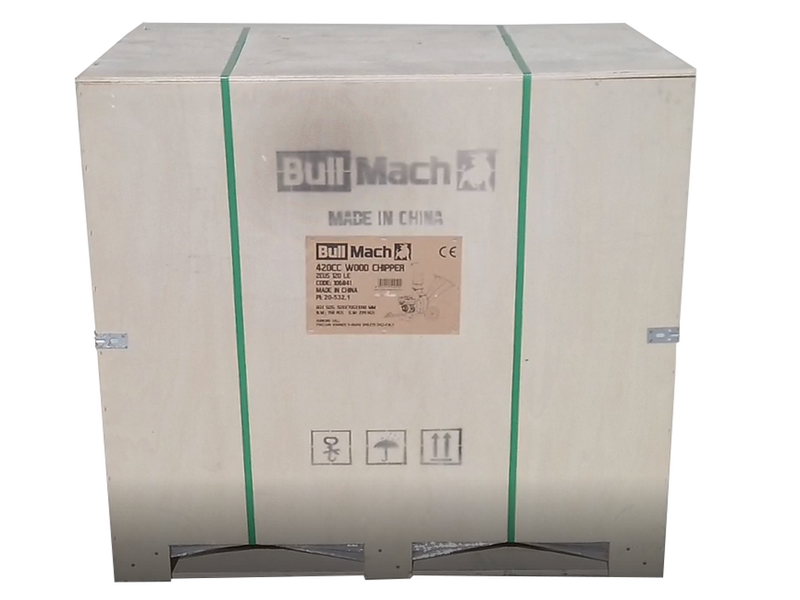

The garden shredder is shipped on pallet to guarantee safe shipment.

The instructions manual is included in the package.

The engine instructions and maintenance manual is included in the package.

Spark plug replacement wrench.
