BullMach ZEUS 160 LE - Towable petrol garden shredder - Loncin 420cc with electric start

Questions & Answers (2)
ID: K607169

EAN: 8053435093972

MPN: ZEUS 160 LE

9,0/10
After-sales assistance & Spare parts
BullMach ZEUS 160 LE - Towable petrol garden shredder - Loncin 420cc with electric start
+90 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Body material
Steel
Motor type
4-stroke
Motor brand
Loncin
Motor Model
G420FD
Cubic capacity
420 cm³
Nominal power
15 HP
Cutting Rotor Type
Knives + hammers
No. of blades
2
No. of hammers
6
Max. Branch Diameter
90 mm
Wood Chip size
2 - 3 cm
N° of hoppers
1
Safety Lever
Yes
Upper discharge system
Discharge chute rotation
Manual
Electric start
Yes
Transmission type
Belt
Tow hook
Yes
Weight
250 Kg
Product Features
Model:
ZEUS 160 LE
Body material:
Steel
Operating mode:
Spark ignition
Hydraulic self-dragging:
No
Anti-jam system:
No
Discharge chute:
High - rotating
N° of hoppers :
1
Hopper opening size (height):
55 cm
Hopper opening size (width):
60 cm
Self-propelling:
Towed
Electric start:
Yes
Safety Lever:
Yes
Tow hook:
Yes
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G420FD
Motor type:
4-stroke
Cubic capacity:
420 cm³
No. of cylinders:
1
Nominal power:
15 HP
Rated power (HP):
12 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
China
Transmission data
Transmission type:
Belt
Cutting data
Body material:
Enamelled steel
Max. Branch Diameter:
90 mm
Cutting Rotor Type:
Knives + hammers
No. of blades:
2
No. of hammers:
6
Blade movement:
Rotating
Counter blades:
1
Wood Chip size:
2 - 3 cm
Equipment
Discharge chute rotation:
Manual
Electric start with key :
Yes
Recoil start system (with rope):
Yes
Front handle:
Yes
Rear wheels size:
16 x 8.00 - 7
Free gifts/extra features
Engine oil bottle for free:
2
Instructions manual:
Yes
Dimensions and logistics

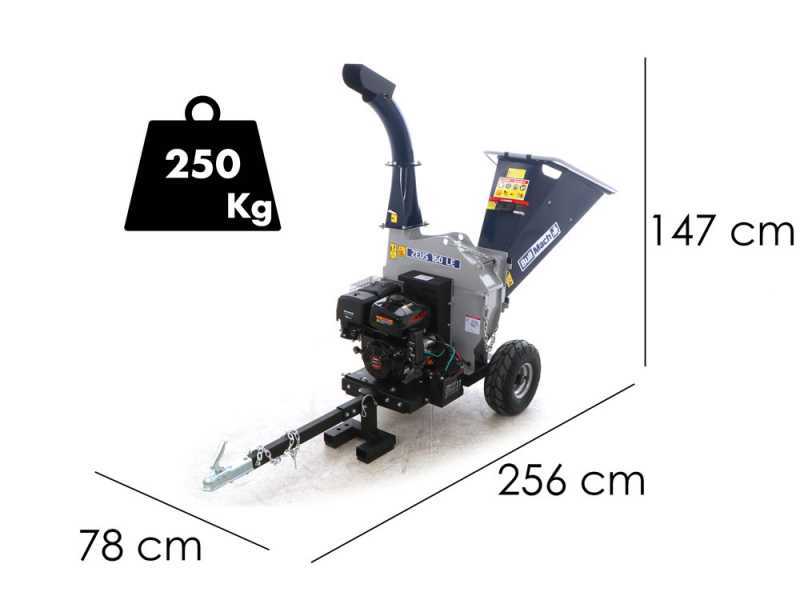

Product dimensions in cm (L x W x H):
256x78x147 cm
Net weight:
250 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
115x78x115
Gross weight (packaging included) :
275 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
90 minutes
Arriving on 10/01/25
Free Shipping
Estimated delivery: 21/01/2025 - 27/01/2025
€ 1.792,60
Vat included
You're viewing:
Customers also viewed:
Description

BullMach ZEUS 160 LE Garden Shredder

The BullMach ZEUS 160 LE petrol wood chipper is an excellent solution for the removal of brushwood and twigs, cutting them to a size that is easy to handle and suitable for composting. The precise shredding of the material helps speed up the composting process.

This machine is equipped with a large hopper, made of sturdy steel, able to gather big branches and twigs without the need for a preliminary working. Its large capacity allows the insertion of a wide range of material in a single time.

The cutting disc diameter is 600 mm.

The BullMach ZEUS 160 BH-LE garden shredder has been designed to handle operations on branches and twigs with a diameter up to 100 mm.

Its sturdiness is entrusted to a steel rotor, which ensures limitless practical durability over time. The cutting diameter is suitable to easily work green branches up to 100 mm. With larger branches, we suggest to insert the material very slowly, thus allowing the machine to successfully cope the work.

The machine ensures an extraordinary working capacity, being able to tackle long and demanding working session by constantly shredding large-diameter wood at a professional level. High hourly output, over the standard petrol wood chippers consisting of rotor with blades and hammers.

The 420 cc (15 HP) Loncin engine of the machine ensures considerable power and reliability at the same time.

Attention: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and others)

Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper);

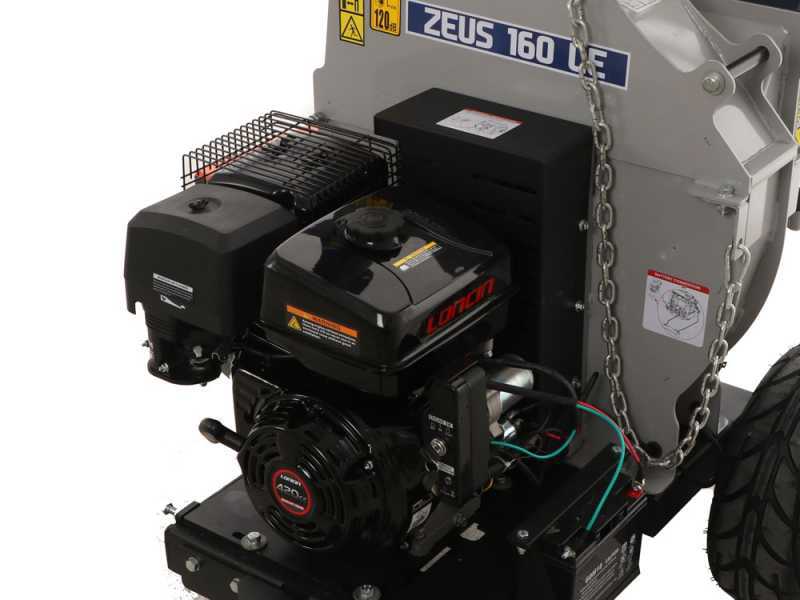

Loncin G420FD 15 HP Engine

Features:

  • Engine model and brand: Loncin G420FD
  • Engine type: single-cylinder 4-Stroke - OHV
  • Cylinder type: Aluminium
  • Cubic capacity: 420 cm³
  • Power: 15 Hp
  • Start: Electric with key

Thanks to the convenient electric start with key, starting the shredder has never been easier.

Focus on the battery compartment, 12 V 9 Ah battery.

Focus on the recoil starter .

Nominal power: 15 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 12.2 HP
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

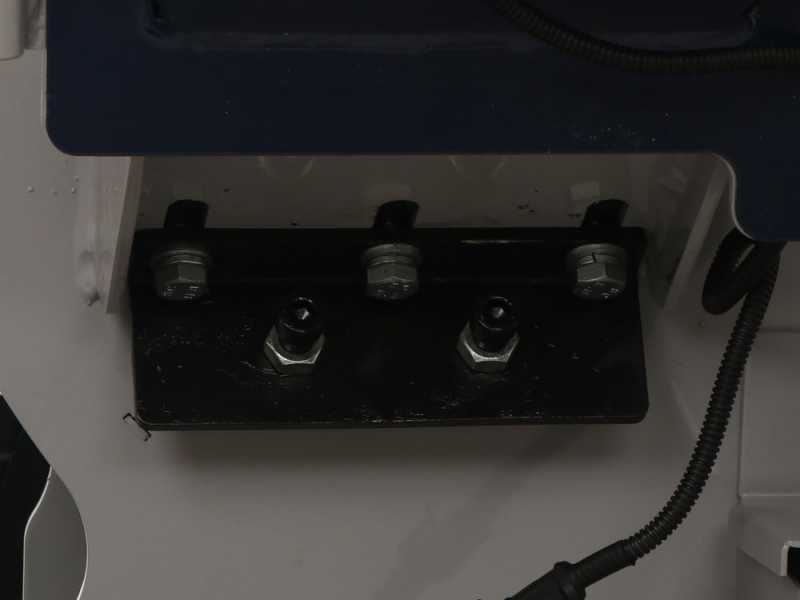

Central Rotor and Shredding Chamber

The central rotor is composed of:

  • Two cutting blades of large dimensions: they carry out a pre-processing step, cutting the material present in the hopper into smaller-sized fragments
  • Thus, it also consists of a counter-blade, by acting as a counter-blade on the two main cutting blades on the rotor, it allows cutting as a shear-effect inside the hopper, ensuring an extremely easy cut.
  • Finally, the rotor is also equipped with six cutting hammers (or blades) in hardened steel, which rotate at high speed: they perform a centrifugal operation, reducing the branches into small fragments
  • Focus on the rotor grease nipple.

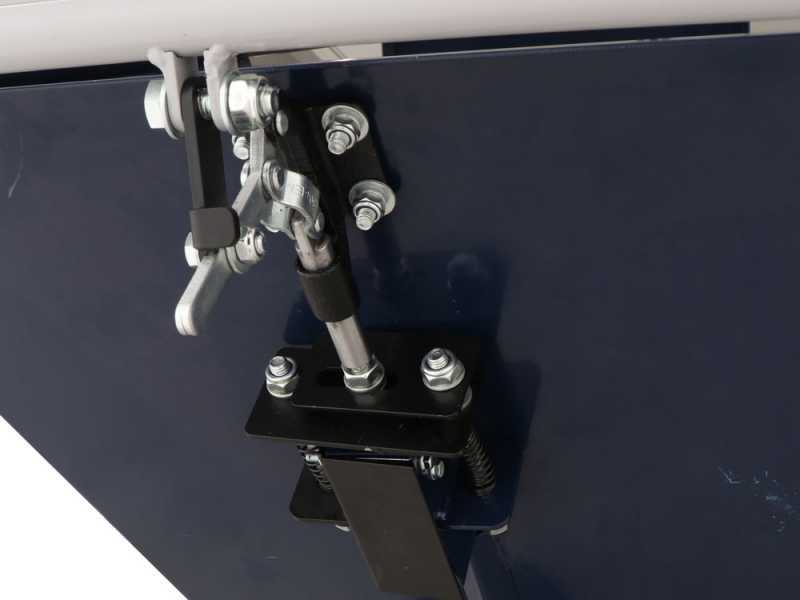

Unified Hopper with automatic dragging roller

Large steel hopper with 60x55 cm (H x W) effective opening.

The hopper can be opened by unscrewing the special bolts present at the shredder opening.

This system makes it possible to greatly simplify and speed up the operations.

Safety lever system, which allows the machine to stop in case of emergency.

Provided with 360° rotating discharge chute.

Simply unscrew the bolts placed in the joint ring and move it as desired.

Thanks to its height, the discharge chute allows you to throw out the wood chips straight into a tractor trailer or truck.

The inclination of the discharge chute is also adjustable in order to control the distance of the discharged shredded material.

Here below the main features of this wood chipper:

- Immediate stop system

Belt Transmission

It is the only machine of its category with intermediate 2-belt drive transmission.

This feature gives high sturdiness to the unit, protecting both the engine and all the shredding system from every possible internal hit or kickback.

Higher durability over time compared to the standard system of all the manufacturers of petrol-powered machineries, as the transmission is directly connected to the shredding cutting system.

In case of a rotor clogging caused, for example, by a too large branch, stones, etc. there is no risk of breaking the drive shaft and the motor, but the intermediate belt will slip or at least will brake down.

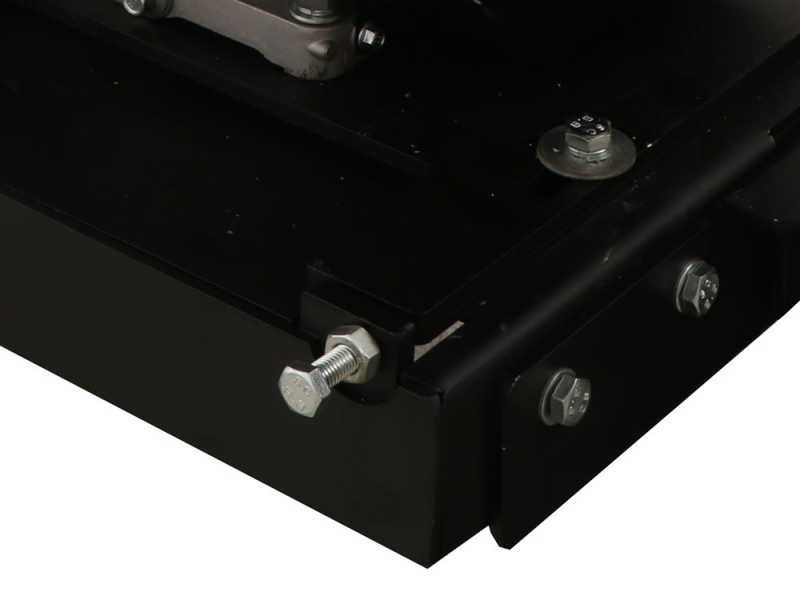

Belt tensioning system through screw

Main Features

The front support stand is very large and provides stability to the machine. This allows distributing the weight over a greater surface area, thus preventing the garden shredder sinking into soft grounds.

The BullMach ZEUS 160 LE shredder is equipped with double grip to facilitate the moving operations.

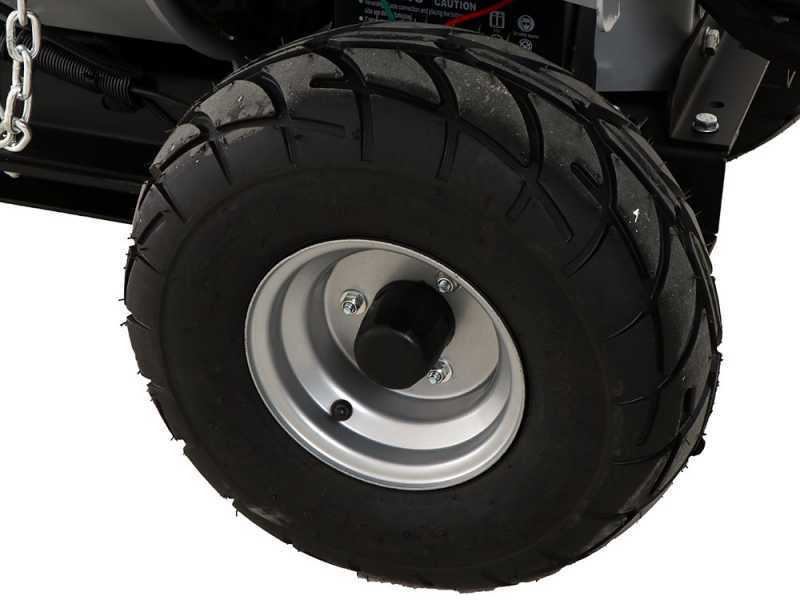

The wood chipper is also provided with large pneumatic wheels (16x8.0-7) that ensure easy transport.

It is equipped with a convenient and practical towing hitch. Towing ball size 50mm

Glove box

Free items & Standard equipment

Standard equipment

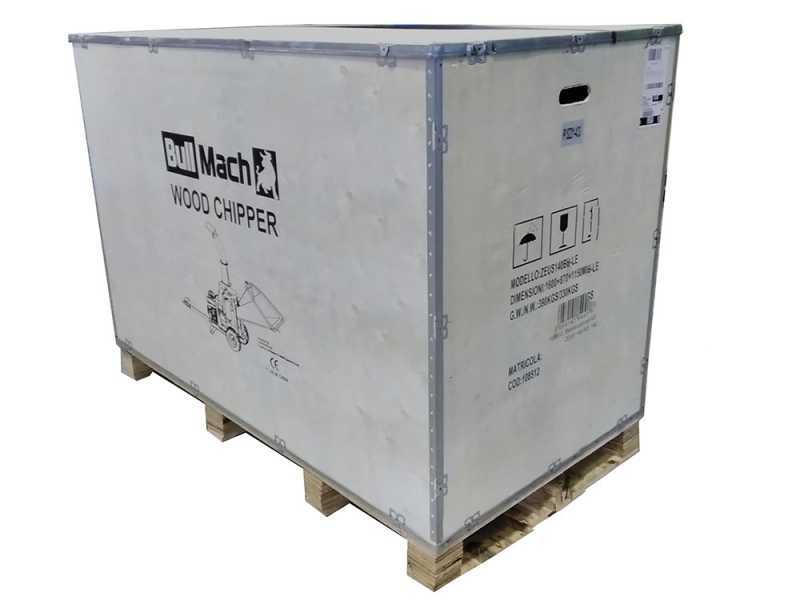

The garden shredder is shipped on pallet to guarantee safe shipment.

The instructions manual is included in the package.
