Campagnola MC 548 7 Hp Petrol Engine-driven Air Compressor KIT + 2 Tuono Evo Pneumatic Olive Harvesters

The Campagnola MC 548 petrol engine-driven air compressors is a semi-professional tool that allows you to take your pneumatic tools to the fields and work in total autonomy, without the need for a power line.

It is designed to power and operate pneumatic tools for pruning and harvesting.

The pumping unit is driven by a powerful 4-stroke Campagnola-branded petrol engine that develops 7 Hp of power.

The air compressor is mounted on a balanced frame with double tank to reduce the condensation effect. This model features a pair of tanks of 11 L each.

On the Campagnola MC 548 air compressor there is a pneumatic self-regulation device (engine automatic throttle) able to bring the engine to operating speed only during the tank refilling time until the maximum pressure is reached.

This operation allows a considerable saving on fuel, reducing the wear of the mechanical parts and also decreasing exhaust emissions.

Its large pneumatic wheels and a comfortable handle facilitate transport and movement during work sessions.

This motor compressor supports the use of 3 intensive and 2 non-intensive olive harvesters simultaneously, up to 4 pneumatic shears and a pneumatic chain pruner.

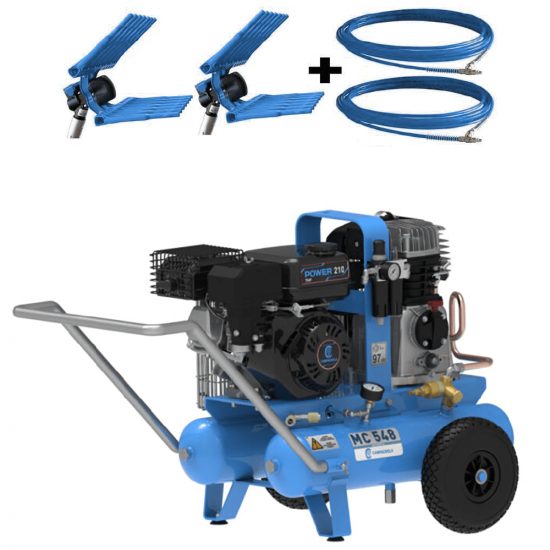

The KIT includes:

• MC 548 petrol-driven air compressor
• 2 Tuono Evo pneumatic olive harvesters
• 2 hoses (20 m)
• 2 oil bottles

The 4-stroke petrol engine develops 5.5 Hp of rated power and its function is to operate the pumping unit. This high performance engine is suitable for works where great power is required and that is easily reached thanks to the 212 cc.

Features:

4-Stroke petrol engine belonging to the latest technology with overhead valve system "OHV”

Recoil start

Dry air filter

Easily replaceable spark plug

Nowadays, the great majority of agricultural and gardening equipment available on the market mounts unbranded (or unknown brand) engines made in China.

Warning:

The engine comes without oil. Read the instructions before starting the machine

Air displacement: 554 L/min
Head type: twin-cylinder with cast-iron cylinder
Induction type: single-stage
Lubrication: 11+11 L
Rpm: 1250 rpm

The pumping unit mounted on this Campagnola MC 548 is made by Fiac and is the result of high technology and years of experience in the field. The professional line to which this engine-driven air compressor belongs stands out for its exceptional durability and reliability, thanks to the use of components made with innovative quality materials:

- Shafts and cylinders entirely made in cast iron

- Die-cast aluminium heads

- Stainless steel reed valves

- Focus on the oil level indicator in the pumping unit

- Focus on the W indicator

The Fiac brand offers MADE IN ITALY high-quality materials: the pumping unit is entirely manufactured in Italy.

The belt drive characterises this Campagnola MC 548 engine-driven air compressor.

The use of the transmission belt guarantees a very high level of safety and makes this machine the top of the range. Combined with the Subaru petrol engine, the belt drive contributes to the durability of this compressor, drastically reducing the number of revolutions of the cylinder head and reducing wear.

The protective housing is metallic, very sturdy and solid, it allows excellent cooling.

Focus on the driving pulley

Focus on the drive belt

The compressor is mounted on a balanced frame with double tank to reduce the condensation effect. This model features a pair of tanks of 11 L each.

Max. pressure: 11 bar

Equipped with pressure gauge directly connected to the 2 tanks that controls the tank air pressure.

A direct drive relief valve is installed on the tanks to prevent the maximum pressure from exceeding a certain threshold and to avoid breakage.

2-outlet air divider that allows you to use 2 pneumatic harvesters at the same time

Also equipped with a pressure regulator which adjusts the air outlet pressure for the operation of the tools, lubricator, that atomises oil in the outlet air to lubricate tools (adjustable lubrication intensity), and drain valve which allows the discharge of condensate. These tools are all included in the control panel

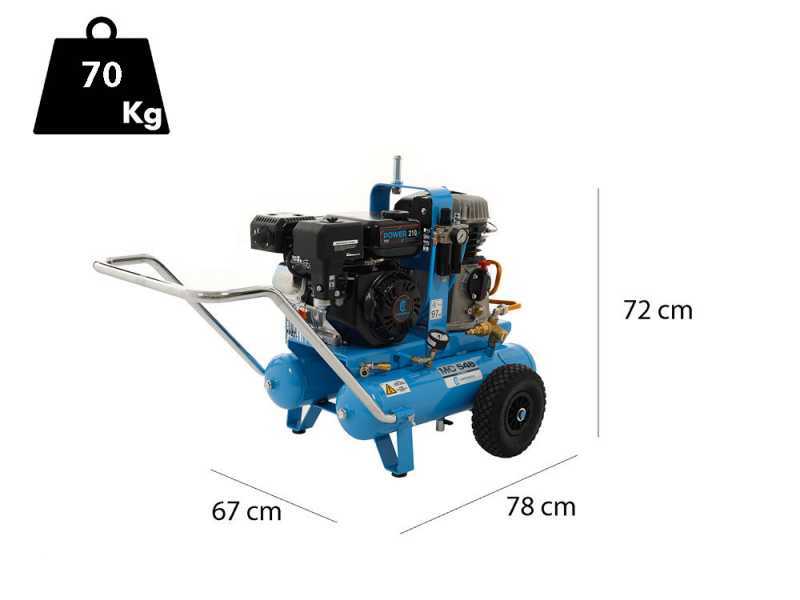

Dimensions (L x W x H): 78 x 67 x 72cm (without handle)

Weight: 70 Kg

Equipped with removable front handle for easy grip and practical storage.

Focus on the handle removal system

Large rear tractor wheels

Sturdy front supports directly connected to the tanks.

The Campagnola MC 548 engine-driven air compressor is also equipped with a filter regulator/lubricator unit and a safety valve and pilot valve/unloader

Focus on the hose reel holder supplied.
