HOME Olive harvesting Air Compressors for Olive Harvesting and Pruning Treatments Tractor compressors Campagnola PTO driven Air Compressors Campagnola PTO ECOPLUS 520

Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning

Semi-Pro
Add a question
ID: 108850

EAN: 8054141545533

MPN: ECOP.5250

Campagnola
Catalog Campagnola
9,1/10
After-sales assistance & Spare parts
50Pictures
1Videos
Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Max. operating pressure
11 bar
Air compressor tank
25 L
Cylinder head brand
Fiac
Air intake flow
554 L/min
Pump type
Single-stage
Tractor power
up to 20 HP
Operable harvester
Up to 2
Manufacturing country
Italy
Product Features
Model:
PTO ECOPLUS 520
Tractor power:
up to 20 HP
Operating mode:
Tractor-driven PTO
Max. operating pressure:
11 bar
Number of tanks:
1
Air compressor tank:
25 L
Operable harvester:
Up to 2
Quantity of powered shears:
Up to 5
Quantity of powered chainsaws:
1
Manufacturing country:
Italy
Pump data
Pump brand:
Fini
Cylinder head brand:
Fiac
Model:
MK113
Air intake flow:
554 L/min
Pump type:
Single-stage
No. of cylinder heads:
1
No. of cylinders:
2
Cooling manifold :
Yes
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Transmission protective cover:
Metal grid
Pulleys material:
Cast iron
Equipment
No. of outlet couplings:
4
Hose reel support/s:
Yes, double
Pressure regulator with condensate filter:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Free gifts/extra features
Instructions manual:
Yes

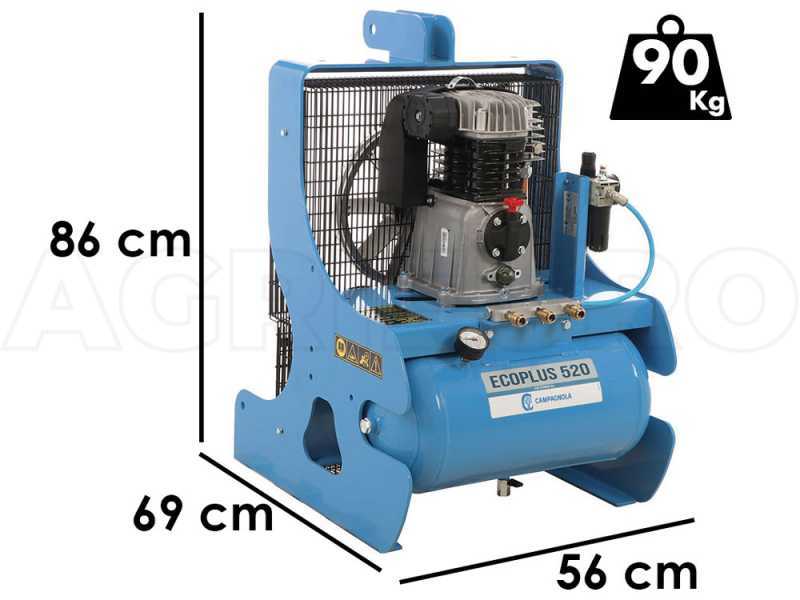

Dimensions and logistics
Product dimensions in cm (L x W x H):
65x56x88 cm
Net weight:
90 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
67x67x102 cm
Gross weight (packaging included) :
110 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 03/01/2025 - 08/01/2025
Free returns (up to 30 days after receipt) *
€ 1.619,75
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

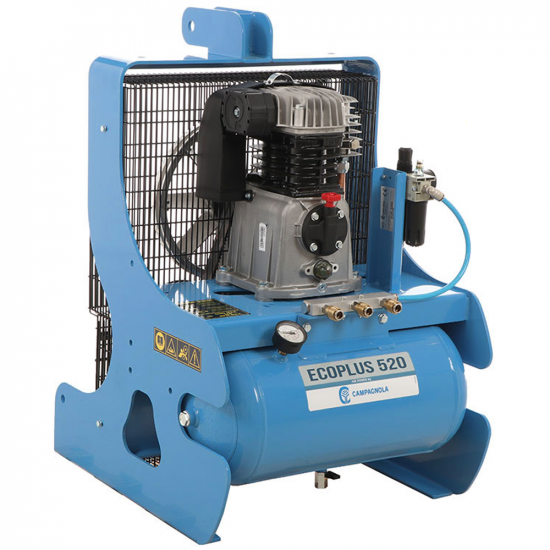

Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor

The Campagnola PTO ECOPLUS 520 PTO driven air compressor is characterised by a sturdy top-quality construction, it boasts a supporting frame in high-strength reinforced steel. Crushproof supporting structure made entirely of heavy-thickness steel It is intended for use in combination with a tractor equipped with a power take-off, to simultaneously power numerous compressed air equipment. At the top, it features two practical hooks for attaching the hose reels.

This model is able to deliver 554 L of compressed air per minute with a maximum pressure of 11 bar; it can operate up to:

5 Pruning shears

2 Olive harvesters

1 Pruner

This machine is equipped with a made in Italy Fini MK113 cylinder head capable of delivering up to 554 L of air intake flow per minute.

Minimum tractor power 18HP

Low-rpm operation for greater fuel economy

Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning

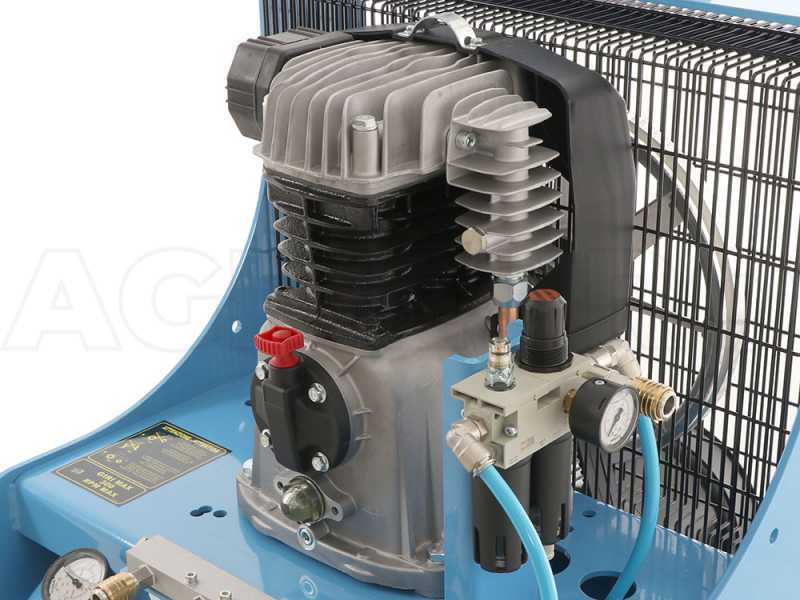

Heavy-duty twin-cylinder head

The Fini MK113 554 L/min large twin cylinder head with cast iron cylinder guarantees excellent durability to the machine and can operate 2 olive harvesters, 5 pruning shears, 1 pruning saw.

Focus on the porthole for oil level control

Focus on the cooling manifold

Attention: do not exceed 300 rpm of the PTO.

Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning

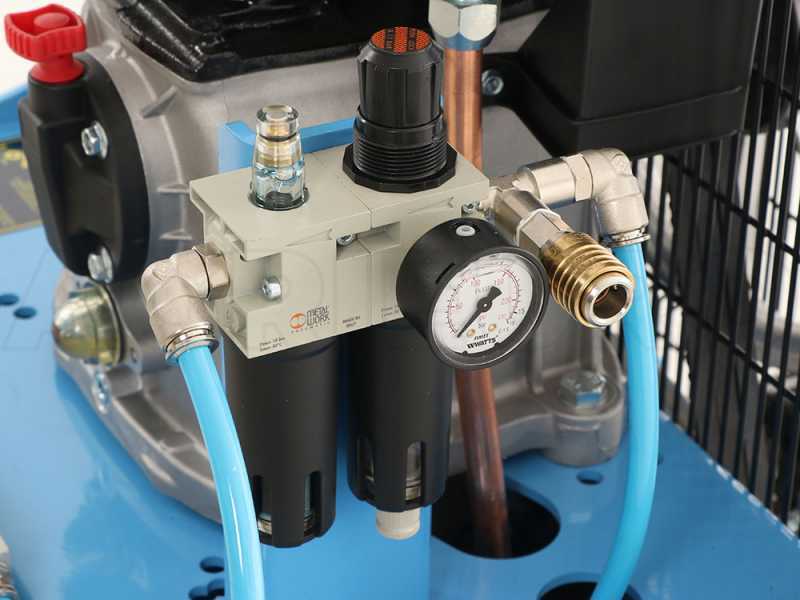

Main features

AIR OUTLET SYSTEM:

a) heavy-duty pressure regulator MADE IN ITALY with condensate separation filter entirely made in aluminium with glycerine pressure gauge

b) heavy-duty aluminium lubricator MADE IN ITALY

c) first outlet with female quick joint, suitable for all the non-agricultural uses, which normally do not require oil to be sprayed into the air via the lubricator (almost no compressor on the market has this additional outlet)

d) air shut-off valve for maintenance operations (such as topping up oil into the lubricator)

e) NO. 03 quick output joints

25 L tank

No load operating system and maximum pressure control by means of a professional pilot check valve

Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning

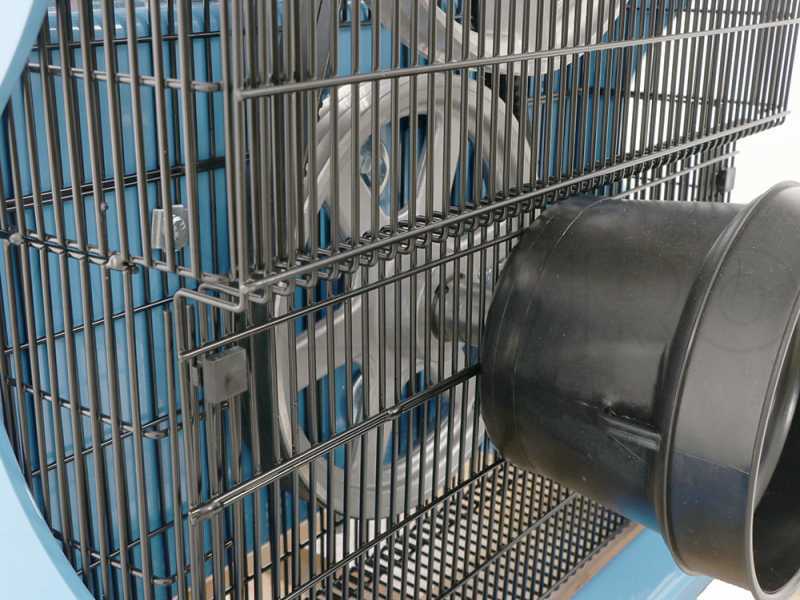

Other features

PTO pulley and large-sized cooling fan made of alloy.

Support for hose reel as standard second hole for setting up a second hose reel.

Tractor three-point-hitch

Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Free items & Standard equipment

Free items included

The PTO driven air compressor is shipped in its original packaging on pallet

Instructions manual included

Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
Campagnola PTO ECOPLUS 520 PTO Driven Air Compressor with Three-Point-Hitch for Olive Harvesting and Pruning
