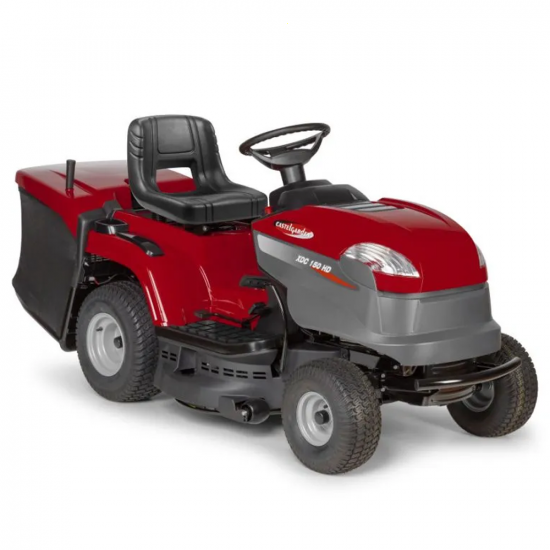

Castelgarden XDC 150 HD - Riding-On Mower - Hydrostatic Transmission - Grass Collector

The CastelGarden XCD 150 HD riding-on mower mounts a Stiga ST 400 engine with 6.3 kW of power. Ideal for lawn mowing work on large green spaces thanks to its power and ease of use.

Equipped with hydrostatic transmission with pedal, increasingly popular now among new garden riding-on mower, which allows you to change speed without having to switch gears every time.

84 cm cutting deck with two finned blades, the cutting height can be adjusted on 7 different positions from 25 mm to 80 mm. Blade engagement is carried out quickly and safely via electromagnetic clutch using a button.

Large 200 L grass collector, easily to remove and empty at any time, thanks to a practical side lever.

The ergonomic seat and the state-of-the-art control dashboard with LED alert lights enhance the machine design and ensure comfort and practicality of use.

Also equipped with practical front headlights, to work in poor visibility or lighting conditions.

The ideal combination for a semi-professional machine.

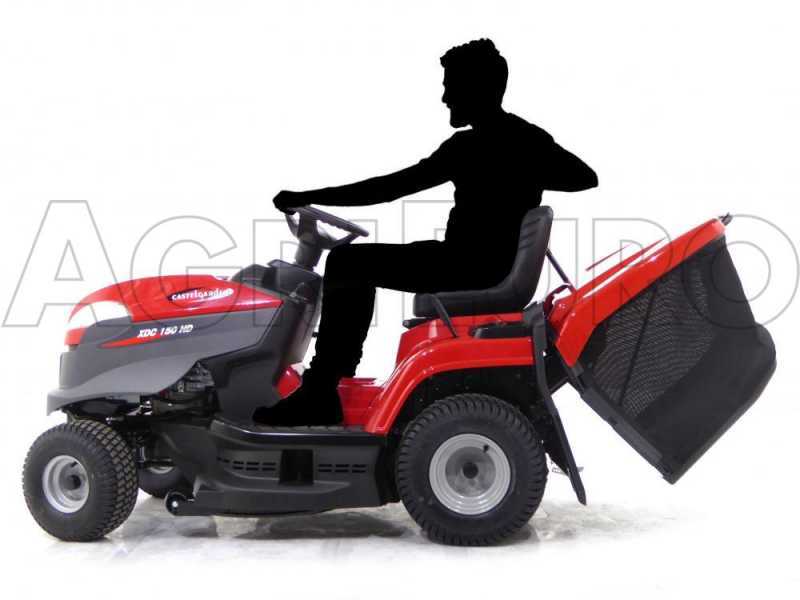

1 - GRASS COLLECTION SYSTEM (on standard equipment)

The CastelGarden XCD 150 HD riding-on mower can collect grass clippings directly into the 200 L grass collector. The grass collector emptying system is very simple: simply pull the dedicated handle inside the basket, to empty it effortlessly wherever you want.

The grass collector is easy removable: simply lift it upwards to remove it from its housing.

2- MULCHING CUTTING SYSTEM (optional):

this system allows cutting grass without catching it inside the collector and crushing the clippings into a fine powder before dropping them on the lawn. This grass mowing system allows crushing grass clippings and dropping them on the ground. This eliminates the problem of its disposal. Moreover, grass clippings will break down into nutrients and water for the lawn, thus ensuring a perfectly balanced biological cycle.

- However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

- The conversion from one system to another is easy and requires no tools. Simply fit the suitable mulching plug to the rear of the riding-on mower.

The CastelGarden XDC 150 HD houses a STIGA ST 400 high-performance engine, ideal for tasks where great power is required.

New single-cylinder 6.3 kW 4-stroke engine with 414 cc of cubic capacity and "OHV” overhead valve shaft, it also features an anti-vibration system and electronic ignition system.

- The engine compartment can be easily accessed for quick inspection and maintenance operations.

Features:

• Motor: Single cylinder 4-stroke - OHV
• Engine brand. Stiga
• Max. surface recommended: 3500 s.q. m.
• Cylinder: Aluminium
• Cubic capacity: 414 cm³
• Cooling type: Air cooled
• Fuel tank capacity: 6 L

Focus on the air filter.

Nominal Power: 14 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 8.44 Hp (at 2400 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

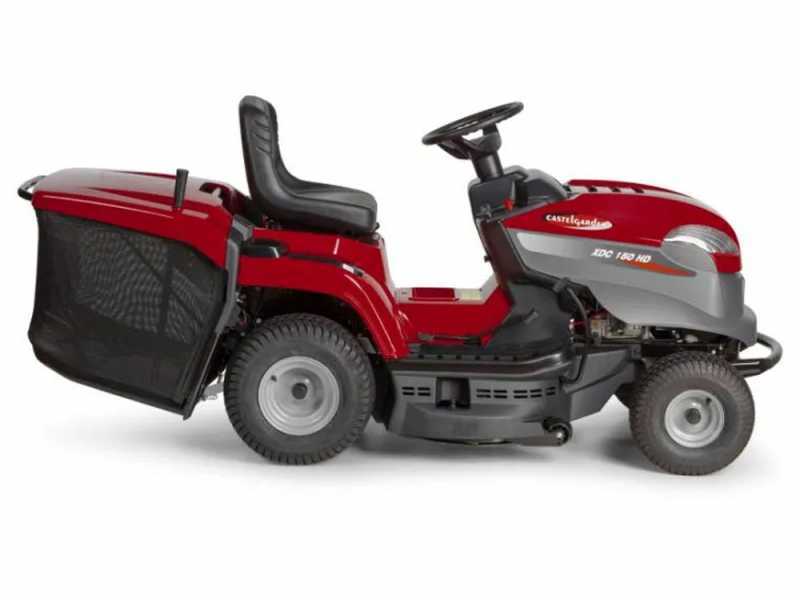

Thanks to the hydrostatic transmission, driving the riding-on mower will be very easy.

Operation is very easy: The forward, reverse and braking pedals are located on the hydrostatic footboard. Depending on the pressure exerted with the foot on one of the respective pedals, the speed will increase or decrease.

- The hydrostatic transmission is by far the most modern and functional (although more expensive) compared to the traditional manual transmission gears. Whenever the speed is changed, the hydrostatic gearbox forces the operator to stop the unit, change gear, release the clutch and re-start the power barrow at the desired speed. In case of frequent speed variations (e.g. In gardens with trees, vases or other types of obstacles) the traditional gear transmission wouldn’t be practical at all.

The hydrostatic transmission, on the other hand, allows immediate speed changes, without ever stopping and in a totally automatic manner, simply by varying the pressure on the drive pedal of this transmission.

- Focus on the hydrostatic footboard

- Focus on the pedal to move the machine forward

- Focus on the reverse pedal

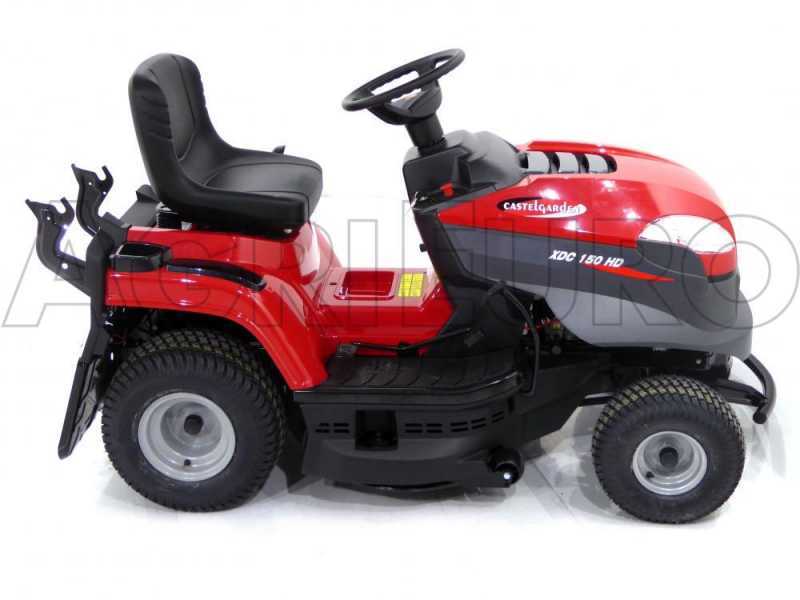

The XDC 150 HD riding-on mower features a 84 cm large cutting deck, with two finned blades and asynchronous rotation.

The riding-on mower cutting deck is tilting: it adapts easily to the undulations of the ground (as long as they are not overly harsh).

Electromagnetic blade engagement: This system avoids the manual shifting by means the standard lever placed on many types of riding-on mowers, and it works thanks to an electromagnetic clutch which allows an easy and fast engagement of the blades.

The available cutting heights are 7 and can be conveniently adjusted by means of a side lever. Height options can vary from a minimum 25 to a maximum of 80 mm.

The cutting deck also features 2 non-marking wheels and a washing joint, for a quick and practical cleaning of the blades by simply connecting a water hose.

- Focus on the lever for cutting height adjustment

- Focus on the blade

- Focus on the cutting deck

- Focus on the non-marking wheels

- Focus on the washing joint

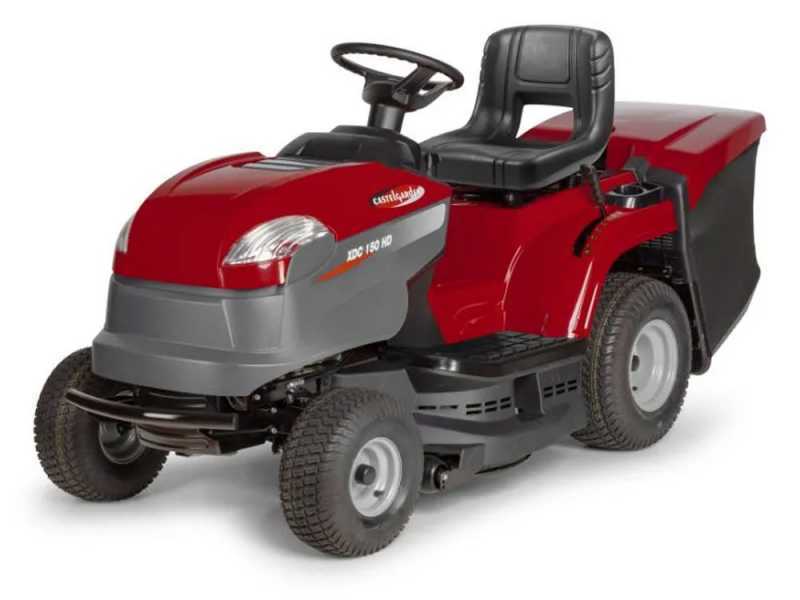

The CastelGarden XDC 150 HD riding-on mower controls and adjustments are easy and intuitive:

• Speed regulator
• Parking brake
• Ignition lock with key
• Braking pedal
• Cutting height adjustment lever
• Forward and reverse gear engagement pedal
• Electromagnetic blade engagement with red button placed on the right of the steering wheel

Other features of the CastelGarden XDC 150 HD riding-on mower:

• Openable engine bonnet for easy cleaning and maintenance operations
• Castelgarden classic seat
• Castelgarden ergonomic steering wheel
• Sturdy bumper
• Rear wheels size: 18 x 8.5 - 8
• Front wheels size: 15 x 6.00 - 6
• Pivoting front axle which ensures excellent balance, stability and riding comfort, even on not-perfectly flat terrains.
• Can holder
• Glove box

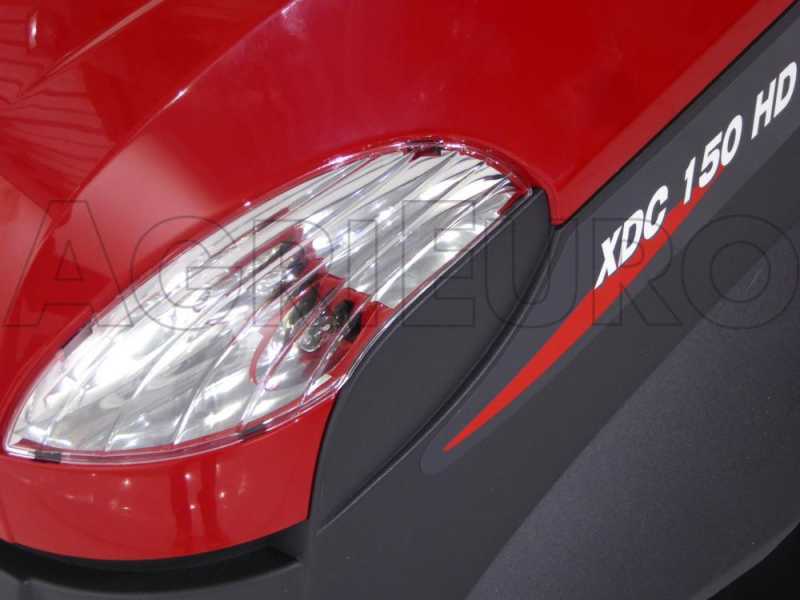

• Front headlights
• Dashboard with LED alert lights
• Grass collector emptying: manual
