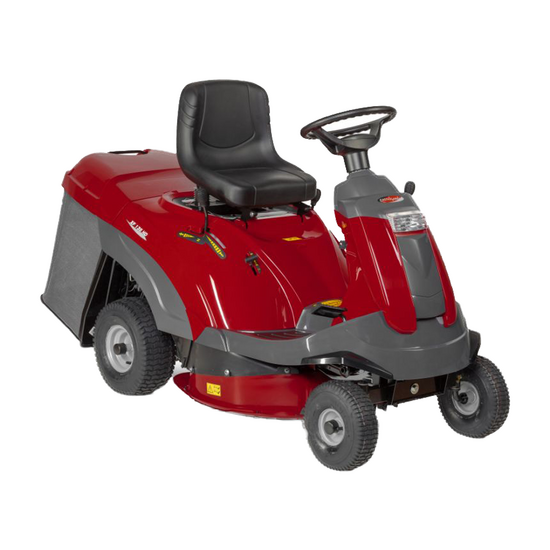

Castelgarden XF 135 HD - Riding-on Mower - ST 350 352 cc Engine - Hydrostatic Transmission

The CastelGarden XF 135 HD riding-on mower combines style and design with compact size and reliability; ideal for use in small gardens

The single-blade cutting deck with grass direct rear discharge guarantees accurate mowing and convenient grass collection.

Easy-access driving position, great cutting area overview and enhanced flexibility provide for both fun and comfortable lawn mowing, also the overall compact size of the machine ensures convenient storage.

The transmission is hydrostatic, which means that this riding-on mower adjusts the speed continuously without the use of gears, resulting in an unlimited number of gears.

The engine mounted on this machine is a CastelGarden ST 350 - 352 cc with battery-powered electric start.

Ideal for users looking for a reliable machine with a small-sized, compact design.

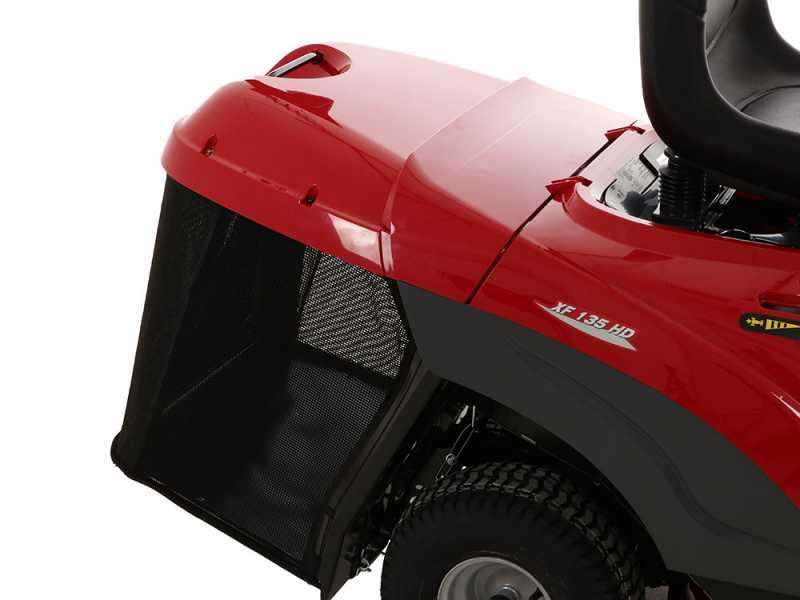

1 - GRASS COLLECTOR (standard-supplied system):

With the grass collector installed, the Castelgarden XF 135 HD riding-on mower can collect grass clippings directly into it. This leaves the lawn clean and let the operator choosing where emptying the grass collector. For emptying the grass collector, simply unhook it manually. The grass collector is easy removable: simply lift it upwards to remove it from its housing.

2- MULCHING CUTTING SYSTEM (optional): This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal and, furthermore, the decomposition process will turn grass clippings into nutrient for the lawn, thus ensuring a perfectly balanced life cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

The conversion from one system to another is very easy. Simply remove the grass collector and apply the mulching plug.

The CastelGarden XF 135 HD riding-on mower is easy and practical to drive thanks to the 2-lever hydrostatic transmission. The machine can be easily controlled manually by acting on a lever.

Operation is easy and intuitive: to move the machine forward, simply push the lever forward. Pulling the lever backwards, instead, engages reverse gear. In between is the neutral position.

To set the desired speed, act on the speed regulator lever.

The sturdy gears make the gearbox extremely resistant.

The hydrostatic transmission is by far the most modern and functional (although more expensive) compared to the traditional manual transmission gears.

The ST 350 engine is high-performing, suitable for tasks where high working power is required.

Latest generation single-cylinder 352 cc 4-stroke engine with “OHV” overhead valve shaft.

It is a professional engine which guarantees reliability and durability. This is one of the most famous engines around the world, both among riding-on mowers and the greenery and agricultural field in general.

It develops an effective power of 8.8 Hp at 2800 rpm.

The engine is equipped with a starter motor and the ignition takes place with the key.

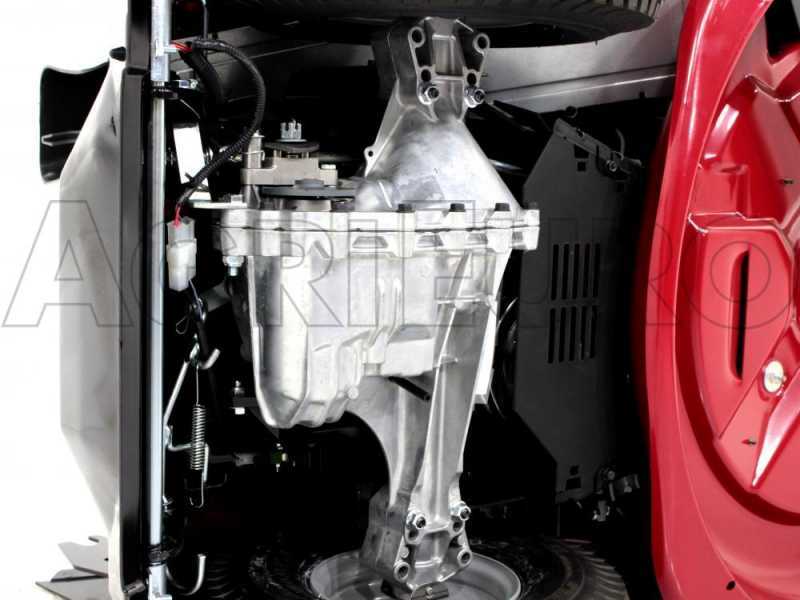

The engine is connected to a sturdy hydrostatic transmission

Nominal Power: 11.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 8.8 Hp (at 2800 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

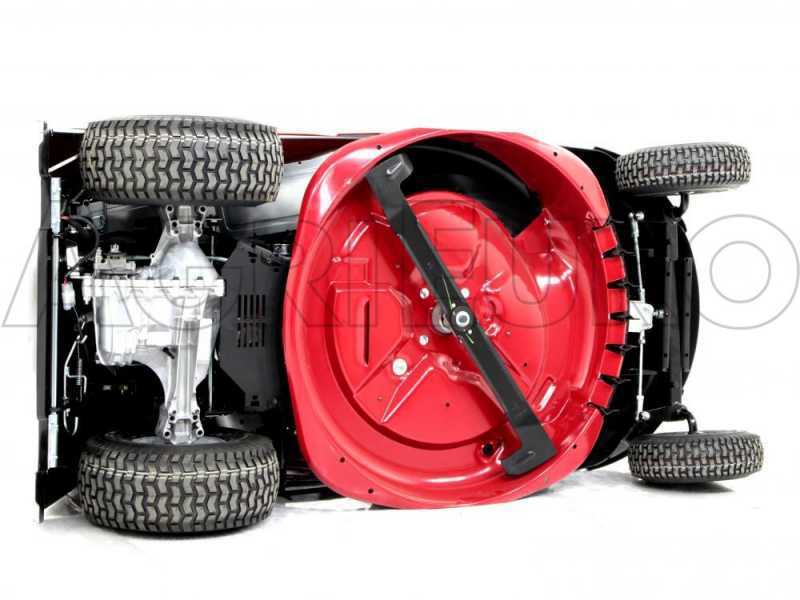

The CastelGarden XF 135 HD riding-on mower comes with a single-blade cutting deck.

The riding-on mower mounts the mulching cutting system as standard.

72 cm cutting deck width.

The cutting deck on the riding-on mower is tilting: it adapts easily to the undulations of the ground (as long as they are not overly harsh).

The cutting positions available are 7 and they vary from a maximum of 80 mm to a minimum of 30 mm.

The CastelGarden riding-on mower controls and adjustments are easy and intuitive.

• Speed regulator

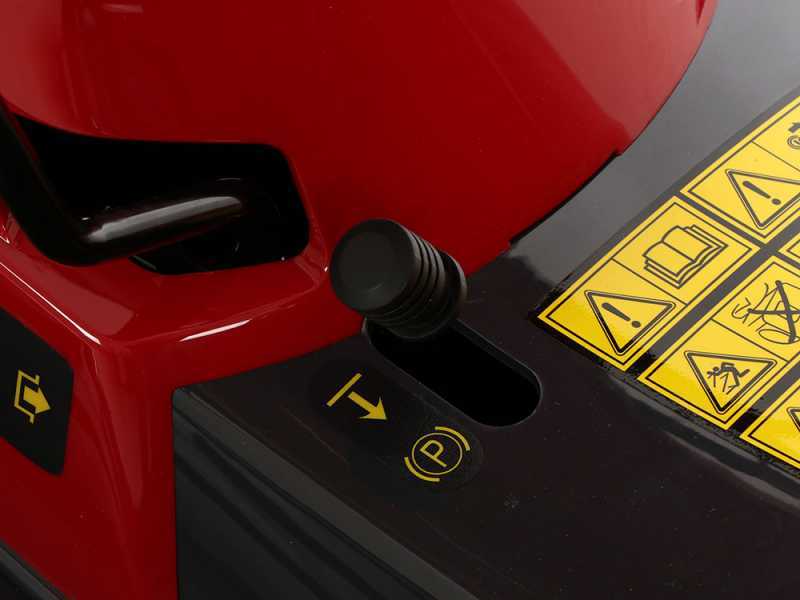

• Parking brake
• Ignition lock with key
• Braking pedal
• Cutting height adjustment lever
• Forward, reverse gears and neutral position engagement lever
• Manual blade engagement

Other features of the CastelGarden riding-on mower:

• High comfort seat for maximum comfort during use

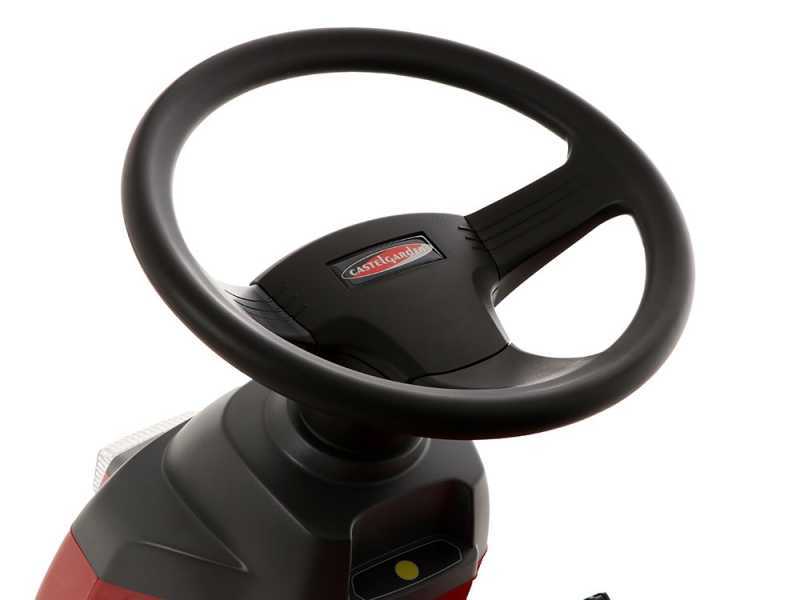

• Ergonomic steering wheel
• 15 x 6.00-6 rear pneumatic wheels
• 11 x 4.00-4 front pneumatic wheels
• Fuel tank plug under the seat
