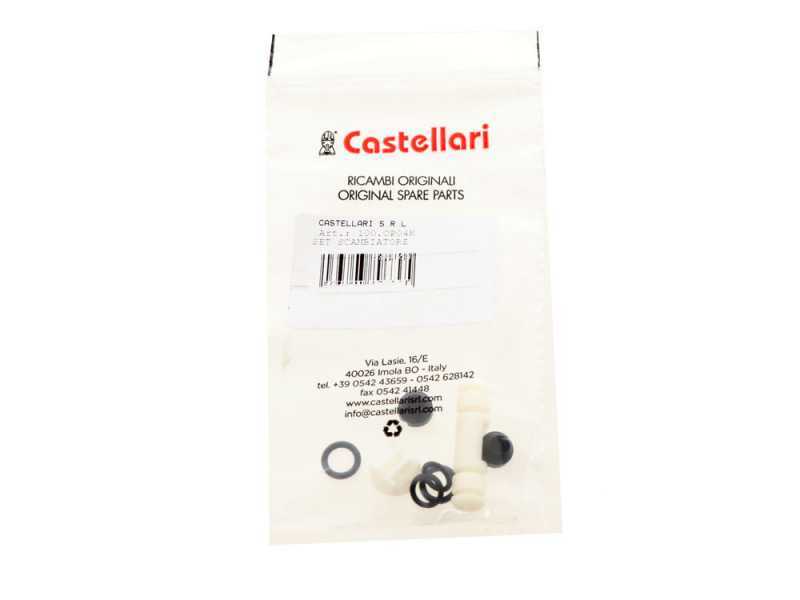

Spare Parts + After-Sales Assistance
5% off
from the 2nd item
The 30-day free return

Castellari Olivance PN X - Pneumatic Olive Harvester - Shaker - Olive Shaker - 7 Bar

Questions & Answers (2)
ID: K600061

EAN: 8033803897692

MPN: Olivance PN X

8,3/10
After-sales assistance & Spare parts
Castellari Olivance PN X -  Pneumatic Olive Harvester - Shaker - Olive Shaker - 7 Bar
FREE
Lubricant for olive harvestersLubricant for olive harvesters
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
Head material
Magnesium
Motion
Vertical, double
Speed (bpm)
1800 bpm
Max. prongs opening
25 cm
Max. operating pressure
7 bar
Air consumption
200 L/min
Olive harvester head weight
950 g
Motor speed levels
1
ABS Prongs
Manufacturing country
Italy
Product Features
Model:
Olivance PN X
Head material:
Magnesium
Type:
Pneumatic
Motion:
Vertical, double
Speed (bpm):
1800 bpm
No. of prongs:
7+7
Prongs length:
16 cm
Prongs material:
High-resistance technopolymers
ABS Prongs:
Max. prongs opening:
25 cm
Max. operating pressure:
7 bar
Air consumption:
200 L/min
Olive harvester head weight:
950 g
Manufacturing country:
Italy
Motor data
Motor speed levels:
1
Power supply:
Compressed air
Dimensions and logistics
Product dimensions in cm (L x W x H):
30x25x25
Net weight:
950 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
34x27x17
Gross weight (packaging included) :
1.2 Kg
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 11/04/2025 - 15/04/2025
€ 339,20
Vat included
You're viewing:
Customers also viewed:
Description

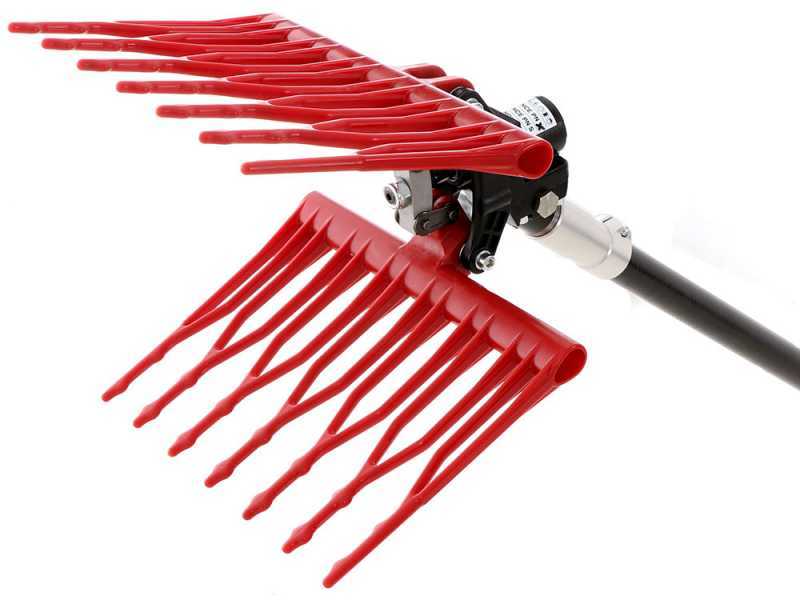

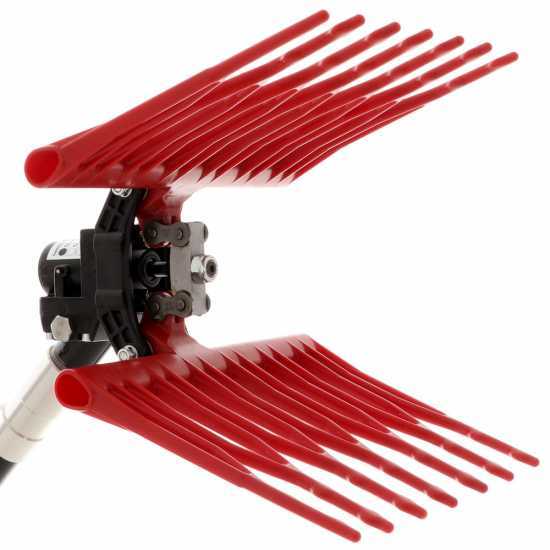

Castellari Olivance PN X Pneumatic Olive Harvester

The Castellari Olivance PN pneumatic olive harvester is a tool suitable for harvesting olives and other fruits.

Heavy-duty pneumatic olive harvester with opposed prongs motion ideal for the collection of medium to large olives and plants with not too thick foliage.

The vibrations of the pair of rakes are transmitted to the branches of the trees, resulting in causing the olive detachment from the tree.

The exhaust air is directed towards the moving components. This helps cooling and lubrication.

The movement in opposing combs allows a fast and accurate collection without causing damage to the plant. The detachment of the fruit is gentle and olives fall at the foot of the operator. The motor, in magnesium alloy, favours thermal exchange and prevents the formation of ice in case of low temperatures.

These olive harvesters generally come with a very low air consumption (200 L/min). The Olivance PN XT pneumatic olive harvester performs 1800 beats per minute. With a total weight of only 950 g, the OLIVANCE PN X is extremely easy to use.

Fully interchangeable.

Ideal for the collection of medium to large olives and plants with not too thick foliage. The new rake design ensures superior harvesting.

WARNING: pole not included

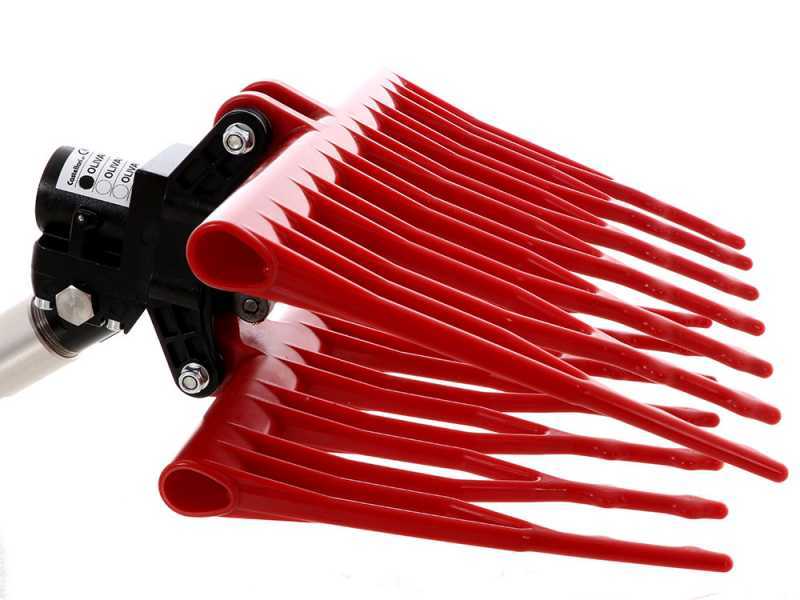

Prongs

This olive harvester is equipped with rakes in technopolymer with long, elastic prongs, which guarantee good performance without any damage.

All these characteristics make it particularly suitable for working on all types crops at all levels of ripeness, especially in thick foliage.

In addition, its operation does not damage the olives and does not cause breakage to twigs.

  • The best performance on the market: this tool offers instant penetration on plants foliage, thanks to the tapered and widely-spaced prongs.
  • Improved working width compared with traditional comb olive shakers. 24 cm working width at maximum opening.

Ideal for the collection of medium to large olives and plants with not too thick foliage. The new rake design ensures superior harvesting.

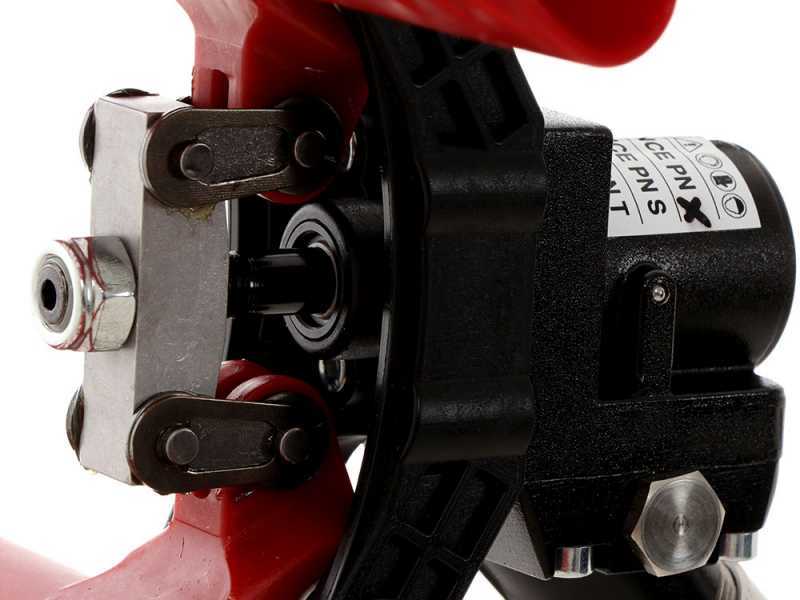

Technical features

One of the great strengths of these harvesters is definitely the beating speed, 1800 rpm, thanks to the short-stroke piston and rakes.

In addition, its operation does not damage the olives and does not cause breakage to twigs.

Made with components in TECHNOPOLYMER, it is equipped with a protection for the moving parts to reduce wear and tear.

Weight: only 950 g. This is the most lightweight model on the market, despite the considerable width and length of the prongs.

Operating pressure: 7 Bar

Air consumption: 200 L/min

The rakes opening measures 24 cm

Free items & Standard equipment

FREE:Kit for pneumatic olive harvesters: ear protections, goggles, Gloves, Headscarf and Lubricant

FREE ITEMS:

Ear protections to work in total comfort.

Ear protection has to be appropriate: these standard supplied ear muffs are esepcially designed to destroy the noise level of the machine.

Protective goggles

Made of polycarbonate provided with anti-mist and scratch-resistant shield. Ventilation is granted by holes directly placed on the goggle frame to avoid mist and enhance the working comfort.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

1 L professional lubricant for pneumatic equipment for the lubrication of internal transmission gear of the olive harvester.

Standard equipment

The product is shipped in its original packaging.

The packaging also includes:

Instructions manual
