Castellari Tornado TP C V3 - Electric Battery-operated Olive Harvester - 180/240 Carbon Pole

The Castellari Tornado TP C V3 180/240 is the harvester made for all types of olives and trees, with no difference between olive trees prepared for mechanisation, i.e. well pruned, or thick, in flat or hilly cultivations.

Designed to adapt to any working situation, it guarantees maximum results with absolute respect for the integrity of the plant and the fruit.

Made from components in:

• CARBON FIBRE (22 sticks) (11 short x 15cm - 3 medium x 33cm - 8 long x 35cm)
• ALUMINIUM (sectors)
• STEEL (transmission gears)

Synonymous with LIGHTNESS, POWER, RELIABILITY

The Tornado harvester is the most effective; it is by far the machine with the highest hourly harvesting capacity.

Unlike all harvesters on the market, there is no specific technique of use for the Tornado.

It can be used with a comb on well pruned and sparsely planted plants.

On the other hand, it can be inserted and extracted repeatedly from the foliage in unpruned and very dense plants (which do not allow the machines to comb through)

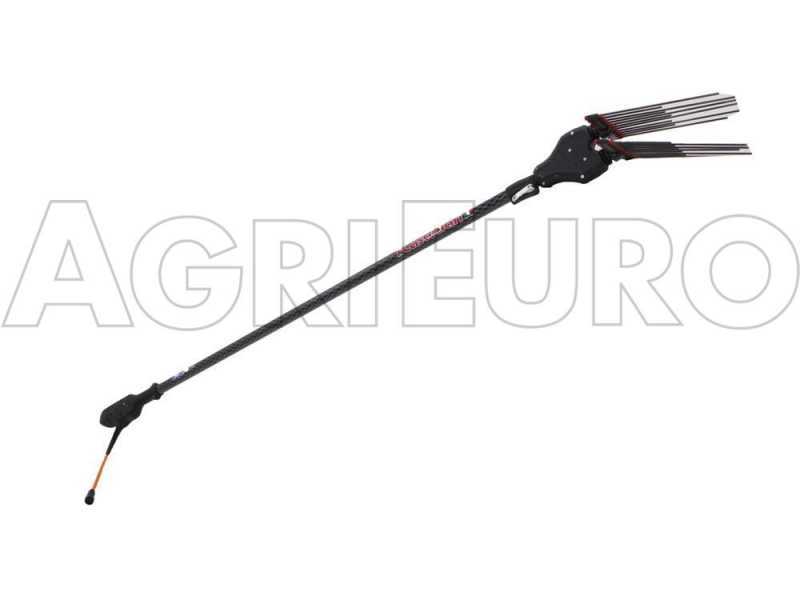

New super-lightweighttelescopic carbonrod (longer than previous models) with quick-release fastening.

Effective rod length:

• Rod only: closed 110 cm open 156 cm

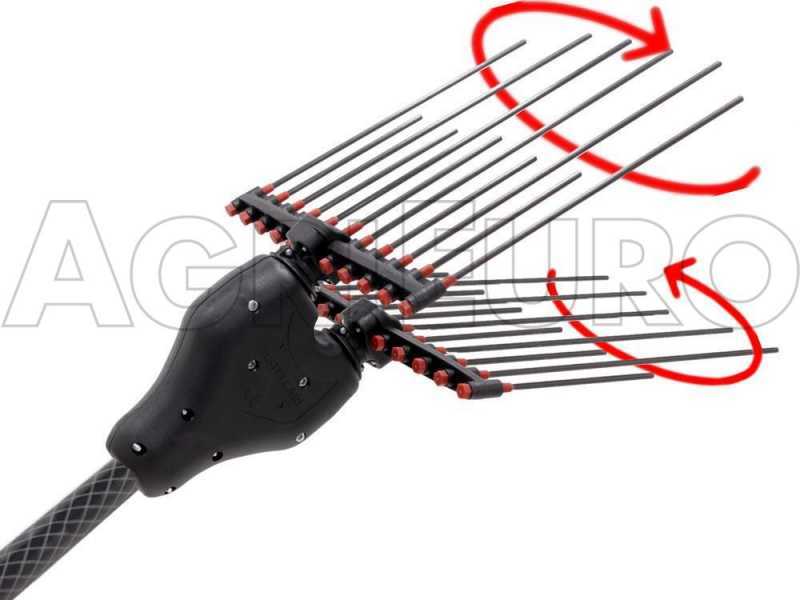

The carbon rakes move by performing 1150 elliptical rotations per minute each, with direction opposite each other.

This results in 2 counter-rotating elliptical motions of cycles 1150 + 1150

This is undoubtedly the most advanced and refined system in the field of olive harvesting machines.

The benefits are outstanding:

• greater knocking capacity of each individual tine, i.e. more than 50 per cent higher harvesting capacity
• almost non-existent twig breaks (while the only horizontal right-left movement of the competition being very violent creates the detachment of many twigs)
• drastically reduced vibrations (thanks to the 2 counter-rotating motions that counterbalance each other, lowering the vibration level)
• greater range of action of the 2 rakes.

In fact, as they rotate they alternately approach and recede at high speed, reaching a considerable distance from each other in the receding phase, thanks also to the exceptional length of the teeth themselves. This reduces the frequency of moving the rakes and repositioning them within the canopy

For this reason, it differs significantly from all other manufacturers on the market today who use carbon tine technology on their harvesters. In fact, all manufacturers still implement the old system with simple left-right lateral horizontal movement.

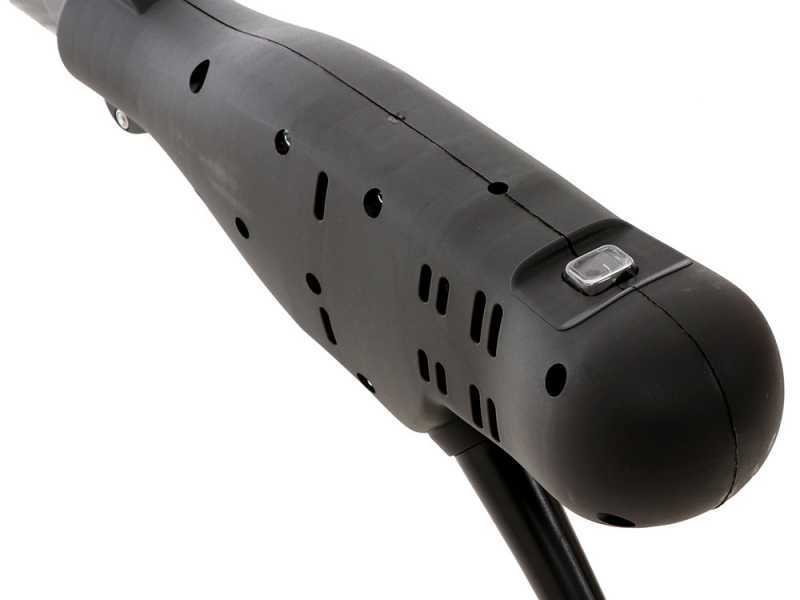

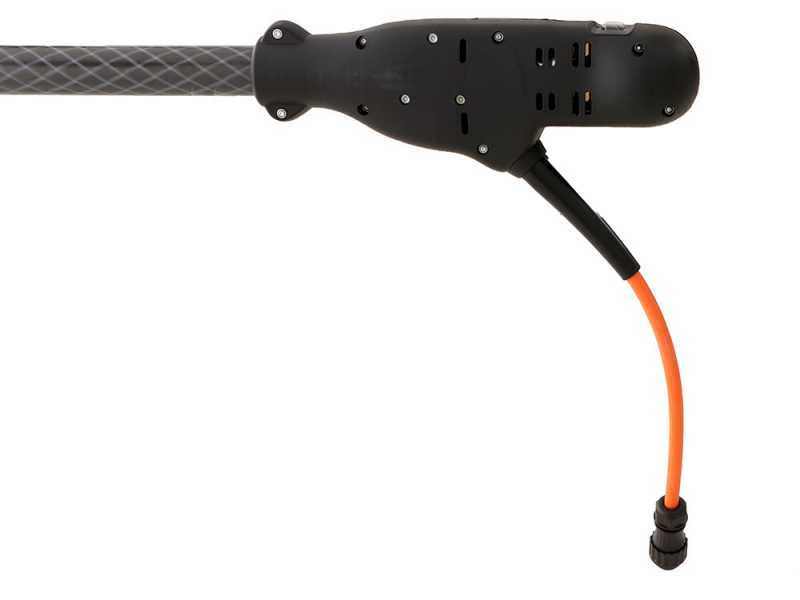

ENGINE PLACED AT THE BOTTOM OF THE AUCTION

It gives this harvester exceptional balance, which translates into less fatigue during use.

On the other hand, 99% of the harvesters on the market today still mount the engine on the head, adjacent to the rakes, a simpler and cheaper solution (because it is more banal in its mechanical construction), but one that makes the harvester extremely unbalanced in terms of weight and very tiring to use.

Therefore, when choosing a harvester, it is wrong to consider only the total weight because it is misleading in assessing the comfort of use, especially for those harvesters that have the engine in the head and therefore have 80 per cent of their weight concentrated there. Comfort of use comes from balancing the weights and not from the total weight: mounting the motor at the bottom of the rod helps to achieve this balance.

Special waterproof start switch.

Very low absorption: 6 A/h

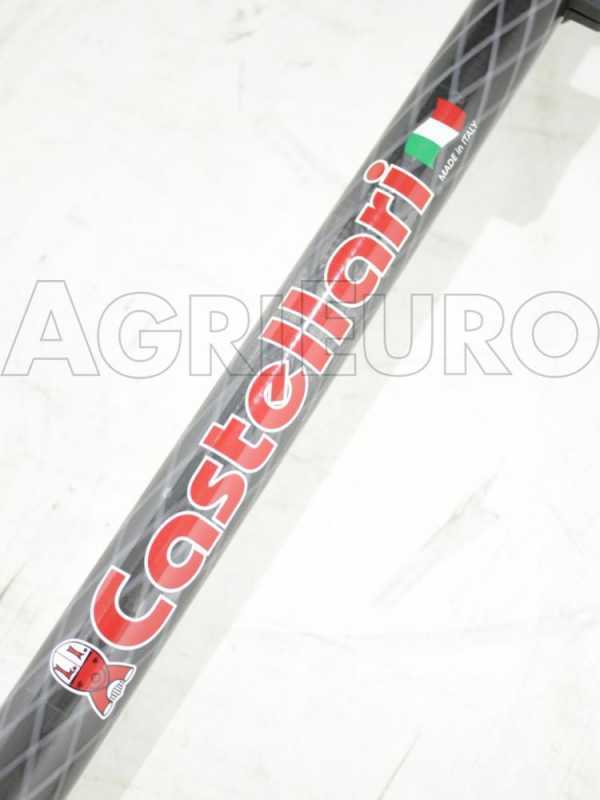

The shaft of this harvester is made entirely of carbon.

What are the advantages of this material over classic aluminium?

• Increased impact resistance
• Increased vibration absorption
• Greater lightness

ATTENTION: the long shaft is always the ideal configuration of this harvester, precisely because it mounts the motor at the bottom of the shaft. Excellent in the case of lower olive trees, we recommend holding the pole in the middle to keep the weight balance at 50% - 50% (as in the diagram above) making it even more manageable to use

The head of this harvester is extremely light The first electric harvester in the world to have a head that weighs as much as pneumatic compressed air harvesters (which until now were lighter). The head weight of the harvesters that can still be found on the market today with the motor mounted on the head is around 1500 to 1800 grams. Whatever brand they are, good or bad.

It has 3 different lengths of carbon rod, designed to optimise olive harvesting. In particular, the head mounts:

• 11 x 15 cm rods
• 3 x 33 cm rods
• 8 x 35 cm rods

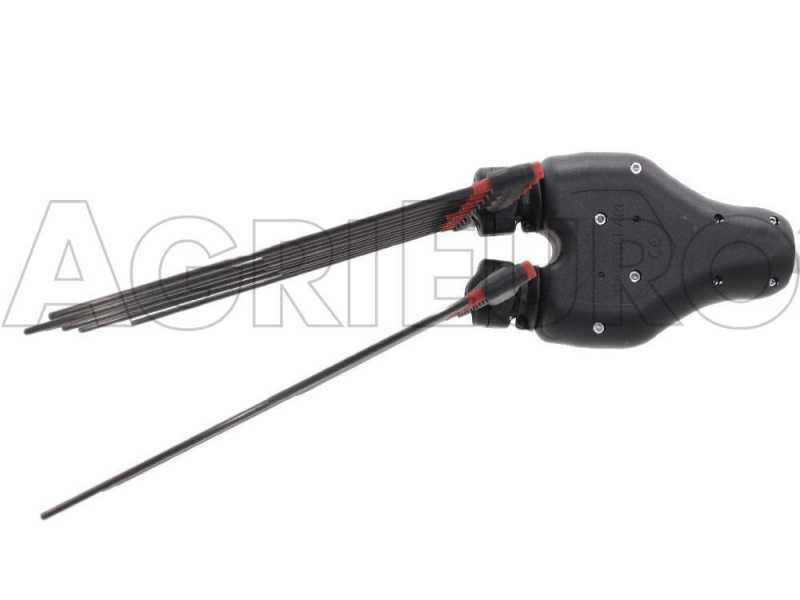

Details of the overhead transmission (without engine), VERY SMALL SIZE.

This offers truly exceptional manoeuvrability within the plant

LIGHTWEIGHT among electrics: only 3.3 kg, which is insignificant in itself, because, as explained earlier, only the weight of the head counts (and not everything else, which is absolutely irrelevant to the fatigue perceived by the user)

SUPER-POWERFUL motor: the most powerful electric motor. It can drive the two rakes (which have very long tines), each with an oscillating motion of no less than 1150 cycles + 1150 cycles.

New super-lightweight telescopic carbon rod (longer than previous models) with quick-release fastening. ATTENTION: the long shaft is always the ideal configuration of this harvester, precisely because it mounts the motor at the bottom of the shaft. Excellent in the case of lower olive trees, we recommend holding the pole in the middle to keep the weight balance at 50% - 50% making it even more manageable to use

Sturdy and lightweight aluminium carrier sectors.

Wands screwed onto the aluminium sector, can be replaced in a flash with the simple use of a spanner

Exceptionally robust overhead transmission. In fact, it is very simple, made with only a few gears made of very high-strength hardened steel.

No use has been made of 'eccentrics', 'spiders' or 'connecting rods', i.e. all those mechanical systems that are prone to easy deterioration and require continuous maintenance.

Furthermore, the Tornado harvester is maintenance-free!

Everything is enclosed in a robust ABS housing that protects all the kinematics that transmit movement to the rakes from dust, dirt and shocks. VERY SMALL FOOTPRINT: This offers truly exceptional manoeuvrability within the plant

Detail of the professional quick fastening system on the telescopic pole

Professional sockets

SUPERPROFESSIONAL 15 m long connection cable of exceptional robustness, with terminal battery clamps.

Detail of fuse housing
