Castellari Vertigo L 12V 240 - 320 cm Electric Battery-powered Olive Harvester

The Castellari Vertigo L 12V 240/320 is the olive harvester designed for all types of crops and breeding, with no difference between olive trees prepared for mechanisation, hence well pruned, or thick foliage trees, in hillside or lowland cultivations.

Designed to fit every working requirement, it ensures the best results in absolute respect of the integrity of the plant and the fruit.

Equipped with double opposed side movement of the rakes, suitable for any type of fruits and plants.

The carbon prongs are flexible and are 35 cm long, allowing for olive collection up inside the plant foliage.

The Vertigo 12V is supplied with a 15 m watertight power cable with control unit and two spare fuses.

All these functions are clearly indicated by the LED lights on the control unit.

Made with components in:

• CARBON FIBER 8 prongs
• ALUMINIUM (telescopic pole)
• STEEL (transmission gears)

Guarantees LIGHTNESS, POWER, RELIABILITY

The Vertigo olive harvester is the most effective, and it is by far the tool with one of the highest hourly gathering capacity.

It can be used to comb well trimmed and not very thick tree foliage.

It can collect olive directly inside the foliage to be then removed easily from it repeatedly in not pruned trees with very thick foliage.

New telescopic pole extra light and made of aluminium, equipped with quick coupling.

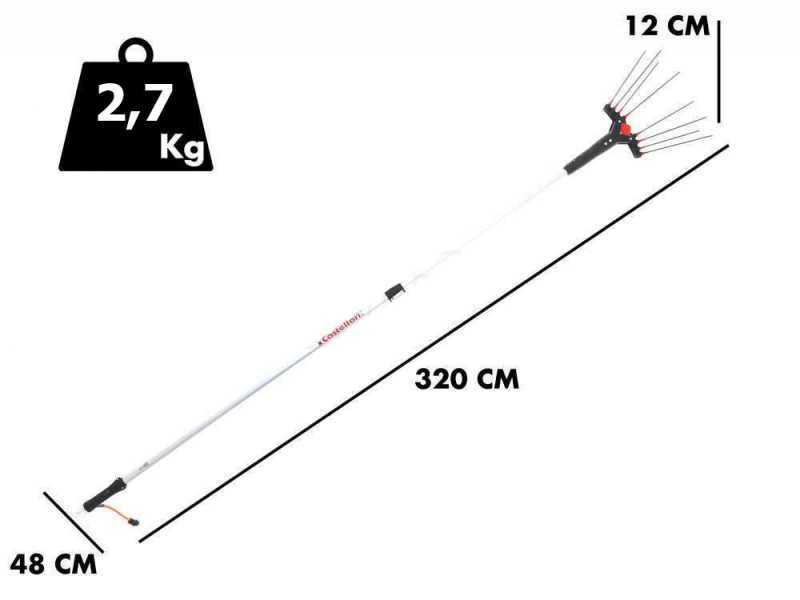

Olive harvester real length:

• Harvester + telescopic pole: 240 cm when not extended, 320 cm when extended

The carbon rakes move accomplishing each elliptical 1150 beats per minute, with a direction opposite to one another.

The overall movement of the harvester head consists of 2 opposite elliptical motions with 1150 + 1150 beats per minute

This is undoubtedly one of the most advanced and sophisticated systems in the field of olive harvesting equipment.

The advantages are:

• Higher harvesting capacity of each prong
• Almost nonexistent twigs brakes
• Significantly reduced vibrations
• Greater range of action of the 2 rakes.

This is the reason why the models of this brand differ significantly from all other manufacturers on the market who mount carbon prongs on the rakes.

The head of the this olive harvesteris extremely light, it is in fact the first electric olive harvester in the world that has an head that weighs as much as compress air olive harvesters (which until now were lighter). The weight of the head of the olive harvesters, which can still be found on the market with the motor mounted in the head, is about 1500- 1800 grams. Whatever brand they are, good or bad.

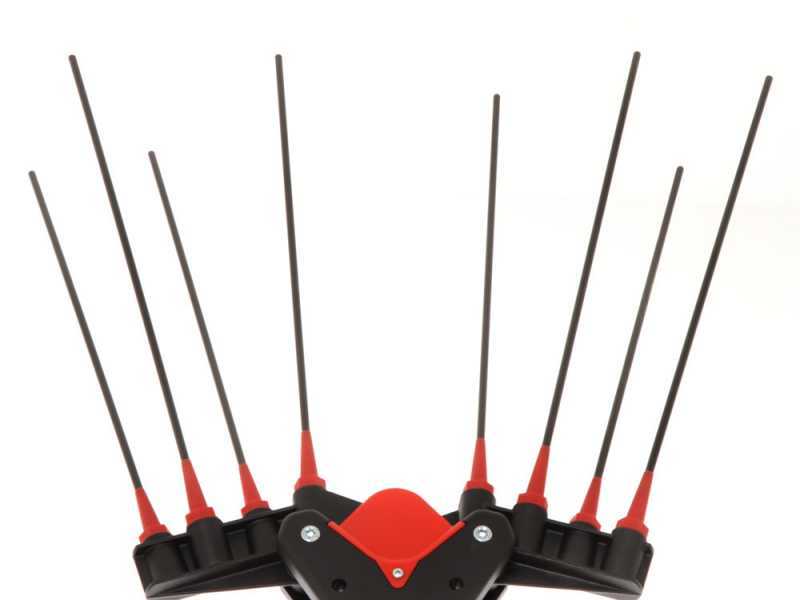

It mounts 8 carbon prongs which optimise olive harvesting.

This offers an exceptional ease of use inside the tree foliage

One of the most LIGHTWEIGHT among other electric olive harvesters: it weighs only 2.8 Kg, which, is in any case irrelevant, because, as explained above, the only weight that matters is the weight of the head (given the fact that the weight of other parts of the unit has no effect whatsoever on the actual fatigue perceived by the user)

SUPER POWERFUL Motor : one of the most powerful among electric harvesters. It can operate the two rakes (which fit very long prongs) and make them perform a horizontal movement each with 1150 + 1150 beats per minute.

New telescopic pole (longer than previous models) extra light and made of aluminium, equipped with quick coupling.

Prongs holder made in aluminium, robust and lightweight.

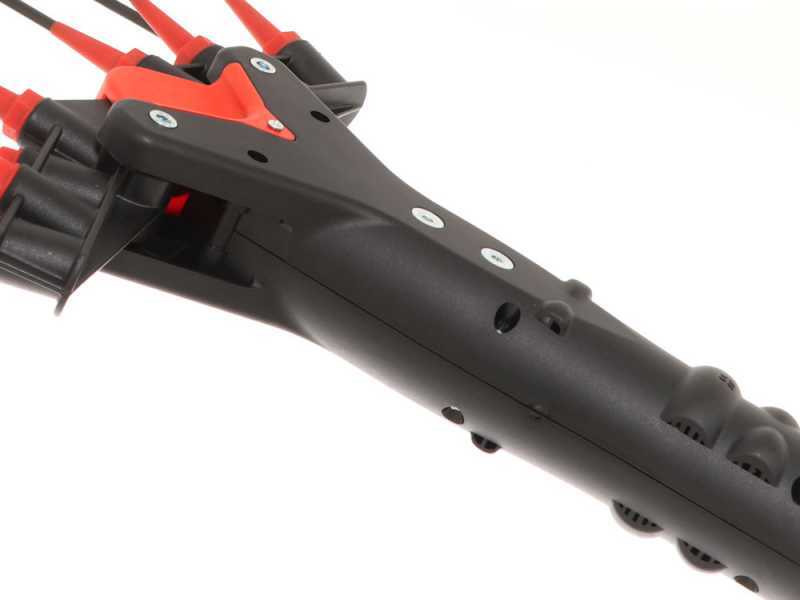

High strength head transmission. Indeed, it features a very simple design and it is made with only a few gears made of very high-strength hardened steel.

No presence of cams, spider assemblies, connecting cross shaped prongs or other mechanical components subject to a quick wear-and-tear process and that require constant maintenance.

In addition, the Vertigo harvester is maintenance free!

The whole is enclosed in a robust housing made of ABS plastic which protects from dust, dirt and bumps that transmit the movement to the rakes. OPTIMISED DIMENSIONS: This offers an exceptional ease of use inside the tree foliage

Focus on the professional rapid fixing system placed on the telescopic pole

Heavy-duty terminals

SUPER-PROFESSIONAL 15 m power cable with exceptional strength and terminals for battery clamps

Focus on the housing of the fuse
