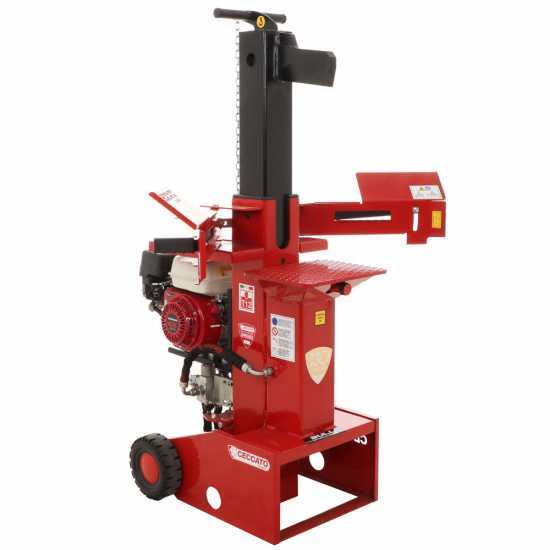

Ceccato BULL SPL12H GX200 - Petrol Log Splitter - Vertical - Honda GX200

The Ceccato Olindo BULL SPL12H petrol log splitter is a vertical log splitter powered by a Honda GX200 petrol engine, entirely Made in Italy and is designed for domestic-semi-professional use.

This log splitter comes with an oversized and reinforced frame, completely robot-welded, very sturdy, equipped with a Domex steel wedge support tube, a hardened steel wedge and top-quality hydraulic components.

The piston is considerably larger than the ones on other models in its category.

It is powered by a 6.5 Hp Honda GX200 petrol engine. It is also equipped with two wheels for transport made of a special rubber mixture that prevents stones from getting stuck.

The machine is provided with hydraulic hoses with Ceccato Olindo screen-printed canvas sheathing, and with studs that fully comply with the latest CE regulations.

This ceccato Olindo BULL SPL12H log splitter complies with CE safety at work regulations.

Splitting force: 12 tons

Log diameter: from 10 to 60 cm

Logs height: from 10 to 50 cm

Piston stroke: 54 cm

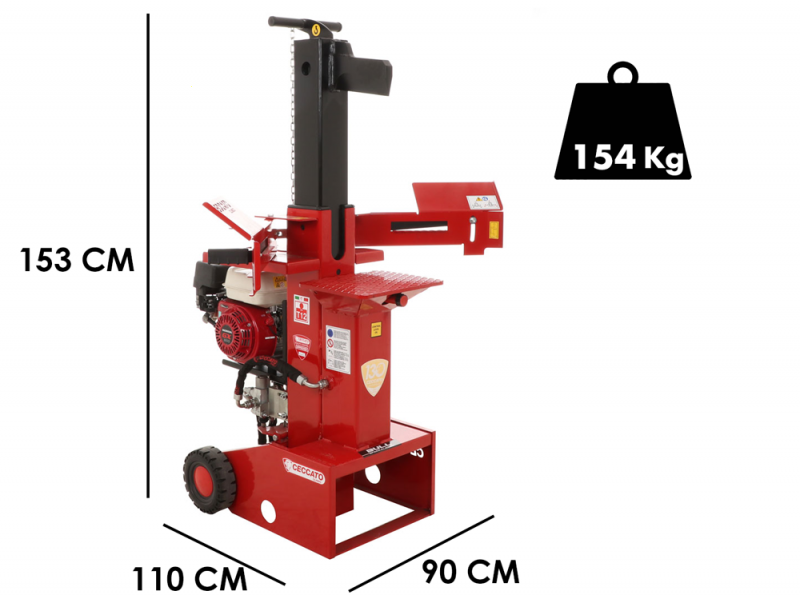

Overall dimensions: 110x90x153

Weight: 154 Kg

Ceccato Bull log splitter is entirely made in Italy.

This machine is part of the Bull log splitter Series by Ceccato Olindo.

LOG SPLITTER MODEL 10/12 TONS

WEDGE: cutting wedge with 3° tilt towards the frame.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

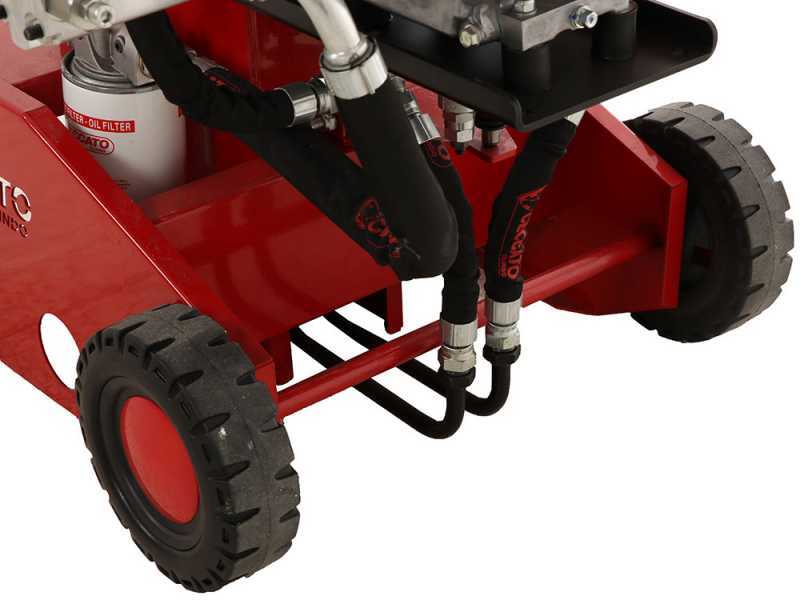

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is compliance with the DIN EN 609-1: 2017 Directive.

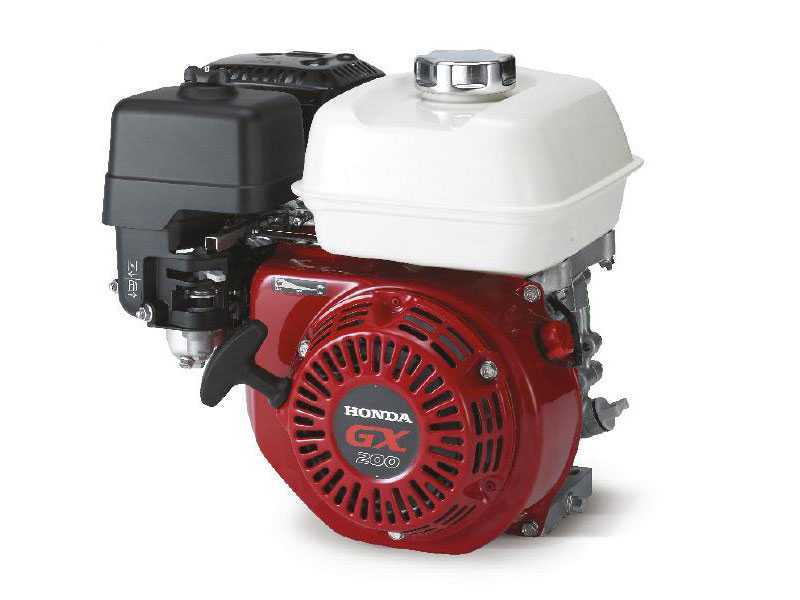

The Honda GX 200 engine is powerful and heavy-duty, with the latest generation technology in OHV valve head.

Features:

• Engine type: 4-Stroke - OHV - single cylinder
• Cylinder type: Aluminium
• Cubic Capacity: 196 cm³
• Fuel tank capacity: 3.1 L
• Consumption: 1.3 L/h at 3000 rpm

The Honda “GX” series is highly professional and was developed for heavy duty jobs in building and agricultural field for generators, welders etc., reliable and long life.

Nominal Power: 6.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.58 Hp (at 2900 rpm)
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

WARNING

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

With its 12 ton splitting force, this Ceccato log splitter can break knotty logs of different sizes up to max. 50 cm height and 60 cm diameter.

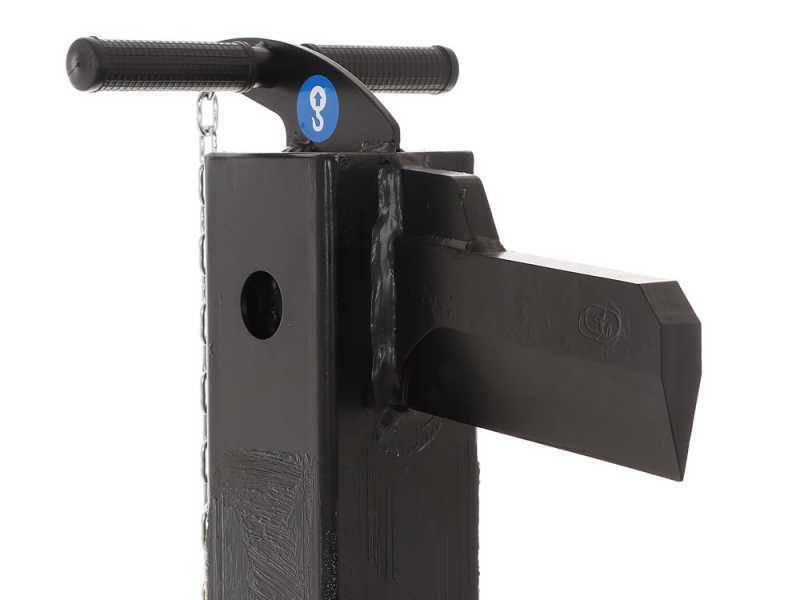

The cutting wedge is made of highly sturdy steel.

Large cutting plate: 35 x 27 cm

The user can operate the machine simply by means the dual control levers of the log splitter hydraulic valve.

The levers unit is equipped with proper hand guards and all safety devices to protect the Operator during use.

Focus on the log side support integrated in the handles arms.

Adjustable end-of-stroke control system

The log splitter is equipped with an oversized, reinforced double-tube frame made of high-strenght steel. Highly-sturdy and resistant frame.

This log splitter is provided with wheels to make transport easier and it is perfectly balanced. Even just one Operator can transport the machine by means the tilting handle.

Furthermore, it is equipped with specific lifting hook.

Sturdy support platform.

This machine complies with the security Directives in order to guarantee a completely safe operation.
