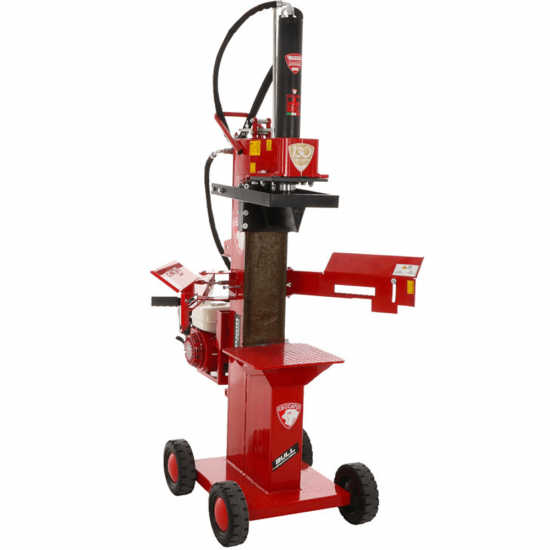

Ceccato BULL SPL13R4H - Petrol Log Splitter - Vertical - Honda GX200

The BULL SPL13R4H log splitter by Ceccato Olindo is a machine made in Italy, designed for professional use.

Extremely sturdy frame, built to withstand high splitting force.

It is built with a large cast steel knife that slides along a bushing guide protecting the frame and piston even during maximum effort.

It allows splitting knotty wood logs ranging in size from a minimum of 18 cm to a maximum of 50 cm height.

It is equipped with additional drive controls mounted in the upper part of the machine, allowing even very large logs to be split.

Powered by a powerful Honda GX200 6.5 hp engine.

The solid base is fitted with 4 wheels to ensure an easy transport; these are made of a special rubber mixture that prevents stones from getting stuck.

Safety arch and adjustable end-of-stroke system. Hydraulic hoses fitted with a special Ceccato Olindo screen-printed canvas sheath and fitted in the fittings, all in full compliance with CE regulations.

Splitting power: 13 tons

Log minimum and maximum height: 18 - 50 cm

Log diameter: from 15 to 60 cm

Piston stroke: 52 cm

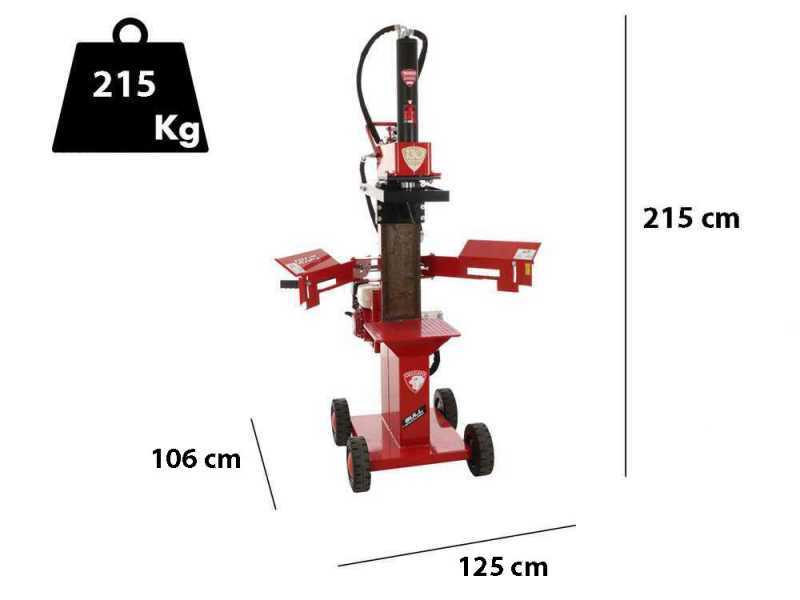

Weight: 215 kg

The machine is part of Ceccato Olindo's Bull line of log splitters.

WEDGE: Cutting wedge with 3 inclination towards the column.

SUPPORT BASE: the thickness of the base plate is 55 mm, also favouring the stability of the machine.

STROKE: the cutting wedge at the stroke end features a residual distance of 100 mm from the supporting plate.

UPPER CONTROL LEVERS: the levers have been shortened as to comply with the Directive.

LOWER CONTROL ARM LEVERS: Shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. Thus, the shape has been specifically selected to prevent the possible fall of the log towards the operator.

HYDRAULIC HOSES: We have increased the tube diameter. This allows a lower oil temperature. Protection and skimming with Ceccato Olindo reinforced sheath and screen-printed with steel studs. In case of damage or burst of the hose, it allows retaining the vaporizing oil without any risk of injury.

LOG LIFTING: installation of the log lifting device synchronised with the movement of the cutting wedge.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is compliant with the DIN EN 609-1: 2017 Directive.

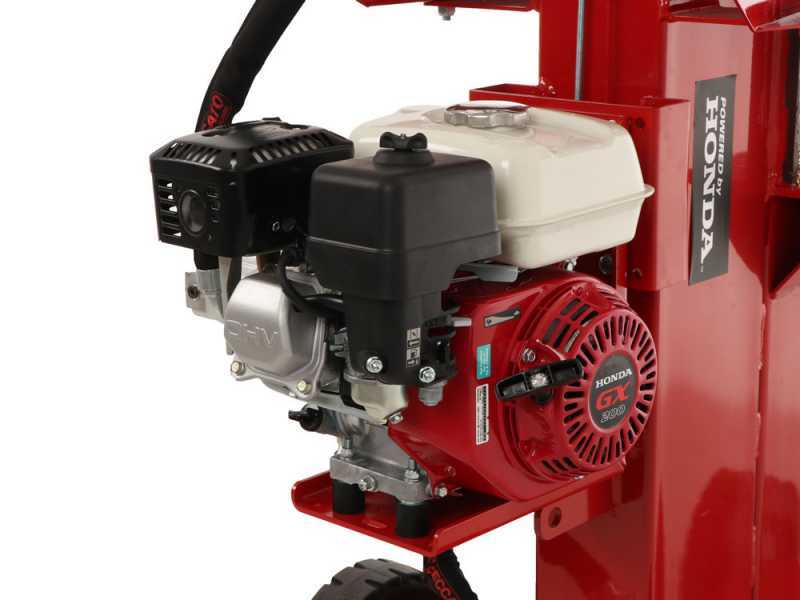

The Honda GX 200 engine is professional and powerful and designed with the latest generation OHV technology.

Features:

The Honda “GX” series is highly professional and has been developed for heavy-duty work in construction, agriculture, generators, welders, and many others, characterised by great durability and reliability.

The log splitter utilises the action of a high-performance double hydraulic pump operating at a pressure of 180 bar (max) capable of pumping up to 24 L/min and supplying oil, drawn from the tank, to the hydraulic cylinder acting as a log pusher. The body of the machine structure itself has the function of hydraulic oil tank.

- Focus on the oil filter

- Focus on the air filter

Nominal Power: 7.3 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: 6.5 Hp
It corresponds to the real power delivered by the motor shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the speed of rotation provided.

With a thrust of no less than 13 tons, this log splitter is capable of splitting knotty logs of varying sizes up to a maximum height of 50 cm.

This is due to the exceptionally strong and large piston cylinder with a maximum diameter of 60 cm.

The piston is guided by skids along a steel guide, which even under maximum strain safeguards the cylinder, which is supported by side guides made of high-density ABS with replaceable contact shims made of bronze.

The guides are made of high-strength wear-resistant material and, thanks to their brass sliding thickness, they preserve the steel plate on the main body of the log splitter.

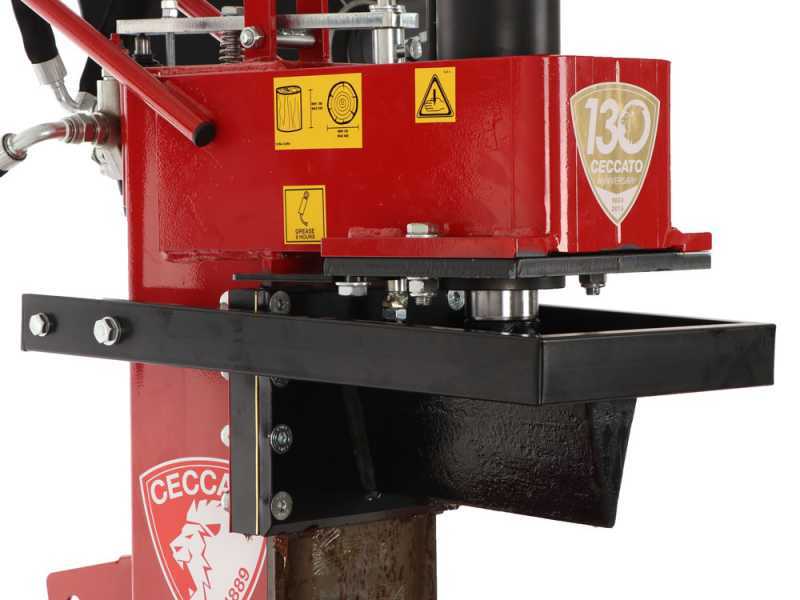

The wedge of the log splitter is made of cast and pressed steel with very high strength.

Piston stroke adjustment: to cut short logs and speed up work, the working stroke of the piston can be adjusted.

The log splitter is equipped with a cylinder drive circuit with variable speed.

The single or double speed are simply selected by pressing with greater or lesser pressure on the control handles. It will be instinctive for the operator, once that the wedge will come into contact with the strain, to press with greater pressure on the handles so that the wedge can hold all the power in order to execute the splitting.

The two-hand levers for operating the machine must necessarily be operated by the operator using both hands. This is to avoid any kind of accident.

By applying slight pressure, the log splitter makes the pusher cylinder move at a considerable speed while maintaining a small pressure capacity until contact is made with the wood to be split.

Instead, by pressing down harder on the control handles, the piston slows its speed considerably, increasing the pressure capacity of the splitting wedge by up to 13 tonnes.

- Focus on the protection rubber on the handles

The log splitter is made of thick enamelled steel profiles that make up a very strong frame.

Indeed, unlike most log splitters on the market, which have frames made from 'H' beams, the frame of the Ceccato log splitter is made from a framed structure, and it is reinforced with the front flat plate where the splitting wedge slides.

This sliding plate is made of very high-strength hardened steel, the steel of which is even harder than that used for the frame structure.

The result is a sturdy frame and support structure that is practically indestructible.

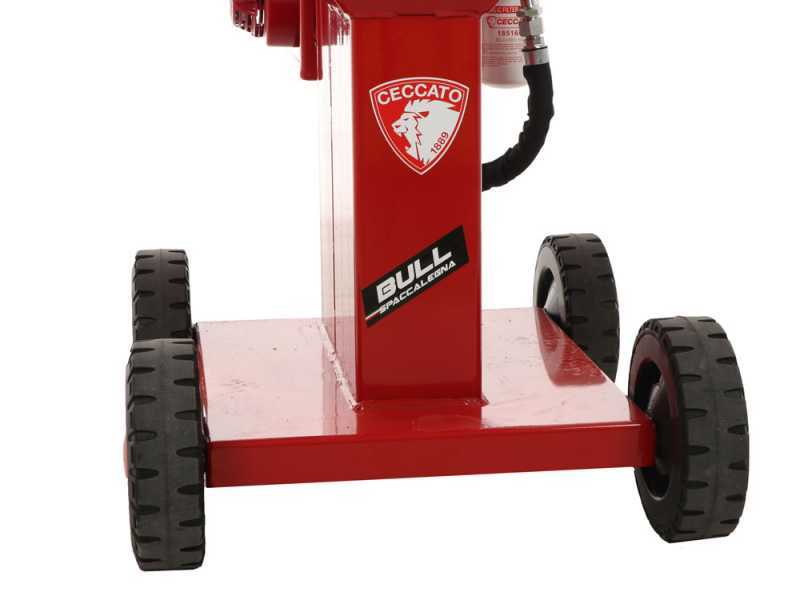

The log splitter is complete with wheels for easy motion and is excellently balanced: transport can be performed using the handle for tilting the log splitter and the transport wheels, which are an impressive 25 cm diameter.

With a thrust of no less than 13 tonnes, this Ceccato log splitter is capable of splitting logs of varying sizes up to a maximum of 50 cm height and 60 cm diameter.

In special situations it can also be lifted by means of the specific lifting point.

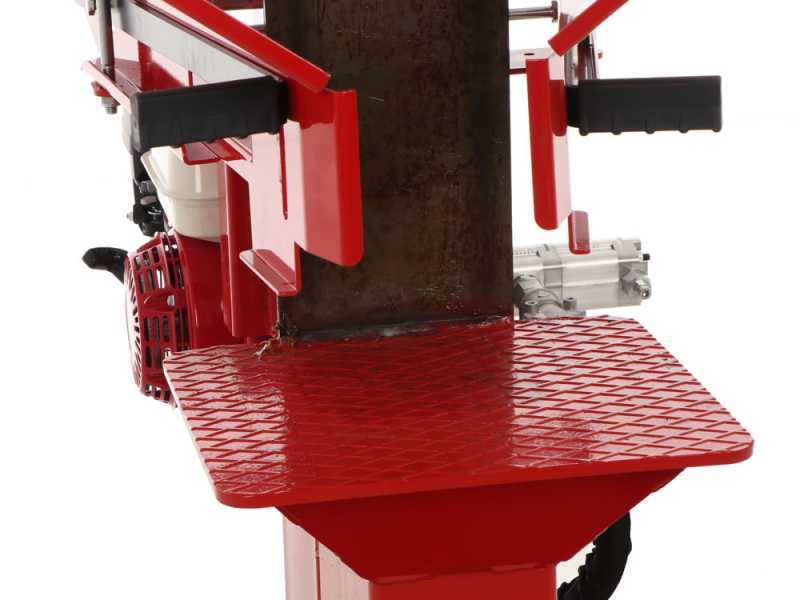

The splitting table measures 36x41 cm.

This machine is made keeping in mind all of the industry standards in order to make the operator's work safe.

Locking device of the lift wedge with stuck logs.

Pressing this upper support the piston’s ascent stops automatically. This allows you to ensure total safety by eliminating the risk of injuries to the hands and wrists.

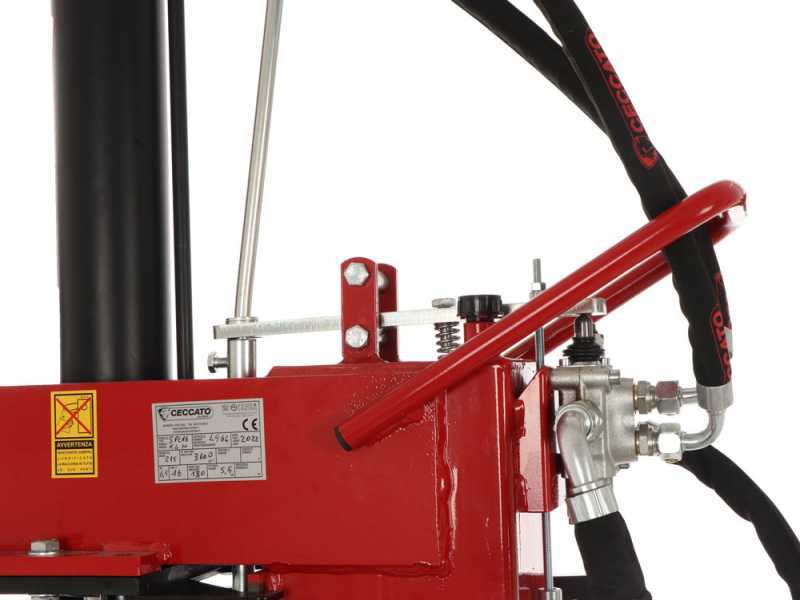

- Focus on the professional hydraulic distributor

- Focus on the pipes with screen-printed sheathing

- Focus on the hydraulic oil level

Adjustment of the piston stroke: to cut short logs and speed up the work it is possible to adjust the stroke by regulating the cylinder by means of the clamping key.

Focus on the oil filter
