Ceccato BULL SPLE10 Single-phase Electric Vertical Log Splitter - 10 Tons - 540 mm Piston Stroke

Questions & Answers (1)
ID: 104057

EAN: 9999237541213

MPN: SPLE10

8,5/10
After-sales assistance & Spare parts
Ceccato BULL SPLE10 Single-phase Electric Vertical Log Splitter - 10 Tons - 540 mm Piston Stroke
+100 sold
Max. trunk diameter
50 cm
Piston stroke
54 cm
Max. pressure
230 bar
Retractable piston for transport
Yes
Operating mode
Single-phase 230 V
Nominal power
3 HP
Engine
Induction
Nominal power (W)
2200 W
Nominal splitting force
10 t
Pump type
Double hydraulic
Pump
Double
Manufacturing country
Italy
Product Features
Model:
BULL SPLE10
Type:
Vertical
Double speed:
No
Operating mode:
Single-phase 230 V
Nominal splitting force:
10 t
Piston stroke:
54 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
No
High position trunk length:
50 cm
Manufacturing country:
Italy
Motor data
Motor brand:
LUCME
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
3 HP
Nominal power (W):
2200 W
Motor speed:
2850 RPM
Power supply:
220 V electric
Manufacturing country:
Italy
Pump data
Pump type:
Double hydraulic
Max. pressure:
230 bar
Oil tank:
Yes
Manufacturing country:
Italy
Hydraulic oil qty.:
7 Litres
Cutting data
Max. trunk length:
50 cm
Max. trunk diameter:
50 cm
Equipment
Frame:
Covered with front plate
Pump:
Double
Vertical log splitter safety lever:
Yes
Retaining side arms:
No
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Tractor three-point hitch:
No
Replaceable wedge guides:
No
Cartridge oil filter :
No
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
27 cm
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
80x54x107 cm
Net weight:
111 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
80x60x120 cm
Gross weight (packaging included) :
120 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
13 items in stock
Free Shipping
Estimated delivery: 03/12/2024 - 05/12/2024
€ 1.876,98
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

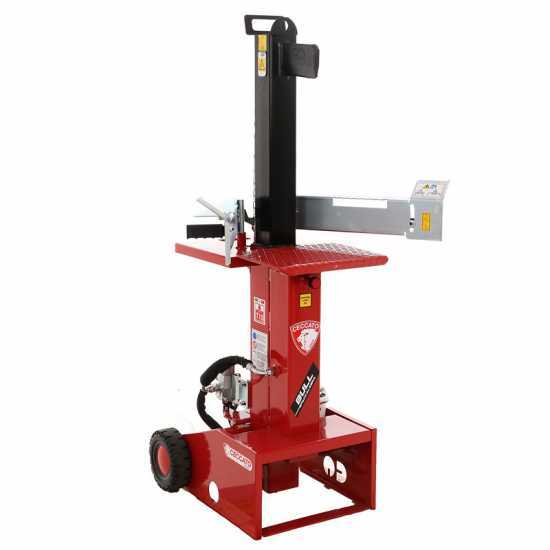

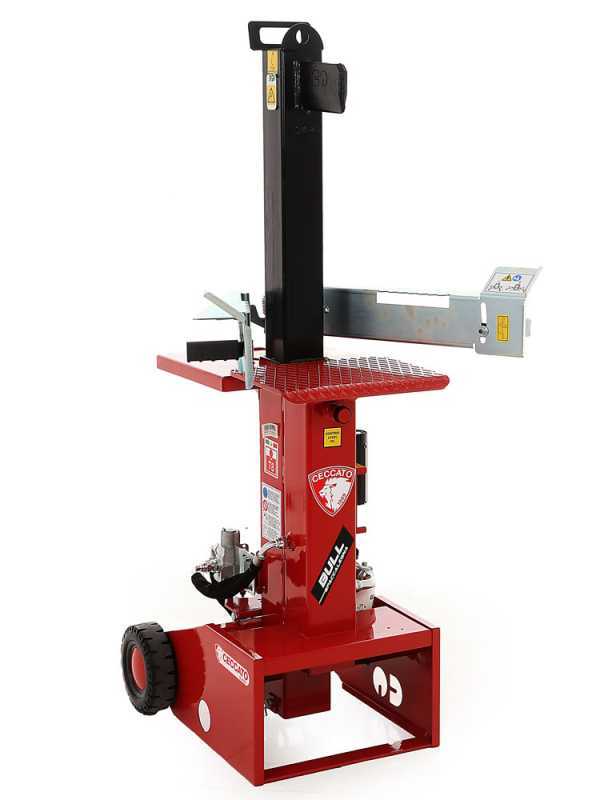

Ceccato Bull SPLE 10 electric vertical log splitter - 10 tons

The Ceccato Olindo Bull SPLE10 is a tractor-mounted vertical log splitter with single-phase electric motor, suitable for those who have to carry out intensive and heavy-duty splititng operations. A product of the highest Italian quality by Ceccato Olindo, historical brand and leader in the sector.

It is one of the highest-quality log splitters in its category in terms of quality/price ratio, made with top-quality materials, with a highly sturdy double-tubular reinforced frame.

With its 10 tons splitting force it can break knotty logs of different sizes up to max. 50 cm height and max. 50 cm diameter.

Powered by a powerful 3 Hp single-phase electric motor (2.2 Kw) The Ceccato Olindo SPLE 10 log splitter is provided with 2 wheels and proper handle for easy transport and adjustable end-of-stroke automatic control system.
It is equipped with a double pump that ensures a high splitting force and high working speed.

This SPLE10 electric log splitter can operate very quickly and it is equipped with special safety devices to protect the Operator while working.

Splitting force: 10 tons

Log diameter: from 10 to 50 cm

Logs height: from 18 to 50 cm

Piston stroke: 54 cm

Overall dimensions: 80 x 54 x 107 cm

Weight: 111 Kg

Ceccato Bull log splitter is entirely made in Italy.

This machine is part of the Bull log splitter Series by Ceccato Olindo.

Highest safety ensured by the Ceccato Olindo log splitter

LOG SPLITTER MODEL 10/12 TONS

WEDGE: cutting wedge with 3° tilt towards the frame.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is in compliance with the DIN EN 609-1: 2017 Directive.

Electric motor

This log splitter can be directly connected to the standard domestic wall socket and it is powered by the 230V 3Hp single-phase motor featuring 2.2 Kw of power.

Main electric switch

The frame of the machine structure itself acts as the hydraulic oil tank.

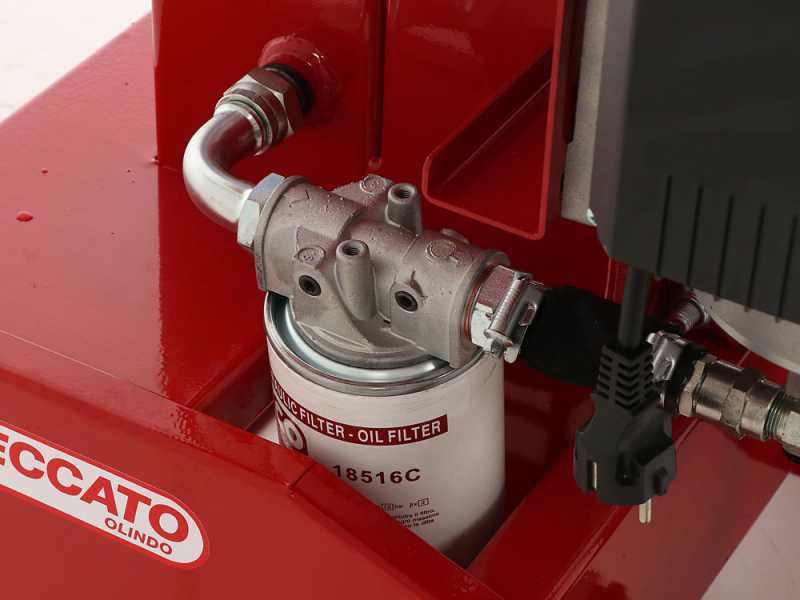

Oil Filter

Oil level check

It is equipped with a double pump which guarantees a great splitting force and a high working speed.

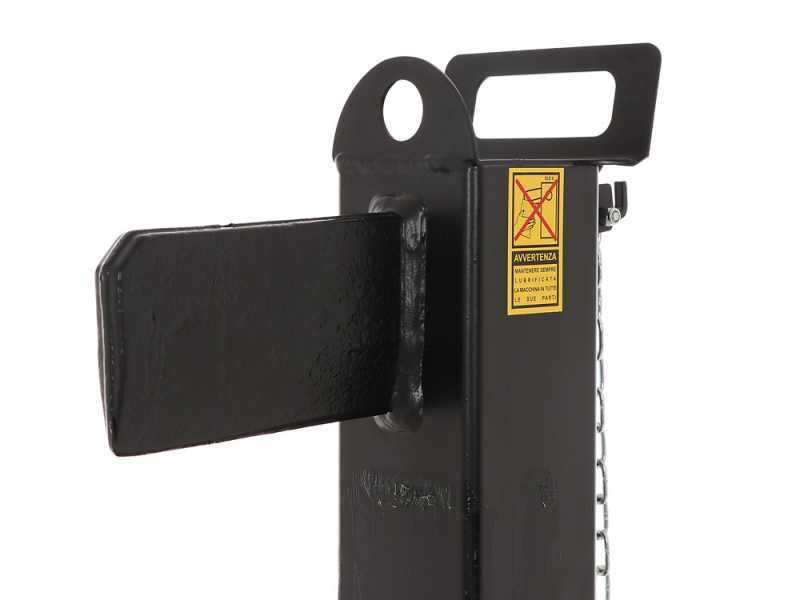

Wedge, dual control levers and cutting plate

With its 10 tons splitting force, this Ceccato log splitter can break knotty logs of different sizes up to max. 50 cm height and 50 cm diameter.

The cutting wedge is made of highly sturdy steel.

Large cutting plate: 39 x 30 cm

The user can operate the machine simply by means the dual control levers of the log splitter hydraulic valve.

The levers unit is equipped with proper hand guards and all safety devices to protect the Operator during use.

Adjustable end-of-stroke control system

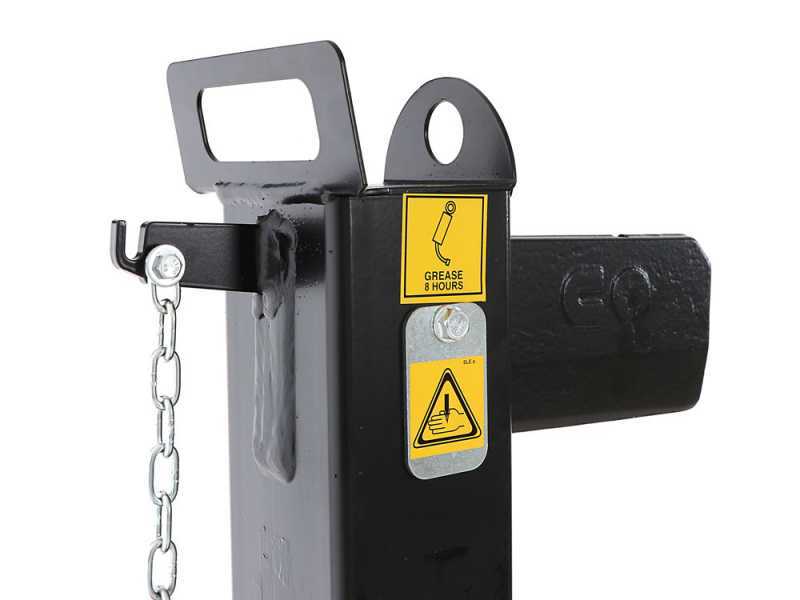

Other features

The log splitter is equipped with an oversized, reinforced steel double-tube frame. Highly-sturdy and resistant frame.

This log splitter is provided with wheels to make transport easier and it is perfectly balanced. Even just one Operator can transport the machine by means the tilting handle.

Furthermore, it is equipped with specific lifting hook.

Sturdy support platform.

This machine complies with the security Directives in order to guarantee a completely safe operation.

Free items & Standard equipment

Standard equipment

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
