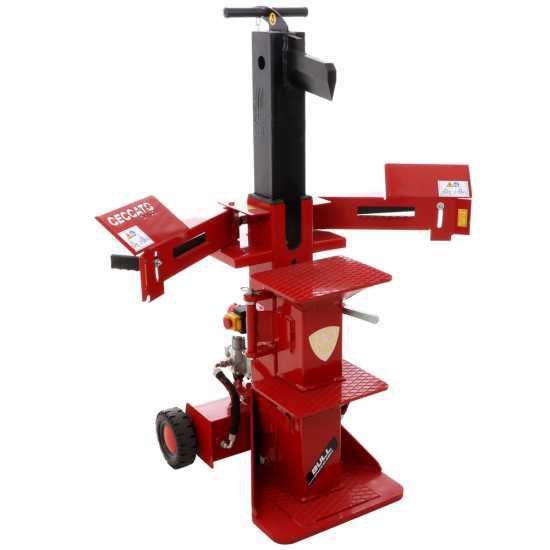

Ceccato BULL SPLE12 FDPT - Electric Log Splitter - Vertical - 400V

The Ceccato Olindo Bull SPLE12 FDPT is a tractor-mounted vertical log splitter with three-phase electric motor entirely Made in Italy, suitable for those who have to carry out intensive and heavy-duty splitting operations. A product of the highest Italian quality by Ceccato Olindo, historical brand and leader in the sector.

It is among the best professional log splitters in its category in terms of sturdiness and performance and its quality Made in Italy distinguishes it from other products on the market.

Cutting plate size: 35x27 cm

The tube outside the piston is made of DOMEX steel while the wedge is made of hardened steel.

The Ceccato SPLE12 FDPT features 12 tons splitting force and oversized, high-resistance double-tubular frame, which allows splitting knotty logs of different size up to max. 126 cm height and max. 60 cm diameter.

Equipped with a powerful 4 Hp single-phase electric motor (3 Kw) The Ceccato Olindo SPLE12 FDPT log splitter is provided with 2 wheels and proper handle for easy transport and adjustable end-of-stroke automatic control system.
It is equipped with a double pump that ensures a high splitting force and high working speed.

This SPLE12 FDPT log splitter can operate very quickly and safely: it is equipped with special safety devices to protect the Operator while working.

Splitting force: 12 tons

Log diameter: from 10 to 60 cm

Logs height: from 18 to 126 cm

Piston stroke: 54 cm

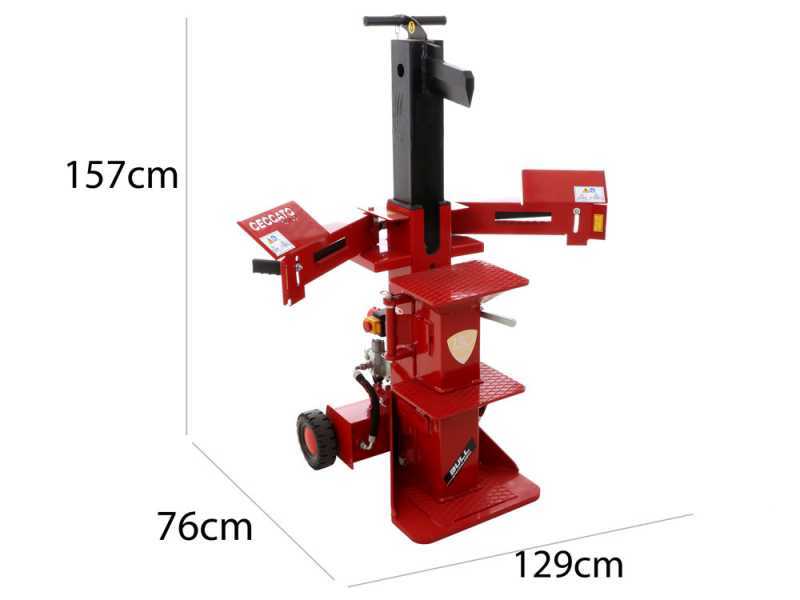

Overall dimensions: 76x129x157 cm

Weight: 194 Kg

The log splitter features 3 splitting heights:

-54 cm

-87 cm

-126 cm

Simply remove the 2 cutting plates to raise the cutting height.

Ceccato Bull log splitter is entirely made in Italy.

This machine is part of the Bull log splitter Series by Ceccato Olindo.

LOG SPLITTER MODEL 10/12 TONS

WEDGE: cutting wedge with 3° tilt towards the frame.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is in compliance with the DIN EN 609-1: 2017 Directive.

This log splitter is powered by a 4 Hp three-phase 400V electric motor featuring a power of 3 Kw.

Main electric switch

The frame of the machine structure itself acts as the hydraulic oil tank.

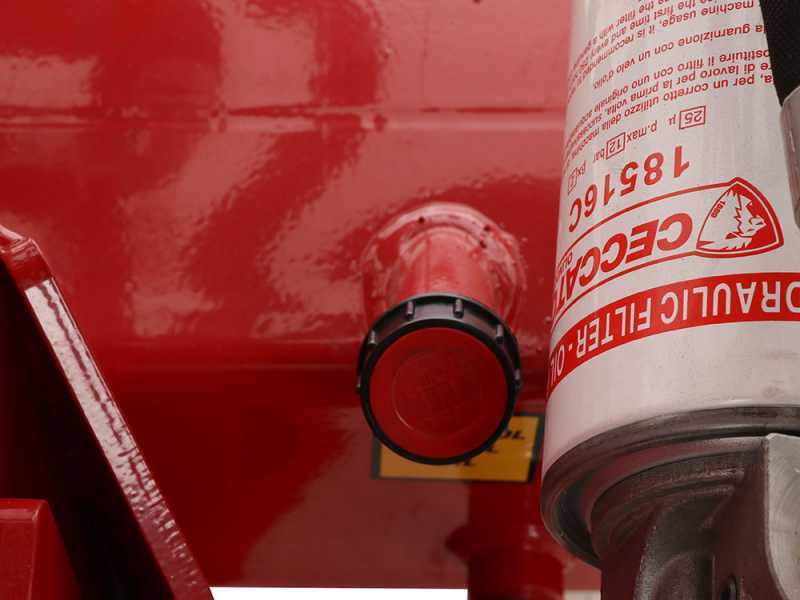

Oil Filter

Oil level check

It is equipped with a double pump which guarantees a great splitting force and a high working speed.

With its 12 tons splitting force, this Ceccato log splitter can break knotty logs of different sizes up to max. 126 cm height and 60 cm diameter.

The cutting wedge is made of highly sturdy steel.

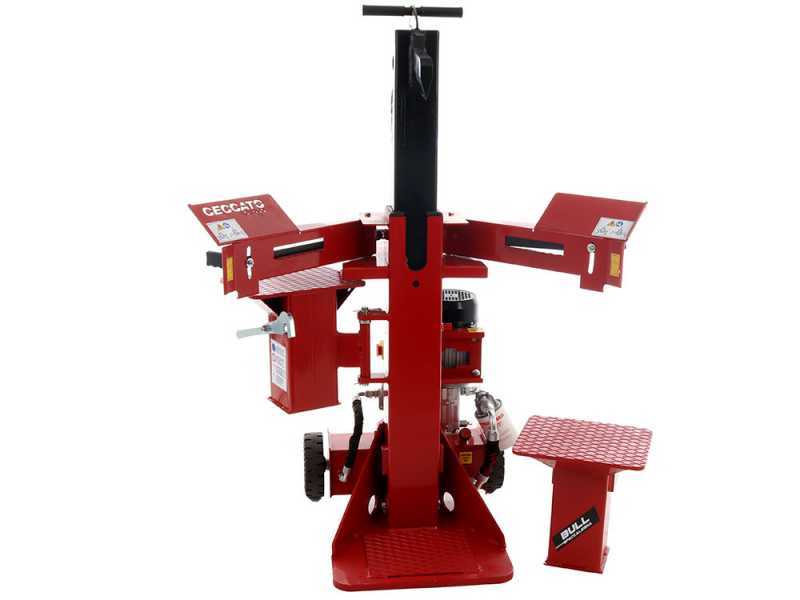

Large removable cutting plate adjustable in 3 different splitting heights:

-54 cm

-87 cm

-126 cm

The user can operate the machine simply by means the dual control levers of the log splitter hydraulic valve.

The levers unit is equipped with proper hand guards and all safety devices to protect the Operator during use.

Focus on the log side support integrated in the handles arms.

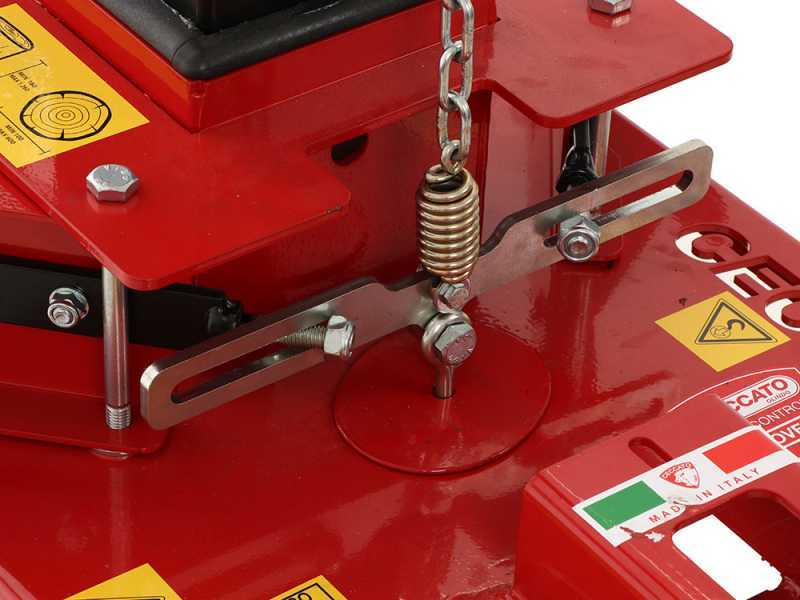

Adjustable end-of-stroke control system

The log splitter is equipped with an oversized, reinforced double-tube frame made of high-strenght steel. Highly-sturdy and resistant frame.

This log splitter comes with wheels to make transport easier and it is perfectly balanced. Even just one Operator can transport the machine by means the tilting handle.

Furthermore, it is equipped with specific lifting hook.

Sturdy support platform.

Convenient instructions manual holder to always have the instructions at hand.

This machine complies with the security Directives in order to guarantee a completely safe operation.
