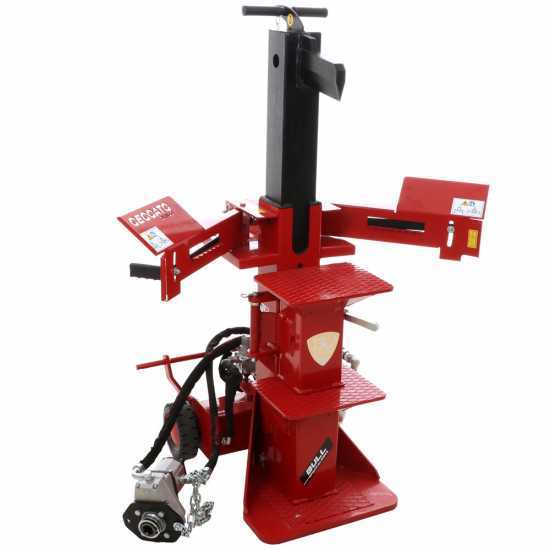

Ceccato BULL SPLT12F - Tractor-Mounted Log Splitter - Vertical

The Ceccato Olindo Bull SPLT12F is a tractor-mounted vertical log splitter suitable for those who have to carry out intensive and heavy-duty splitting operations. A product of the highest Italian quality by Ceccato Olindo, historical brand and leader in the sector.

It is one of the highest-quality log splitters in its category in terms of quality/price ratio, made with top-quality materials, with a highly sturdy double-tubular reinforced frame.

The Bull SPLT12F log splitter can be connected to the tractor by means of a mobile pump which is directly linked to the PTO. It is NOT necessary using a cardan universal joint. Pump unit and multiplier gearbox are directly connected to the tractor PTO for extra splitting force and working speed.

Cutting plate size: 35x27 cm

The tube outside the piston is made of DOMEX steel, while the wedge is made of hardened steel.

The Ceccato SPLT12 log splitter features 12 tons splitting force and oversized, reinforced double-tubular frame, which allows splitting knotty logs of different size up to max. 126 cm height and max. 60 cm diameter.

It is provided with 3-point linkage.

The log splitter features 3 splitting heights:

-54 cm

-87 cm

-126 cm

Simply remove the different cutting plates to adjust the height.

Equipped with adjustable end-of-stroke control system.

The SPLT12F is provided with safety devices for protecting the Operator while working.

Splitting force: 12 tons

Log diameter: from 10 to 60 cm

Log's height: from 18 to 126 cm

Piston stroke: 54 cm

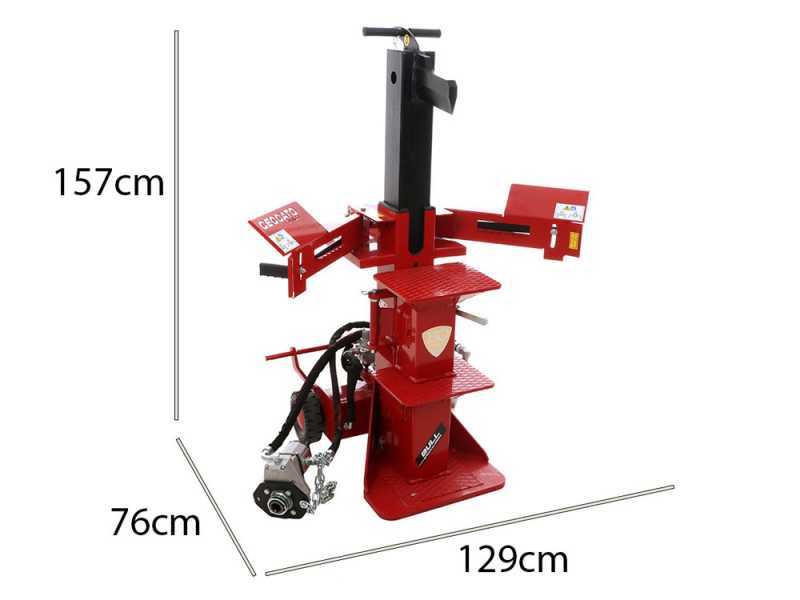

Overall dimensions: 96x129x157 cm

Weight: 190 kg

Ceccato Bull log splitter is entirely made in Italy.

This machine is part of the Bull log splitter Series by Ceccato Olindo.

ATTENTION:

The log splitters in this category are not suitable for working with wood with particularly twisted fibres, such as poplar or pine, with large diameters and, in any case, types of wood with frequent knots. In this case, it is advisable to opt for professional models. In addition, logs should only be split once they have been dried, and not when they are green; when wood is green, it is less likely to split and open up and is therefore less suitable for use with a log splitter. Once dried, however, it can be split and is ready for use in fireplaces, stoves, ovens, etc.

LOG SPLITTER MODEL 10/12 TONS

WEDGE: cutting wedge with 3° tilt towards the frame.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is in compliance with the DIN EN 609-1: 2017 Directive.

This log splitter can be operated directly connecting it to the tractor, thanks to the mobile pump.

Indeed, the SPLT12F is provided with pump unit and multiplier gearbox are directly connected to the tractor PTO for extra splitting force and high working speed.

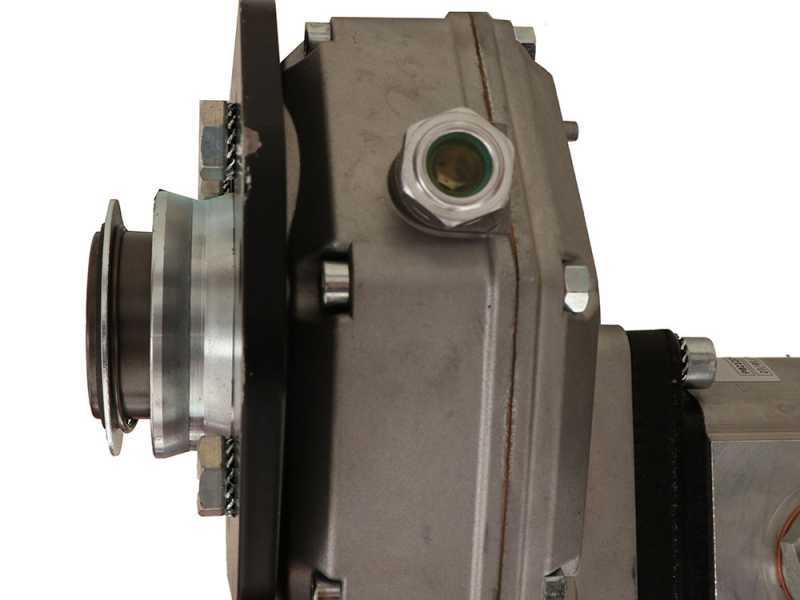

The multiplier gearbox transfers the drive torque from the tractor to the mobile hydraulic pump, which operates at a pressure of 230 bar (max.) and pumps 26 L/min of oil to the hydraulic cylinder.

The frame of the machine structure itself acts as the hydraulic oil tank.

The log splitter can be connected to the tractor by means the three-point linkage on the sturdy machine frame and the mobile pump safety chains.

Focus on the 3-point linkage

If you use the mobile pump it is NON using the cardan shaft, as usual for others tractor-mounted log splitters on market.

Double pump fully made in Italy.

With its 12 tons splitting force, this Ceccato log splitter can break knotty logs of different sizes up to max. 126 cm height and 60 cm diameter.

The cutting wedge is made of highly sturdy steel.

Large removable cutting plate adjustable in 3 different splitting heights:

-54 cm

-87 cm

-126 cm

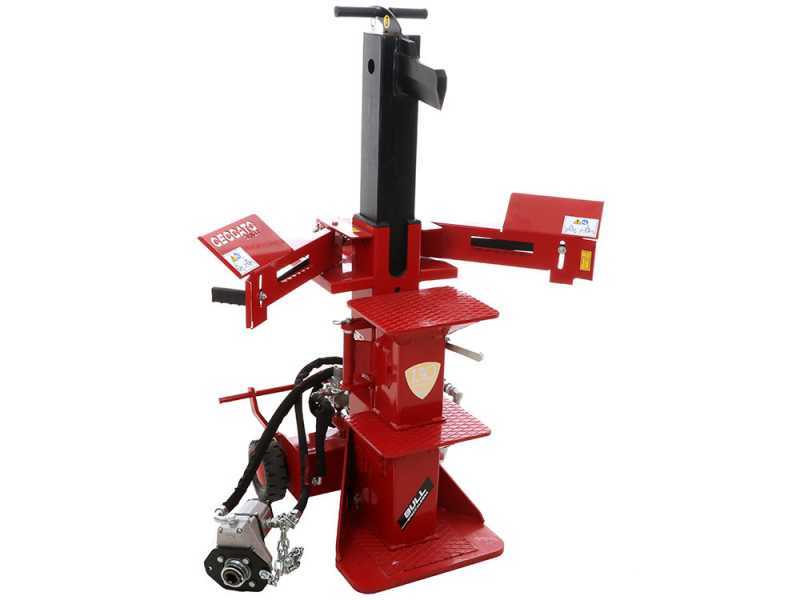

The user can operate the machine simply by means the dual control levers of the log splitter hydraulic valve.

The levers unit is equipped with proper hand guards and all safety devices to protect the Operator during use.

Focus on the log side support integrated in the handles arms.

Adjustable end-of-stroke control system

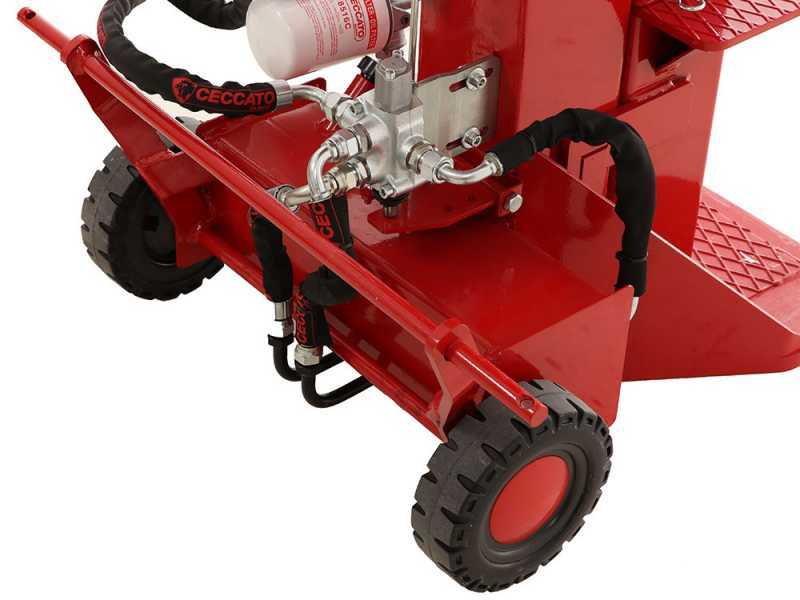

The log splitter is equipped with an oversized, reinforced double-tube frame. Highly-sturdy and resistant frame.

This log splitter is provided with wheels to make transport easier and it is perfectly balanced. Even just one Operator can transport the machine by means the tilting handle.

Furthermore, it is equipped with specific lifting hook.

Focus on the 3-point linkage:
focus on the upper 3-point linkage connection and lower 3-point linkage connection.

Sturdy support platform

The frame of the machine structure itself acts as the hydraulic oil tank.

Oil Filter

Oil level check

Convenient instructions manual holder to always have the instructions at hand.

This machine complies with the security Directives in order to guarantee a completely safe operation.
