Description

Side Arm Tractor-mounted Flail Mower

The Ceccato 290 L light series side flail mower is a tool for clearing greenery on roads, ditches and hedges.

The Olindo Ceccato brand guarantees a product with high levels of flexibility and with a large degree of work customisation.

The G2T1200F machine model shows the maximum degree of flexibility among other tractor flail mowers of the same range: the shift (which is completely hydraulic) can be both horizontal and vertical, the machine has a medium-size flexible construction that is perfectly suitable for shredding vine shoots, grass and small shrubs.

It is also equipped with an electronically balanced rotor, adjustable idle roller and adjustable standard skids.

The machine features significant reinforcement welds in several spots.

It can perform different functions such as:

Grass cutting
Shredding of stalks
Shredding of pruning
Hedges cutting
Ideal for ditches, embankments and slopes in general

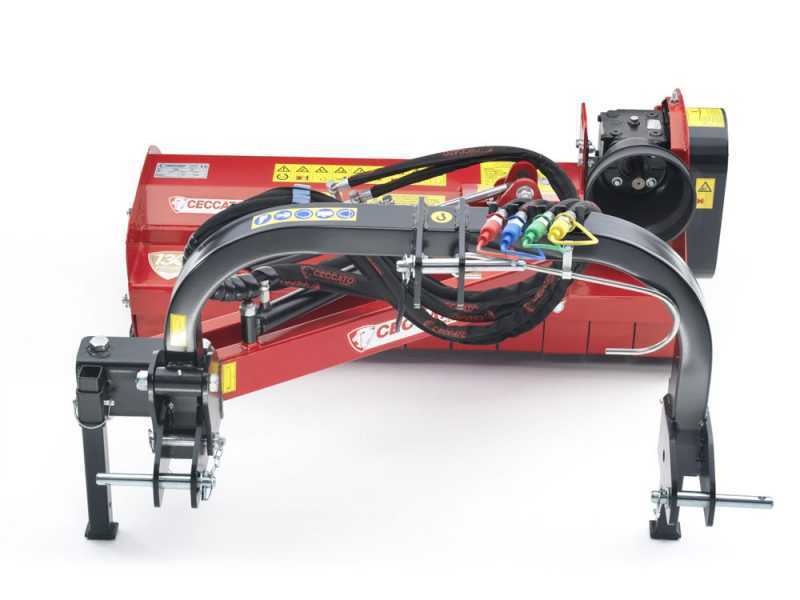

Vertical and side hydraulic shift is operated by two strong pistons, one mounted on the shredder and one to be mounted on the two arms connected to the three-point hitch.

TECHNICAL FEATURES (brief overview):

Real working width: 120 cm

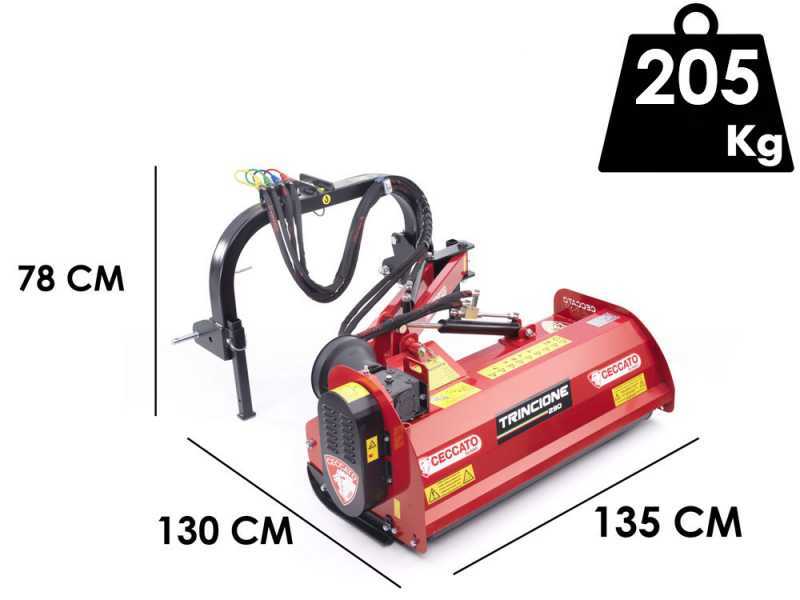

Machine width (with side skids already assembled): 135 cm
Weight: 205 Kg
Rear supporting roller

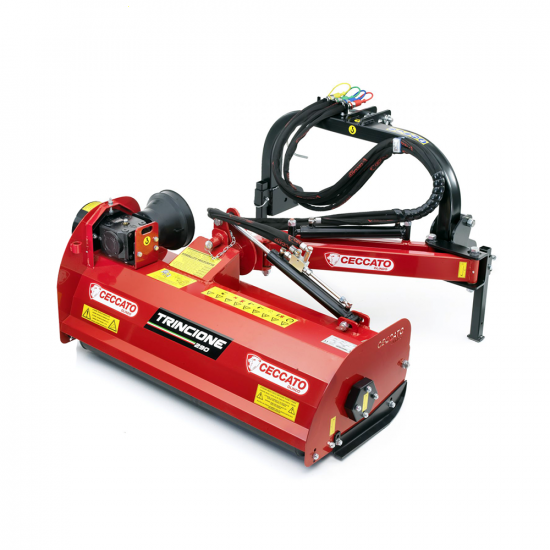

Ceccato trincione 290 argini 1200 - Tractor-mounted side verge flail mower with Arm - with knives - Light Series

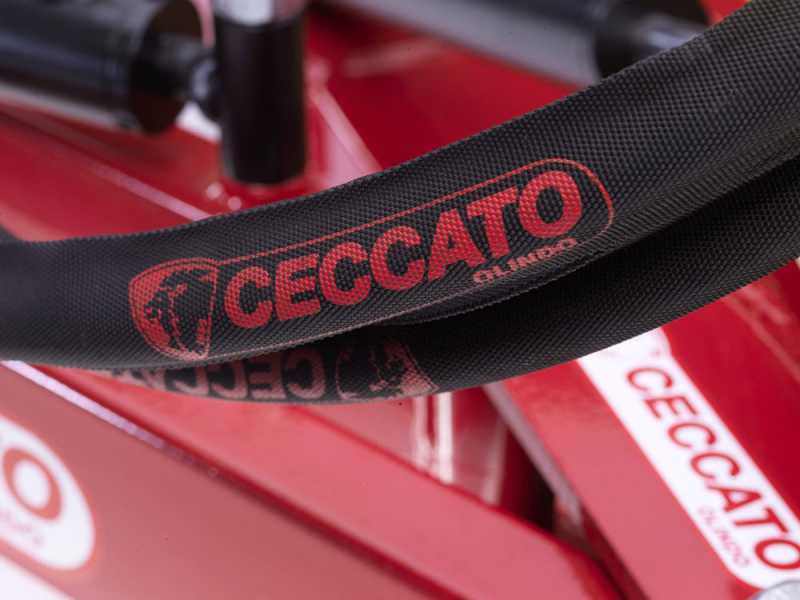

Hydraulic side and vertical shift

The hydraulic side and vertical shift is operated by 2 pistons.

With 4 tubes to be connected to the tractor’s hydraulic joints.

It’s a very solid shift system, structured on flexible arms.

The machine features significant reinforcement welds in several spots.

The two pins are fitted with lubricated bushings made of bronze.

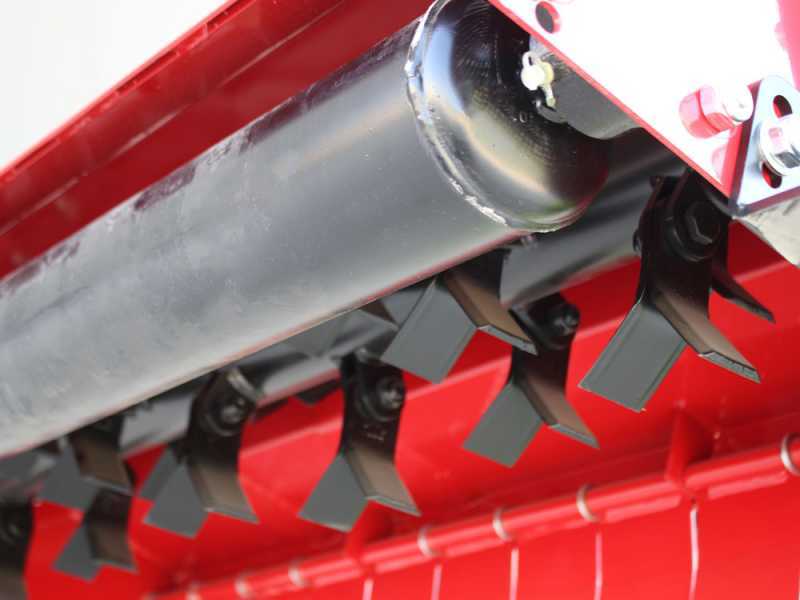

Cutting tools: hammer flails

No. of standard-mounted hammers: 44

Focus on one of the hammers, mounted on supports welded to the rotor.

Focus on the side support with internal hammer flails rotor bearing with retaining ring.

This Ceccato flail mower belongs to the light series, suitable for mainly light-duty shredding.

Rotor, hammer flails supports, side bearings

It is intended to finely shred grass and clippings, while simultaneously rolling the turf.

Thanks to the high number of rotor revolutions and the large number of hammers, it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

The extremely sharp hammers allow to achieve excellent cutting in gardens, lawns and urban areas.

The flail mower is mounted to the rear on the tractor's three-point hitch.

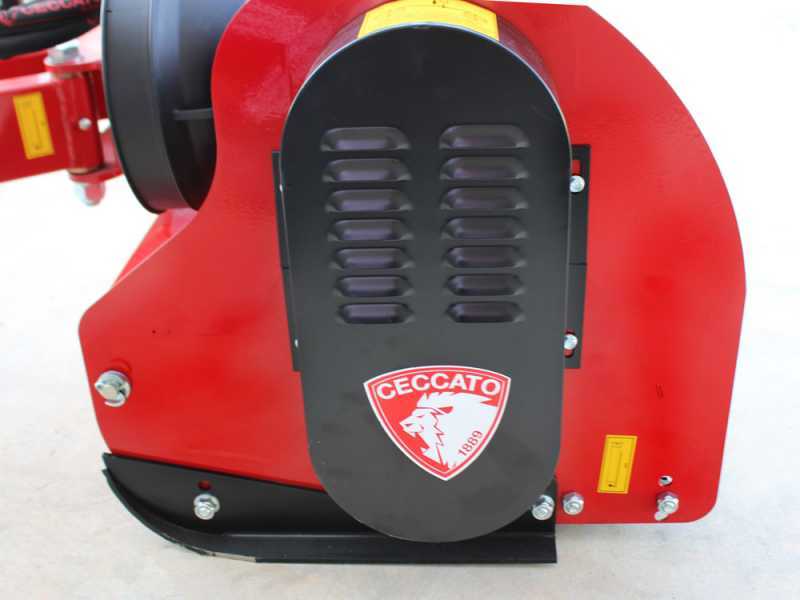

Side belt transmission and gearbox

Reduction gearbox group in oil bath.

2-Belts large section side transmission with belt protection side carter, equipped with several openings for ventilation (for a regular cooling down).

Standard 1 3/8” z6 power take-off PTO (suitable for each model of recently manufactured tractors): Whether you own a particularly dated tractor, make sure that it is equipped with the same PTO and with standard clockwise rotation (right-side).
