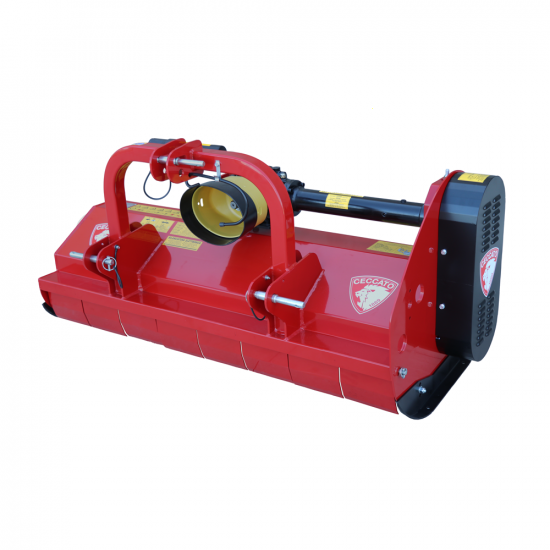

Ceccato Trincione 380 - T1400F - Tractor-mounted Flail Mower - Fixed Hitch - Medium-light Series

The Trincione Ceccato 380 - T1400F with Fixed Attachment tractor flail mower is an Innovative machine completely Made in Italy, which provides very high performance.

The flail mower features a compact and sturdy design thanks to its double skin frame (5.7+5.7 mm), which has been specially designed to withstand time and the shocks it can receive.

The choice of top-quality components makes this machine suitable for different types of mowing operations (grass, pruning, straw, etc.).

It is equipped with 4 transmission belts and a special peephole for checking the oil level along the transmission shaft that connects the pulley to the gearbox.

Furthermore, this flail mower is built with the highest-quality materials and it is equipped with all the necessary safety devices according to the current legislation.

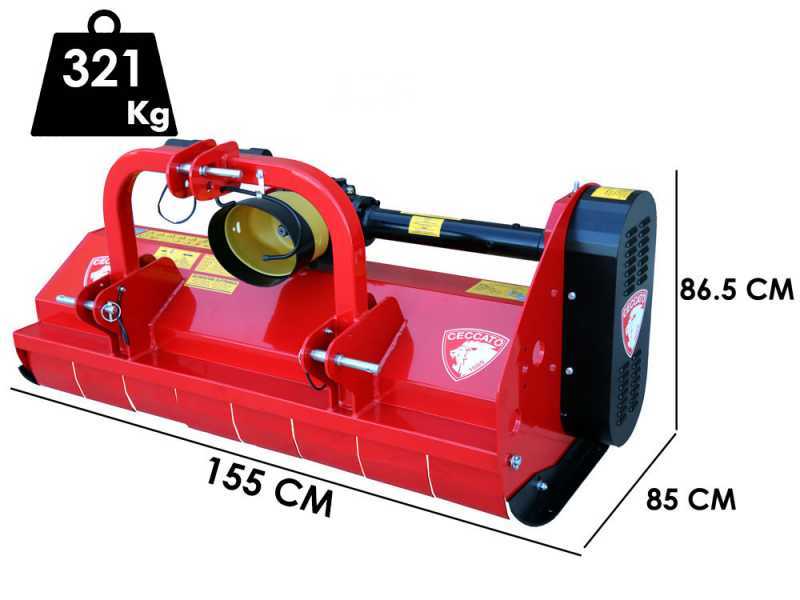

TECHNICAL SPECIFICATIONS (brief overview):

• Real working width: 140 cm
• Real width (side skids already assembled): 155 cm
• Weight: 321 kg
• Rear support roller with a diameter of 132 mm

No. of standard-supplied toothed hammers: 20

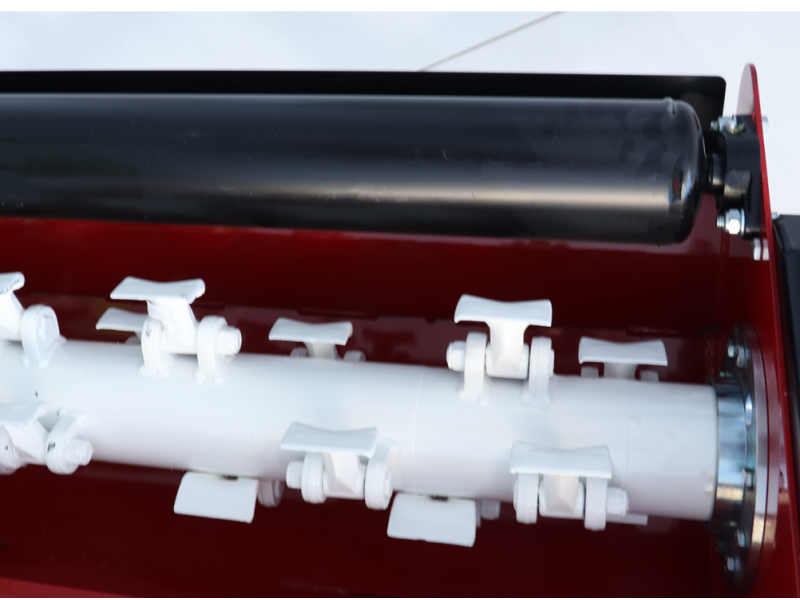

Toothed hammer flails

These highly-sturdy and heavy hammers represents the high quality of the brand they pertains: Olindo Ceccato.

This machine is intended to finely shred grass and clippings, while rolling the grass cover and turf simultaneously. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

The hammers have a width of 82 mm.

The bolt diameter is 24 mm, while the width is 100 mm.

Roller cutting diameter: 125.5 mm

The highly-tick rotor features a 132 cm diameter. This makes it suitable to withstand long years of working operations, keeping its sturdiness against the accidental impacts that may occur.

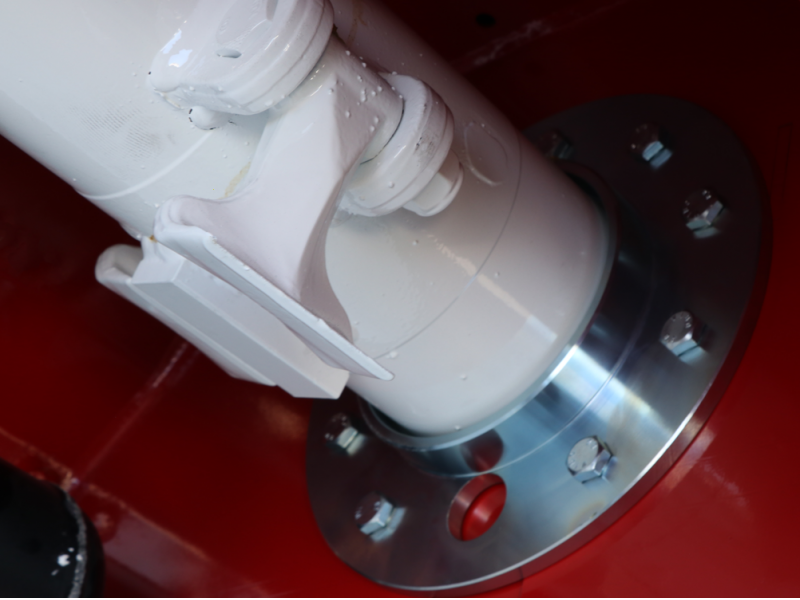

Additionally, the electronically balanced rotor is mounted on side steel supporting bars that are provided with spherical roller bearings, renowned to be 10 times more resistant compared to the standard ball bearings.

The flail mower is equipped with a highly-thick double skin frame (5.7+5.7 mm).

These two steel plates are in contact and laid one on top of the other, making the machine much more sturdy compared to classic flail mowers with a standard frame.

This flail mower is thus truly indestructible even in the most adverse conditions, while maintaining its ease of use.

It withstands stones, shrubs, brushwood and undergrowth with even large diameter branches without the slightest difficulty.

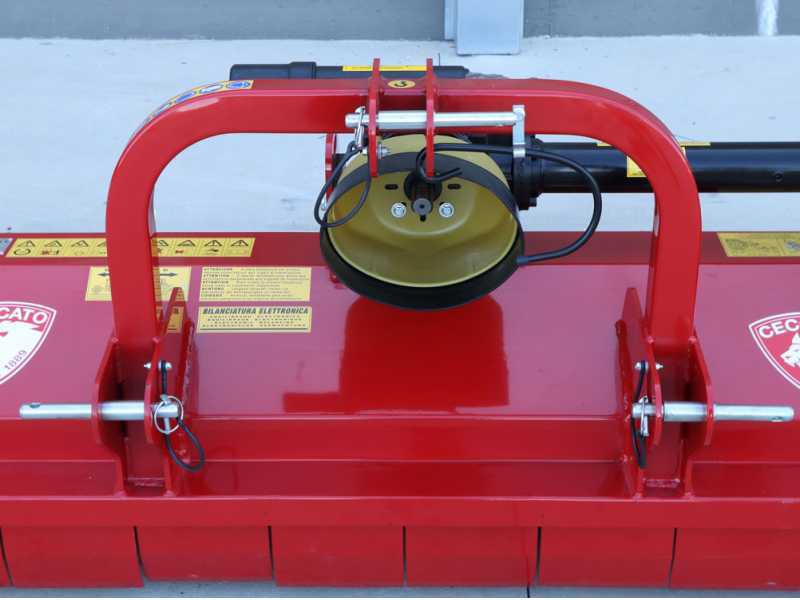

Equipped with standard fixed 3-point linkage. Thus, all the components are strictly Italian.

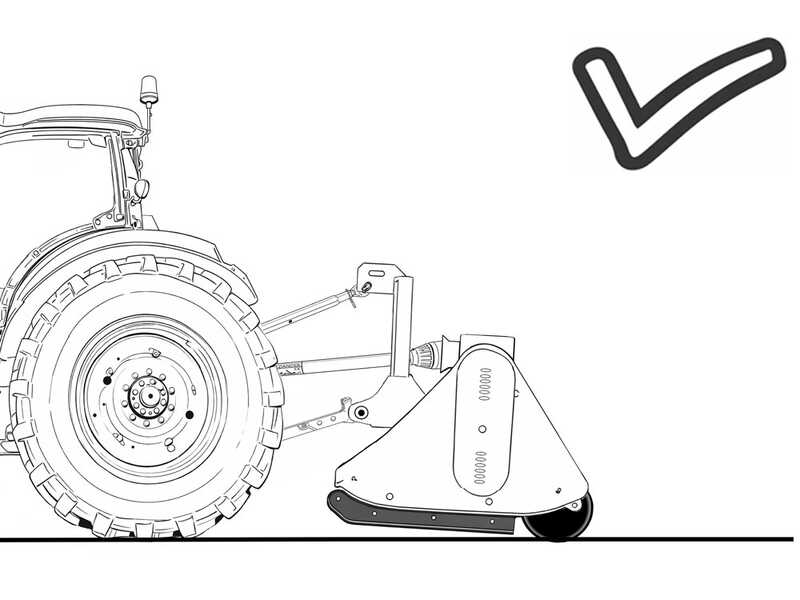

Focus on the couplings that are closely placed in proximity to the machine body, meaning that they are not protruding.

This allows the flail mower to be positioned very close to the tractor, eliminating the risk of stones being thrown at the Operator, but above all eliminating any problems with lifting the machine, because in this way its weight is very close to the tractor, thus placing a much lower burden on it than other products of the same type.

This feature makes possible to also fit the equipment with smaller-sized tractors despite its high weight, making the machine a versatile and easy-to.use product.

The upper pin of the 3-point linkage has a diameter of 25 mm, while the lower hitches have a diameter of 28 mm.

The pins are 60 mm width.

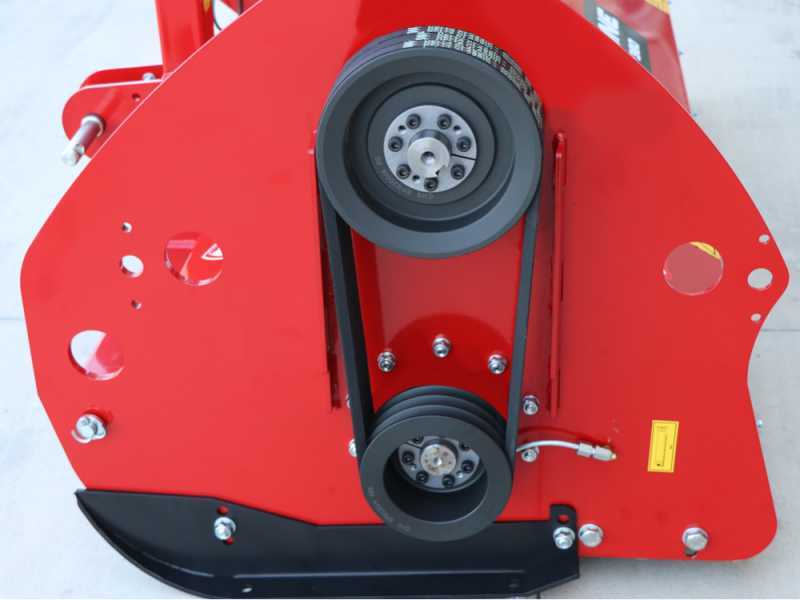

Large-sized gearbox in oil bath. The machine is equipped with the highest-quality gear multipliers Made in Italy. The housing is made of cast-iron and the internal gears in hardened steel. Thus, this flail mower model is also equipped with lubricated extension with eyelet, which proves to be really useful in order to check the oil level.Large-section 3-belt side transmission

Side belt cover with optimised dimensions. This specific feature allows the flail mower to require an incredibly reduced space.

Focus on the side transmission greaser, which is comfortably placed in an easy-access position.

Rear supporting roller with a large diameter of 132 mm.

Focus on the steel side bracket

Focus on the heavy-duty roller scraper support

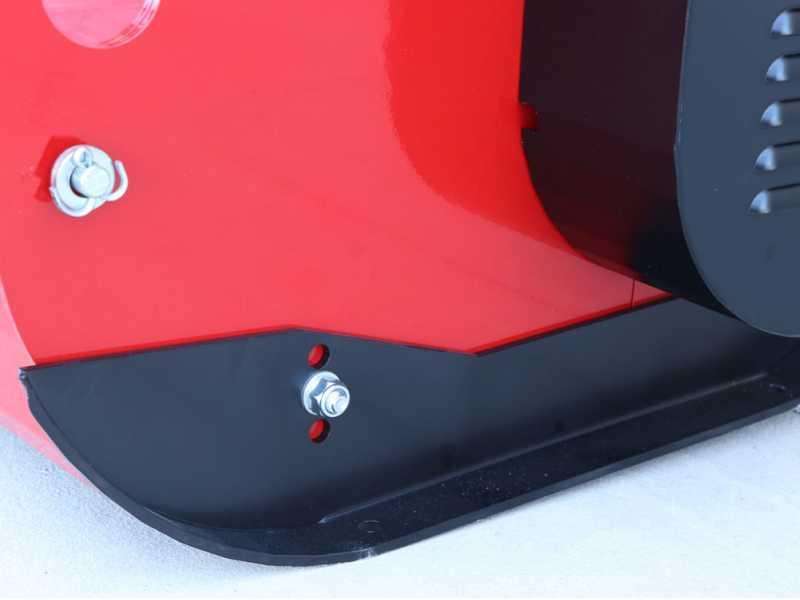

Height-adjustable side support skids

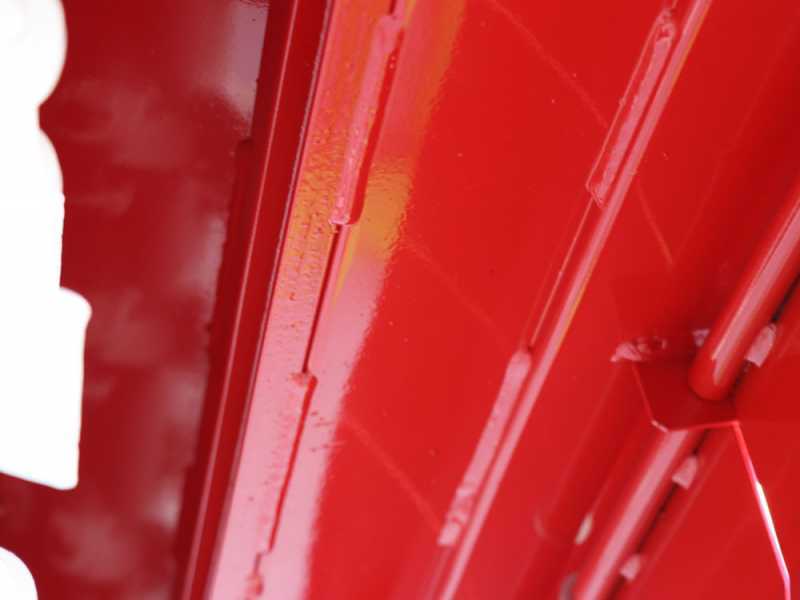

Heavy-duty Series of front protection slaps made of shaped steel.
