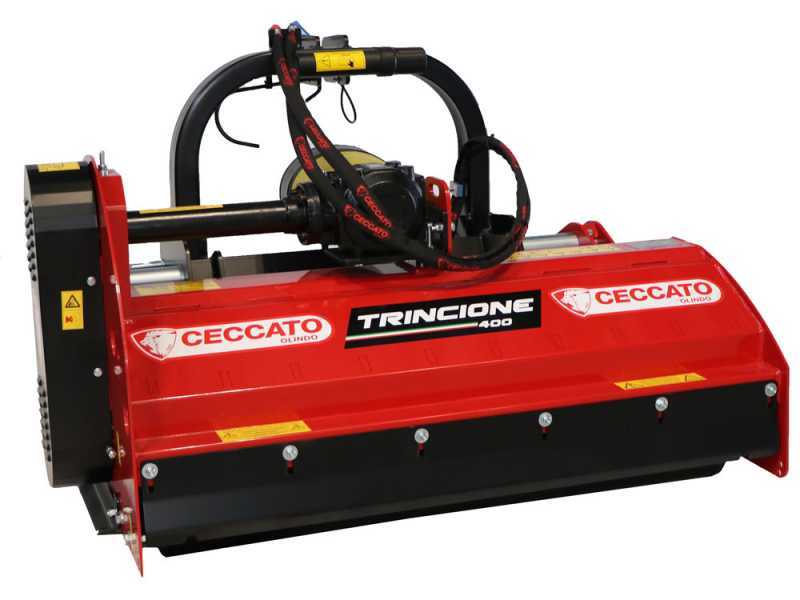

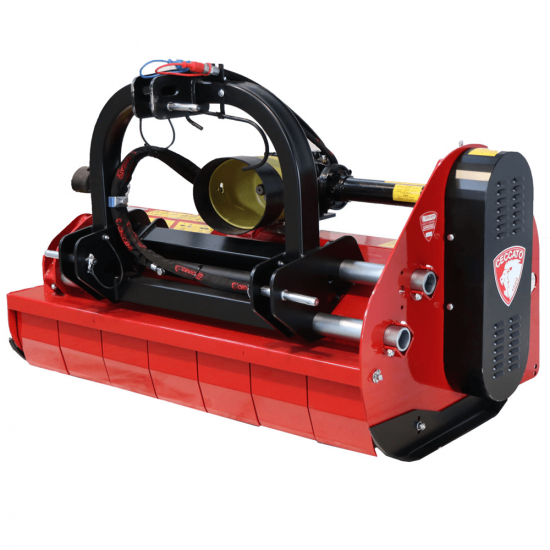

Name: Ceccato TRINCIONE 400 4T1400ID - Tractor-mounted Flail Mower - Heavy Series
Brand: Ceccato Olindo
SKU: 110594
Price: 4025.05 EUR
Availability: InStock
Rating: 5 (1 reviews)

Description

Product introduction

The Ceccato Olindo trincione 400 model is a tractor-mounted flail mower entirely Made in Italy, designed for professional use.

A sturdy and resistant machine, designed to withstand considerable stress. Provided with a 4+4 mm double housing and an electrically balanced rotor, adjustable idler roller and skids as standard.

The 4T1400ID model with hydraulic shift is an innovative, high-performance machine Made in Italy.

Suitable for large tractors with power between 45 and 50 Hp.

Sheet thickness: 6 mm.

The flail mower is fully robot-welded and made of top-quality components.

It is fitted with 4 drive belts and a grease nipple on the side of the transmission.

High attention to detail with hydraulic hoses featuring Ceccato Olindo screen-printed sheath and couplings that fully comply with the latest CE regulations.

TECHNICAL DATA:

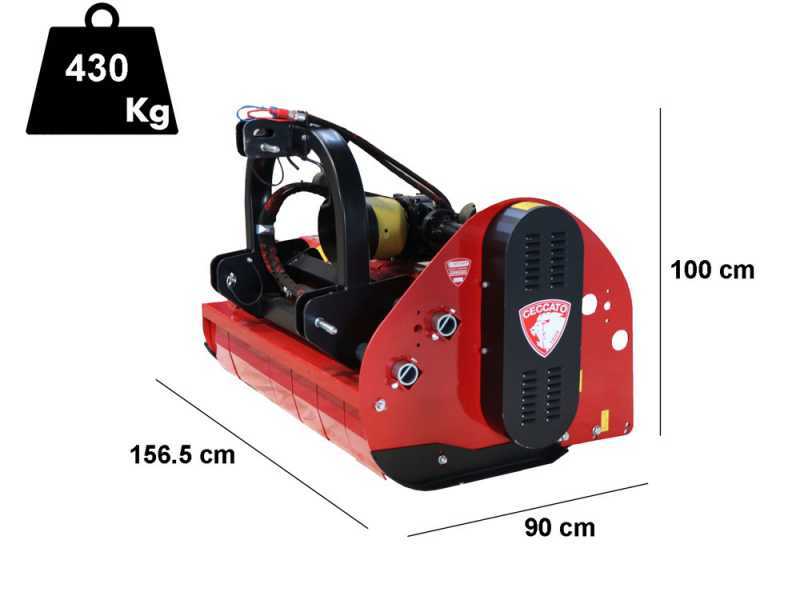

Real working width: 140 cm
Real width (side skids already assembled): 156.5 cm
Weight: 430 Kg
Rear supporting roller

Ceccato TRINCIONE 400 4T1400ID - Tractor-mounted Flail Mower - Heavy Series

Cutting tools

No. of standard-supplied hammer flails: 20

Operation with hammer flails.

These are very sturdy and heavy-duty hammers of the highest quality Olindo Ceccato branded.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

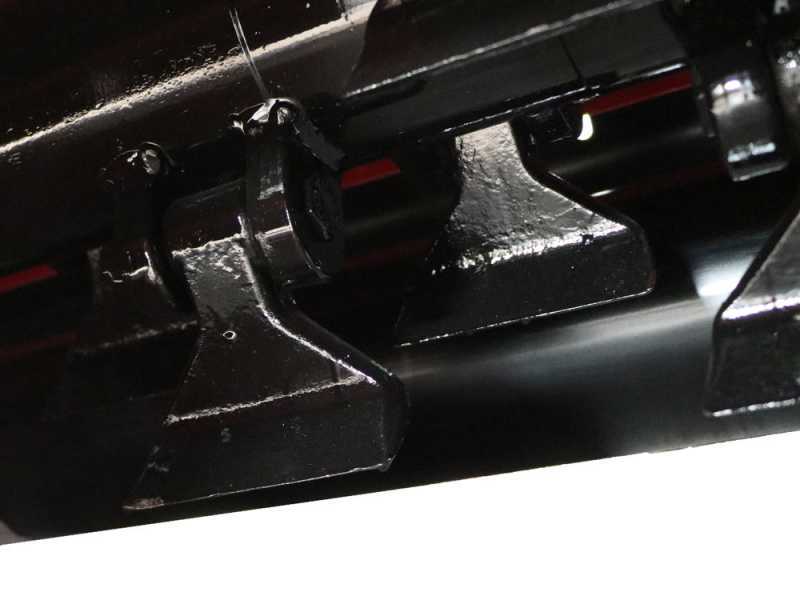

- Focus on the connection between the flails and the frame.

Hydraulic side shift and 3-point hitch

The flail mower is equipped with hydraulic shift.

The 3-point hitch slides on a sturdy tube that runs the full width of the flail mower.

Focus on the piston that controls the hydraulic shift of this flail mower.

- Focus on the PTO

Sturdy 3-point hitch

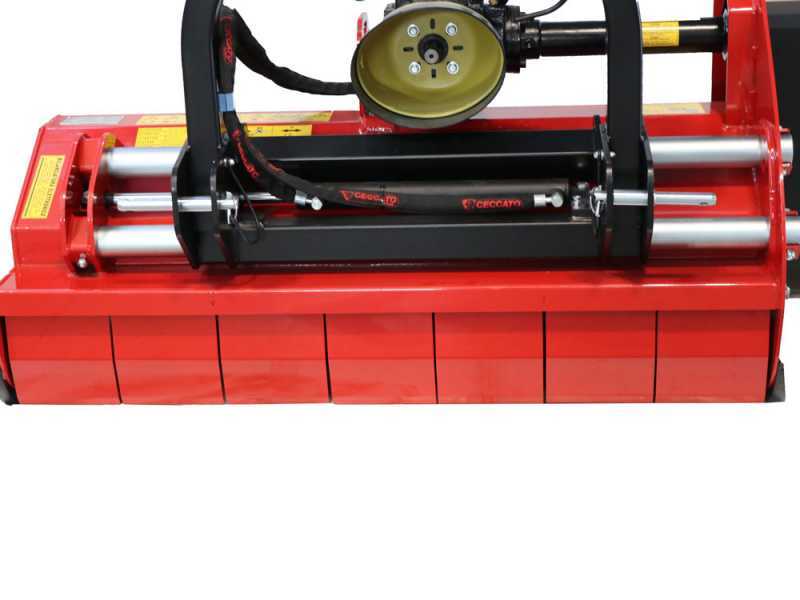

- Focus on the slide tubes.

Rotor, reinforced hammer flail supports, side bearings

The highly-tick rotor features a 40 cm diameter.

This makes it suitable to withstand long years of working operations, keeping its sturdiness against the accidental impacts that may occur.

Additionally, the electronically balanced rotor is mounted on side steel supporting bars that are provided with barrel roller bearings, renowned to be 10 times more resistant compared to the standard ball bearings.

Double housing with counter blades

The flail mower is equipped with a highly-thick double 4+4 mm housing.

These two steel plates are in contact and laid one on top of the other, making the machine much more sturdy compared to classic flail mowers with a standard frame.

This flail mower is thus truly indestructible even under the most adverse conditions.

It withstands stones (not too large), shrubs, brushwood and undergrowth with even large diameter branches without the slightest difficulty.

Side belt drive and gearbox unit

Large gearbox in oil bath, the machine is equipped with the best gearboxes. The housing is made of cast iron, while the internal gears are made of hardened steel. Also fitted with a lubricated extension with a very useful peep-hole for checking the oil level.

4-belt side drive with large section belts.

Space-optimised lateral belt guard: despite the transmission being equipped with 4 large-section belts. This feature allows the flail mower to take up very little space.

- Focus on the grease nipple on the transmission side, placed in a convenient position for easy access.

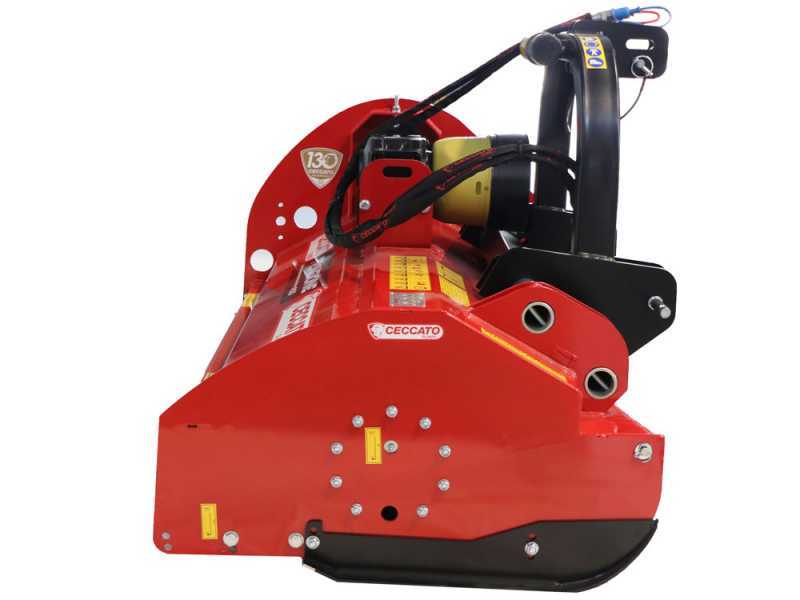

Stabiliser devices - rear roller and side skids

Height-adjustable rear supporting roller with an exceptional diameter of 140 mm.
Adjustable side support skids on standard equipment
Heavy-duty Series front protection slaps made of shaped steel.

- Focus on the hoses with Ceccato screen-printed sheath.
