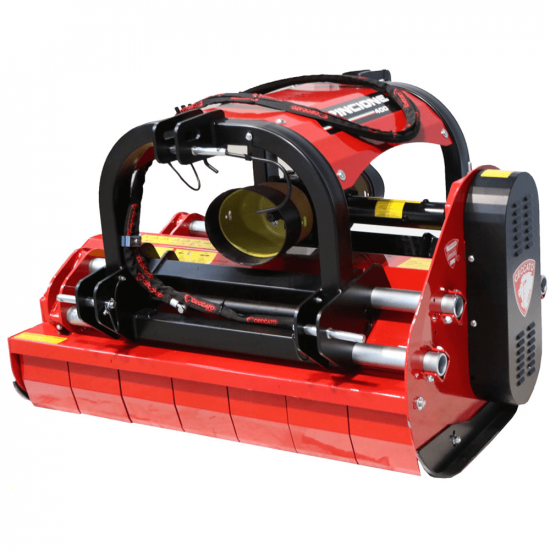

Ceccato TRINCIONE 400 4T1400IDR2 - Tractor-mounted Reversible Flail Mower - Heavy Series

The Ceccato Olindo 400 flail mower is an entirely Made in Italy equipment, designed for professional use.

A sturdy, heavy-duty machine built to withstand considerable stress. Double 4+4 mm housing and special oscillating barrel roller bearings.

Hammer flails weight: 1.2 Kg.

Sheet thickness: 6 mm.

Electrically balanced rotor, adjustable idler roller and adjustable skids as standard.

Suitable for large tractors with power between 40 and 80 Hp.

The machine is completely robot-welded and built with top-quality components and a very high level of attention to details.

Built with all the necessary safety device sin compliance with the current regulations.

It is equipped with 4 drive belts and a special peep-hole for checking the oil level along the transmission shaft that connects the pulley to the gearbox.

• The reversible flail mower is suitable for tractor with front or rear connection. It can be connected to the tractor either in the front or rear position.

TECHNICAL DATA:

• Real working width: 140 cm
• Real width (side skids already assembled): 158 cm
• Weight: 510 kg
• Rear supporting roller

ON STANDARD EQUIPMENT:

• Dual PTO
• Side hydraulic shift
• Operation with steel hammer flails

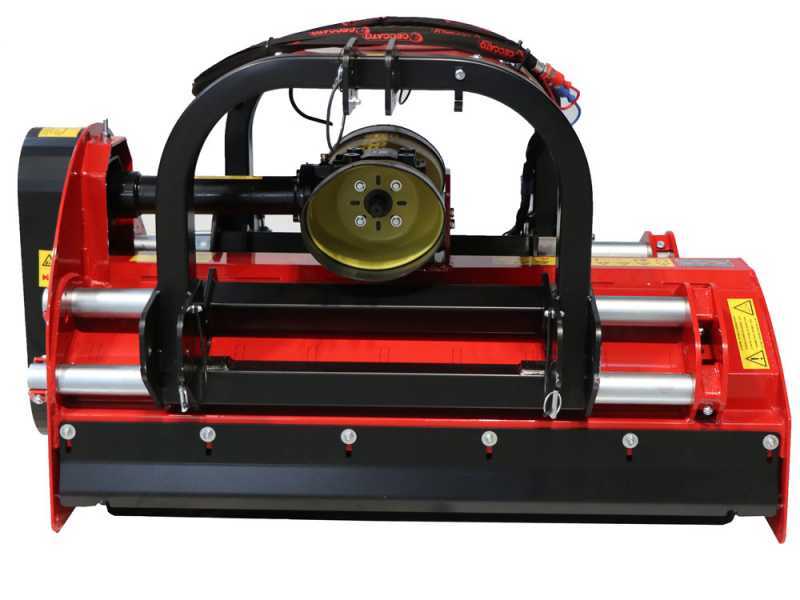

• Counter blade
• Rear supporting roller

The reversible flail mower is suitable for tractor with front or rear connection. It can be connected to the tractor either in the front or rear position.

To use the flail mower in one direction or the other, simply remove the retainers of the three-point hitches and place them in the desired direction by converting the flail mower.

Recommended for shredding grass, bushes, brambles and branches. It is ideal for clearing open fields in general.

No. of standard-supplied hammer flails: 20

No. of hammer flails fitted on standard equipment: 40

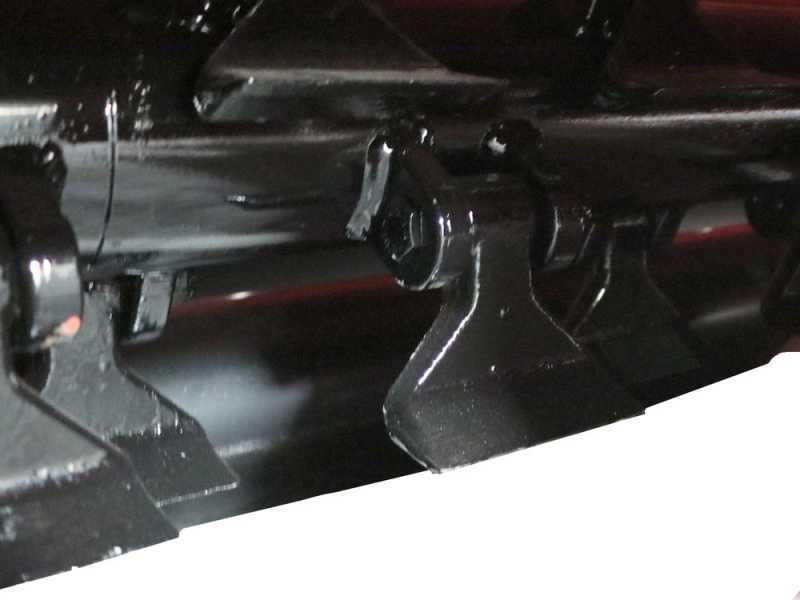

Operation with hammer flails.

These are very sturdy and heavy-duty hammers of the highest quality Olindo Ceccato branded.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions (540 rpm) and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

The flail mower is equipped with hydraulic shift.

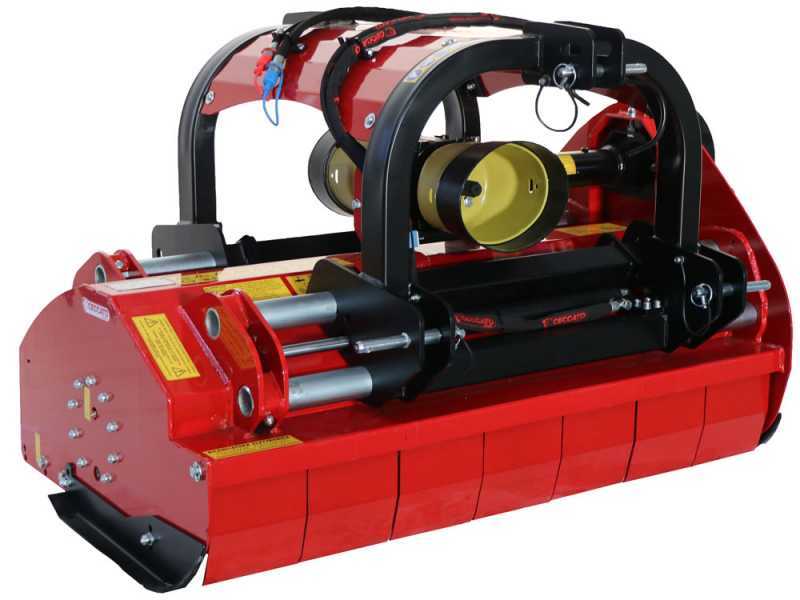

The 3-point hitch slides on a sturdy tube that runs the full width of the flail mower.

- Focus on the piston that controls the hydraulic shift of this flail mower.

Universal standard PTO ( 1 3/8" Z6 )

Universal joints suitable for all tractors on the market.

Double sturdy 3-point hitch

The highly-tick rotor features a 40 cm diameter. This makes it suitable to withstand long years of working operations, keeping its sturdiness against the accidental impacts that may occur.

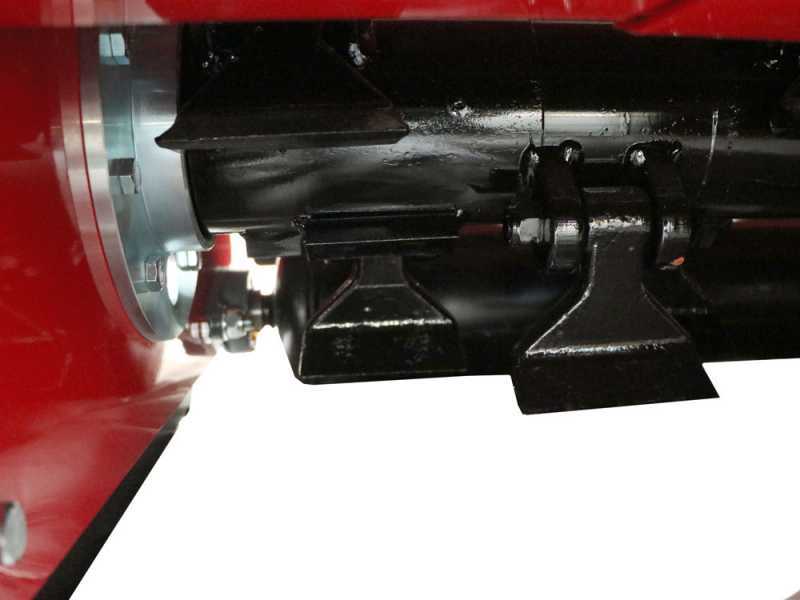

Additionally, the electronically balanced rotor is mounted on side steel supporting bars that are provided with barrel roller bearings, renowned to be 10 times more resistant compared to the standard ball bearings.

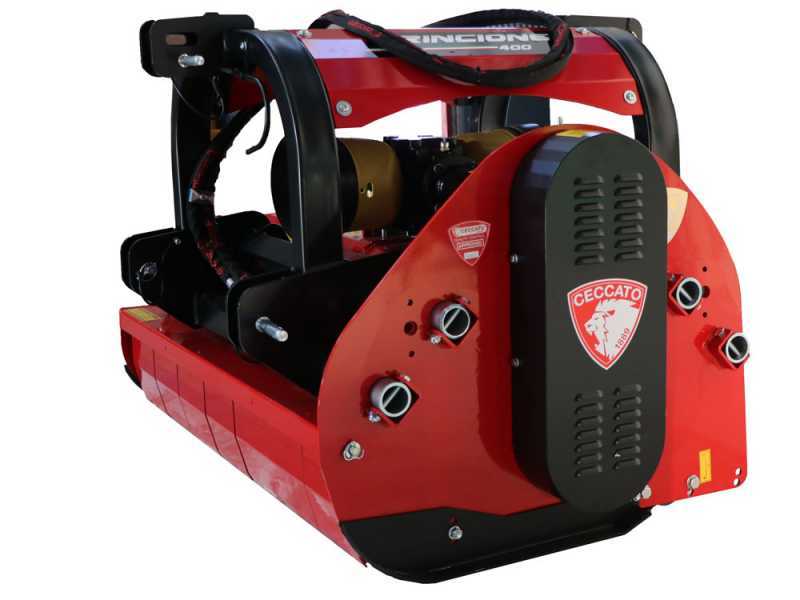

Large gearbox in oil bath, the machine is equipped with the best gearboxes. The housing is made of cast iron, while the internal gears are made of hardened steel. Also fitted with a lubricated extension with a very useful peep-hole for checking the oil level.

4-belt side drive with large section belts.

Space-optimised lateral belt guard: despite the transmission being equipped with 4 large-section belts. This feature allows the flail mower to take up very little space.

- Focus on the grease nipple on the transmission side, placed in a convenient position for easy access.

WARNING:

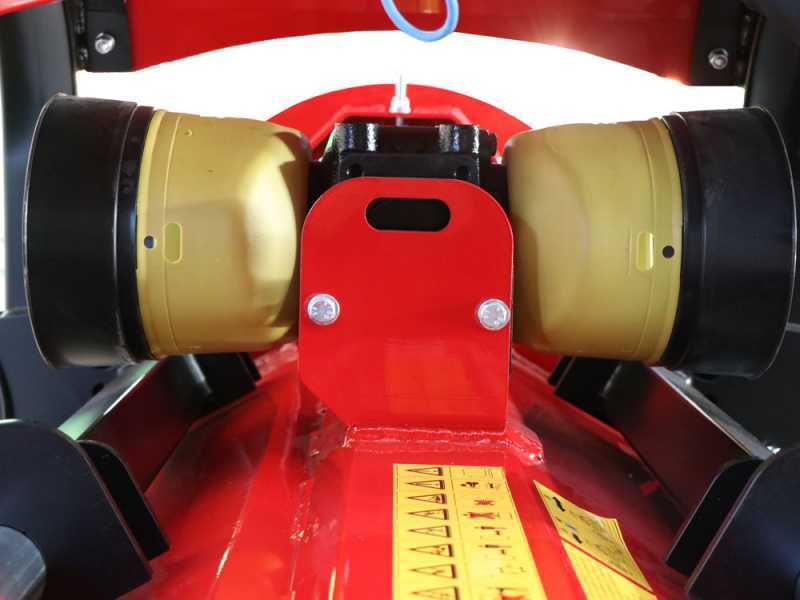

The flail mower is equipped as standard with a 540 rpm double PTO.

The flail mower is equipped with a highly-thick double 4+4 mm housing.

These two steel plates are in contact and laid one on top of the other, making the machine much more sturdy compared to classic flail mowers with a standard frame.

This flail mower is thus truly indestructible even under the most adverse conditions.

It withstands stones (not too large), shrubs, brushwood and undergrowth with even large diameter branches without the slightest difficulty.

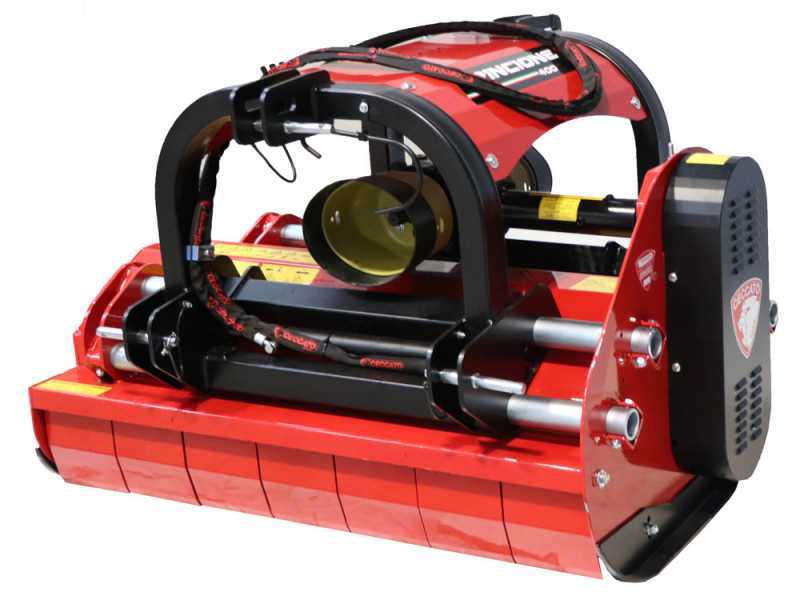

Height-adjustable rear supporting roller featuring a diameter of 140 mm.

Adjustable side support skids on standard equipment

Heavy-duty Series front protection slaps made of shaped steel.

Hydraulic hoses with Ceccato Olindo screen-printed sheat.
