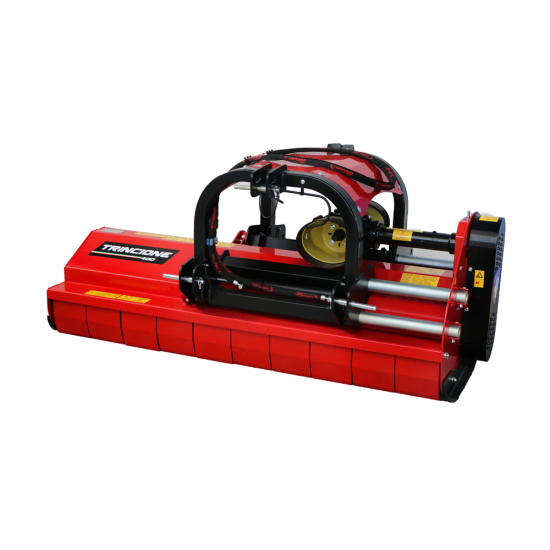

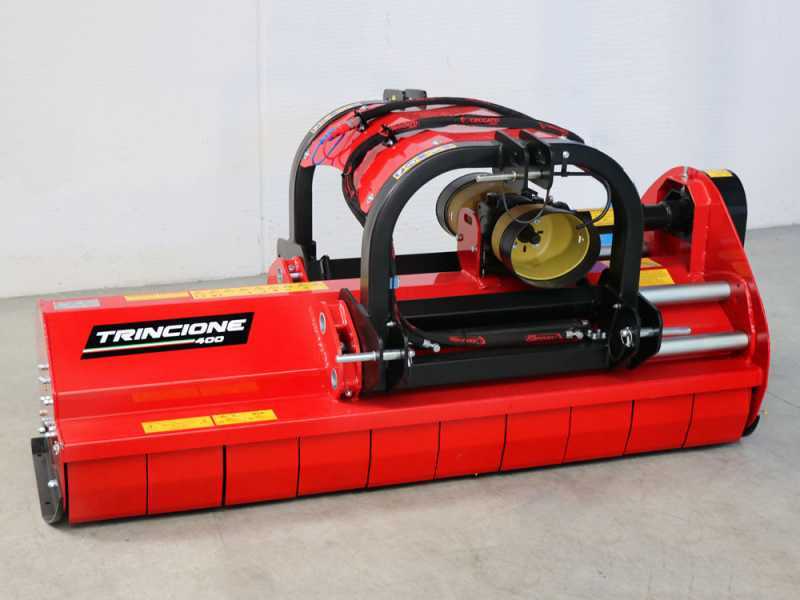

Ceccato Trincione 400 NEW - 4T1800IDR2 - Reversible Tractor-mounted flail mower - Heavy series - Hydraulic shift

The CECCATO TRINCIONE 400 - 4T200IDR2 heavy series reversible flail mower with HYDRAULIC side shift is a Made in Italy innovative and high-performing piece of machinery.

This heavy series REVERSIBLE flail mower with hydraulic jack side shift comes with a sturdy construction, as evident in its dual-layer frame designed precisely for offering long service life and for being extremely impact-resistant.

• The reversible flail mower is suitable for tractors with front or rear attachment. It can only be applied in the rear position for tractors with reversible drive.

The choice of top-quality components makes this machine suitable for different types of mowing operations (for shredding grass, pruning, straw, etc.).

It is equipped with 4 transmission belts and a special sight glass for checking the oil level along the transmission shaft that connects the pulley to the gearbox.

TECHNICAL FEATURES (brief overview):

• Real working width: 180 cm
• Machine width (with side skids already assembled): 198 cm
• Weight: 583 kg
• Rear supporting roller

FREE ITEMS PROVIDED ON STANDARD EQUIPMENT (short overview):

• Double PTO
• Hydraulic side shift
• Cutting tools: steel smooth hammers

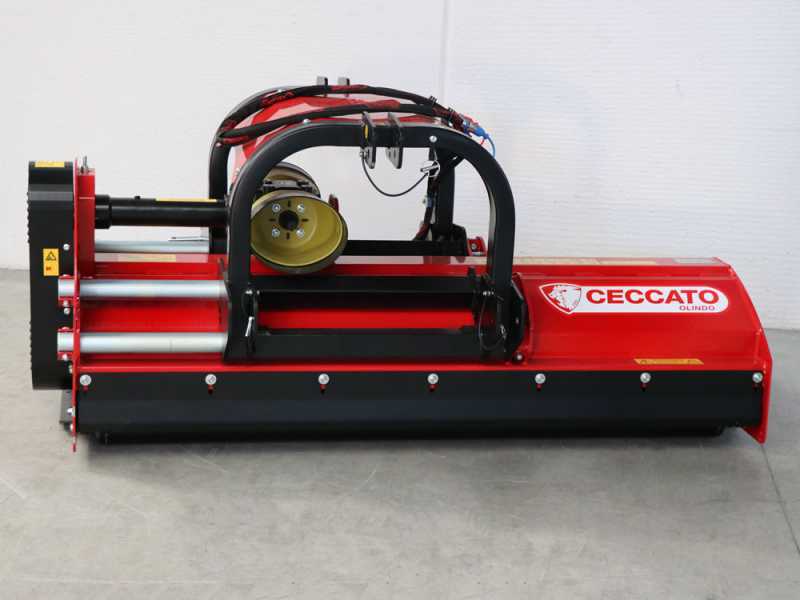

• Counter knives
• Rear supporting roller

The reversible flail mower is suitable for tractors with front or rear attachment. It can only be applied in the rear position for tractors with reversible drive.

To change the direction of operation, simply remove the locking pins on the three-point hitch and re-enter them according to the desired working position of the flail mower.

The machine is recommended for shredding grass, bushes, brambles and brushwood. Ideal for cleaning open spaces from tall and spontaneous grass.

No. of standard-supplied smooth hammers: 26

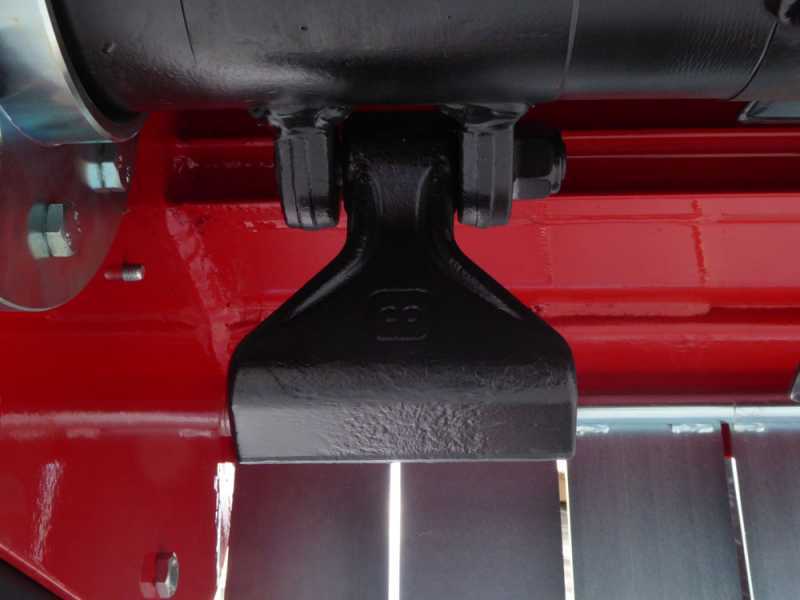

Cutting tool: smooth hammer flails.

The flail mower is equipped with top-quality sturdy heavy hammers manufactured by Ceccato Olindo.

It is intended to finely shred grass and clippings, while simultaneously rolling the turf. Thanks to the high rpm (540 rpm) of the rotor and the large number of hammers (hammer flails), the wave effect on the grass is largely reduced to achieve excellent cutting results.

The flail mower features a hydraulic side shift.

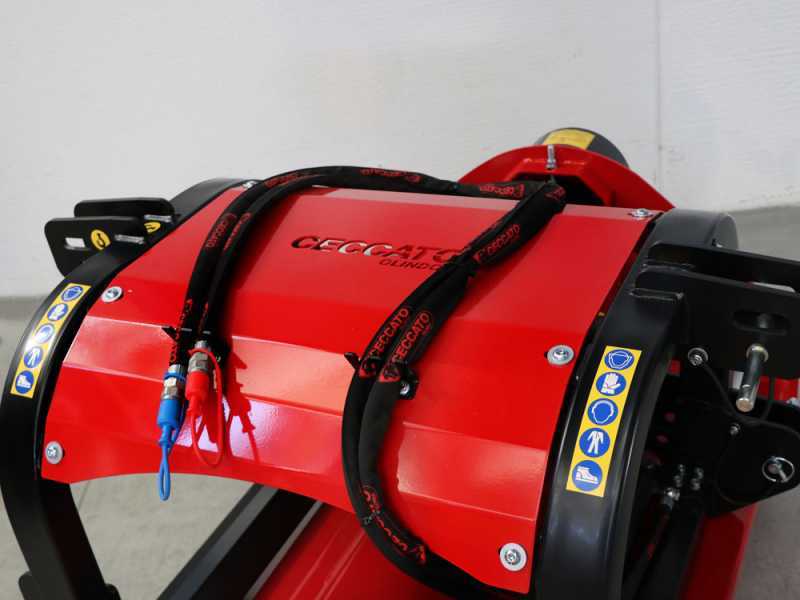

The three-point hitch runs on a robust tubular mounted to fit across the whole width of the mower.

Focus on the piston that controls the flail mower hydraulic shift.

Universal standard PTO (1 3/8” Z6).

The hitches are of the universal type and can be adapted to all tractors on the market.

Sturdy double three-point hitch

The thick rotor features a diameter of 40 cm. This considerably increases its service life and makes it extremely resistant to even severe accidental impacts.

The rotor is also electronically balanced.

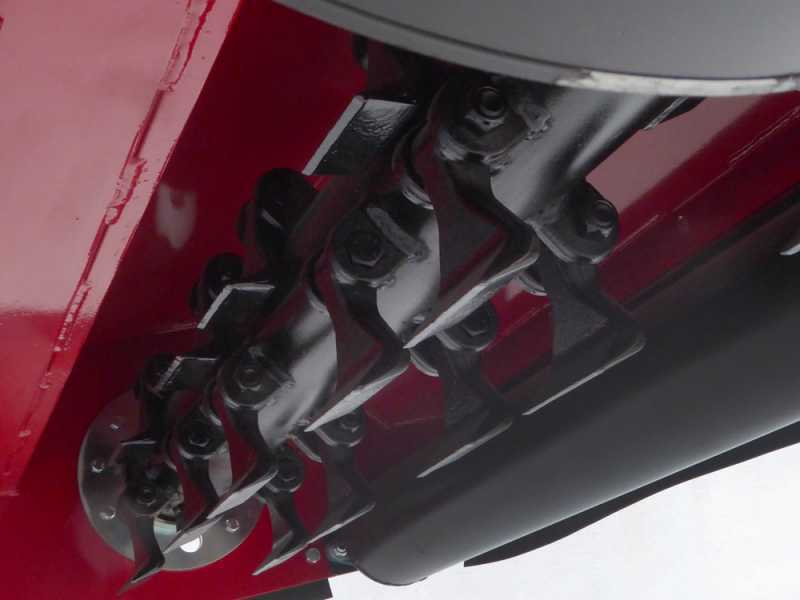

In addition, the rotor is mounted on side steel supporting bars that feature spherical roller bearings: 10 times more resistant compared to standard ball bearings.

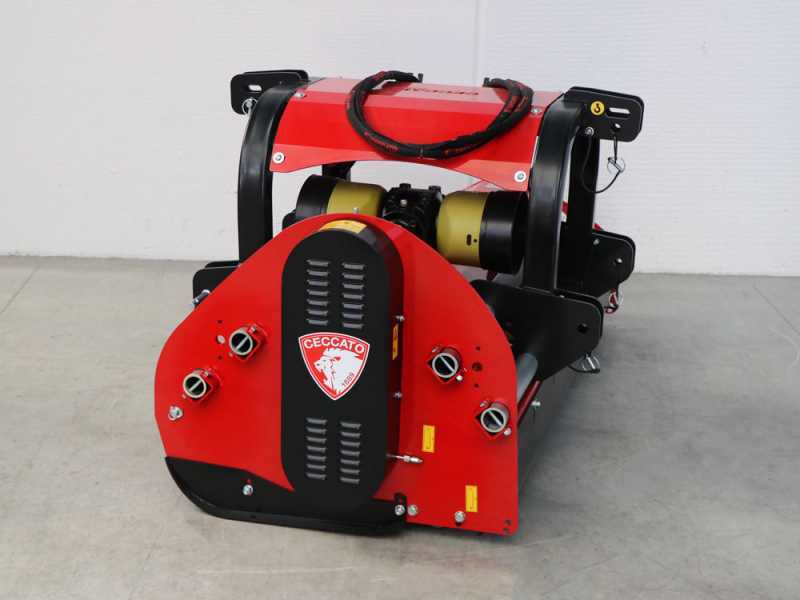

Large-sized gearbox with gears in oil bath; the equipment mounts the best gear multipliers. The external frame is made of casting material, while the internal gears are in hardened steel. This flail mower model is also equipped with lubricated extension with practical sight glass for oil level control. Large-section 4-belt side transmission

Side belt cover with optimized dimensions: despite the transmission featuring 4 large-section belts. This specific feature gives the flail mower reduced overall dimensions.

Focus on the side transmission greaser, easy to access for practical maintenance.

ATTENTION:
the flail mower is equipped with a double PTO of 540 rpm as standard.

The flail mower features a thick double skin frame (dual layer frame) (4 + 4 mm).

The special structure of the frame consists of two steel sheets layered on top of each other, which make the machine twice as sturdy as other machines with standard single-layer frame.

This flail mower truly proves incredibly sturdy and able to perform efficiently even in the harshest conditions.

It withstands impacts with stones (not excessively large), shrubs, brushwood and undergrowth with even large diameter branches without difficulty.

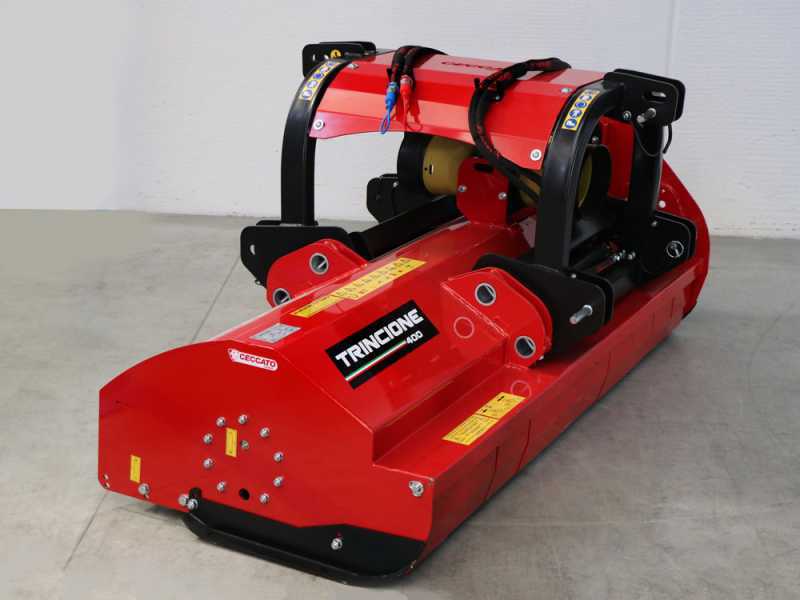

Rear height-adjustable supporting roller with a diameter of 140 mm.

Focus on the side steel roller supporting bracket, with holes for height adjustment

Focus on the heavy-duty roller scraper supporting bracket height adjustable through the dedicated screws

Side supporting skids supplied as standard

Heavy-duty Series of front protection slaps made of shaped steel.
