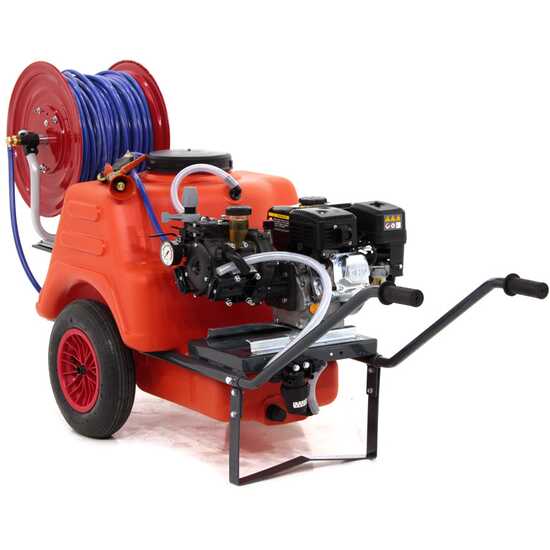

Comet APS 41 Sprayer Pump - Loncin - Dal Degan 150 L Tank Trollwy Kit

Trolley sprayer pump kit equipped with:

• Comet APS 41 sprayer pump with Loncin G160 F petrol engine, 160 cc.
• Dal Degan trolley with 150 lt tank
• Hose reel
• 100 m - 40 bar high pressure hose
• Heavy-duty mitra lance for tall trees

Very easy to use thanks to the supplied hose reel, and easy to move thanks to the large pneumatic wheels of the trolley.

It is the ideal tool for medium/large spraying jobs.

The adjustable operating pressure is 40 bar.

The entire frame and hose reel are made entirely of varnished steel, which makes the sprayer pump strong and durable.

Equipped with flanged pump and control unit for pressure regulation.

PERFORMANCE:

• bar: 40 (adjustable)
• flow rate: 40 L/min

Medium-sized model for semi-professional and heavy-duty use. It can work for many hours without stopping.

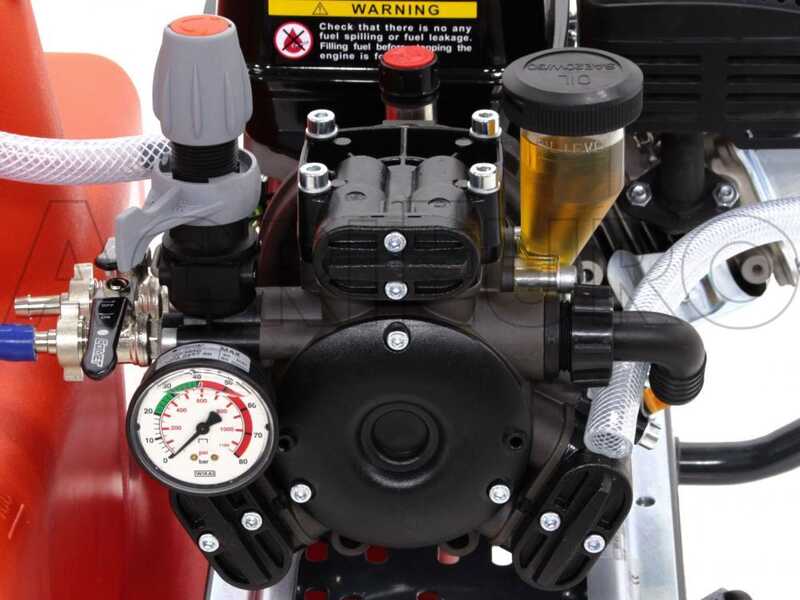

Equipped with a standard PRESSURE GAUGE.

Grey lever: bypass system, it allows going from low pressure (in which the pump performs a simple water recirculation function) to high pressure for treatments.

Grey knob: pressure adjustment (up to 40 bar)

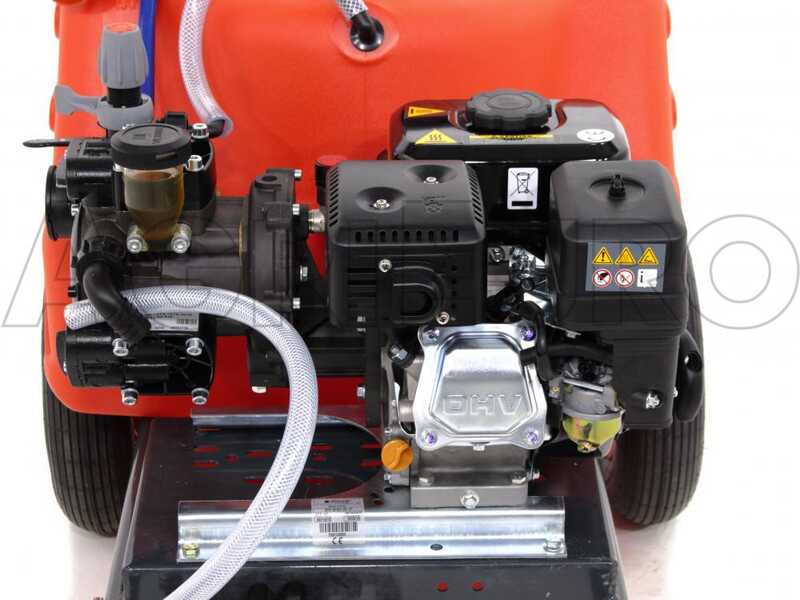

Original latest-generation LONCIN 4-stroke engine G 160 series with 160 cc displacement, featuring ”OHV” overhead valve technology.

Many advantages compared to 2-stroke engines (still very popular for sprayer pumps):

• Greater reliability
• Easier start, especially after long periods of inactivity
• Higher durability
• Less problems related to fuel preparation and freshness
• Lower consumption
• More silent

It also has a heavy-duty oil-bath connection multiplier between the engine and pump

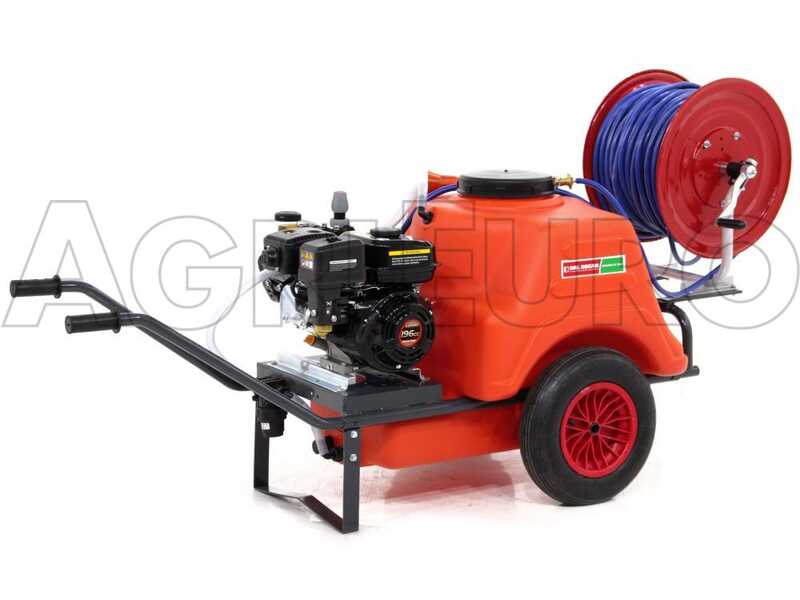

The trolley with 150 L polyethylene tank by Dal Degan is designed to be easily moved and it is equipped with all the necessary precautions to make the job easier and faster.

Ideal for spraying (or weeding) treatments, in medium and large flat surfaces such as: vineyards, orchards, greenhouse crops, parks, gardens, orchards and for spraying detergents and colours in water solution, or at least for spraying jobs where you need to move to reach all the areas of the surface to treat.

We paid particular attention to weight distribution, to ensure easy movement thanks to a low centre of gravity and large pneumatic wheels.

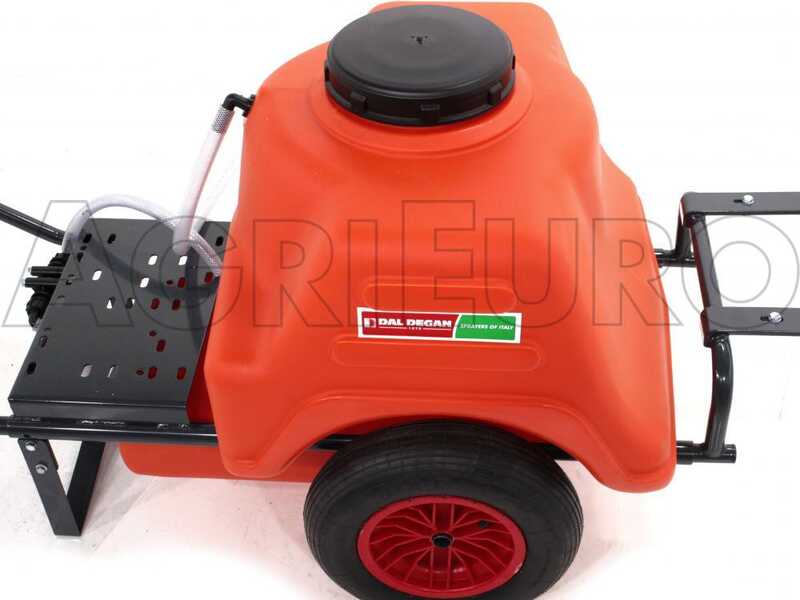

150 L polyethylene tank, equipped with top screw lid, suction filter, lower discharge plug for complete emptying.

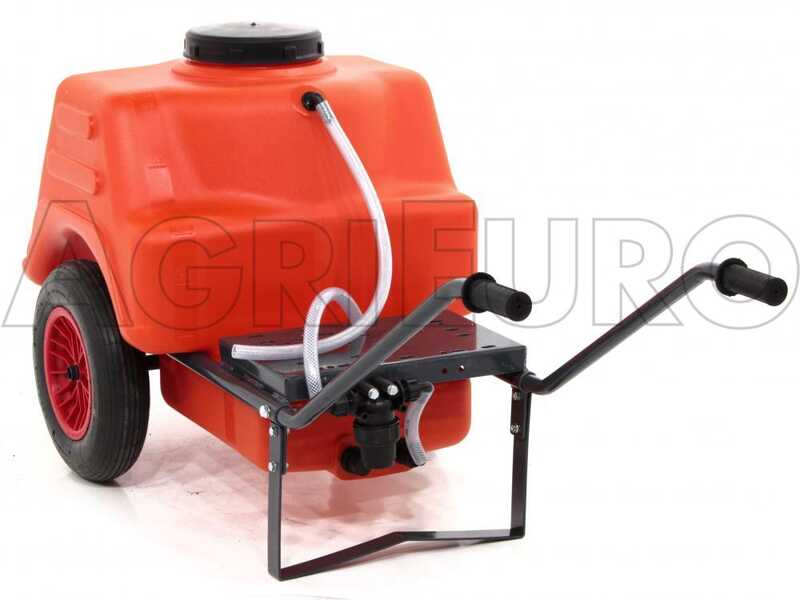

GENERAL FEATURES OF THE 150 LT TROLLEY

Tank:

• Made of high-strength polyethylene obtained by rotational molding
• Convenient pneumatic wheels for transport
• Very low centre of gravity that guarantees exceptional stability in all conditions (with hose reel, different types of sprayer pumps, on rough terrain, etc...)
• Very compact shape, also with all the accessories mounted
• External suction filter
• Tubular frame with rubber handles
• Plug for emptying
• Top lid with filter
• Coupling for hose reel
• Coupling for sprayer pump
• Graduated scale

Tubular steel frame coated with epoxy powders.

The handles are removable for easier transport and storage.

External suction filter of the sprayer pump, easily accessible for cleaning.

This kit for spraying is ideal for a spray tank.

It contains everything you need to immediately start working.

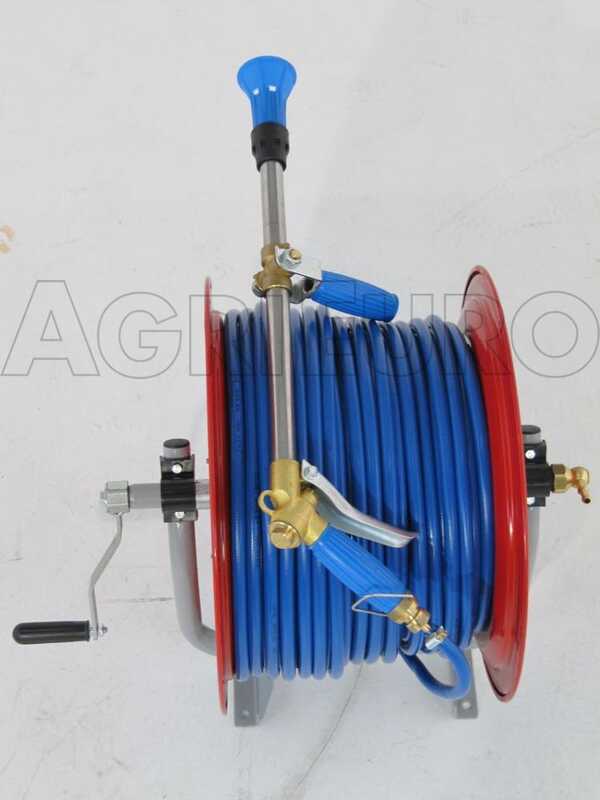

The hose reel is designed to be mounted on a tank or other machines. The mitra lance is heavy-duty and the 100mt tube works at high pressure. The kit also includes a brass fitting for the lance and 2 clamps.

THE KIT INCLUDES:

• steel hose reel, suitable for the frame of various spraying units or other machines
• mt 100 m heavy-duty 40 bar high-pressure netted hose
• The mitra lance supplied is super-professional, has a high atomisation capacity and it is also suitable for the treatment of tall trees thanks to its extremely powerful jet, which reaches very high up or very far away. It also delivers large amounts of liquid thanks to its 2.5mm ceramic nozzle.
  It offers exceptional performance: you can adjust the pump pressure up to 40 bar.
• brass fitting for lance + 2 clamps

The hose reel comes already assembled. The only thing you need to do is winding the hose (which requires very little time).

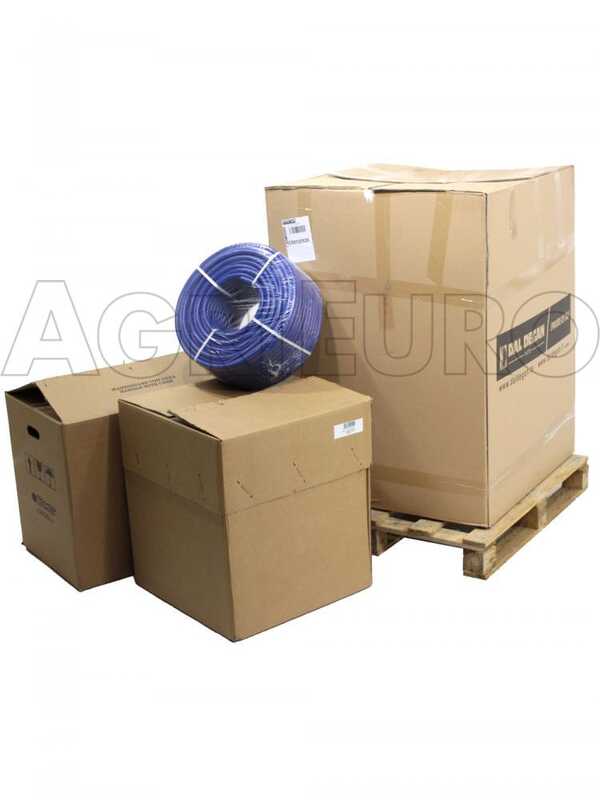

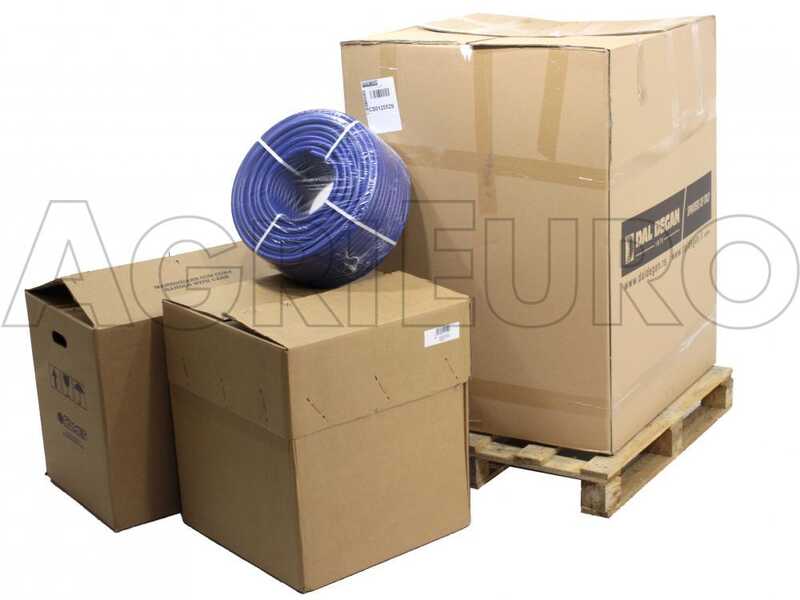

The kit comes already assembled, divided into packagings.

• The hose
• Trolley with tank, pre-assembled
• Sprayer pump (in the picture, sprayer pump example)

The only operations required for assembly are:

• winding the hose around the hose reel (the same operation required for storage)
• screwing the 4 bolts on the base of the trolley
• cutting and using about half a metre of the hose, to connect the pump to the external side fitting of the hose reel.
• connect the two suction and overflow hoses and the lance to the blue hose

The operation takes 30 minutes
