Description

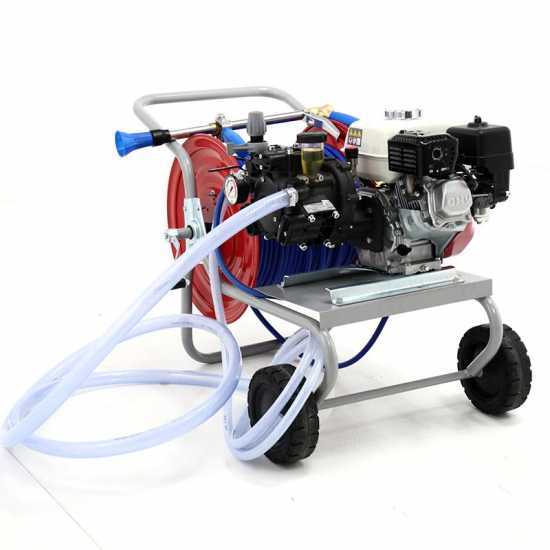

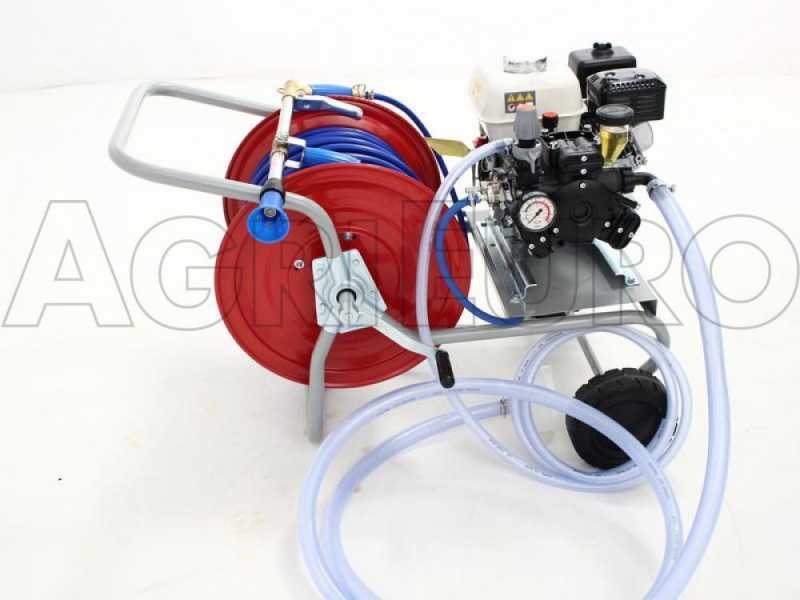

Comet APS41 Pump on Trolley with Honda GX 160

This trolley sprayer pump avoids lugging around a heavy wheelbarrow containing the liquid. Put the hoses in a tank near the machine, so that you only need to hold the lance to reach all the points to treat, without carrying around heavy equipment. The hose reel can hold up to 200 metres of hose. You can find additional hoses among the related products.

Items included:

Trolley with steel hose reel
Mitra lance in professional brass
Comet APS41 pump with Honda GX 160 engine
Set of hoses and filters
100 m of heavy-duty BLUE high-pressure 40 bar netted hose (burst pressure 120 bar)

This kit is ideal for spraying (or weeding) treatments, in small and medium-sized crops, parks, gardens, orchards, greenhouses and spreading of detergents and colours in water solution.

Equipped with flanged pump with an electric motor with speed reducer, complete with control unit (for pressure adjustment).

Main advantages of this trolley kit with hose reel and pump:

grater ease of transport
lower weight due to the absence of the tank

NOTE:

If products containing minerals such as kaolin, zeolite, basalt, etc. are used, washing should be carried out at the end of each treatment and at the end of each season to avoid long-term damage to the internal components of the pump. It is advisable to disassemble several parts of the pump, such as valves, heads and diaphragms, in order to clean out any agglomerated residues sedimented by the minerals.
These procedures will ensure a long life of the pump even if the above minerals are used.

Comet APS 41 Sprayer Pump with Honda GP 160 Petrol Engine and Trolley Kit

Kit Components

Hose reel on trolley

Super-reinforced large wheels for easy movement. Easy and quick to assemble

MITRA lance

Stainless steel and brass MITRA lance.

Hose kit

3 mt suction hose with filter
3 mt overflow hose

100 m 40 bar hose (burst pressure 120 bar)

Heavy-duty high-pressure netted hose made of soft and flexible rubber, provides excellent handling and long duration (unlike the standard fertene hose provided by most manufacturers with this kind of sprayer pumps, which is very rigid and not at all easy to handle. Also, it should be replaced every 2-3 years since it easily deteriorates)

Comet sprayer pump

COMET pump with petrol engine: the largest and most prestigious worldwide manufacturer of membrane pumps. Comet brand is 100% made in Italy

Comet APS41 Pump

Equipped with flanged pump, electric motor with speed reducer and control unit for pressure adjustment.

PERFORMANCE:

bar: 40 (adjustable)
flow rate: 38 L/min

Medium-sized model for heavy-duty use. It can work continuously for many hours at a time.

Equipped with a standard PRESSURE GAUGE in a glycerine bath.

By-pass lever: allows going from low pressure (in which the pump performs a simple water recirculation function) to high pressure for treatments.

Knob for pressure adjustment (up to 40 bar)

2 standard outlets with valve

Assembly

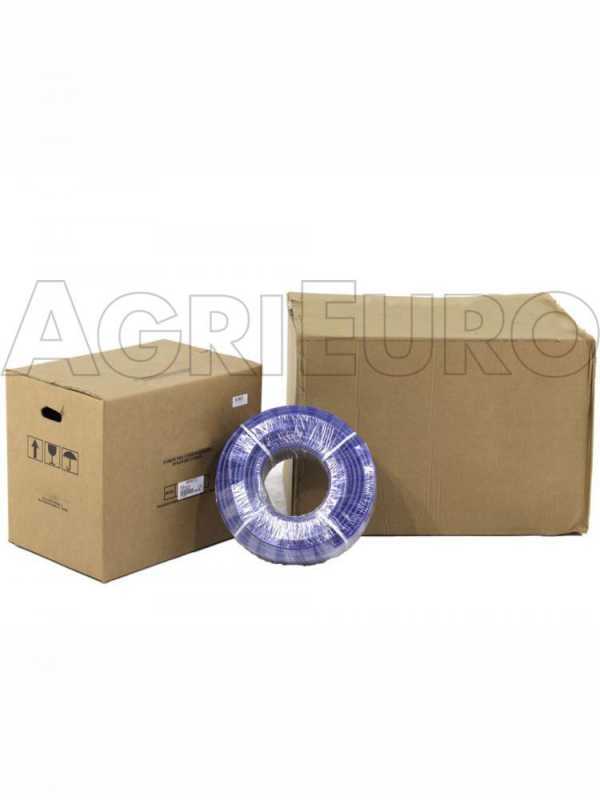

The hose reel on trolley comes already assembled. The product comes in 3 packages.

The hose

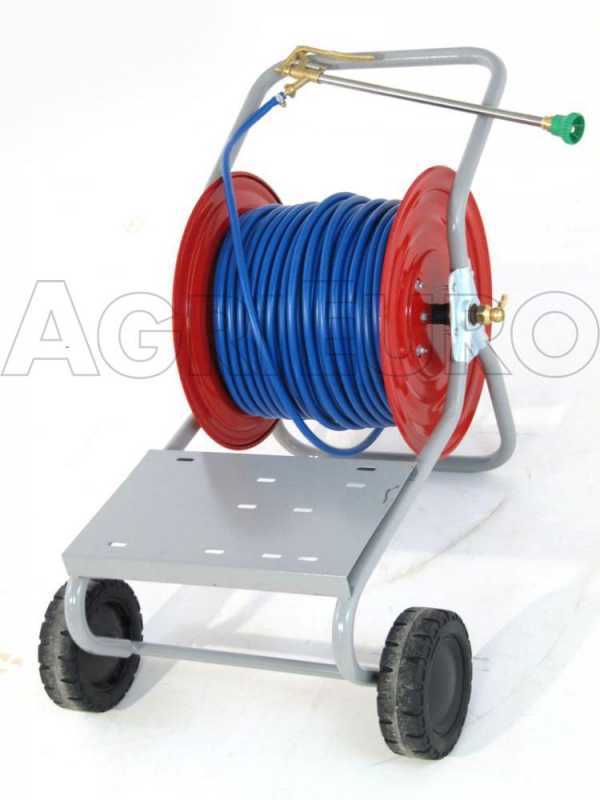

The trolley, already assembled
The sprayer pump (the picture has illustrative purposes)

Assembly operations required:

wrap the hose around the hose reel (by simply performing the same operation for storage)
screw the 4 bolts of the pump on the base of the trolley
cut and use about half a metre of the tube, to connect the pump to the external side fitting of the hose reel.
Connect the two suction and overflow hoses and lance on the blue hose

The operation takes 30 minutes

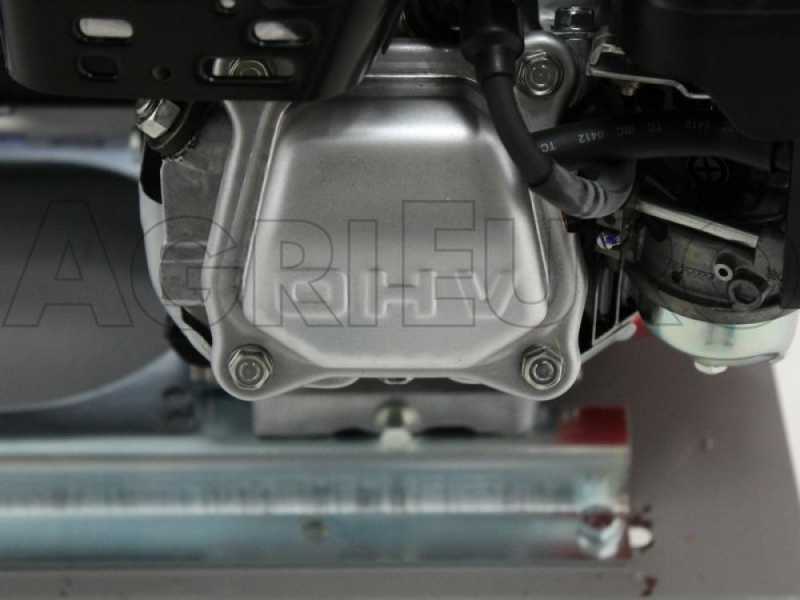

Honda GX 160 - 4-stroke engine

Honda GX 160 engine:
super-professional and SUPER-POWERFUL series, with the latest-generation overhead valve technology.

Main features:

Engine type

Single cylinder 4-stroke - OHV

Cylinder type

Aluminium

Cubic capacity

163cm³

Compression ratio

9.0 : 1

Max. rpm

3600 rpm

Torque value

10.3 Nm / 1.05 kgfm / 2500 rpm

Fuel tank capacity

3.1 L

Consumption

1.4 L/h 3000 rpm

Dry weight

15.1 kg

Honda GX series is highly professional and has been developed for heavy work in construction, agriculture, with generators, welders etc., characterized by great durability and reliability

Many other engines on the market are instead from GC series by Honda, which was developed for domestic and lighter work: these products are more affordable and qualitatively inferior.

HONDA engines of GX series are "TOP-QUALITY ENGINES ON THE MARKET".

ATTENTION!

the engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting the unit.
