Description

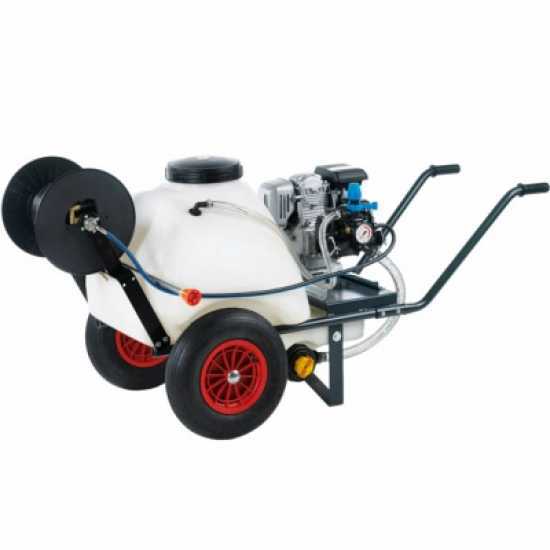

Comet MC 25 Sprayer Pump - Honda engine - 120 L tank

Comet sprayer pump on trolley is a complete and quality machine. Comet pumps are performing and reliable. The trolley with tank is designed to be easily moved and is equipped with all the measures to make your job easier and faster.

Items included:

Trolley with 120 L tank
Lever lance in professional brass
Comet MC 25 pump with Honda GP 160 engine
Set of hoses and filters

This kit is ideal for spraying (or weeding) treatments, in small and medium-sized crops, parks, gardens, orchards, greenhouses and spreading of detergents and colours in water solution.

Flanged pump, petrol engine with speed reducer and control unit (for pressure adjustment).

NOT INCLUDED: heavy-duty hose reel with hose (available as an optional accessory)

NOTE:

If products containing minerals such as kaolin, zeolite, basalt, etc. are used, washing should be carried out at the end of each treatment and at the end of each season to avoid long-term damage to the internal components of the pump. It is advisable to disassemble several parts of the pump, such as valves, heads and diaphragms, in order to clean out any agglomerated residues sedimented by the minerals.
These procedures will ensure a long life of the pump even if the above minerals are used.

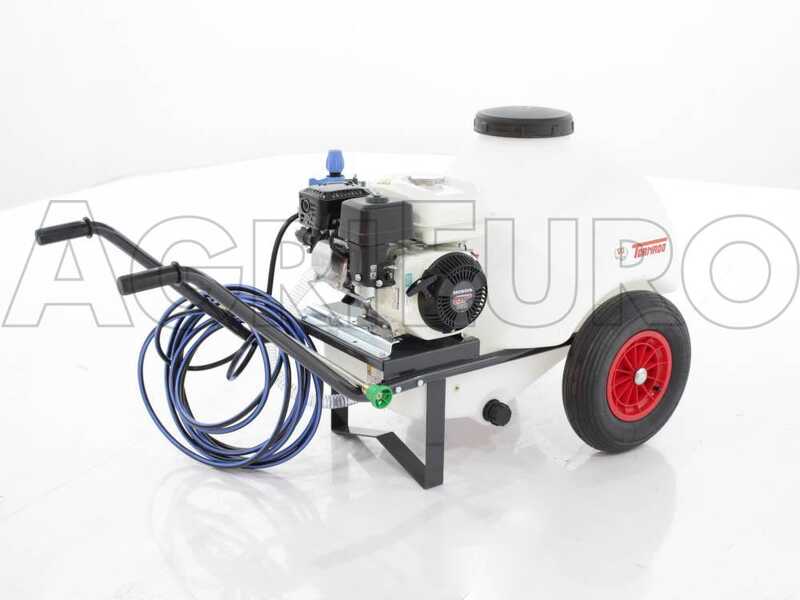

Comet MC 25 Sprayer Pump - Honda GP 160 and 120L Tank Trolley Kit

Kit Components

Trolley with tank

Trolley with 2 large pneumatic wheels. 120 L polyethylene tank with external suction filter.

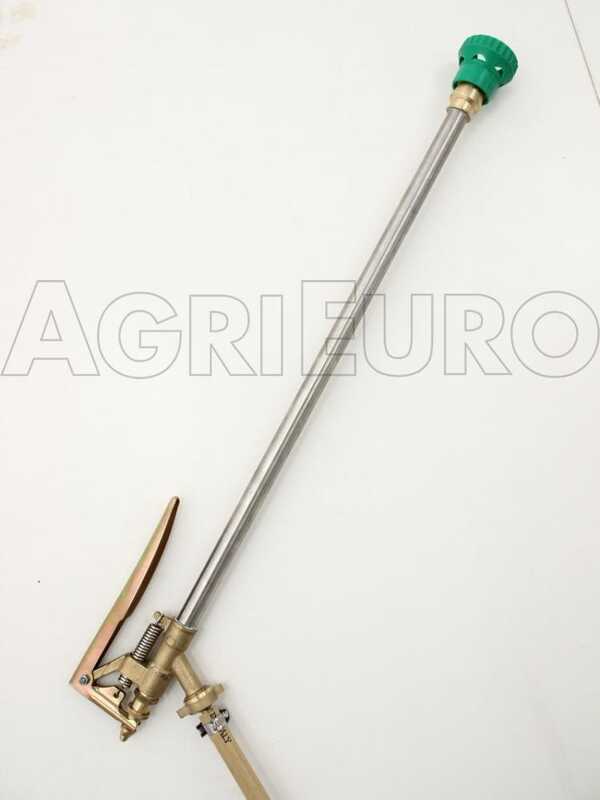

Lever lance

Heavy-duty lever lance made of in stainless steel and brass, 600 mm long with ceramic nozzle

Hose kit

Spiral suction hose
Spiral overflow hose
10 mt of additional hose

Comet sprayer pump

COMET pump with petrol engine: the largest and most prestigious manufacturer of membrane pumps worldwide. Comet brand is 100% made in Italy

Comet MC25 Pump

Flanged pump, electric motor with speed reducer, equipped with control unit for pressure adjustment.

PERFORMANCE:

bar: 25 (adjustable)
flow rate: 18.5 L/min

Medium-sized model for semi-professional and heavy-duty use. It can work continuously for many hours at a time.

Equipped with a PRESSURE GAUGE fitted as standard.

Blue lever: with bypass system, allows going from low pressure (in which the pump performs a simple water recirculation function) to high pressure for treatments.

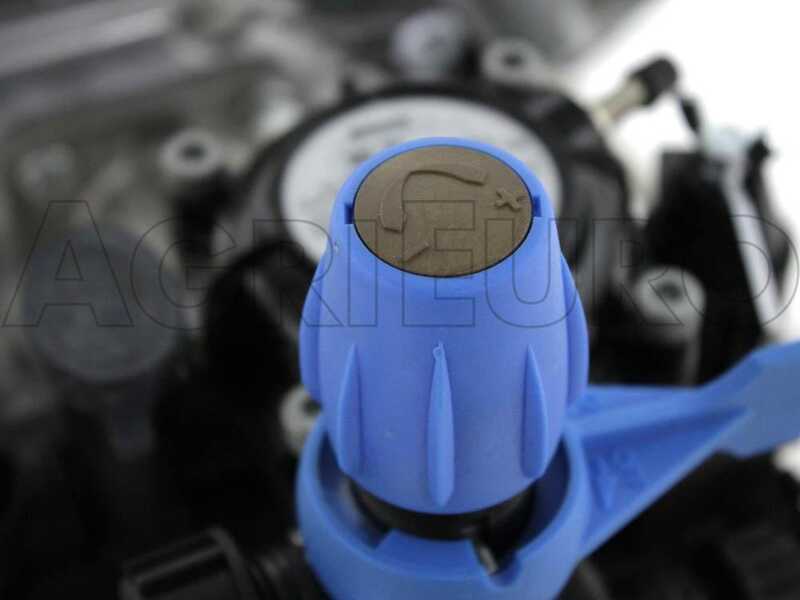

Blue knob: pressure adjustment (up to 25 bar)

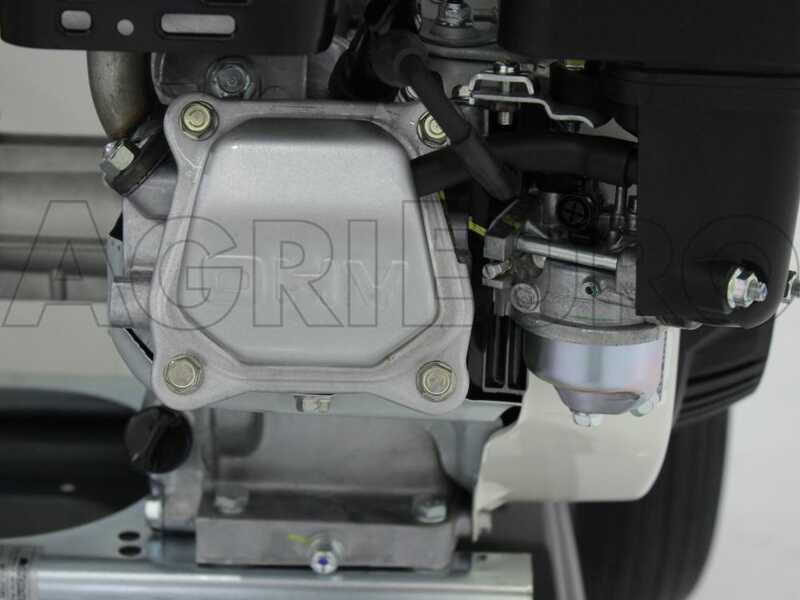

Honda GP 160 engine

Honda GP 160 engine is light and high performing, suitable for jobs requiring power, obtained thanks to the 163 cc displacement.

Main features:

Engine type

Single-cylinder 4-stroke - OHV

Cylinder type

Cast iron

Cubic capacity

163cm³

Compression ratio

8.5: 1

Max. rpm

3600 rpm

Fuel tank capacity

3.1 L

Consumption

1.4 L/h 3600 rpm

Dry weight

15.1 kg

Latest-generation 4-stroke petrol engine with "OHV” overhead valves - horizontal shaft, cycle eight, 4-stroke, 25° inclined cylinder, forced air cooling, cast iron cylinder

Nowadays, most of agricultural and gardening equipment available on the market mounts unbranded (or by unknown brands) engines made in China.

WARNING!

The engine is PROVIDED WITHOUT OIL.

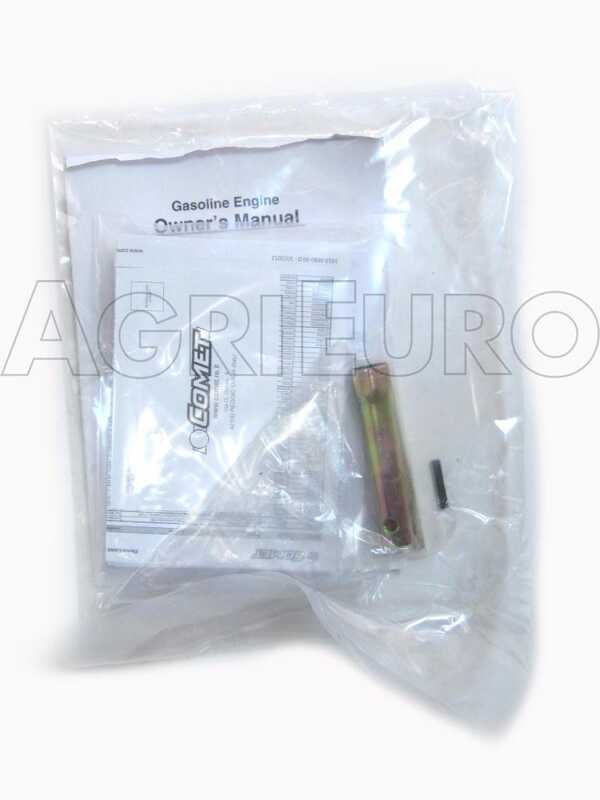

Please carefully read the instruction manual before starting the unit.

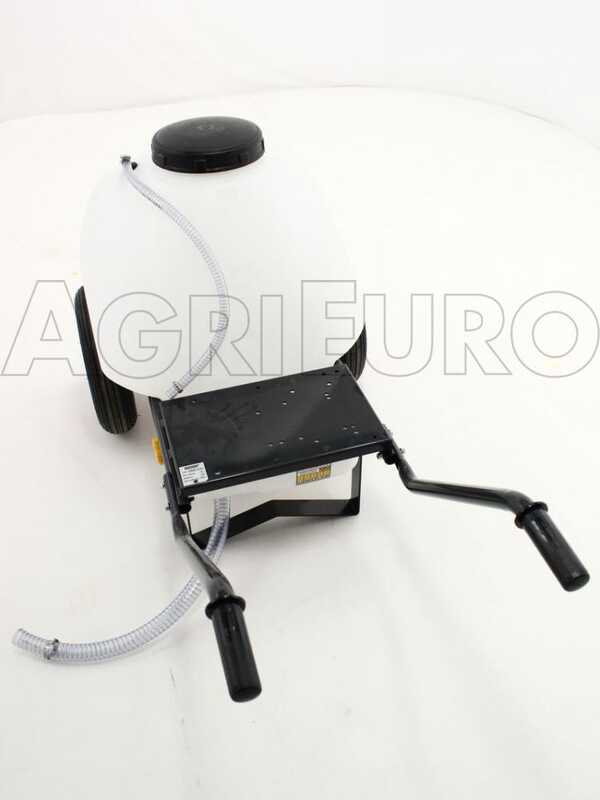

Trolley with Tank

MAIN FEATURES OF 120 LT TANK: Tank:

Made of high-strength polyethylene, obtained through rotational molding
Pneumatic wheels for easy movement
The newest design on the market
Reduced width compared to other models
Very low barycenter that guarantees exceptional stability in all conditions (with hose reel, different types of sprayer pumps, on rough terrain, etc...)
Lower part inclined for complete emptying even on not perfectly flat soil
Very compact shape also with all accessories mounted
External suction filter Tubular frame with removable handles
Plug for emptying
Upper plug with filter

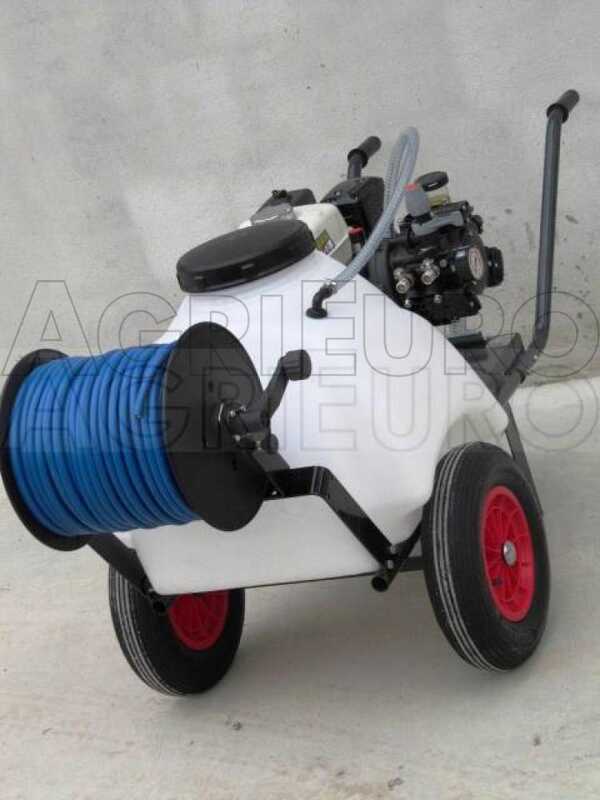

Optional Hose Reel

Heavy-duty hose reel for 2-wheel spraying trolley with 120 L tank, equipped with petrol pump.

Equipped with high-pressure hose.

Mounting brackets and screws to apply it to the trolley with tank.

The trolley obviously comes with the frame already perforated and prepared to mount the hose reel.

Equipped with of 40 bar high-pressure hose, which can operate all high-pressure petrol sprayer pumps suitable for this trolley and all dedicated accessories (lever lances such as the one supplied with the wheelbarrow, gun spraying lances, mitra lances, etc.).
