Description

Comet MTP MC 25 Sprayer Pump with Loncin 148F-2 Engine - on Trolley

This trolley sprayer pump avoids lugging around a heavy wheelbarrow containing the liquid. Put the hoses in a tank near the machine, so that you only need to hold the lance to reach all the points to treat, without carrying around heavy equipment. The hose reel can hold up to 200 m hose. Additional hose can be found among the related products.

Items included:

Trolley with steel hose reel
Heavy-duty brass lever lance
Comet MTP MC25 pump with 80 cc Loncin 148F-2 4-stroke engine
Set of hoses and filters
100 mt of heavy-duty high-pressure 20 bar netted tube (burst pressure 60 bar)

This kit is ideal for spraying (or weeding) treatments, in small and medium-sized crops, parks, gardens, orchards, greenhouses and for spraying detergents and colours in water solution.

Equipped with flanged pump, electric motor with speed reducer and control unit (for pressure regulation). Ideal if electricity is available in your plot.

The main advantages of this trolley kit with hose reel and pump are:

ease of transport
lower weight due to the absence of the tank

WARNING: THE HOSE COLOUR CAN DIFFER FROM THE PICTURE!

ATTENTION: stock photos, for further information see the pump and engine paragraphs below!

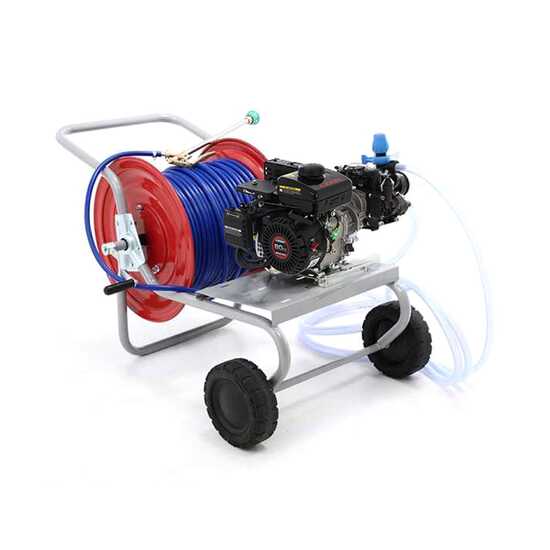

Comet MTP MC 25 Sparyer Pump and Loncin 148F-2 4-stroke Engine and Trolley Kit

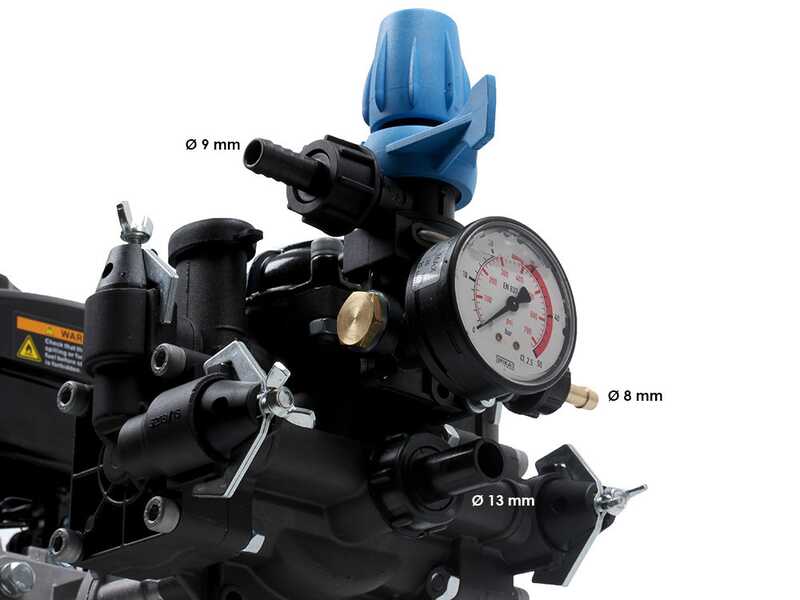

Comet MTP MC 25 Pump

PERFORMANCE:

0 - 25 (adjustable)
flow rate: 18.5 L/min

medium-sized model for heavy-duty use. It can work for many hours without stopping.

Focus on the power button

Equipped with a standard PRESSURE GAUGE

Focus on the air filter

Focus on the spark plug

Focus on the tank plug

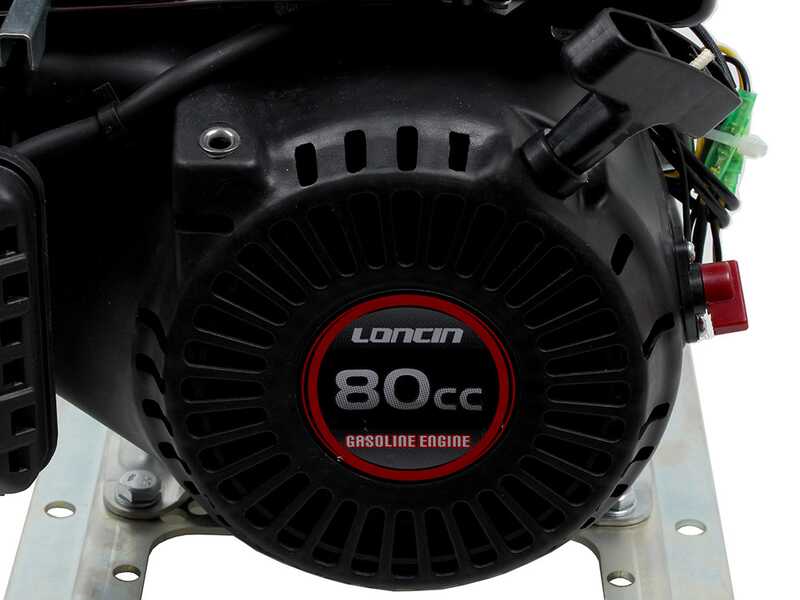

Loncin 148F-2 Engine

The original latest-generation Loncin 148F-2 4-stroke engine with 80 cc displacement features ”OHV” overhead valve technology.

Many advantages compared to 2-stroke engines (still very popular for sprayer pumps):

Greater reliability
Easier start, especially after long periods of inactivity
Higher durability
Less problems related to fuel preparation and freshness
Lower consumption
More silent

Main features:

Engine type: 4-stroke
Cylinder type: cast iron
Displacement: 80 cm³
Max. rpm: 3600 rpm
Tank capacity: 2 L
Dry weight: 16.8 kg

Kit Elements

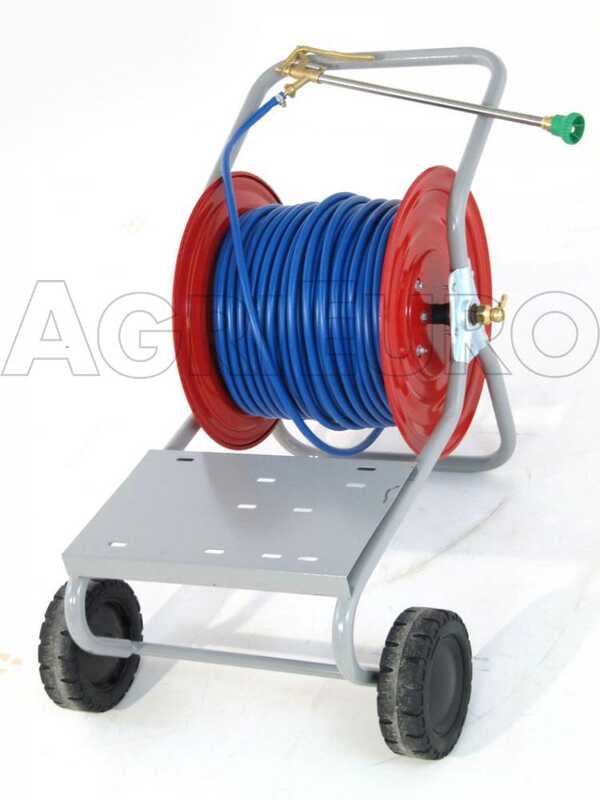

Hose reel on trolley

Super-reinforced large wheels for easy displacement. Hose assembly is quick and easy

Lance

600 mm heavy-duty lance made of stainless steel and brass.

Hose kit

3 m suction hose with filter
3 m overflow hose

100 m 20 bar hose (burst pressure 60 bar)

Heavy-duty high-pressure netted hose made of soft and flexible rubber, provides excellent handling and long duration (unlike the standard fertene hose provided by most manufacturers with this kind of sprayer pumps, which is very rigid and not at all easy to handle. Also, it should be replaced every 2-3 years since it easily deteriorates)

Comet sprayer pump

COMET pump 4-stroke engine: the largest and most prestigious manufacturer of membrane pumps worldwide. Comet is a 100% made in Italy brand

ATTENTION: stock photos, for further information see the pump and engine paragraphs below!

Assembly

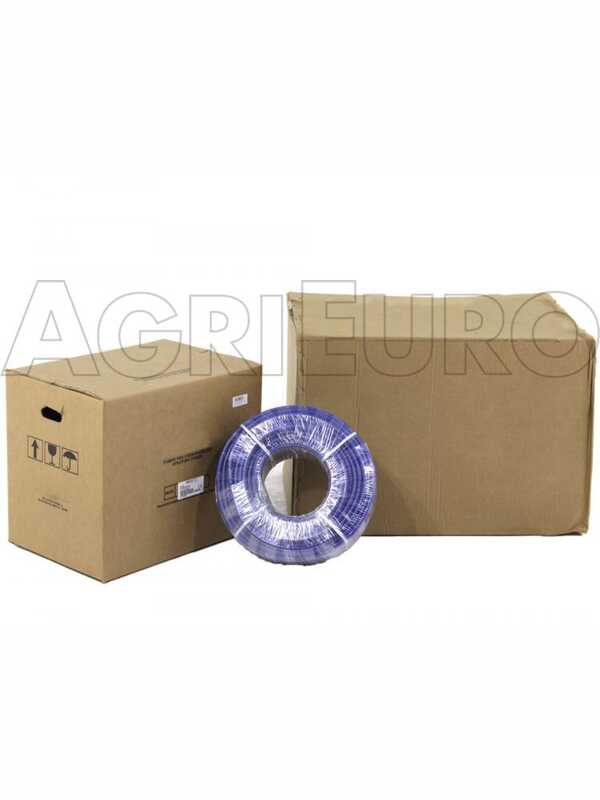

The hose reel on trolley comes already assembled divided into 3 packages.

The hose
Trolley is already assembled
Sprayer pump (in the picture, sprayer pump example)

Assembly only requires a few operations:

winding the hose around the hose reel (the same operation required for storage)
screwing the 4 bolts on the base of the trolley
cutting and using about half a metre of the hose to connect the pump to the external side fitting of the hose reel.
connect the two suction and overflow hoses and the lance to the blue hose

The operation takes 30 minutes
