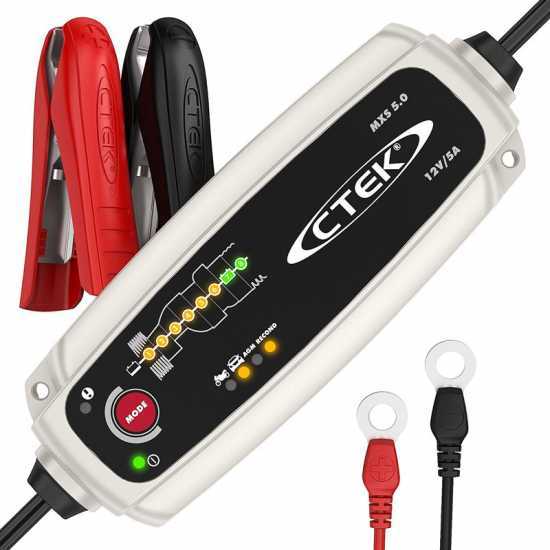

CTEK MXS 5.0 12V - Automatic Battery Charger Maintainer - 8 phases- temperature compensation

The CTEK MXS 5.0 is an automatic charger and maintainer with advanced microprocessor with temperature compensation .

MXS 5.0 is a 12 V fully automatic battery charger with 8 charging phases and programs for small batteries (motorcycles) and normal batteries (cars) that you can select and combine with AGM and/or RECOND options.

Top Market Performance for all lead-acid batteries from 1.2 to 110 Ah.
It is a multifunctional battery charger-maintainer that can meet the most varied needs, ideal for the most demanding every day applications.

Its functions include:

• Diagnosis to check if the battery is able to accept and maintain the charge
• Patented automatic desulphation program
• Special reconditioning phase of stratified and deeply discharged batteries.

The AGM option is ideal to maximize the Stop-Start batteries performance and durability. The built-in temperature compensation ensures an excellent charging performance even in extreme conditions .

The "buffer/pulse" system allows prolonged maintenance.

Equipped with display so you can control the entire charging, maintenance and testing process.

Suitable for all lead batteries:
WET - MF - GEL - AGM - Ca-Ca

The CTEK MXS 5.0 battery charger and maintainer is the most innovative you can find on the market. Easy to use and to carry thanks to its 0.6 Kg weight. Extremely versatile and technologically advanced .

• 12 V 1.2-110 Ah battery charger
• Maintenance charging up to 160 Ah
• 5 A Max
• 8 charging phases and selectable programs

Bag to hold the product

CTEK is the industry leading brand, synonymous with safety and reliability. CTEK's products are among the most popular in the industry for their quality.

Full Battery Care
Unique patented system for reconditioning, recharging and maintenance of all lead-acid batteries to ensure optimum performance and durability.

Safe and easy to use
For the user thanks to its protection against sparks and polarity reversals. For the vehicle thanks to the extraordinarily uniform voltage and current, without shocks or peaks. Therefore, it is not necessary to disconnect the battery from the vehicle during charging.

Fully automatic
Practical "plug and play” operation. Simply select the program.

Exclusive recharge in 8 stages
The patented 8-phase program checks the conditions and recovers, charges and maintains the batteries to ensure maximum performance and durability.

The RECONDITIONING
The patented program in 8 phases checks
the conditions and recovers, charges and maintains the batteries to ensure maximum performance and durability. The RECONDITIONING recovers
stratified and deeply discharged batteries. The maintenance charging with BUFFER/PULSE method ensures an ideal battery care during periods of inactivity.

Temperature Compensation
Automatic compensation of the charging voltage according to outside temperature, ideal for charging in very cold or very hot climates.

Prolongs battery life
The unique features of CTEK battery chargers are designed specifically to maximize performance and battery life.

LIGHT AND PORTABLE, RELIABLE AND PRACTICAL. BATTERY CHARGER AND MAINTAINER WITH ADVANCED MICROPROCESSOR.

Main Features:

Power supply: 230V single-phase
Nominal battery voltage: 12V
Charging current: 5 A Max
Battery capacity: 1.2 - 110Ah min/max, up to 160 Ah for maintenance
Size: 28x15x5 cm
Weight: 0.6 Kg.

Protected against overloads and polarity reversals.

LED display for the 8 charging phases

MODE button to select the charging program: SMALL BATTERY PROGRAM or NORMAL BATTERY PROGRAM.
By repeatedly pressing MODE you select the desired combination of program and charging options: AGM OPTION and RECONDITIONING OPTIONS.

Equipped with cable with clamps and cable with eyelets

8 CHARGING PHASES, fully automatic charging cycle.

STEP 1 DESULPHATION
The voltage pulses remove the sulphates from the lead battery plates, restoring its capacity.

STEP 2 SOFT START
Checks if the battery can accept charge. Charging begins if the battery is OK.

STEP 3 BULK
Charging with maximum current until approximately 80% of the battery capacity.

STEP 4 ABSORPTION, READY TO USE BATTERY
Charging with reduced current output until 100% of the battery capacity.

STEP 5 ANALYSIS
Checks if the battery can maintain the charge. You may need to replace the batteries that are not able to maintain
the charge.

STEP 6 RECONDITIONING
Recovery function for deeply discharged batteries.

STEP 7 FLOAT, FULLY CHARGED BATTERY
Maintains the battery voltage at maximum level by providing a constant voltage charge.

STEP 8 PULSE, PULSE MAINTENANCE CHARGE
Maintaining the battery at 95-100% capacity. The battery charger checks the battery voltage and provides a pulse when
necessary to keep it fully charged.
