Name: Dal Degan ILEO 400 L - Tractor-mounted sprayer unit - YP 70 pump
Brand: Dal Degan
SKU: 106081
Price: 1780.24 EUR
Availability: InStock
Rating: 4.67 (15 reviews)

Description

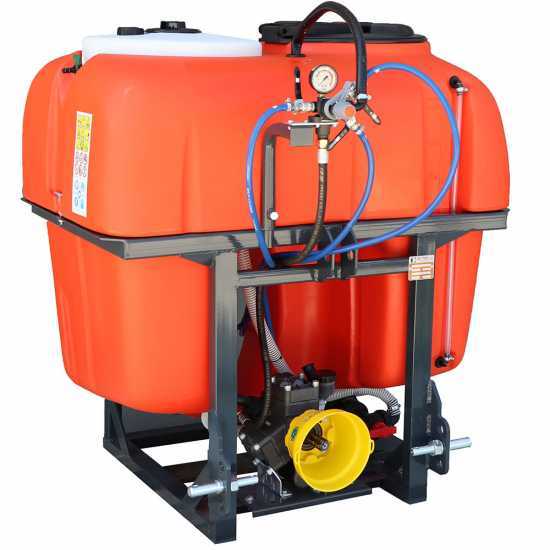

DAL DEGAN 400 L Tractor-mounted Sprayer

DAL DEGAN ILEO 400 mounted sprayer with YP70 pump and maximum flow rate of 70 L/min is a spraying unit suitable for medium and large crops, for heavy-duty use or demanding amateurs.

Equipped with main polyethylene total-emptying tank, including system washing tank and hand washing tank, also made of polyethylene.

This mounted sprayer is the largest among our DAL DEGAN products.

It connects to the tractor via three-point linkage with which the enamelled steel frame is provided.

The tank is equipped with high-pressure DAL DEGAN YP 70 pump.

A three membrane pump complete with three-outlet pressure regulator.

Attention: universal joint for tractor PTO connection not included.

USES:

Horticultural crops
Cereal crops
Espalier orchard
Espalier vineyard
Kiwi gdc
Tendone vineyard and kiwi
Olive grove greenhouse

Dal Degan ILEO 400 L - Tractor-mounted sprayer unit - YP 70 pump

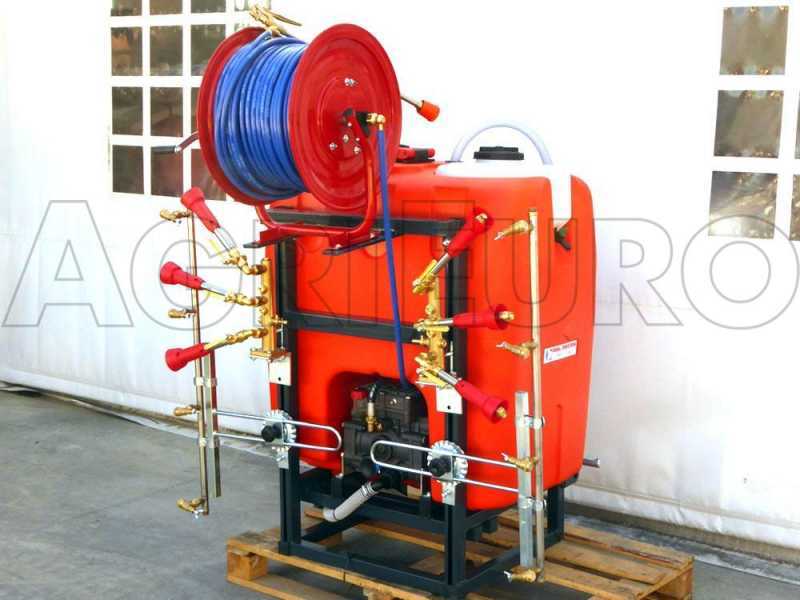

Tank Accessories Sold Separately

These are some of the accessories that can be mounted on DAL DEGAN mounted sprayers.

The two horizontal bars are suitable to mount any type of accessory on the market, in several positions.

Here are some examples of single mounting accessories:

Steel hose reel with 100 m blue high-pressure netted tube (25 bar) and brass lever lance. You can pair the steel hose reel with the "mitra” lance or the spray gun for tall trees.
Stainless steel spray guns with 4+4 brass butterfly nozzles
Spray guns

Many customization options:

Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and spray guns
Pair of stainless steel spray booms with 4+4 brass butterfly nozzles and spray guns
There is enough space in the bars to mount all the accessories available, so they are always handy

All the accessories are available in the RELATED PRODUCTS section.

The pictures with the accessories are purely for illustrative purposes.

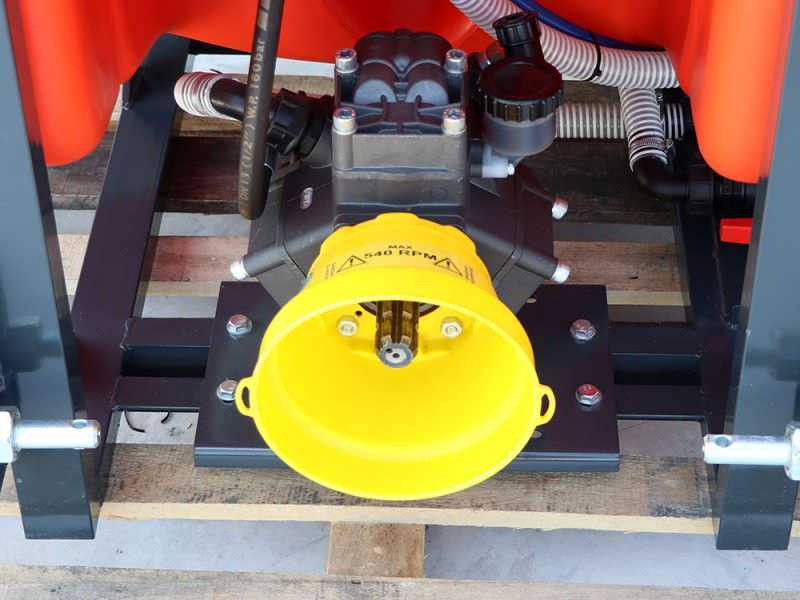

DAL DEGAN YP70 Pump

DAL DEGAN YP 70 high-pressure pump has three membranes, compact size, suitable for spraying, weeding and pest control using pesticides and plant protection products.

The finishing is anodized.

Performance

N. membrane / pistons: 3
Flow rate: 70L/min
Pressure: 50.0 bar
Power: 12 HP
RPM: 540
Kerb weight: 17

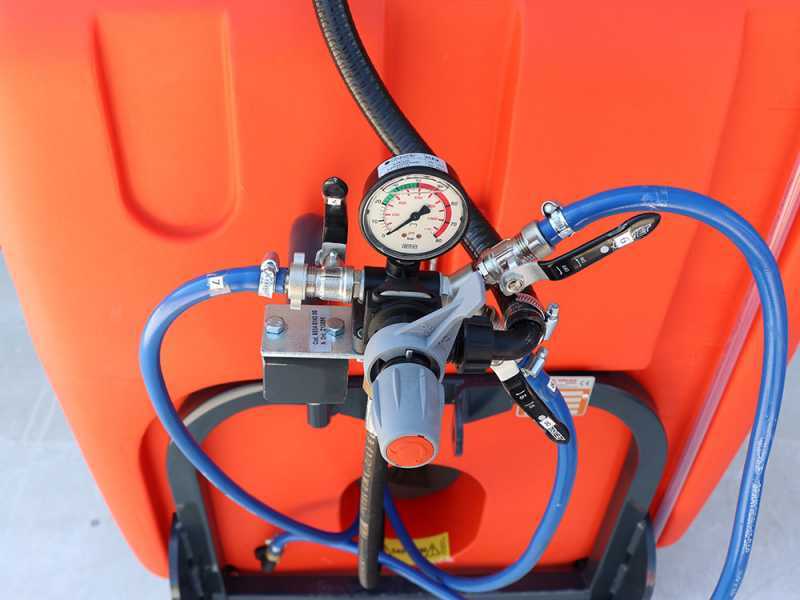

Three-way Comet SIRIUS Regulation Unit

Comet SIRIUS three-way control and pressure regulation unit features three outlets, equipped with valve, suitable for the most varied uses.

Usually, the two horizontal outlets are used to connect, for example, a pair of spray guns for orchards/olive groves, or stainless steel booms for vineyard, etc...

Instead, the central valve facing downwards mounts the hydraulic agitator.

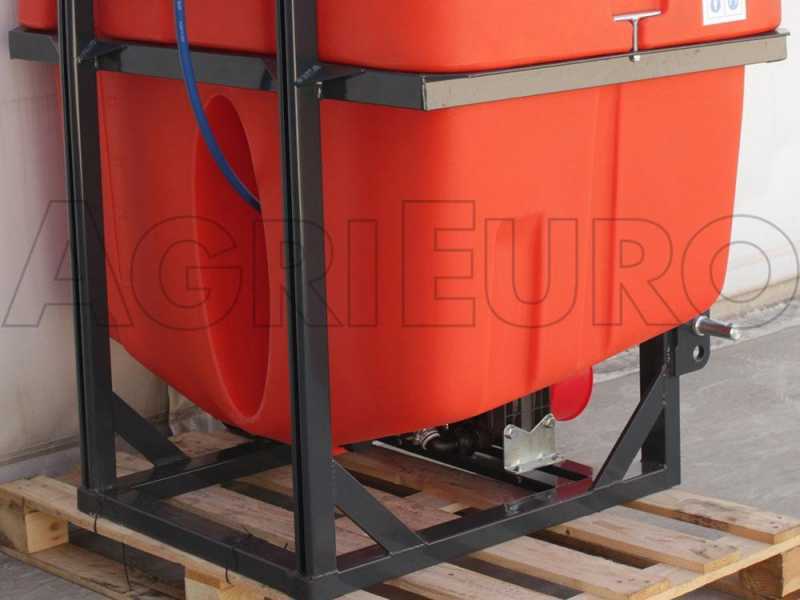

Heavy Enamelled Steel Frame

Heavy enamelled steel frame, complete with 3-point linkage for tractor mounting.

The attachment points to the lifter are complete with pins.

This tank is equipped with two horizontal bars to apply any accessories.

These brackets can be applied in several positions, making them suitable for any type of accessory on the market.

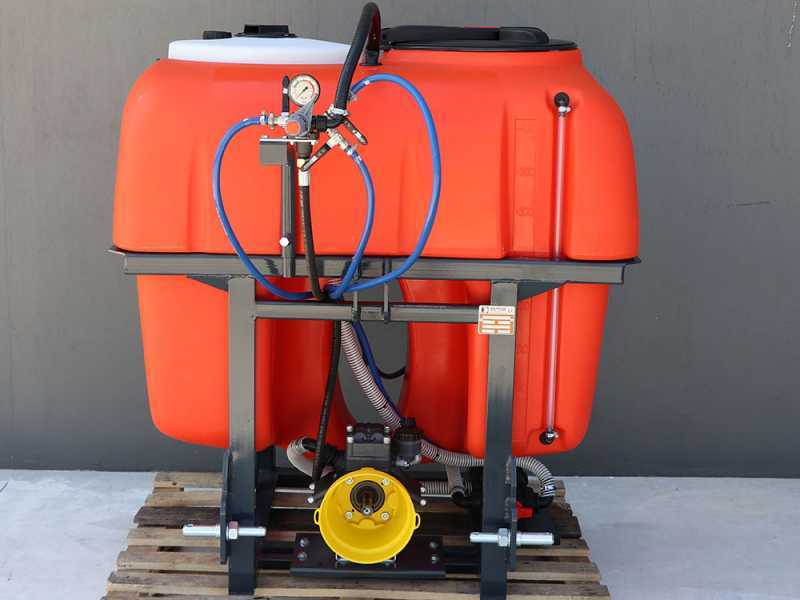

General Features

Polyethylene total-emptying tank.

System washing tank housed inside the main tank and accessible from above the hand washing tank.

Additional tank for hand washing

Focus on the external hose with graduated scale for a quick checking of the liquid level inside the tank.

Hydraulic agitator, to constantly mix the solution within the tank. It has a high-pressure jet in the centre of the tank.

External suction filter equipped with self-filling system (the hose to fill the tank must be purchased separately, you can find it in the related accessories section).

Internal filter that cleans the liquid from any residue or dirt during the tank filling phase.

Plug for total emptying of the tank.

Focus on the PTO
