Name: Dal Degan MANDA EXTRA 400 L - Tractor-mounted weed control unit - 10m weed control boom - YP70 pump
Brand: Dal Degan
SKU: 106073
Price: 2971.89 EUR
Availability: InStock
Rating: 4.57 (7 reviews)

Description

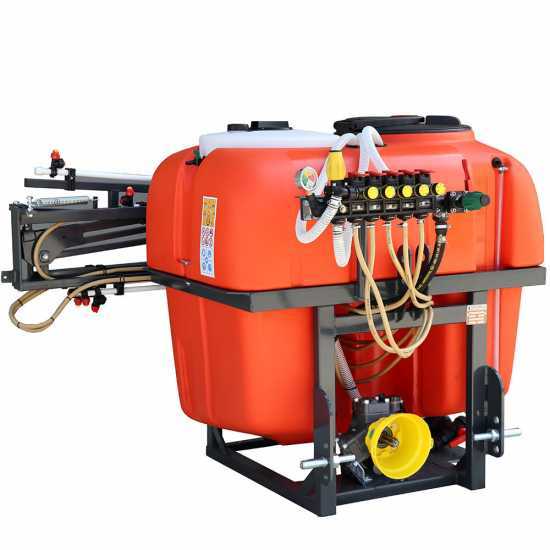

DAL DEGAN MANDA EXTRA 400 L Mounted Weed Sprayer

MANDA EXTRA 400 L is a mounted weed sprayer equipped with 10 m boom with 10+10 nozzles, with which you can treat medium and large crops.

This mounted weed sprayer has a four-way constant pressure volumetric distributor which allows to better adjust the liquid delivery.

Equipped with a DAL DEGAN YP70 pump with a maximum pressure of 50 bar and a flow rate of 70 L per minute.

The total-emptying tank is made of polyethylene with a capacity of 400 L system washing tank included.

HEAVY PROFILE enamelled steel frame.

Dal Degan MANDA EXTRA 400 L - Tractor-mounted weed control unit - 10m weed control boom - YP70 pump

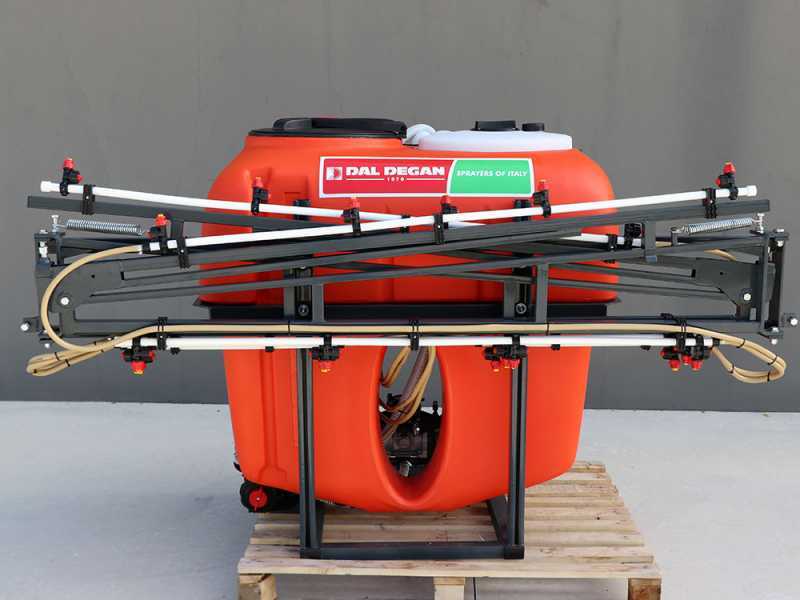

10 m Spray Boom

MANDA EXTRA 400 L is a mounted weed sprayer equipped with 10 m boom with 10+10 nozzles, with which you can treat medium and large crops.

The bar folds into four sections thanks to a spring system.

Focus on the easy-to-clean nozzles.

Closed position
Arm opening
Second arm opening
Complete opening

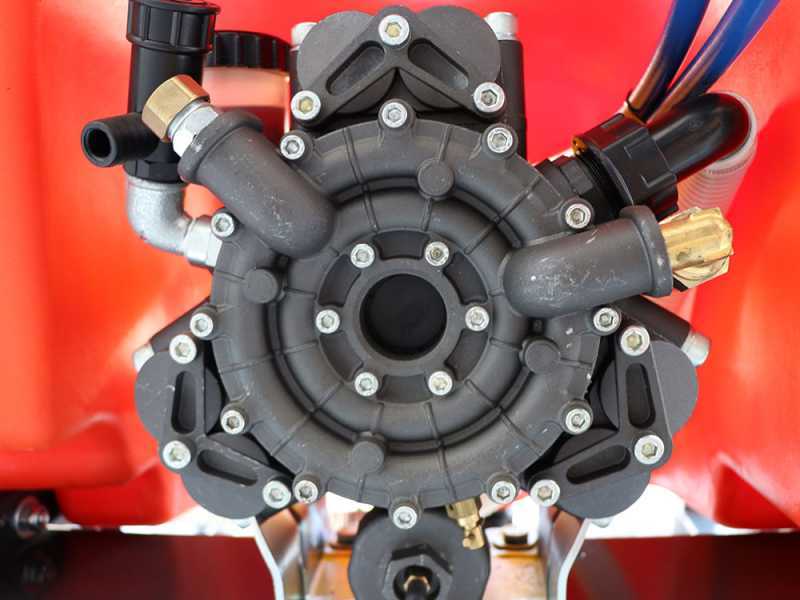

DAL DEGAN YP70 Pump

DAL DEGAN YP 70 high-pressure pump has three membranes, compact size, suitable for spraying, weeding and pest control using pesticides and plant protection products.

The finishing is anodized.

Performance

N. membrane/pistons: 3
Flow rate: 70 L/min
Pressure: 50.0 bar
Power: 12 HP
RPM: 540
Kerb weight: 17

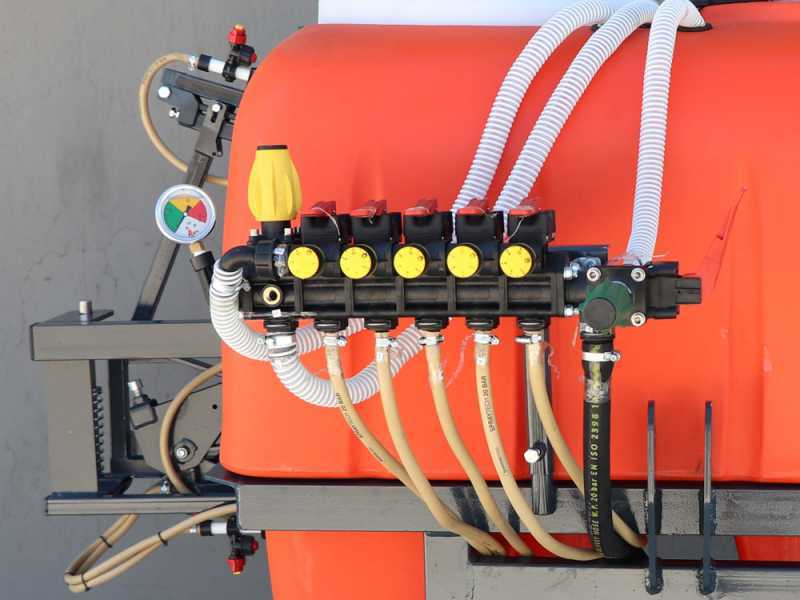

Pressure Regulation Unit

This mounted weed sprayer has a four-way constant pressure volumetric distributor.

VOLUMETRIC = it maintains a perfectly constant liquid supply for each nozzle even when the pump speed varies or when the speed changes.

CONSTANT PRESSURE = it maintains a perfectly constant pressure on each of the outlets, so that every nozzle will deliver the same amount of liquid.

These two systems provide a distribution of the treatment as even and regular as possible, without waste, minimizing costs and reducing the damage on the environment.

Focus on the adjustable compensators (Through a special front wheel) of which each of the four outputs is equipped, allows the calibration of the individual sections.

Pressure adjustment knob and Bypass lever that opens and closes the inflow of liquid to the boom.

Proportional valve to adjust the overall working pressure and pressure gauge.

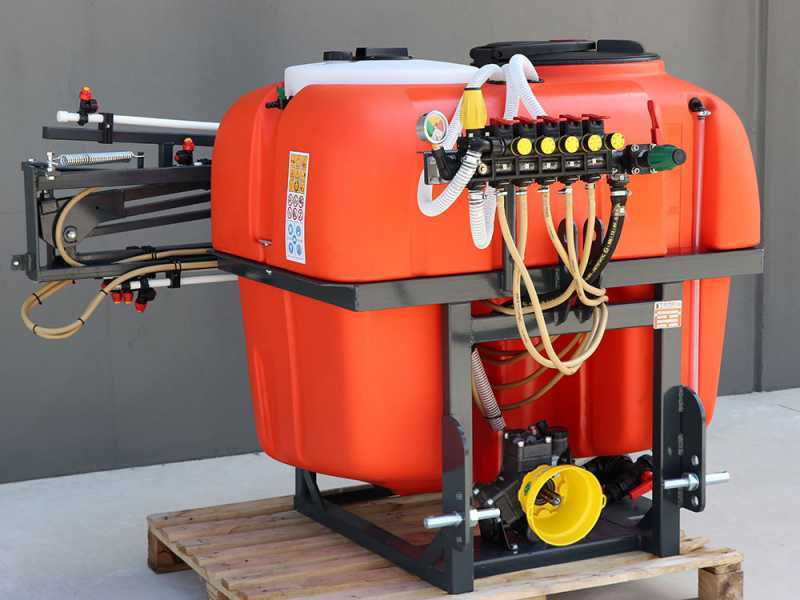

General Features

Polyethylene full-emptying tank, 400 L capacity.

System washing tank inside the main tank, easily accessible above the hand washing tank.

Additional tank for hand washing

Focus on the external level with graduated scale.

Hydraulic agitator, to constantly mix the solution within the tank. It has a high-pressure jet in the centre of the tank.

External suction filter equipped with self-filling system (the hose for tank self-filling is sold separately, you can find it in the related accessories section).

Enamelled steel section frame.

Focus on the three-point linkage.
