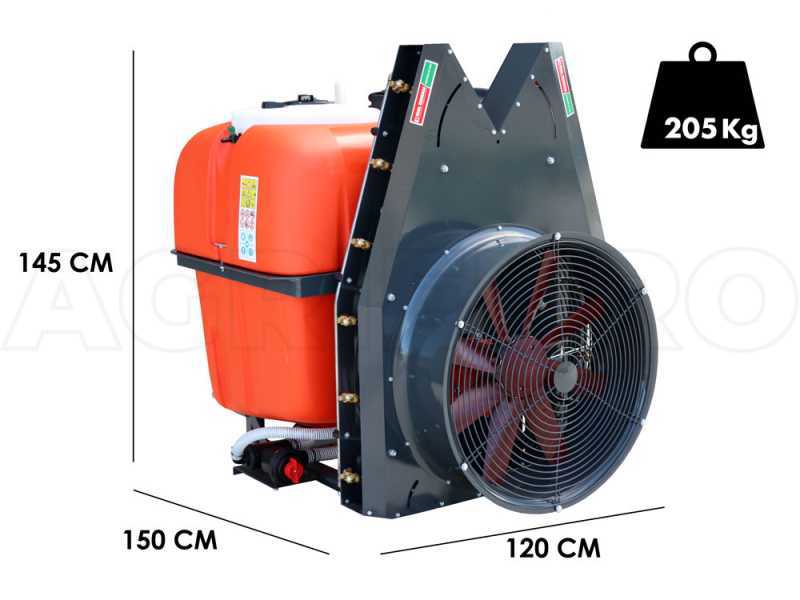

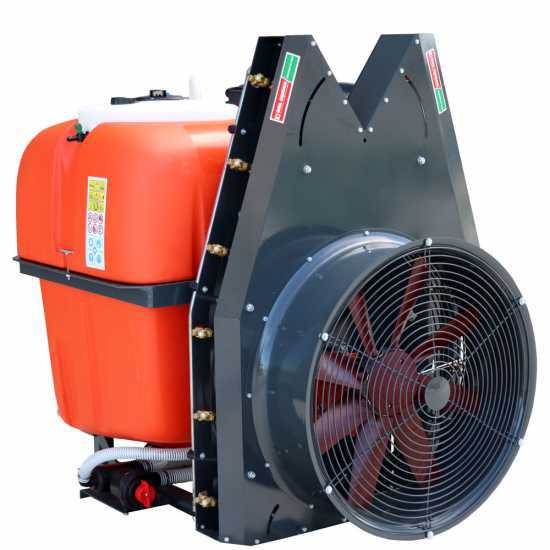

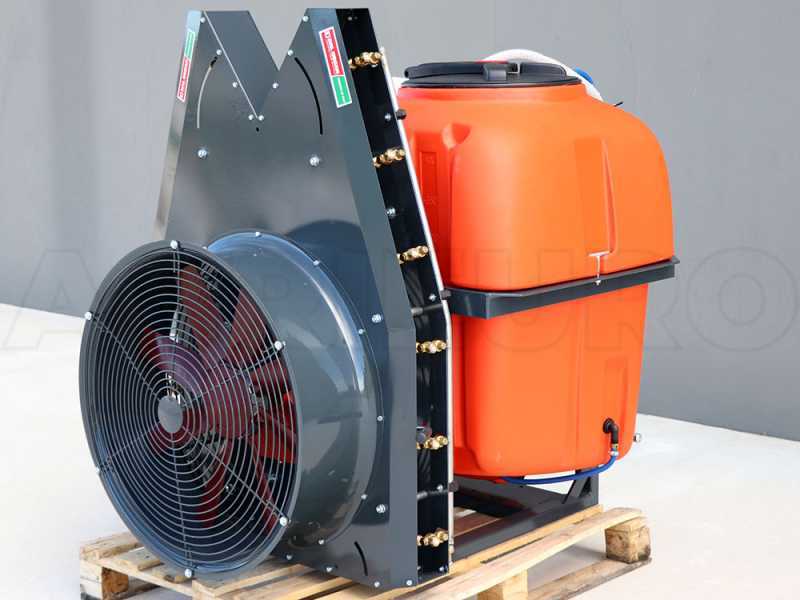

Dal Degan SATURN EXTRA 400L - Tractor-Mounted Vertical Mist Blower - APS 71 Pump

Machine for spraying treatments in medium to large crops, vineyards and orchards.

Large 700 mm diameter fan.

External fan conveyor, rear plate and frame made of sturdy enamelled steel.

The adjustable fans made of reinforced nylon and aerodynamic shape with adjustable inclination provide excellent weather resistance.

The size of the fan is the most important element of a mist blower, as it determines:

• the power of the air jet (the greater the fan diameter, the greater the amount of air it produces, the greater the ability of the machine to carry out the treatment at greater heights or distances)
• the fineness of the atomisation (the greater the power and quantity of the air, the greater the mini-particles of liquid will be disaggregated)
• working at lower tractor engine speeds (to achieve the same performance as a fan with a smaller diameter)

Polyethylene full-emptying tank, with a capacity of 400, with circuit washing tank included. It is resistant to all chemicals, triple impact resistance and all its parts are tilted to avoid sedimentation of the phytosanitary mixture.

Uses:

• Horticultural crops
• Citrus grove
• Espalier orchard
• Espalier vineyard
• Kiwi
• Vineyard and kiwi
• Olive grove

CAUTION: It is strongly recommended that you carefully check the lifting capacity of your tractor, taking into account the total weight of the machine when fully loaded.

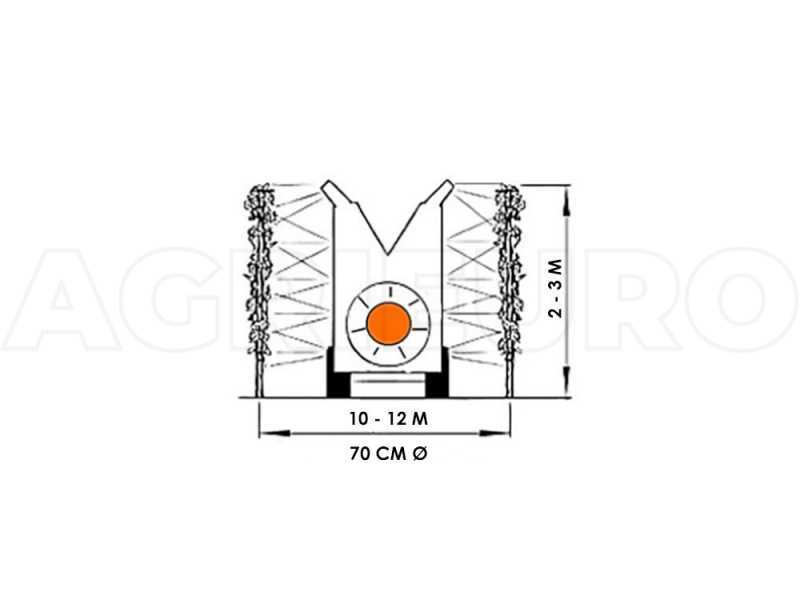

Mist blowers with this type of deflector are ideal for small and medium-sized orchards, olive groves and vineyards. The function of the deflector is to direct the air flows produced by the fan so that the jet, carried by the air flow, only covers the area to be treated with the product inside the tank.

The special feature of this type of mist blower is its tower-shaped conveyor. The conveyor allows a more precise, powerful and uniform air flow, creating a lateral spray aimed at the plant.

The air flow is therefore directly concentrated towards the objective (leaves and plants), not where there is no vegetation. This prevents the product from dispersing, ensuring a better treatment quality.

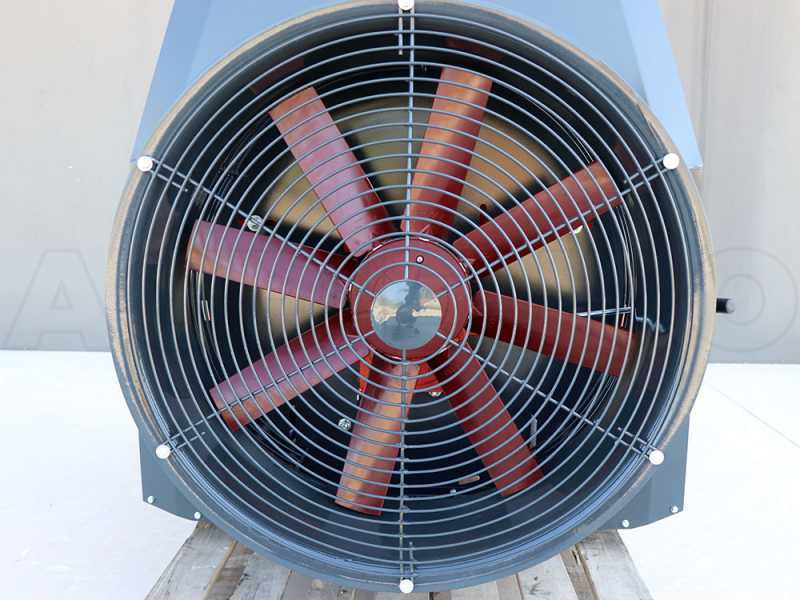

Large 700 mm diameter fan.

External fan conveyor, rear plate and frame made of enamelled steel. Adjustable nylon fans ensure excellent weather resistance.

The propeller with 8 blades is adjustable in seven positions, from 20 to 45°.

Focus on the propeller blade rotation system

Iron conveyor.

The gearbox is made in Italy by CMV in Lonigo.

Made in Italy guarantees excellent manufacturing and material quality for this component, as well as easy availability of spare parts.

The fan is driven by a sturdy gear multiplier with 1 speed + neutral.
Cast iron box, belt transmission.

Focus on the lever (1-2)

Focus on the PTO

Stainless steel nozzle holders are divided into two parts, a left one with 5 jet nozzles and a right one with the other 5 jet nozzles.

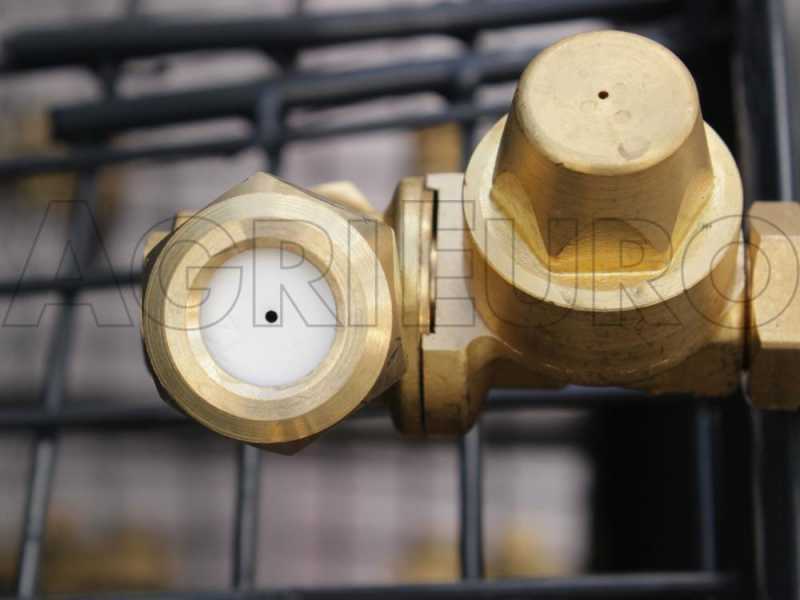

Each brass jet nozzle with anti-drip features 3 positions, which can be changed by simply rotating the nozzle manually on its axis (three clicks, one for each position):

• nozzle with larger hole (higher liquid delivery)
• central position = closed jet
• nozzle with smaller hole (lower liquid delivery)

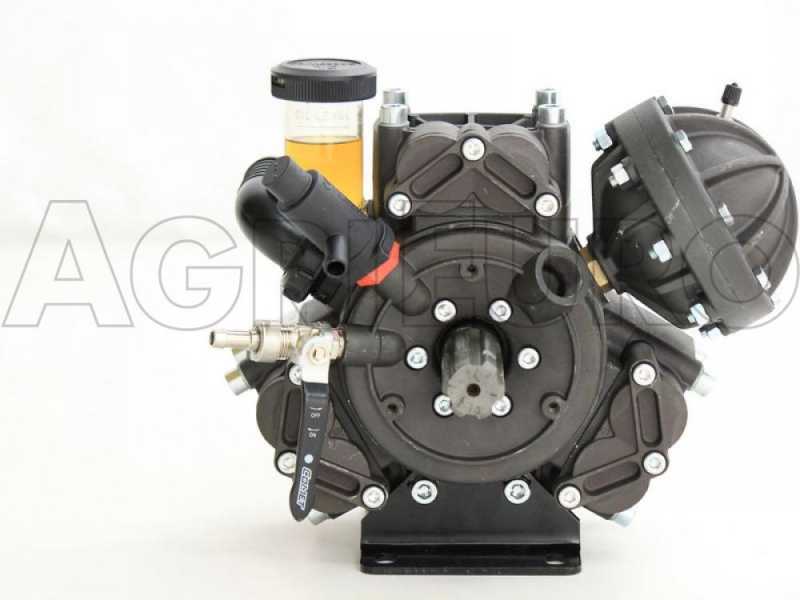

The high-pressure Comet APS 71 pump has three membranes and a compact size suitable for spraying, weeding and pest control using pesticides and plant protection products.

The parts directly touching the liquid are made of anodized aluminium, resistant to corrosion. The valve has a stainless steel seat and plate.

Performance

• Membrane / pistons: 3
• Flow rate: 67.2 L/min
• Pressure: 50.0 bar
• Power: 9.1 HP
• RPM: 550
• Weight: 18.4 Kg

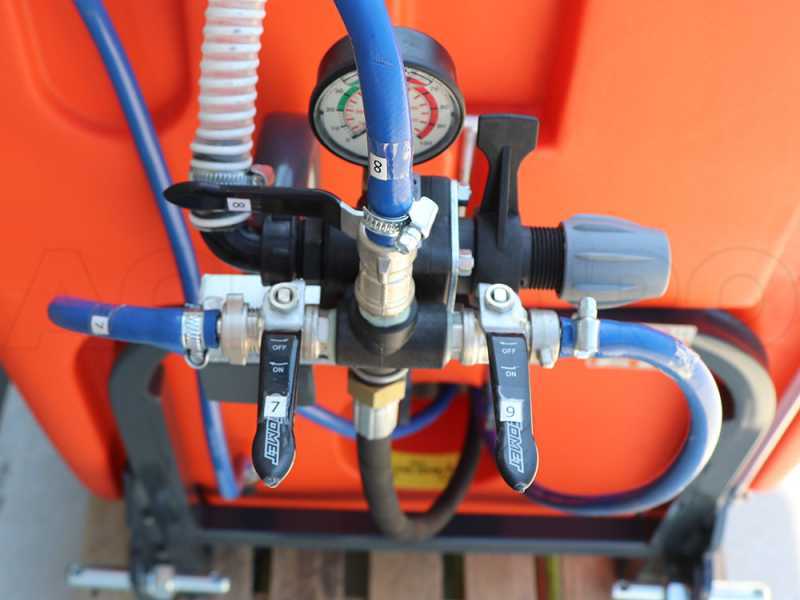

Three-way pressure regulation unit.

Pressure adjustment knob.

Pressure gauge.

The two side valves feed the right and left sectors of the fan, respectively.

Control lever for opening or closing the control unit.

This means that you can also activate the two sectors separately, e.g. activate only the jets on the right side or only on the left side (e.g. when you are working on the edge of your field).

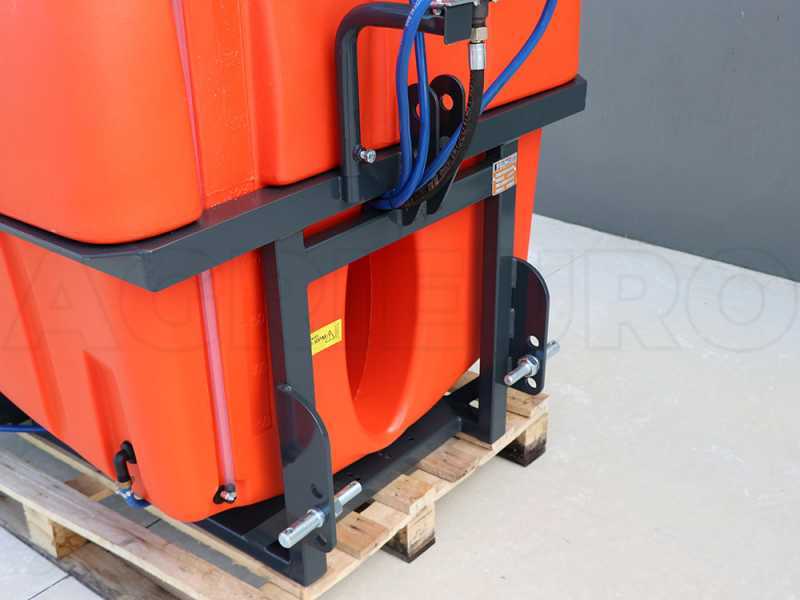

Heavy enamelled steel frame, complete with 3-point tractor linkage.

The three-position hitch points to the lift are complete with pins.

Polyethylene full-emptying tank, with a capacity of 400 L with circuit washing tank included.

Circuit washing tank placed inside the main tank and accessible from above the hand washing tank.

Additional tank for handwashing.

Focus on the bottom valve for total emptying.

Focus on the external level indicator with graduated scale.

Hydraulic agitator, to constantly mix the solution inside the tank, equipped with a high-pressure jet that shoots towards the centre of the tank.

External 3-way suction filter equipped with self-filling system (the hose for filling the tank must be purchased separately, you can find it among the related accessories).

The filter is equipped with a valve for cleaning the cartridge even when the tank is full.

Focus on the water inlet filter.
