Description

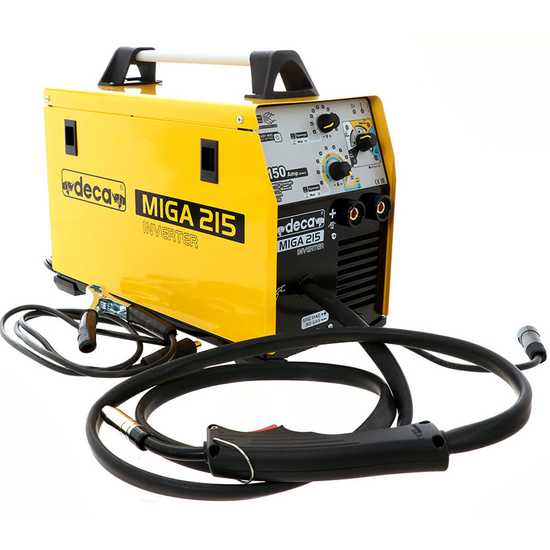

MIGA 215 1Ph 230/50-60 Welding Machine

Multiprocess welding machine with inverter technology for MIG/MAG, NO-GAS, MMA and TIG DC welding. 4 welding processes available:

Synergic MIG/MAG - basic programs for carbon steel, stainless steel, aluminium welding, braze welding with special copper silicon and copper aluminium wires
Manual MIG/MAG - free wire speed, arc voltage and electronic inductance adjustment
MMA - welding current and ARC-FORCE adjustment, useful for electrodes with difficult striking
TIG DC - Lift striking to limit the risk of contaminating the piece with tungsten, adjustment of the welding current and the current down slope, with filling effect at the end of the weld seam. All metals can be welded, except aluminium.

Thanks to the outside polarity change function, it will be possible to switch to NO-GAS welding in a very simple and fast way. In this series of products, all adjustments are made intuitively through the combined use of three potentiometers: the first allows you to select the process, the second to regulate the current and the third is useful for wire welding as it adjusts the arc voltage.

The MIGA 215 has various adjustment ranges according to the welding type: MIG/NO GAS modes have a range of 10 - 150A, MMA has a range of 10 - 130A while TIG welding has an adjustment range of 10 - 150A.

Equipped with a Ø100-200mm, 200 grams self-shielded wire. It has a power supply of 230V, the absorbed power is 2.5kW. It mounts a 16A fuse and the torch connector is straight.

Equipped with current up slope which consists of the time in which the current passes from the initial value following the striking to the value set for welding, it allows to avoid an abrupt start of melting. The down slope is the time in which the current passes from the value set for welding to the switch-off value, avoiding crater cracks at the end of the weld seam.

A 2m MIG 110A torch, a ground clamp with cable, a Ø0.8 - Ø1 wire feeder roller and a gas hose are supplied as standard.

Deca MIGA 215 1Ph 230/50-60 Multiprocess Inverter Wire Welding Machine - GAS/NO GAS

Technical Features

Focus on the data sheet

Power supply: 1ph - 230V - 50/60Hz
Fuse: 16 A
Wire to Use Steel ø 0.6 - 0.8 - 0.9 mm, Inox - Cu.Si 3 - Cu.Al 8 ø 0.8 mm, Al.Mg - Al.Si - ø 0.8 - 1.0 mm, Cored wire ø 0.8 - 0.9 - 1.0 mm
Open circuit voltage: 80V
Welding processes: Synergic MIG/MAG, manual MIG/MAG, MMA, TIG DC
Self-shielded wire: Ø100- 200 cm

Equipped with several systems that help the operator during welding operations.

The Burn Back is the delay time between engine stop and output power interruption, it allows length adjustment of the of the wire that comes out from the nozzle at the end of the welding.
Hot Start consists of increasing the welding current at the moment of striking, making it easier.
Arc Force dynamically increases the welding current when the arc becomes too short, prevents the electrode from sticking to the piece to be welded. Equipped with Anti-Sticking, which consists in a drastic reduction of the welding current when the electrode sticks to the piece, i.e. the arc voltage is zero for a time that exceeds the set limit, facilitates the removal of the electrode from the piece to be welded.

The welding current must be set according to the work to be done, however it is better to start with a low level when the metal is thick and gradually increase until you find the right adjustment. In the chart you can find all the recommended settings for welding different thicknesses.

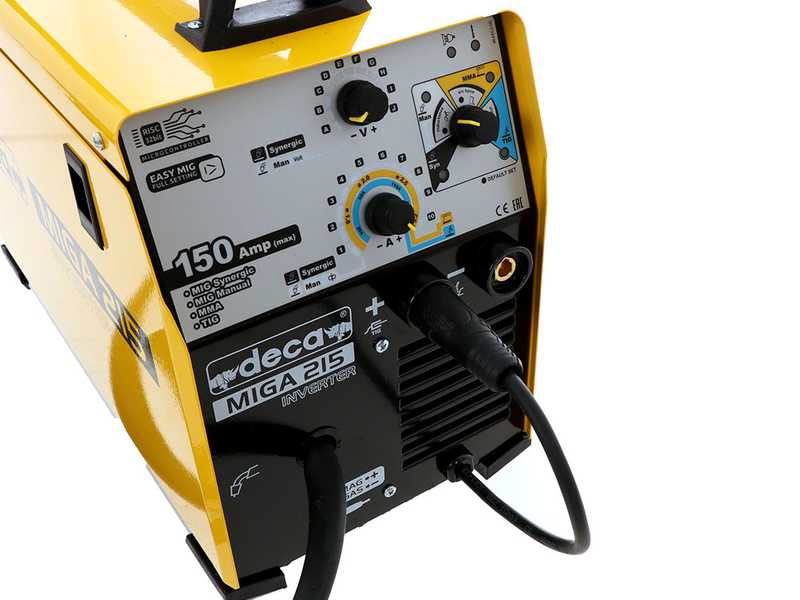

Focus on the control panel

If the welding duty cycle is exceeded, the thermostatic protection comes into operation and stops the work; the light turns on when it is activated.

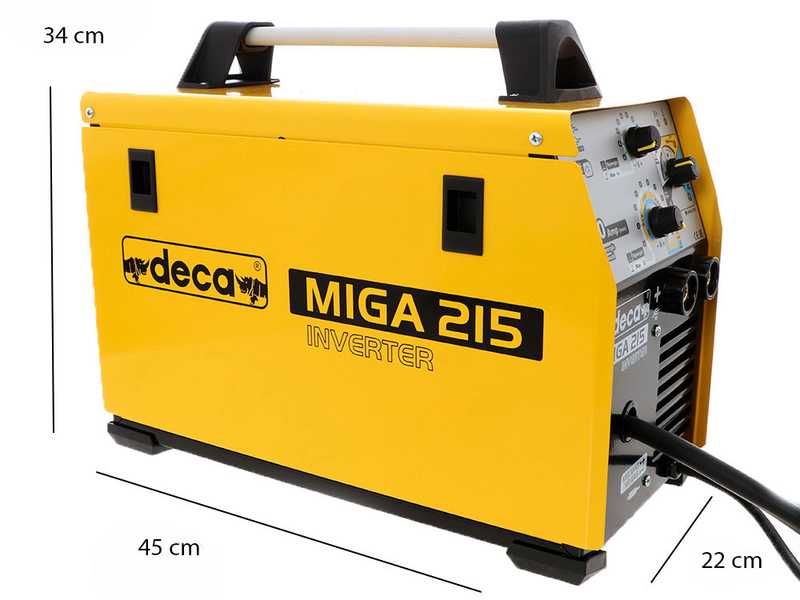

Ergonomic handle for easy transport

Focus on the rubber protection feet

0.9 mm cored wire

Free items & Standard equipment

COMPLIMENTARY: wire feeder roller

Wire feeder roller

Iron - aluminium, diameter 0.8/1.0

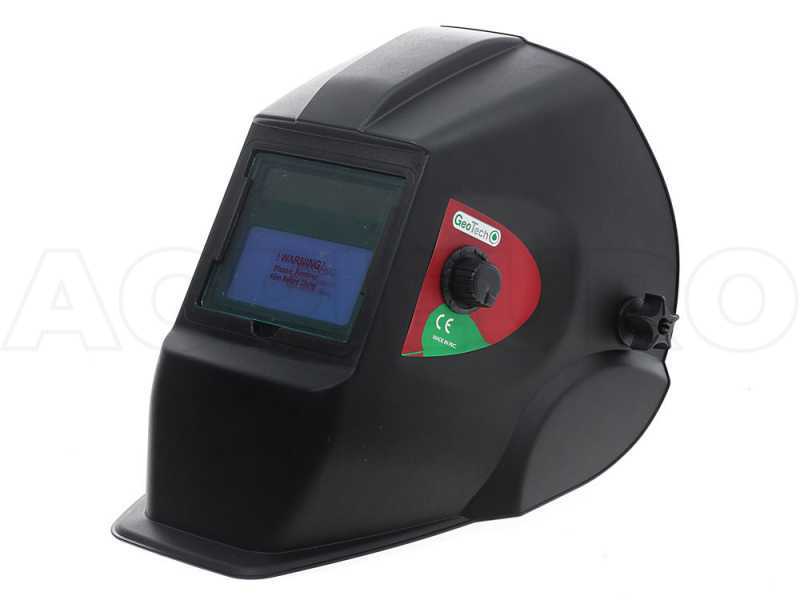

COMPLIMENTARY: heavy-duty welding helmet

Heavy-duty welding helmet, new and innovative product. It is one of the most efficient welding helmets in this category. GeoTech CHARM-380S auto darkening welding helmet features unparalleled value for money. There are no other helmets with such technical features at this price on the whole market.

Light and comfortable, equipped with adjustment system to be comfortably worn via a knob on the back. Suitable for MMA, TIG and MIG-MAG welding. Its shape allows you to operate with your hands free, ensuring maximum safety and ease of use.

SAFETY The auto darkening welding helmet is suitable for most welding operations. This helmet automatically darkens in 1/25,000 seconds the very moment you start welding. No matter what shade the filter is set to, the UV/IR protection is always present.

SHADE ADJUSTMENT You can select the 9-13 shade according to the welding process. The helmet can also be used to protect yourself during grinding (DIN 4). Grinding mode prevents filter from auto darkening.

Viewing area: 92x42 mm
Filter cartridge size: 110x90 mm
Arc sensor: 2
UV/R protection: up to DIN 16 at all times
Clearer filter: DIN 4 (grinding)
Darker filter: Variable external shadow, DIN 9-13
Darkening (from light to dark): 1/25,000 S
Delay (dark to light): 0.1-1-0
Power supply: Solar cell and 2 CR2032 lithium batteries
TIG AMP: DC>10, AC>10
