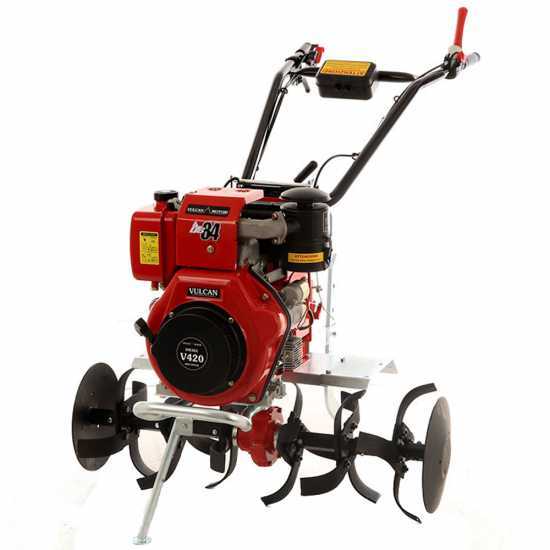

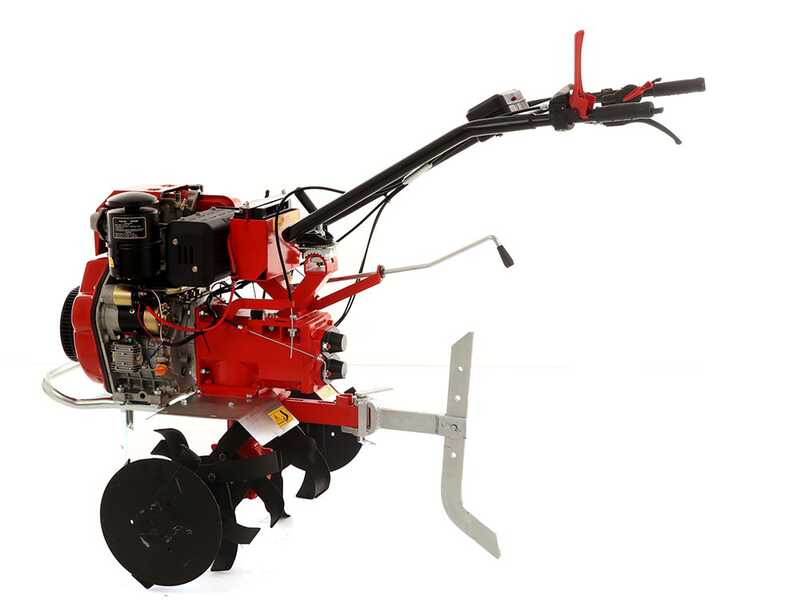

Diesse DS84 - 10.5 HP Diesel Garden Tiller - Vulcan 418cc with Electric Start

This is a classic garden tiller model equipped with a powerful from 10 HP diesel engine with ELECTRIC START and a traditional sturdy gearbox in oil bath equipped with 3 forward gears and a reverse gear.

This garden tiller model weighs 125 Kg: which is a definite plus as the weight helps with ground penetration.

This model is intended for large-sized land to till or hard ground or with the presence of small stones (where a smaller-sized, more lightweight garden tiller or equipped with a less sturdy transmission, such as belt-driven models would not be able to work as effectively).

The diesel engine makes it possible to work smoothly even in higher gears, allowing the milling machines to rotate even at very high speeds without putting too much strain on the engine itself. In addition, it guarantees low consumption and, more generally, low maintenance requirements and low operating costs.

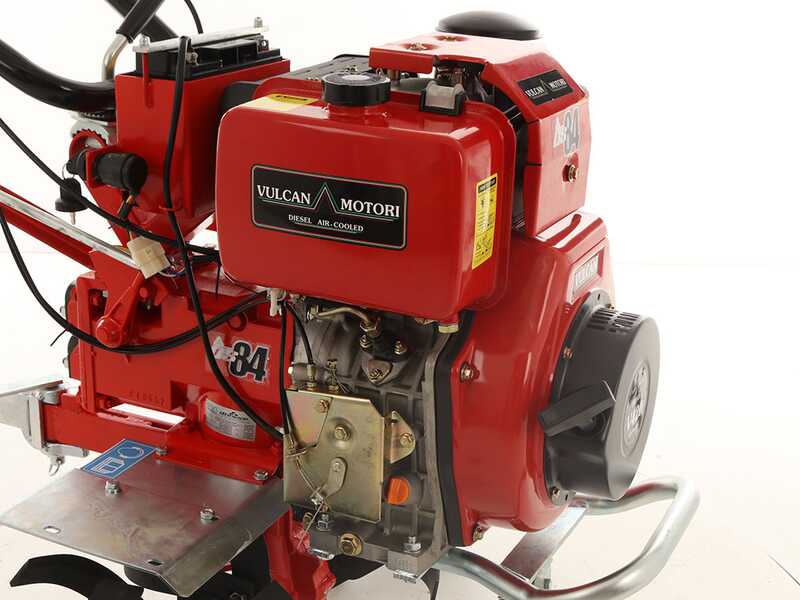

Equipped with a powerful diesel engine.

Features:

Nominal Power: 10.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 9 Hp
It corresponds to the real power delivered by the motor shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

The engine is protected by a sturdy metal protection to shield it from accidental shocks during work.

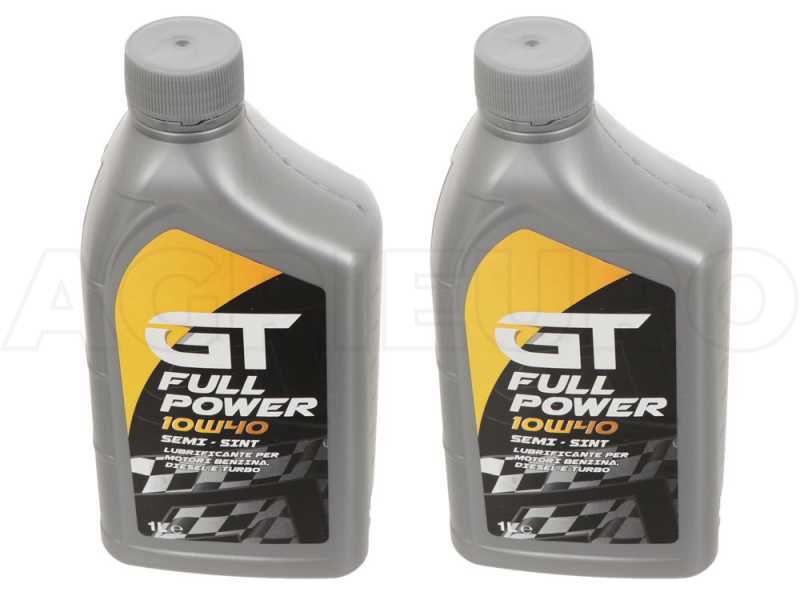

The engine is already supplied with the oil necessary for its correct operation.
It is therefore not necessary to fill it in before its first start-up.

The garden tiller is equipped with electric start, with the key ignition switch panel placed directly between the steering handles.

The starter motor is supplied as standard.

The battery equipped as standard ensures perfect starter motor efficiency and a extremely fast start-up of the garden tiller.

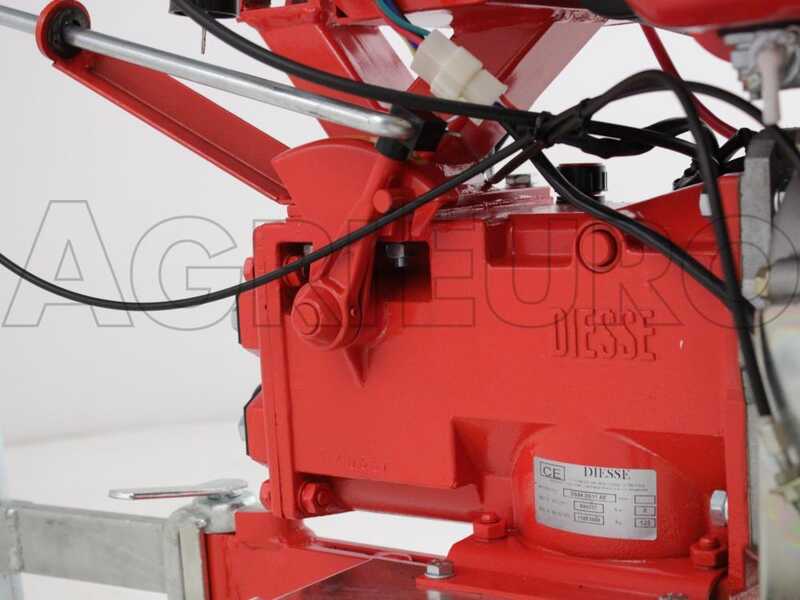

The gearbox that comes with this garden tiller is large and sturdy.

It is undoubtedly the largest, strongest and most efficient transmission on the market today.

Its main features are:

• overall size and sturdiness, also visually detectable
• upper gear tempering
• precise gear shifting engagement
• accuracy in gear manufacturing

It features 3 forward gears and 1 reverse gear, which can be engaged by means of the lever on the control panel.

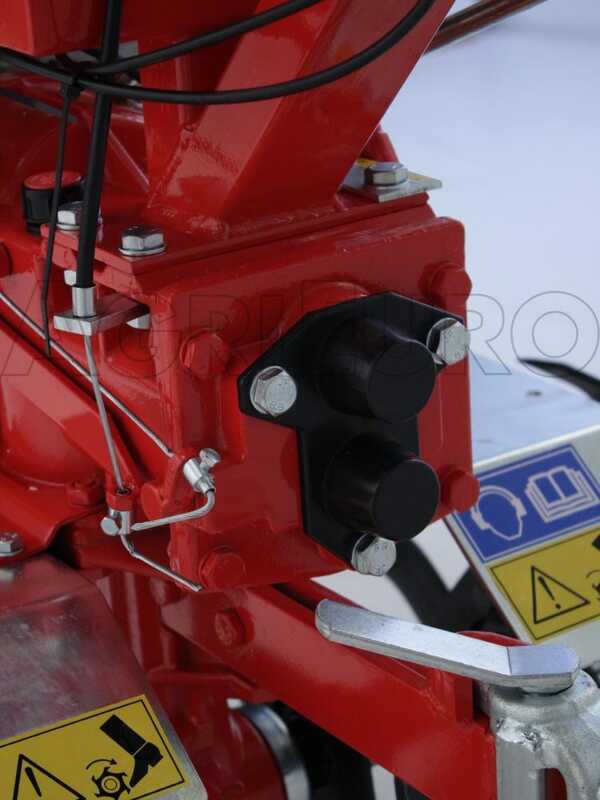

The power take-offs are easily accessible, located directly at the rear of the machine. Just remove the rubber stoppers to make them ready to work.

Normalised power take-off
(which is always rotating, even when the transmission is in the neutral position; this setting is ideal to operate additional equipment that can be attached to the power take-off)

Gearbox power take-off (useful for towing operations, for example by attaching a trolley with tracked wheels to the garden tiller, although it will not be compliant with the current road regulations)

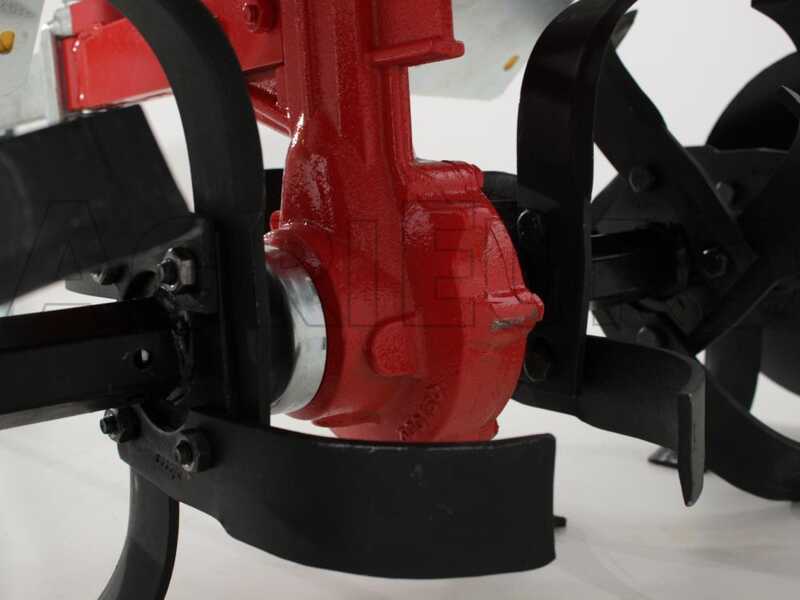

The transmission is among the sturdiest on the market.

Equipped with pinion and crown gear in oil bath.

Sturdy tine mounted on an hexagonal-shaped central shaft, and provided with six elements with 4 steel rotary hoes each.

Effective tine working width with three cutters: 95 cm

Hexagonal shaft diameter: 30 mm.

Reduced width with 2 cutters: 70 cm

Maximum width with 4 cutters (optional): 120 cm

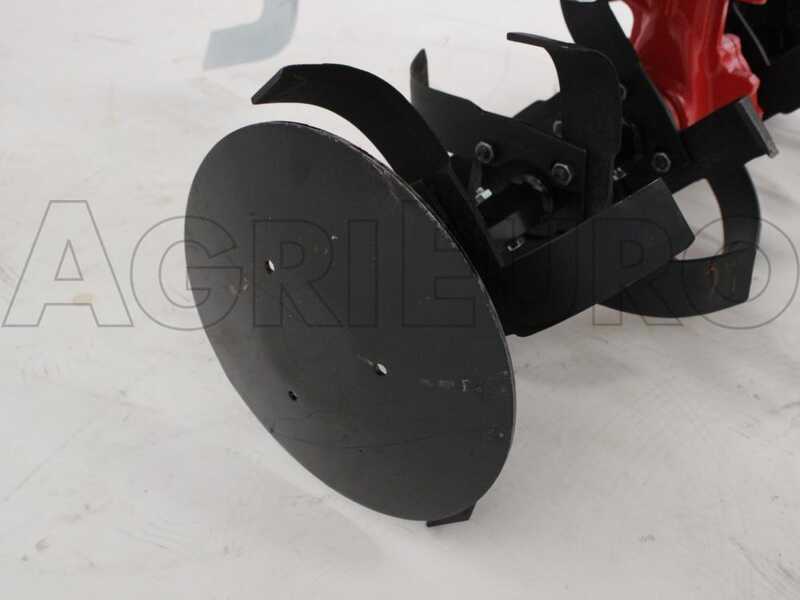

The tine mounted on this diesel garden tiller can be easily adjusted. Simply remove the 2 most external elements and fit the appropriate external crop protection discs.

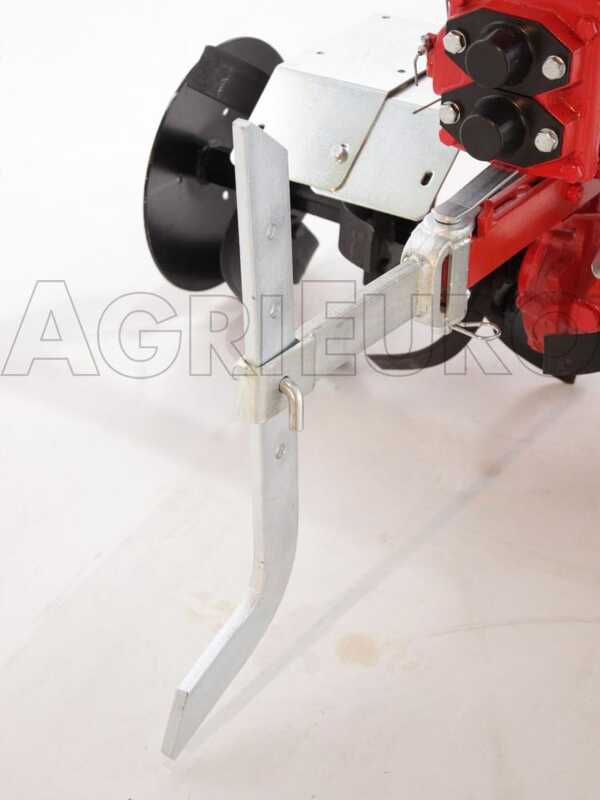

The rear stake can be adjustable in height and can be positioned in rotating or fixed position.

The picture shows the stake mounted in standard position.

It can, for example, be assembled in the reverse position (with the bend turned to the front), to till harder or uncultivated ground.

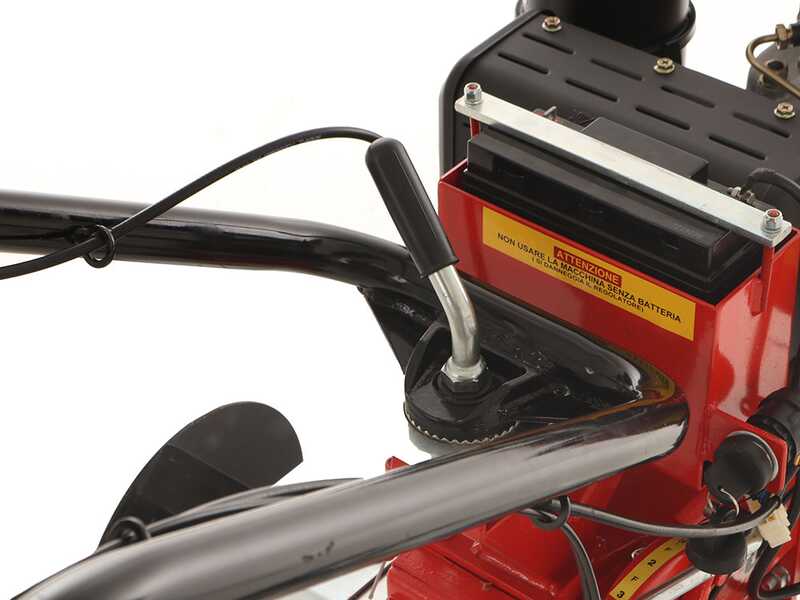

The steering handles are height and laterally adjustable thanks to the double adjusting lever system made of cast steel.

SAFETY DEVICE:

• Single safety device for forward gears (red switch-off lever)
• Double safety device for reverse gear (red lever + reverse gear disengagement lower right lever)

Throttle lever

Practical storage compartment placed between the steering handles.
