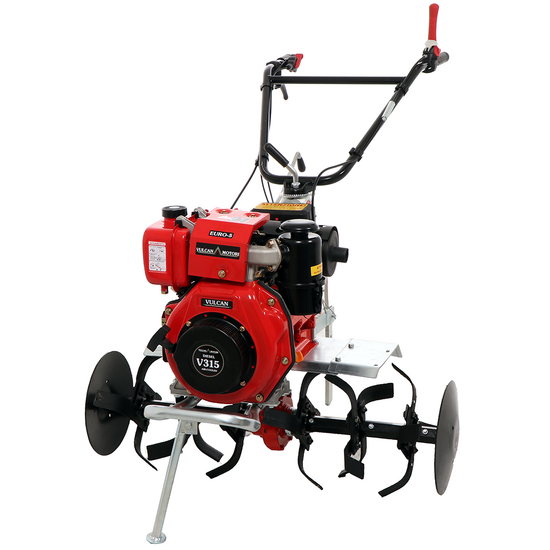

Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine

Professional
Add a question
ID: K603800

EAN: 9999991096394

MPN: DS94V315

Diesse
Catalogue Diesse
8,1/10
After-sales assistance & Spare parts
49Pictures
2Videos
3Customer pics
Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine
Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine
Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine
Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine
Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine
Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement fuel filterReplacement fuel filter
Oil filterOil filter
Original Lombardini air filterOriginal Lombardini air filter
Standard milling cutter width
95 cm
Recommended surface
250 m²
Motor type
Diesel
Motor brand
Producer-manufactured
Cubic capacity
296 cm³
Nominal power
7 HP
Transmission type
Gears in oil-bath
Gears
3+1
Soil consistency
Hard
Manufacturing country
Italy
Product Features
Model:
DS94
Type:
With gears in oil bath
Operating mode:
Spark ignition
Recommended surface:
250 m²
Soil consistency:
Hard
Hard soil:
✔
Starting mode:
Recoil
Manufacturing country:
Italy
Motor data
Motor brand:
Vulcan
Motor type:
Diesel
Cubic capacity:
296 cm³
No. of cylinders:
1
Nominal power:
7 HP
Rated power (HP):
6.7 HP
Fuel:
Diesel
Power supply:
Fuel injection
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
China
Transmission data
Transmission type:
Gears in oil-bath
No. of forward speeds:
3
No. of reverse speeds:
1
Gears:
3+1
Operating mode:
Gear lever
Transmission series:
medium-heavy (3+1)
Cutting data
Standard milling cutter width:
95 cm
Narrow milling cutter width :
70 cm
Milling cutter diameter:
34 cm
No. of blade holders:
6
No. of blades:
24
Blade engagement:
Lever on the handle
Equipment
Milling cutter accessory:
Included as standard
Side crop protection discs:
Yes
CE Accident prevention system:
Yes
Safety lever for reverse gear:
Yes
Rear stake:
Yes
Adjustable stake:
Yes
Furrower:
On request
Pair of milling cutter extensions:
On request
Pair of side transfer wheels:
On request
Pair of tractor wheels:
On request
Pair of iron wheels:
On request
Pair of cutting rollers:
On request
Spring rotor:
No
Blade rotor:
No
Clutch:
Cone clutch in oil bath
Power take-off:
2
Battery for electric start:
Yes
Electric start with key :
Yes
Recoil start system (with rope):
Yes
Height-adjustable handle:
Yes
Side-adjustable handle:
Yes
Rubber-coated soft grip:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Starting keys:
Yes
Maintenance tool kit:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
160x98x120 cm
Net weight:
112 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
111x60x74 cm
Gross weight (packaging included) :
130 Kg
Assembly time:
30 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 09/05/2025 - 13/05/2025
Free returns (up to 30 days after receipt) *
Suggested price:
€ 2.157,46
€ 1.689,76
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

DIESSE DS 94 Garden Tiller

The DIESSE DS 94 rotary tiller is a high-quality, sturdy and hard-wearing machine.

The manufacturing is completely Italian with very high standards.

Equipped with a powerful 7 hp diesel engine that sends its power to the ground by means of a classic, sturdy oil-bath gearbox with 3 forward gears and a reverse gear.

This rotary tiller is also suitable for difficult and intensive work on hard, unploughed ground.

This is the classic rotary tiller with a powerful diesel engine and a robust, traditional wet gearbox with 3 forward and 1 reverse gear.

The machine weighs approximately 112 kg, allowing it to work even on hard, unploughed ground, penetrating deep into the soil.

This model is dedicated to those who have a certain amount of land to till, or hard ground or small stones (where a lighter tiller or one with a less consistent transmission such as a belt drive would not be able to work with the same efficiency).

The diesel engine guarantees a truly superlative torque (higher than petrol engines at low revs), making it possible to work without difficulty even in higher gears, allowing the tiller to rotate even at very high revs without placing an excessive burden on the engine itself. Additionally, it guarantees low fuel consumption, low maintenance and low operating costs.

Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine
Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine

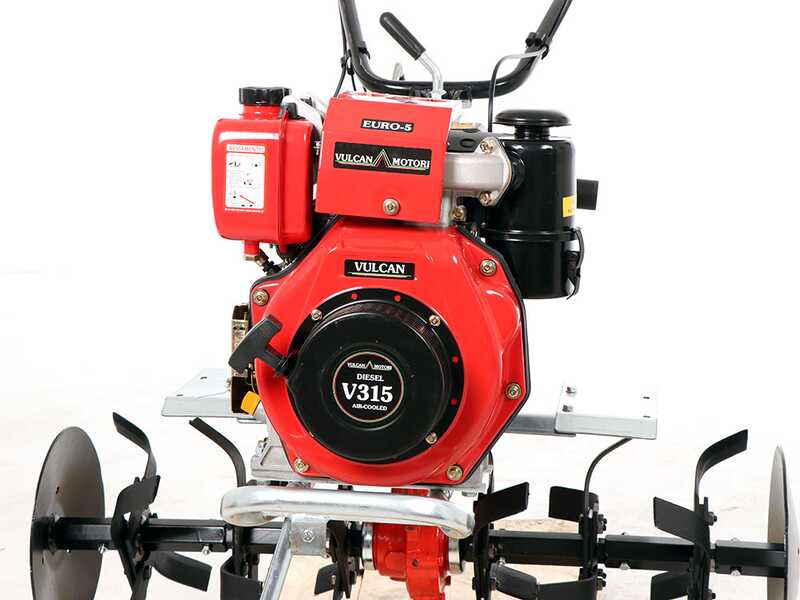

Vulcan V315 Diesel Engine

Powerful diesel engine

Features:

Engine type
4-Stroke, single cylinder
Cylinder type:
Aluminium
Cubic Capacity:
296 cm³
Power:
6.7 HP - 3600 rpm
Bore and stroke
78 mm x 62 mm
Max. rpm
3600 rpm

Nominal Power: 7 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: 6.7 Hp
It corresponds to the real power expressed motor shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the speed of rotation provided.



The engine is equipped with a robust metal motor guard to protect it from impact with obstacles.

Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine
Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine

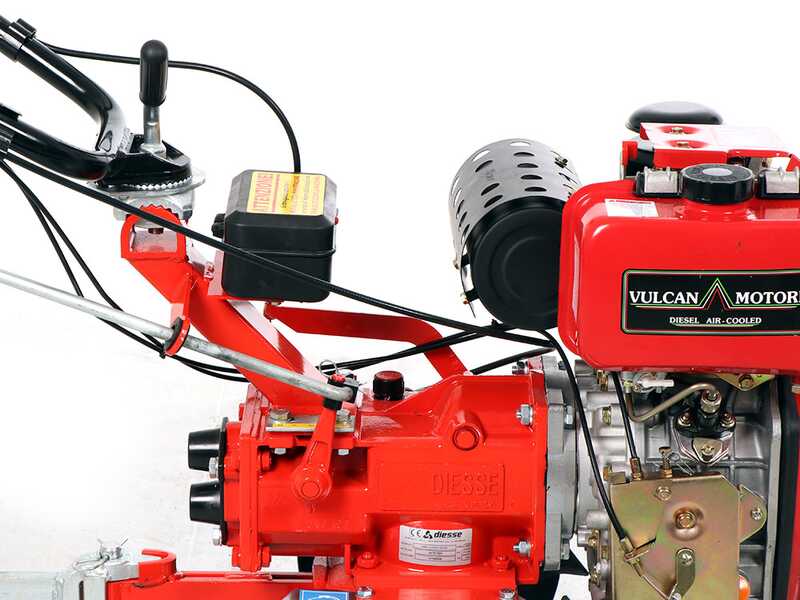

Gearbox and upper transmission

The gearbox that comes with this tiller is robust and large.

Its main features are:

  • Overall size and sturdiness, which are two of the main characteristics of the this garden tiller model.
  • Upper gear tempering
  • Accuracy gear shifting engagement
  • Accuracy in the gear manufacturing

It has 3 forward gears and 1 reverse gear that can be operated by means of the lever in the controls.

Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine
Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine

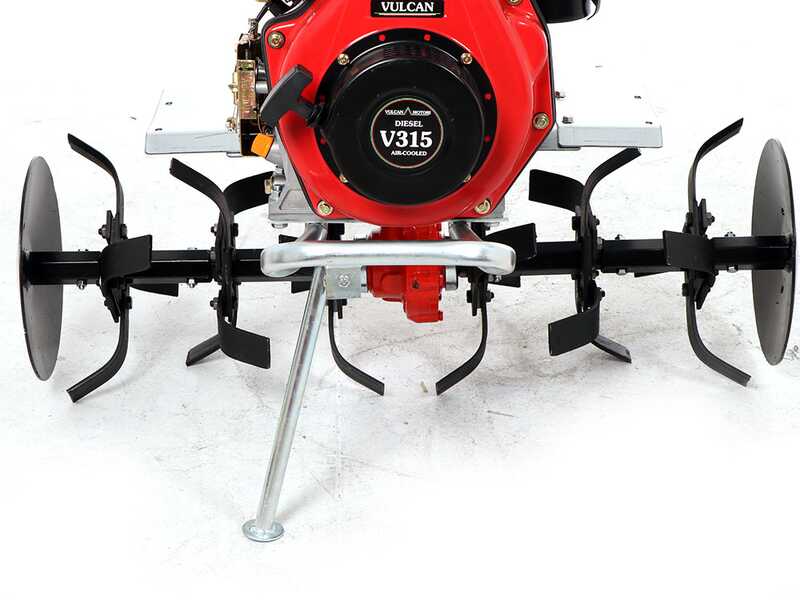

Adjustable tiller 95 cm and power take-offs

Sturdy tiller mounted on an hexagonal-shaped central shaft, and provided with six elements with 4 steel hoes each.

Effective working width of the 3-hoe cutter: 95 cm

Hexagonal shaft diameter of the hoes: 30 mm.

Reduced width with 2 hoes: 70 cm

Maximum width with 4 hoes (optional): 120 cm

The tiller on this diesel rotary tiller is adjustable. Simply remove the two outermost elements in one easy operation and reinsert the outer protective discs.

The power take-offs are easily accessible, located directly at the rear of the machine. Simply remove the rubber plugs and they are immediately available.

Normalised power take-off
(it rotates at all times, even when the gearbox is in neutral, useful for operating additional equipment that can be connected to the power take-off)

Power take-off synchronised with the gearbox
(it can be used for towing operations. For instance, integrating a trolley with traction wheels behind the rotary tiller, even though it can no longer be approved for road use)



Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine
Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine

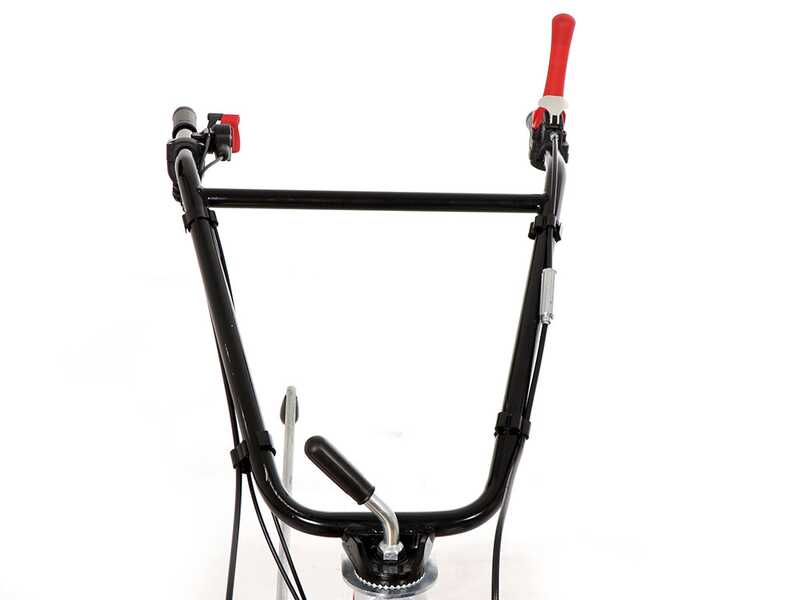

Handlebars and spur

The handlebars are height-adjustable and laterally adjustable using a double adjuster made of cast steel.

ACCIDENT PREVENTION:

  • Single for forward gears (red switch-off lever)
  • Double for reverse (red lever + lower right lever reverse disengagement)

Throttle lever

Practical storage compartment in the centre of the controls.

Rear spur adjustable in height and can be positioned in rotating or fixed configuration.

In the pictures, it is mounted in the standard position.

For instance, it can be mounted in the reverse position (with the bend turned to the front), to tackle harder or rough terrain.

Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine
Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine
Free items & Standard equipment

1° GIFT: Maintenance kit for diesel generator

Spare parts and accessories for the maintenance of diesel engines.

Kit composition:

NO. 01 specific fuel filter for diesel

NO. 01 engine oil filter

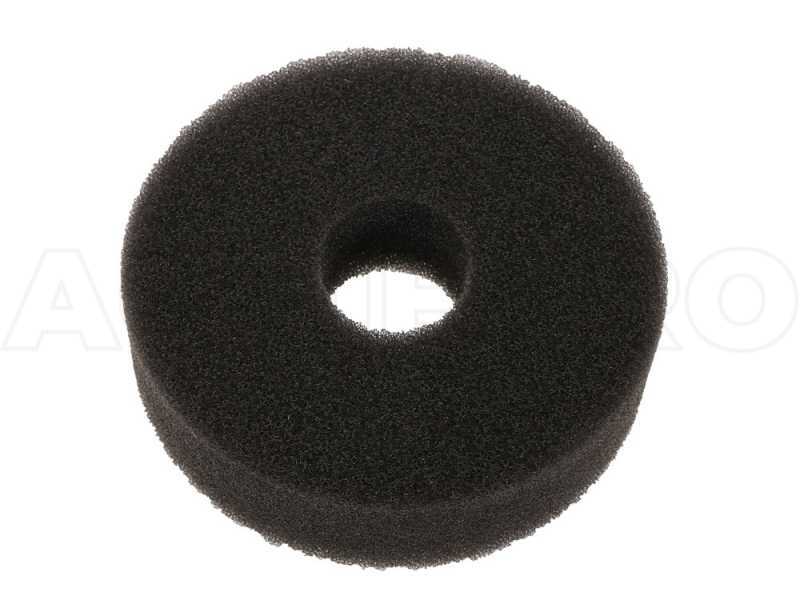

NO. 01 original sponge air filter

Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine
Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine

2° GIFT: Bottles of 1L Oil

2 Bottles of 1 L oil 10W 40 formulated for the highest performances designed for petrol engines. Suitable for all modern diesel engines requiring maximum performance from lubricant.

Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine
Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine

Free items included

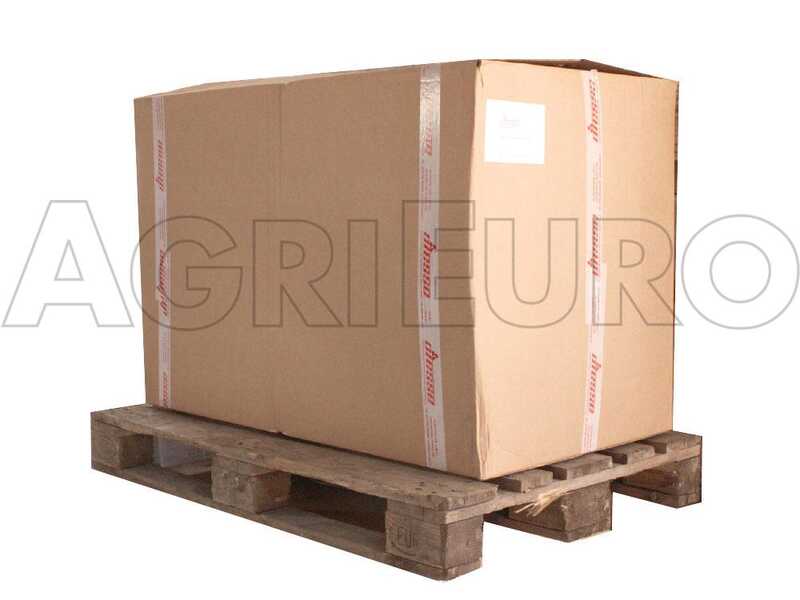

The garden tiller is shipped on a pallet.

Instructions manual included in the package.

Set of maintenance keys included in the package.

Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine
Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine Diesse DS94 - 7 HP Diesel Garden Tiller - Vulcan 296cc Engine
