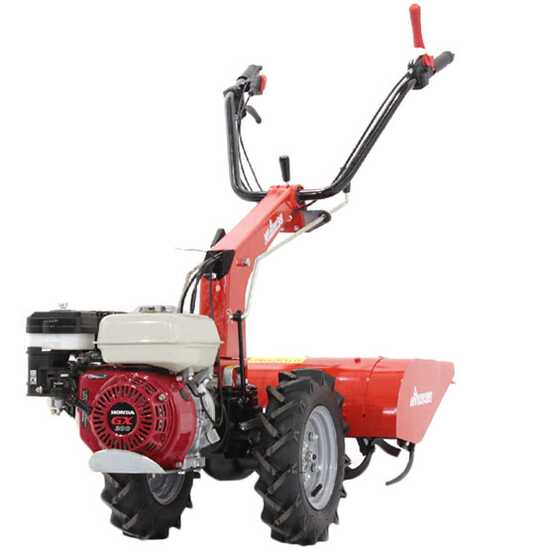

Diesse Minitriss - Petrol Two-wheel Tractor - Honda GX200 - 5.8HP

The DIESSE MINITRISS EN Honda GX200 semi-professional two-wheel tractor is fitted with a Honda GX200 petrol engine. It is recommended for normal working requirements on not very extensive but well tilled land.

The DIESSE two-wheel tractors are Made in Italy, which guarantees reliability, construction and material quality.

This model in particular is reversible and, among its peculiar characteristics, it features a sturdy transmission entirely made with gears in oil bath.

The gearbox features 3 gears: 2 forward + 1 reverse, allowing both rear and front-mounted implements to be used at the appropriate operating speed.

The gearbox is lever-operated; the steering handles are height- and side-adjustable.

Cone clutch in oil bath.

Weight: 80 kg

The machine is shipped almost completely assembled, in fact the assembly required is limited to the tiller alone and a few other parts.

The assembly is fast and quite simple, also clearly explained in the instructions manual.

Warning: these machines are factory tested and therefore already fitted with the engine oil at level, however it is good practice to always check the oil level before starting the engine. Gearbox oil already at level.

Remember that it is always a good idea to:
1) check the engine oil level
2) put oil in the filter because it is not present (in case of filter in oil bath)
3) carefully read the instructions manual before carrying out any oil check and topping up operation (the manufacturer can modify the supply modalities specified in the two upper points without any prior notice).

The reversible feature allows this two-wheel tractor to be used with different functions.

Here are some examples of the accessories that can be fitted to the machine:

• Rear tiller furrower
• Sickle bar

Heavy-duty Honda GX 200 engine, very POWERFUL with overhead valve OHV technology.

Features:

The Honda GX series is highly professional and has been developed for heavy duty work in building and agricultural field for generators, welders etc., reliable and long life.

Focus on the steel stone guard located under the engine to protect it from shocks.

The HONDA GX series engine is one of the "BEST PETROL ENGINES ON THE MARKET”.


Warning: these machines are factory tested and therefore already fitted with the engine oil at level, however it is good practice to always check the oil level before starting the engine.
Read carefully the instructions manual before starting the unit.

Nominal Power: 5.8 Hp

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.4 Hp

* It corresponds to the real power expressed on the cutting organ in working phase. This is the power indicated as official in the engine instructions manual.

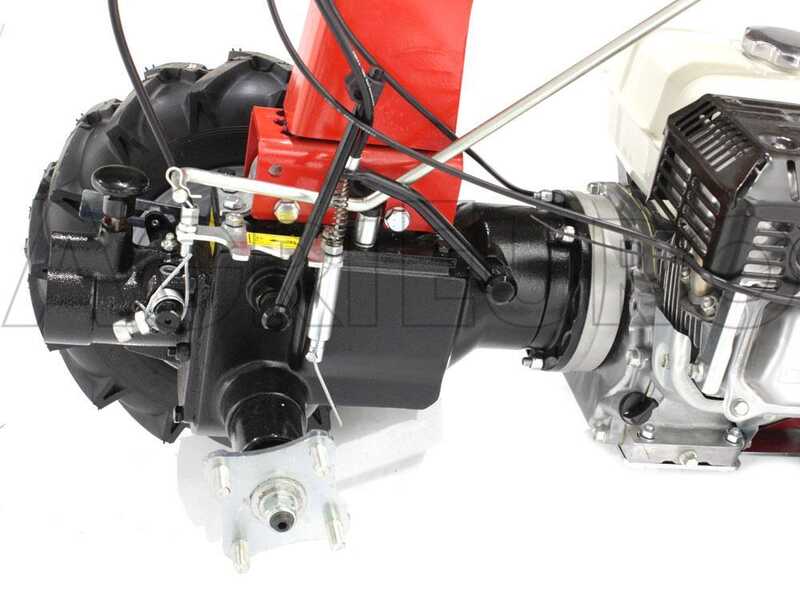

This two-wheel tractor is fitted with some of the best transmissions and gearboxes in oil bath on the market.

Suitable for heavy-duty, continuous work and intended for professionals in the sector looking for the best in sturdiness and reliability over the years.

The mechanics of the transmission is one of the main causes of failure and wear in this type of machines. Thanks to the oversized internal mechanics and the gears entirely in oil bath, this two-wheel tractor is among the most reliable and resistant on the market today.

3 gears: 2 forward + 1 reverse gear.

The two-wheel tractor features 3 gears in total: 3 forward gears in milling mode (i.e. with tiller attachment, or plough, furrower, etc. fitted)

1 forward gear + 2 reverse gears (with reverser) with reversed machine for front attachments (i.e. with sickle bar attachment, rough cut mower, snow plough, etc.)

The gearbox is lever-operated.

Cone clutch in oil bath, equipped with manual control on the steering handles.

Warning: Gearbox oil already at level.

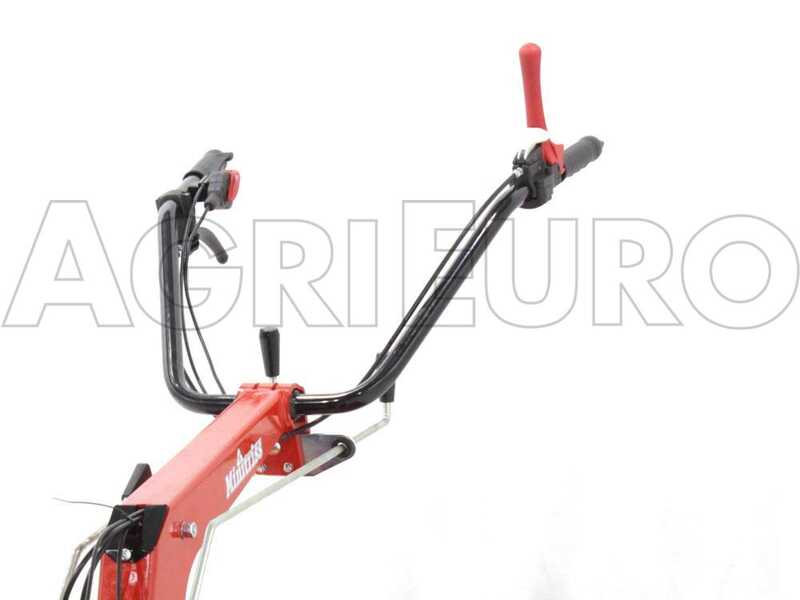

The steering handles are reversible at 180° with quick hitch.

Height-adjustable:

several height positions which can be set using the lever.

Focus on the adjusting system.

Side-adjusting system:

The steering handles can be set in three positions sideways, thanks to the locking lever. This allows the operator to easily move the machine forward on firm ground.

Soft rubber-coated handles.

The reversible steering handles allows several other implements to be attached (sickle bar, rough cut mower, etc.)

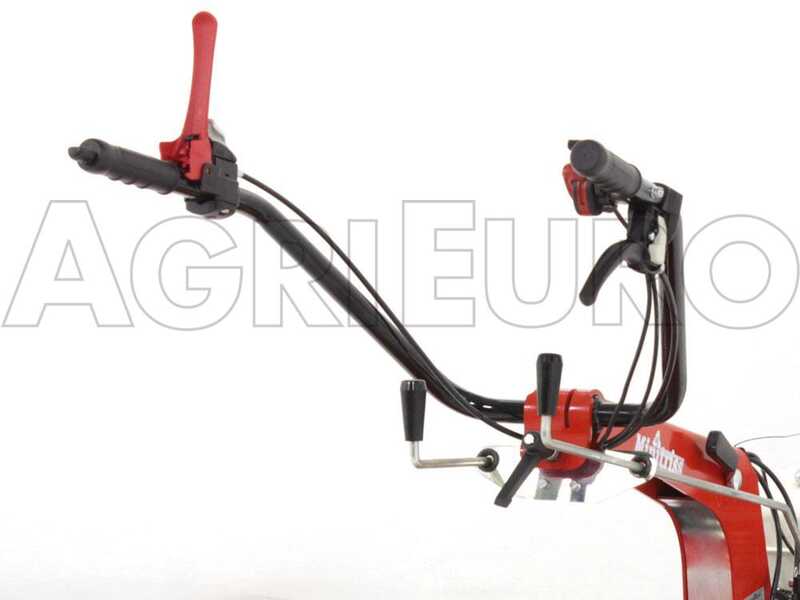

This two-wheel tractor comes with a number of controls which make it extremely versatile and rich in functionality.

• Red lever: Clutch control lever
• Black lever: PTO engaging/disengaging lever.

The gear lever is located to the right of the operator.

The wheels locking/unlocking lever is located to the left.
Throttle lever and on/off switch

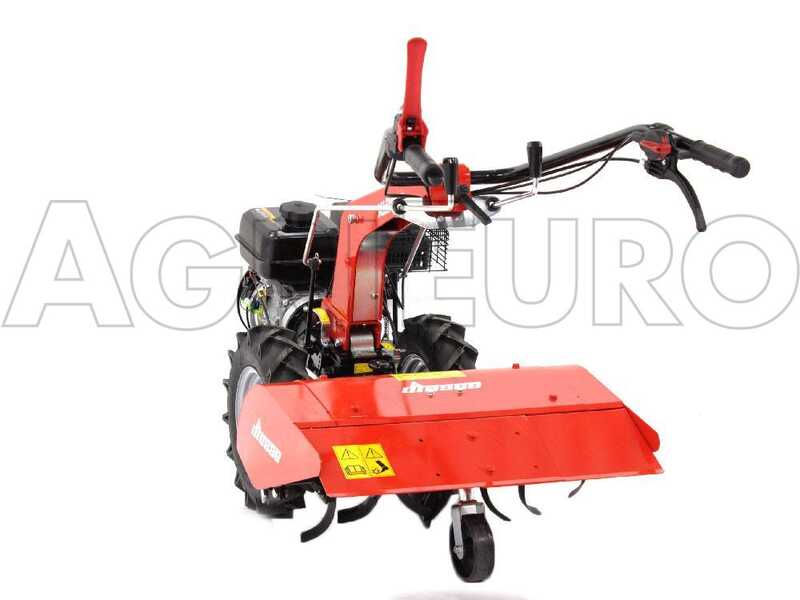

The tiller features a quick hitch which allows the implement to be quickly removed to replace it with another attachment or simply to speed up storage of the machine.

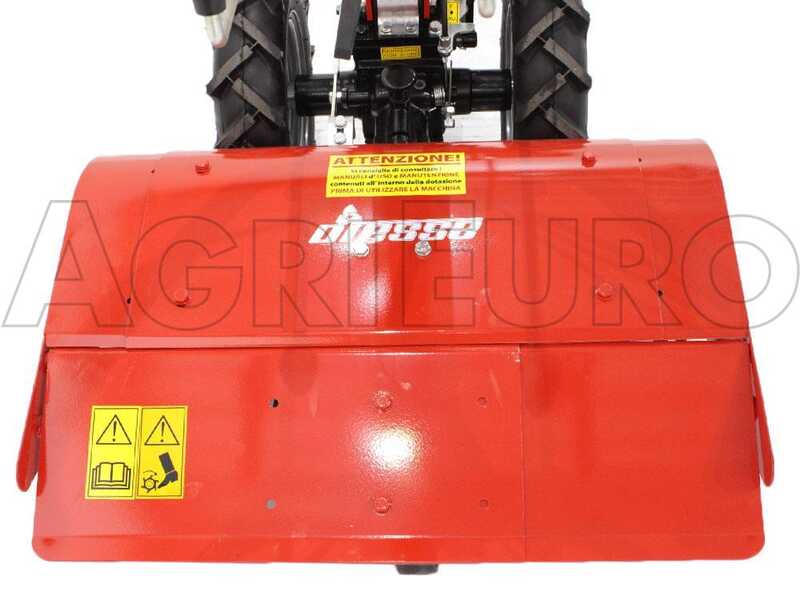

Tiller: 56/65 cm adjustable with quick hitch.

Supplied with the two-wheel tractor is a tiller transport wheel, which greatly facilitates movement and storage.

Focus on the independent single-speed PTO with quick hitch for accessories attachment.

Safety systems:

- impossibility of engaging the tiller in reverse gear when the operator is working on the tiller side

- machine stopping when the steering handles are released in accordance with the Machinery Directive 2006/42/CE

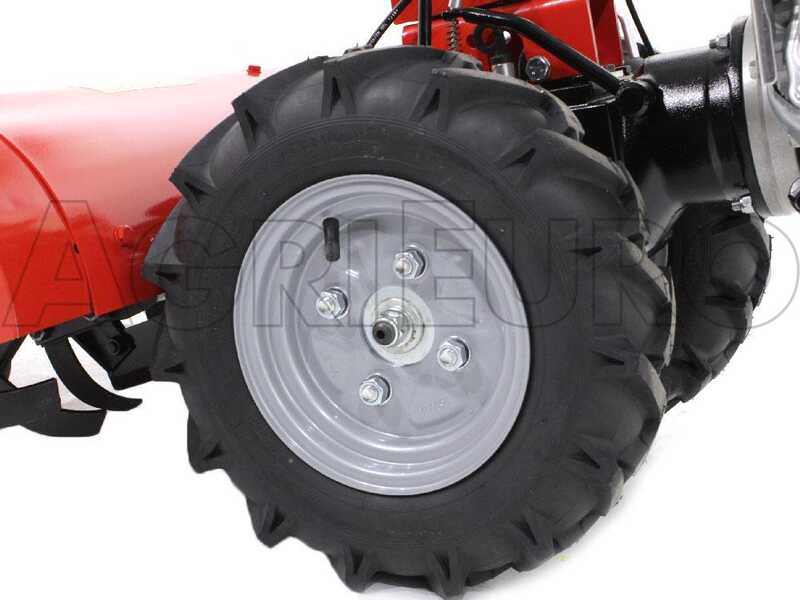

The two-wheel tractor is equipped with large pneumatic wheels that ensure a safe and smooth movement.

Large-sized treaded wheels size: 3.5 - 8

Focus on the wheel locking/unlocking lever

The manufacturer pre-tests each two-wheel tractor one by one, allowing the machine to be delivered ready for use.

The oils are all at level and assembly is limited to the wheels and other small parts.

However, it is a good idea to always check the oil level before starting the machine.
