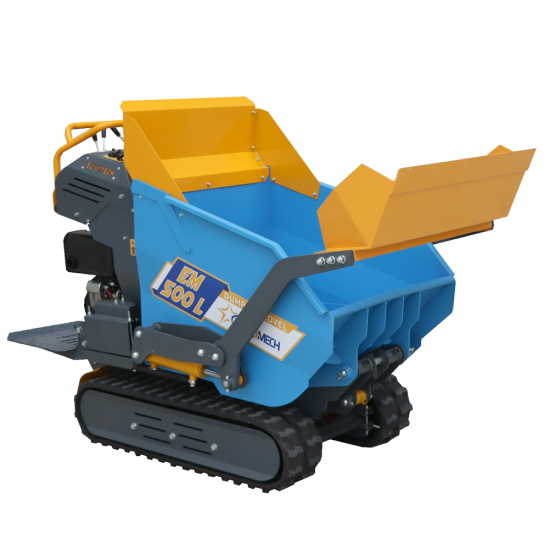

EuroMech EM500L-Dump & Shovel Tracked Power Barrow - Hydraulic dumper with bucket 500 Kg

The EuroMech EM500L-Dump & Shovel tracked power barrow is equipped with a very useful front bucket for lifting loads, which is hydraulically controlled, and that allows you to carry out loads in the dumper with extreme ease. The load capacity of this power barrow is 500 Kg on flat grounds and 350 Kg on slopes (a maximum of 30%).

The hydraulic system allows you to control both the body and the loader directly from the control panel, while the hydrostatic transmission allows you to change the speed even in motion without the need to stop the machine. Powered by a powerful Loncin Diesel D350F (D) engine 349 cc, capable of emitting a power of 6.5 Hp.

The main features that distinguish this machine, in addition to its accurate aesthetic design and the sturdiness of the reinforced steel frame:

• Internal and external side protections of the rollers that support the frame. They prevent the rollers from stones or materials entering the track system.
• Tension recovery springs, mounted on the track tensioning system. It avoids tearing and damage the track and transmission components in the event of stones or foreign material that should enter inside the track.
• Dumper body and loader bucket reinforced for heavy work, equipped with double hydraulic cylinder

Among the other features of this wheelbarrow it is possible to find its tracks, that ensure stability and safety during use of the machine even with a heavy load and gradients that normal wheelbarrow fail to address.

The controls are simple and intuitive, equipped with levers for the management of the barrow and of the blade, for the management of tracks and also separately for the management of the forward speed.

Warning: these machines are tested by the producer before being shipped. Therefore, the engine is already filled with oil at level and with a minimum amount of fuel in the tank. Gearbox oil already at level.

We remind that it is always good to:
1) check the engine oil level
2) put oil in the filter because it is not present (in case of filter in oil bath)
3) carefully read the instructions manual before carrying out any oil check and topping up operation (the manufacturer can modify the supply modalities specified in the two upper points without any prior notice).

Advice on how to use the front lifting shovel
• The front shovel should only be used for loading loose material onto the power barrow.
• It is not suited for use as a shovel for levelling the soil; there are dedicated attachments specifically designed for said purpose called ‘front blades’. When moving the power barrow forward, the shovel must be raised and not forced into the ground (this could damage the pistons, joints, supports and other components).

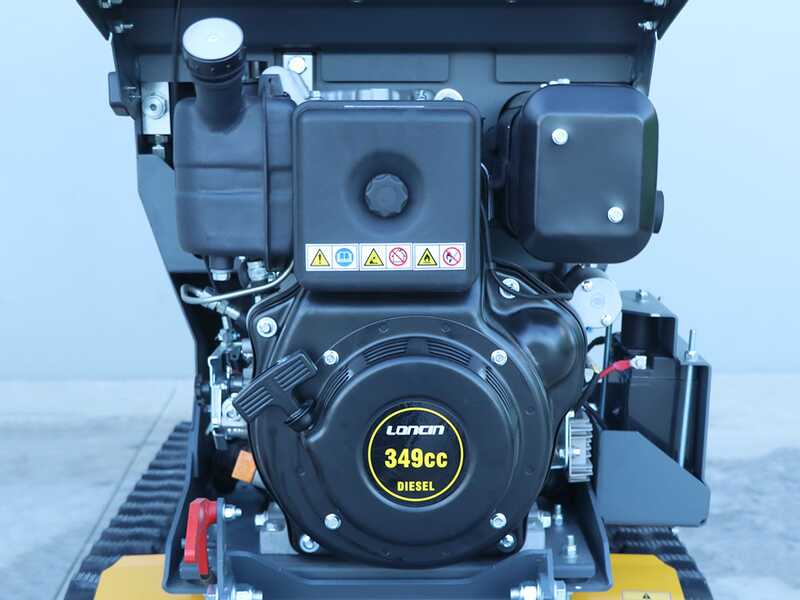

Loncin diesel engine 349 cc
Powerful and professional, with the latest generation technology in OHV valve head.

Features:

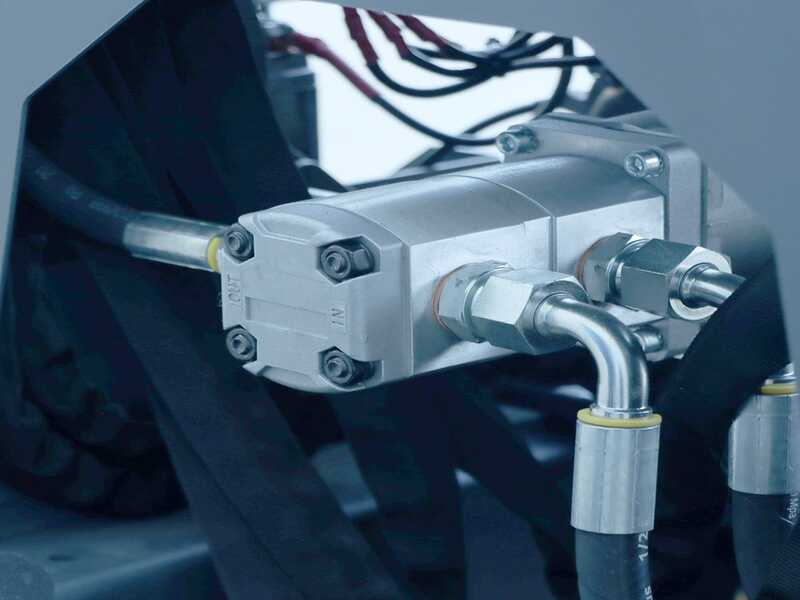

This power barrow has a hydrostatic gearbox, which allows you to change speed simply by moving a lever. The gearbox is controlled by the pump unit, which is placed in front of the engine. The pump carries the oil directly from the tank to the gearbox placed on the tracks and allows its motion.

Sturdy gears make the gearbox difficult to break. The hydrostatic transmission is by far the most modern and functional (although more expensive) compared to the traditional manual transmission gears. Whenever the speed is changed, the hydrostatic gearbox forces the operator to stop the unit, change gear, release the clutch and re-start the power barrow at the desired speed. In case of frequent speed variations (e.g. In gardens with trees, vases or other types of obstacles) the traditional gear transmission wouldn’t be practical at all. The hydrostatic transmission, on the other hand, allows immediate speed changes, without ever stopping and in a totally automatic manner, simply by varying the pressure on the drive pedal of this transmission.

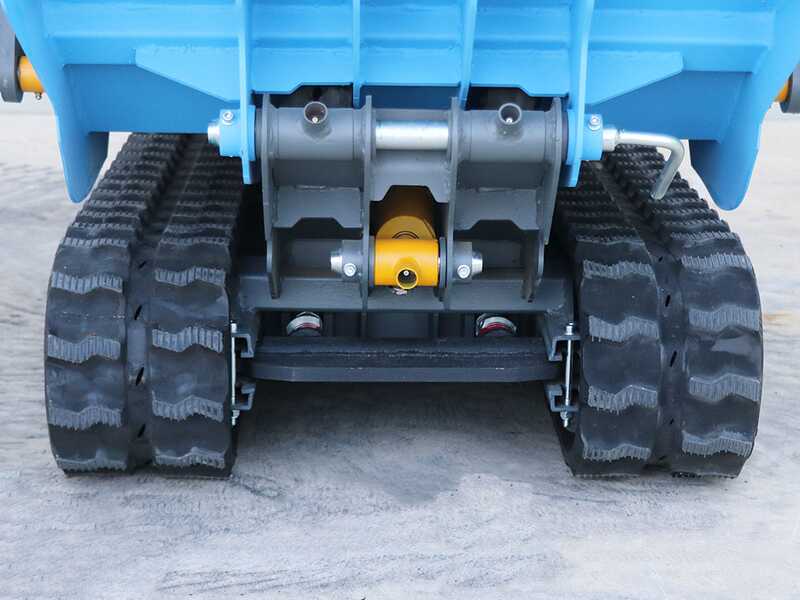

Track structure: robust and over sized. Both the height and the length is greater than the average of the wheelbarrows on the market of the same size. The drive wheel is made of cast iron / steel. The perfect front / rear balance ensures the distribution of loads and a perfect adherence to the ground. The rollers are self-cleaning.

Track Width: 180 mm

Total track length 105 cm

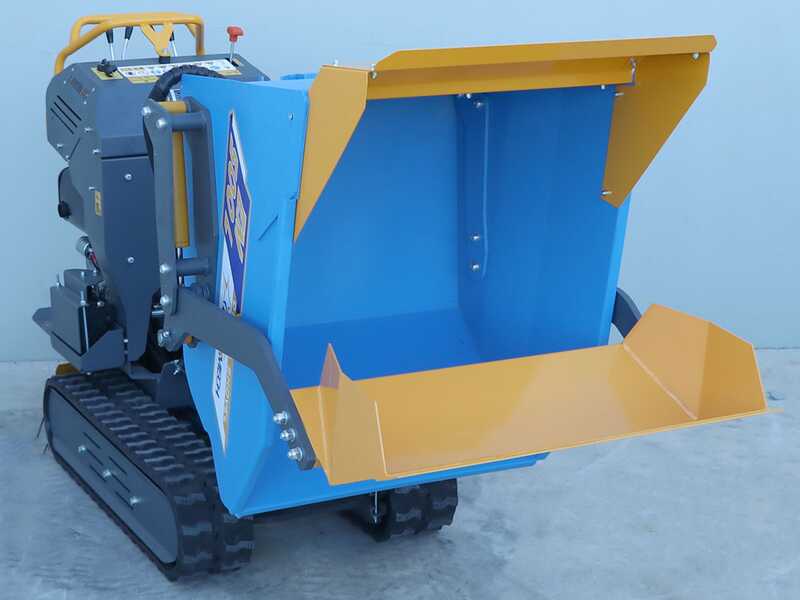

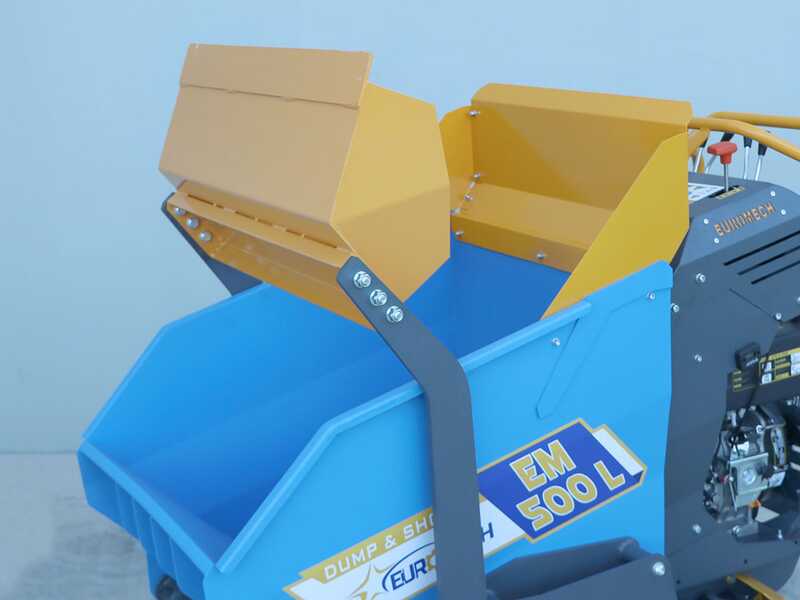

The power barrow also has a loading shovel that allows to perform operations in a very simple and effective way, especially without any effort. The shift is adjusted by the hydraulic system.

For the movements of the blade it will suffice to use only the specific lever on the control panel.

Shovel thickness: 2 mm

The shovel makes an angle of 100°.

Shovel dimensions: 76x40 cm

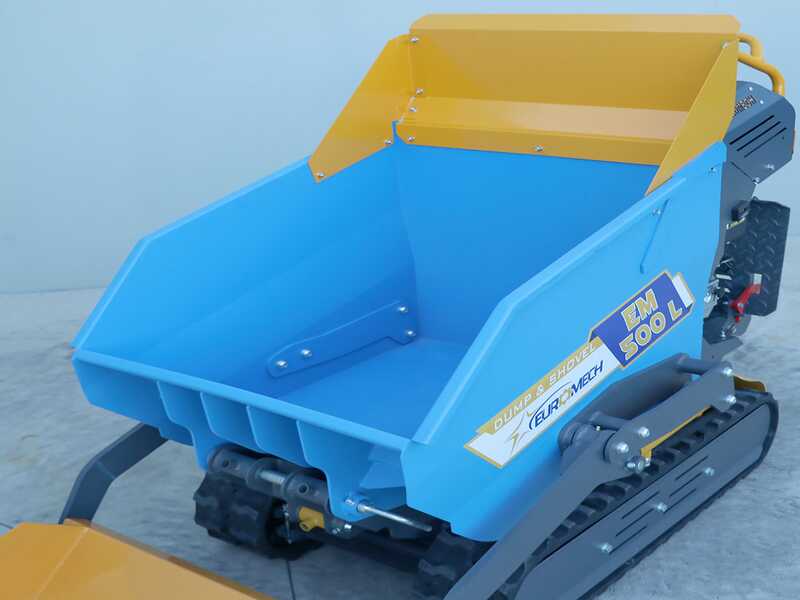

Barrow made in high-resistance steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The loading platform is at the minimum distance from the ground to facilitate the operations of loading / unloading

Barrow in the overturning phase

Barrow thickness 2 mm

The load capacity of the power barrow is 500 Kg on level ground and 350 kg on slope (maximum slope 30%)

Barrow dimensions: 89x69x56 cm

Powerful hydraulic circuit that allows the lifting of both the barrow and the shovel through the use of the levers present on the control panel.

It is characterized by:

• Hydraulic pump
• Sturdy hydraulic cylinder

Maximum tilting angle 90°

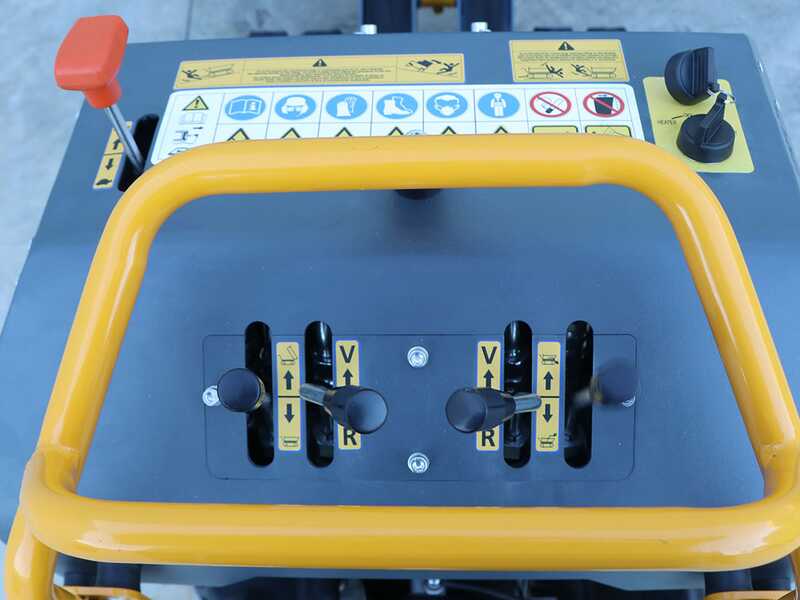

Easy and user-friendly controls.

The two central levers are used to move the whole unit, hence they manage the forward and reverse motion along with the steering.

The lever on the left if used, it activates the motion of the front blade of the power barrow.

The lever on the right if used, it activates the body tipping. Before and during tipping, make sure to take particular care to the position of the blade as to ensure that is properly raised.

Throttle lever

This power barrow is also equipped with platform for the Operator.
