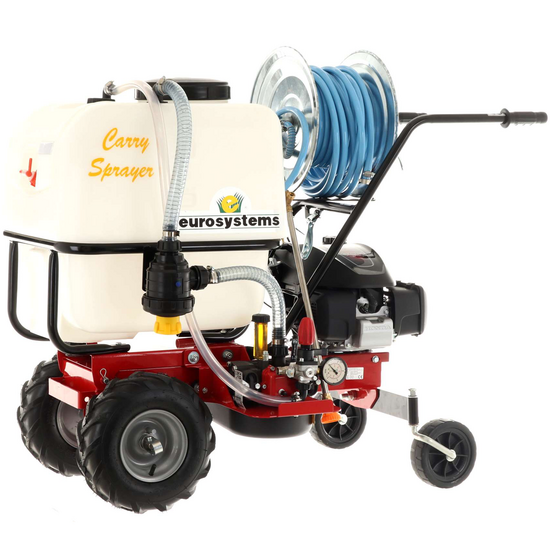

Eurosystem Carry Sprayer - Sprayer Power Barrow - Honda GCVx170 Engine

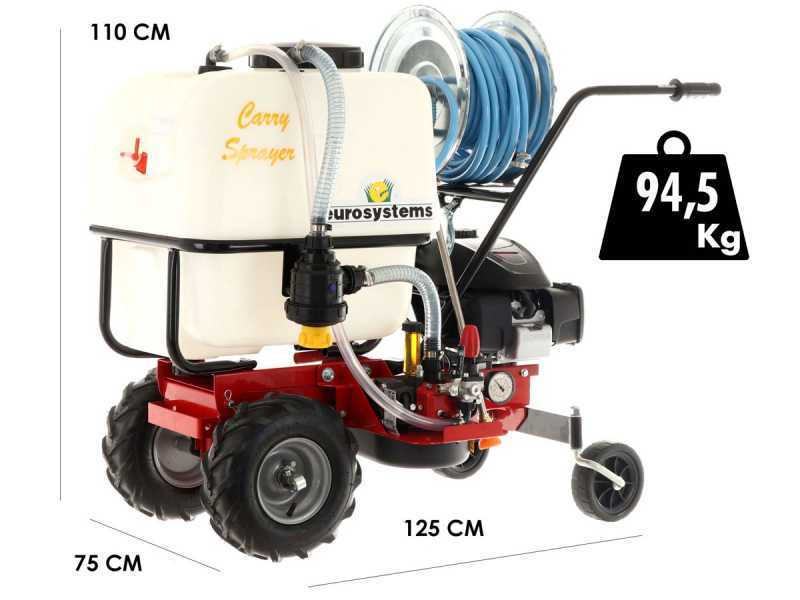

Carry Sprayer self-propelled sprayer pump is an efficient and comfortable machine to spray and treat your olive grove, orchard or vineyard quickly, easily and effortlessly. An innovative combination of self-propelled power barrow + built-in sprayer pump which makes everyday work more comfortable and faster.

The high tank capacity of 120 L and high-pressure membrane pump guarantee high performance in treatments of fruit trees.
This self-propelled wheeled power barrow, with sprayer pump and integrated tank, is provided with a 25 m rubber hose reel support and spraying lance, for an even greater work flexibility.

The pneumatic treaded wheels with Tractor profile ensure a really good traction, even on not perfectly flat or sloping terrain (up to 20%). The rear swiveling wheels provide manoeuvrability in narrow spaces, while the automatic parking brake ensures maximum safety.

Honda GCVx170 petrol engine of Eurosystems Carry Sprayer self-propelled sprayer pump is synonymous with high quality which ensures great reliability, reduced power consumption, easy starting.

This self-propelled wheeled power barrow with sprayer pump and tank is a user-friendly tool, also suitable for beginners (however, we strongly recommend to always read carefully the instruction manual).

EUROSYSTEMS, for over forty years, has developed a range of versatile and user-friendly machines that allow agriculture enthusiasts to look after it in the best way optimizing cost, time and results. The robotic building systems guarantee high and consistent quality. EUROSYSTEMS products have always been at the forefront of safety and ease of use. EUROSYSTEMS range includes equipment for gardens, vegetable gardens and small crops. Each machine is built following all the safety regulations and the materials used are the most resistant. The models are also designed to achieve high performance while minimizing physical effort. Eurosystems products are all designed and manufactured in Italy (in the headquarters in Reggio Emilia)

NOTE:

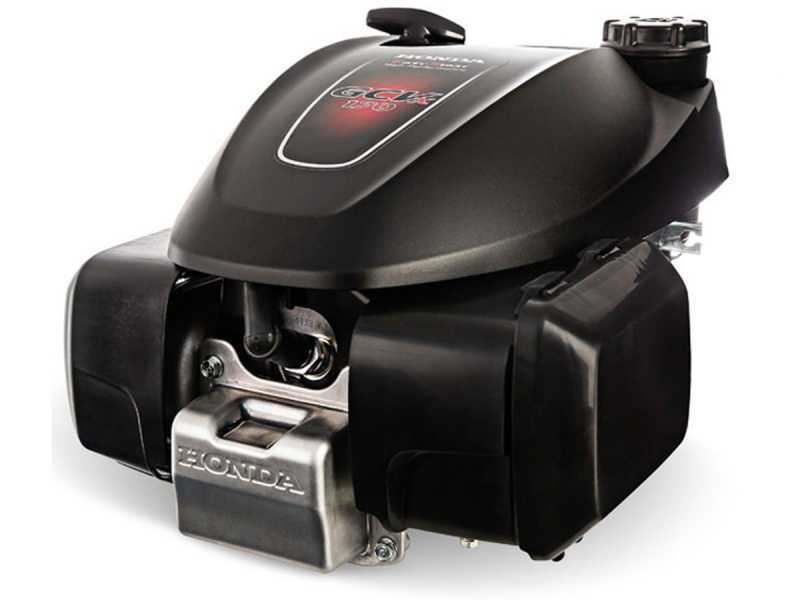

Honda GCVx170 engine is designed for a wide range of machines for amateur use which need a vertical engine shaft, and for lawn mowers in particular. OHV technology also ensures excellent thermal balance, which helps to reduce the deformation of the cylinders, reduce oil consumption and increase the life of the engine.

Main features:

• Engine type: 4-stroke single-cylinder - OHV
• Displacement: 166 cc
• Net power: 3.6 Kw/4.8 Hp
• Engine rpm: 3600 rpm
• Oil tank capacity: 0.91 L

Technical features:

• OHV configuration combined to Honda Combustion Technology system guarantee a very efficient combustion
• Top of its category: Power & Torque
• Ready and safe starting thanks to the advanced Auto Choke Comfort System
• Use of high-quality materials and components, which guarantee functionality and durability over time
• Complies with EU emission regulations
• Low discharge and vibration noise
• Low fuel consumption
• Easy use and maintenance

Honda Combustion Technology: the combination of 'long stroke', 'optimized shape of the combustion chamber', 'V-shaped valve layout’, provides more efficient combustion, even with poor quality fuel.

Auto Choke Comfort System (ACS): it has been improved, placing the wax element in an optimal way, such as to allow greater sensitivity, quickness and precision in detecting environmental conditions and engine parameters, to guarantee easy and reliable starting in any weather condition.

Carry Sprayer pump is an efficient and convenient tool to spray and treat your orchard or vineyard easily and effortlessly. An innovative combination of self-propelled machine and integrated pump that makes everyday work quick and easy.

Performance:

• Max. operating pressure: 30 bar
• Flow rate: 29 L/min.
• Max. rpm 700 rpm

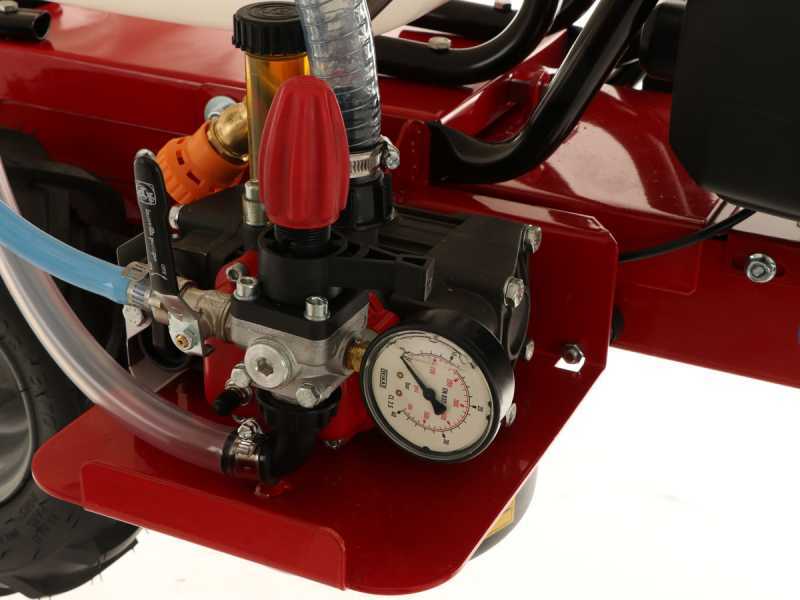

Focus on the pressure gauge for pressure control and its adjustment knob.

Focus on the discharge lever.

In this model, the sprayer pump is fixed on a trolley that allows the user to work in any environment. There are two pneumatic front wheels and two rear swivelling wheels. These ensure full stability both during the spraying and transport phase. To lock, simply use the appropriate hook.

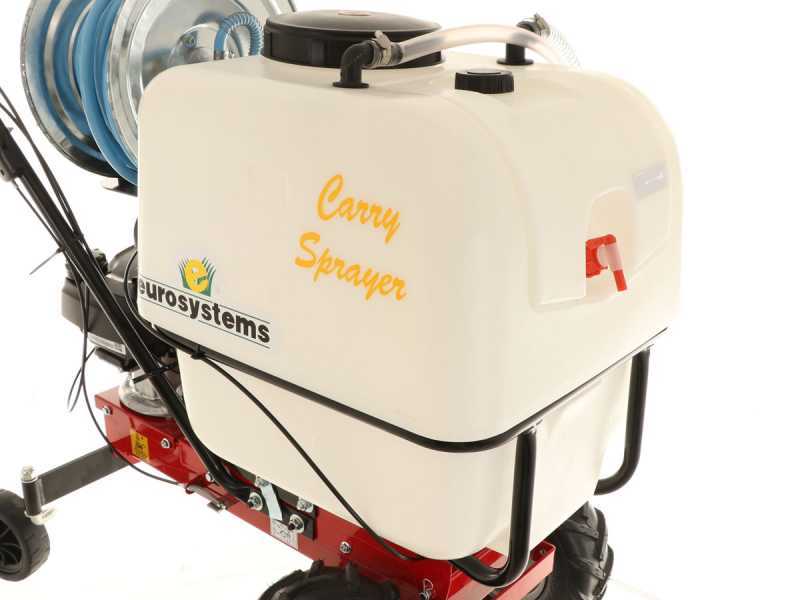

The 120 L tank is equipped with a filter and guarantees excellent continuity.

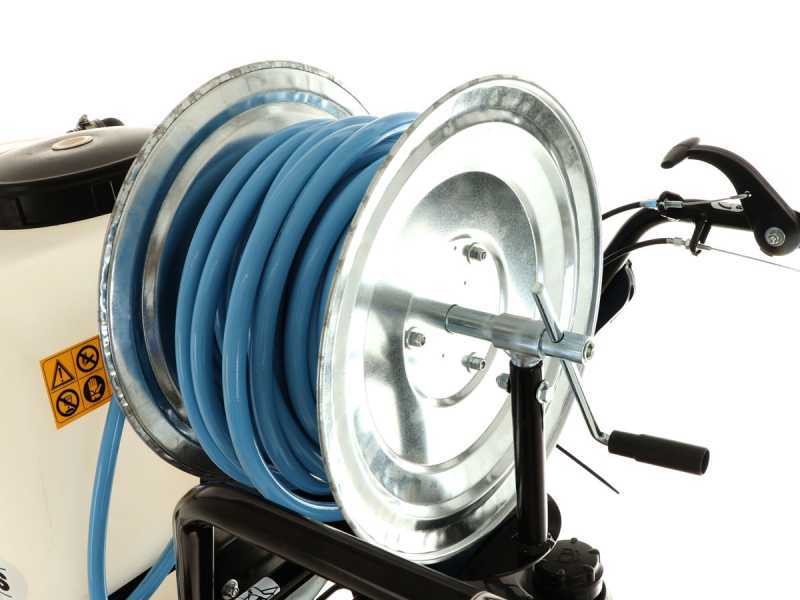

Eurosystem Carry Sprayer power barrow sprayer pump also includes a convenient hose reel. This makes spraying work much easier and allows you to always keep in order the 25 m hose. Moreover, there is also a convenient storage compartment for the spraying lance when not in use.
