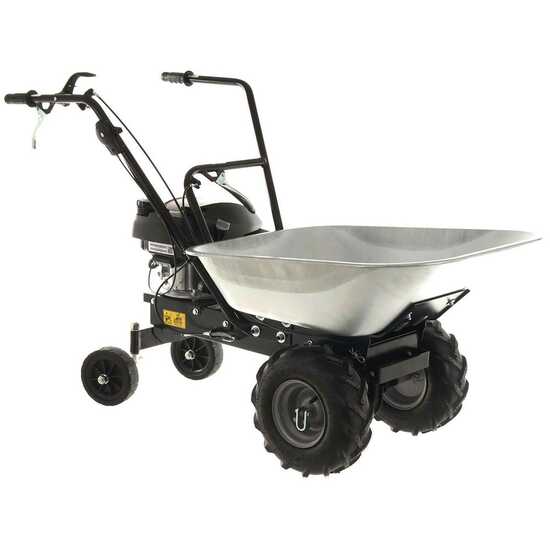

Eurosystems Carry Self-propelled Power Wheelbarrow with Honda GCVx 170 Engine

The Carry self-propelled power wheelbarrow with wheels, equipped with a petrol Honda GCV 170engine is ideal for an effortless work. An indispensable machine for all garden and vegetable garden operations, the disposal of grass cuttings or pruning residues, the transport of wood, earth, stones, building material or any other kind of heavy material thanks to the tipping tank.

This power wheelbarrow towed with wheels combines convenience and power in one tool. The large carved pneumatic wheels provide a really excellent traction, even on not perfectly flat or sloping grounds. The rear swivelling wheels provide manoeuvrability in confined spaces, while the automatic parking brake ensures maximum safety.

The wheelbarrow can travel a maximum slope of 22% with a maximum load of 75 Kg.

The petrol engine of this wheelbarrow is built from the most prestigious producer of engines worldwide, HONDA. It ensures a great degree of reliability, reduced power consumption, very simple ignition and low operating costs.

Overall this wheeled wheelbarrow is an easy to use tool, suited precisely for everyone, even to those who have no particular familiarity with this kind of equipment.

The Honda GCVX 170 engine guarantees high performances and it is suitable for works that require high reliability and long lasting in time, thanks to its remarkable 166 cc.

Features:

4-Stroke petrol engine of the latest generation (overhead valve shaft OHV - transistorized ignition - starter with automatic decompression, etc.).
Designed for offering reliability and unprecedented performances, Honda GCVX series has established as one of the best engines for these machines.

The easy recoil starter thanks to the automatic fuel priming system.

Focus on air filter.

WARNING

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Nominal Power: 5.5 HP
The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers.

* This figure is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

Effective power: 4.8 HP (a rotation speed of 3000 rpm)
It corresponds to the real power expressed engine shaft. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical data may vary for the same engine model depending on the rotational speed supplied by the engine applied to the equipment.

The Carry power wheelbarrow is equipped with tilting tank.

The release operation is carried out by simply acting on the appropriate tilting lever

This allows to easily download with a simple gesture across the load material into the desired point.

Actual capacity: 100 Kg

Capacity: 85 L

Transmission internal gear and
worm screw in oil bath and belts: the traction is applied on the two carved pneumatic wheels.

Tank made of galvanized steel offering an actual capacity of 100 Kg

Pneumatic wheels with a width of 570 mm which provide excellent traction on any type of surface, even gravel or boggy ground

Freewheeling configuration: very useful function for a smooth transfer of the power wheelbarrow when the engine is off.

Inserted traction configuration

Rear swiveling wheels, which provide excellent maneuverability even in very tight spaces. In addition, they are mounted on oscillating axle that allows them to adapt better to the disconnections of the land

Weight: 56 Kg

Automatic Parking Brake: as soon as it the lever traction is released not only the power wheelbarrow will stop immediately, but will automatically activate the parking brake that will ensure that the machine stays still, even on slopes.

Parking brake blocking system: opening the two metal bridges for the locking of the wheels, these will be in the neutral condition

Focus on the handlebars where all the main functions are collected

lower metal lever: operates the forward gear

Top black Lever : activates the reverse gear

Focus on the throttle lever.

RECORD-BREAKING SAFETY:
impossible to get injured with this self- propelled power wheelbarrow. Just leave the commands so that it stops instantly, and remains blocked thanks to the parking brake illustrated above

The power wheelbarrow can be equipped with the following accessories:

Metal platform cm. 59x81

Equipped with rod and flange cm.10 high and container made of plastic material complete with plate and handle.

Front snow blade: this snow shovel is suitable for small quantities of snow, sand, earth, etc ...

Pair of snow chains: useful accessory while working with the snowplough attachment.
