Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine

Professional
Questions & Answers (5)
ID: K500307

EAN: 8025004010918

MPN: 500307

Eurosystems
Catalogue Eurosystems
8,9/10
After-sales assistance & Spare parts
59Pictures
2Videos
6Customer pics
Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
+90 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement sprak plugReplacement sprak plug
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Replacement oval tapered foam air filter for the engineReplacement oval tapered foam air filter for the engine
Free gift: fuel jerrycan 5 ltFree gift: fuel jerrycan 5 lt
Tarpaulin coverTarpaulin cover
Standard milling cutter width
95 cm
Recommended surface
150 m²
Motor type
4-stroke
Motor brand
Loncin
Motor Model
TM 70
Cubic capacity
212 cm³
Nominal power
7 HP
Transmission type
Gears in oil-bath
Gears
3+1
Soil consistency
Hard
Manufacturing country
Italy
Product Features
Model:
Euro 102 Loncin TM 70
Type:
With gears in oil bath
Operating mode:
Spark ignition
Recommended surface:
150 m²
Soil consistency:
Hard
Hard soil:
✔
Starting mode:
Recoil
Manufacturing country:
Italy
Motor data
Motor brand:
Loncin
Motor Model:
TM 70
Motor type:
4-stroke
Cubic capacity:
212 cm³
No. of cylinders:
1
Nominal power:
7 HP
Rated power (HP):
6 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3 L
Manufacturing country:
China
Transmission data
Transmission type:
Gears in oil-bath
No. of forward speeds:
3
No. of reverse speeds:
1
Gears:
3+1
Operating mode:
Gear lever
Transmission series:
medium-heavy (3+1)
Cutting data
Standard milling cutter width:
95 cm
Narrow milling cutter width :
65 cm
Milling cutter diameter:
34 cm
No. of blade holders:
6
No. of blades:
24
Blade engagement:
Lever on the handlebar
Equipment
Milling cutter accessory:
Included as standard
Side crop protection discs:
Yes
CE Accident prevention system:
Yes
Safety lever for reverse gear:
Yes
Transport wheel:
No
Rear stake:
Yes
Adjustable stake:
Yes
Furrower:
On request
Pair of milling cutter extensions:
On request
Pair of side transfer wheels:
On request
Pair of tractor wheels:
On request
Pair of iron wheels:
On request
Pair of cutting rollers:
On request
Clutch:
Cone dry clutch
Power take-off:
2
Recoil start system (with rope):
Yes
Height-adjustable handle:
Yes
Side-adjustable handle:
Yes
Rubber-coated soft grip:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Maintenance tool kit:
Yes
Instructions manual:
Yes
Dimensions and logistics
Net weight:
100 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
96 x 52 x 92 cm
Gross weight (packaging included) :
110 Kg
Assembly time:
30 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 11/04/2025 - 15/04/2025
Free returns (up to 30 days after receipt) *
€ 1.397,88
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

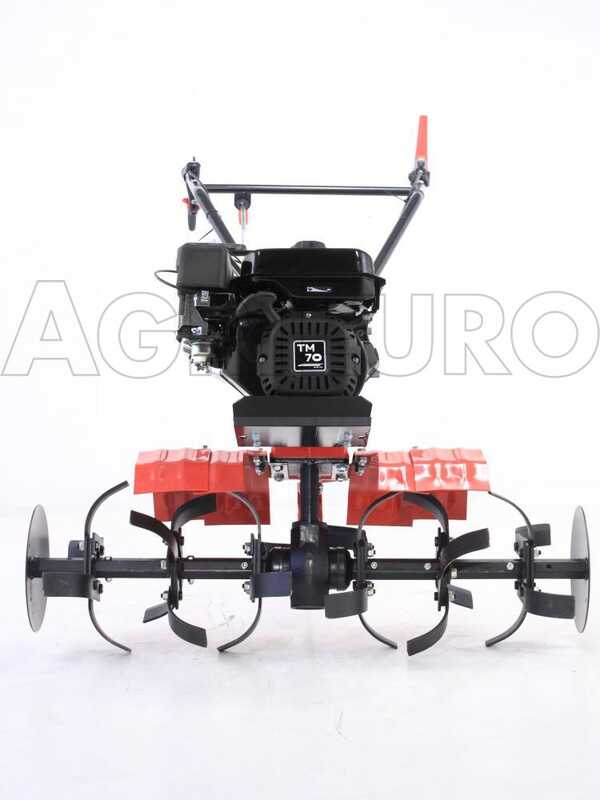

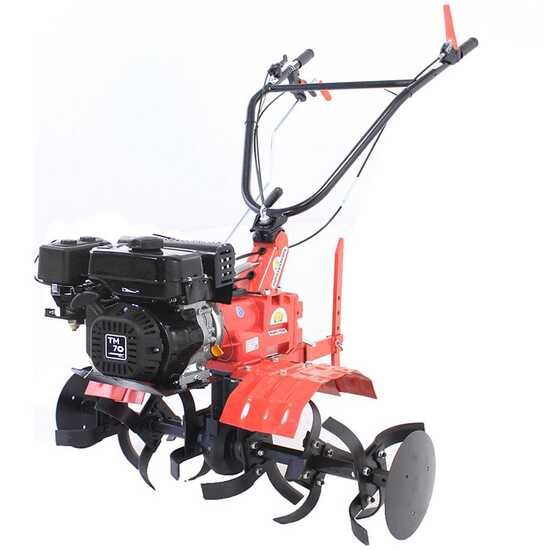

Eurosystems Euro 102 Garden Tiller with Loncin TM 70 Engine

This is a classic garden tiller model equipped with a powerful Loncin TM 70 engine and a traditional sturdy gearbox in oil bath equipped with 3 forward gears and a reverse gear.

The Euro 102 is a garden tiller suitable for heavy-duty intense work on even hard and untilled soil.

The machine weighs 100 Kg, which is a definite plus as the weight helps with ground penetration.

This model is intended for large-sized land to till or hard ground or with the presence of small stones (where a smaller-sized, more lightweight garden tiller or equipped with a less sturdy transmission, such as belt-driven models would not be able to work as effectively).

Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine

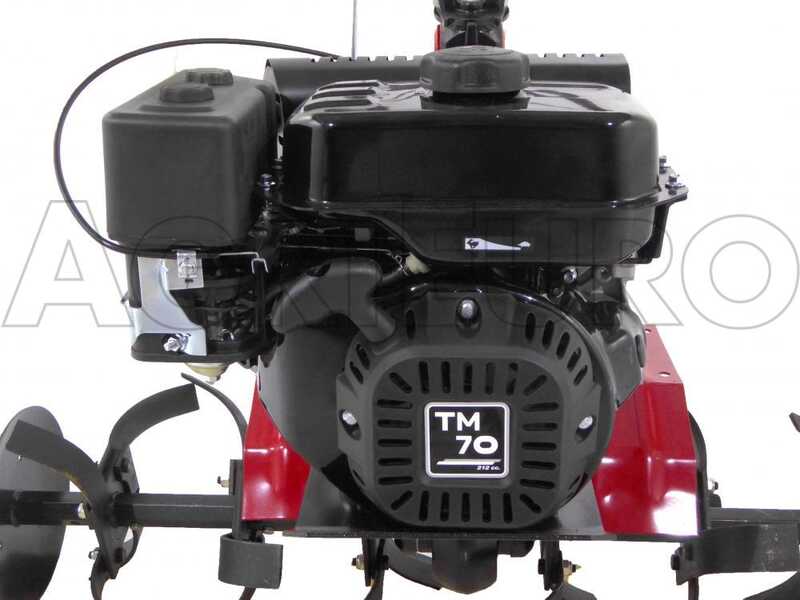

Loncin TM 70 engine

The 4 stroke Loncin TM 70 engine is made with the latest overhead valves technology.

Features:

Engine type:
Single cylinder 4-stroke - OHV
Cylinder type:
Aluminium
Cubic capacity:
212 cm³
Power:
7 Hp
Max. rpm:
3600 rpm
Fuel tank capacity:
3.1 L
Consumption:
1.7 L/h 3600 rpm

Nominal Power: 7 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 6 Hp
It corresponds to the real power delivered by the motor shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.


The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting the unit.

Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine

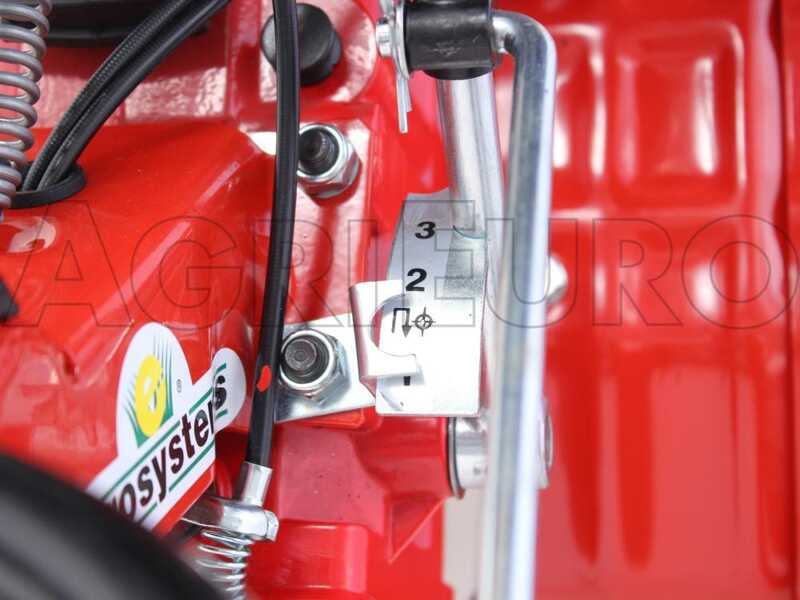

Gearbox and upper transmission

The gearbox fitted to this garden tiller is undoubtedly one of the best 3+1 gearboxes on the global market for garden tiller models of this category.

Its main features are:

  • Overall size and sturdiness, also visually detectable
  • Upper gear tempering
  • Precise gear shifting engagement
  • Accuracy in gear manufacturing

It features 3 forward gears and 1 reverse gear, which can be engaged by means of the lever on the control panel.

Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine

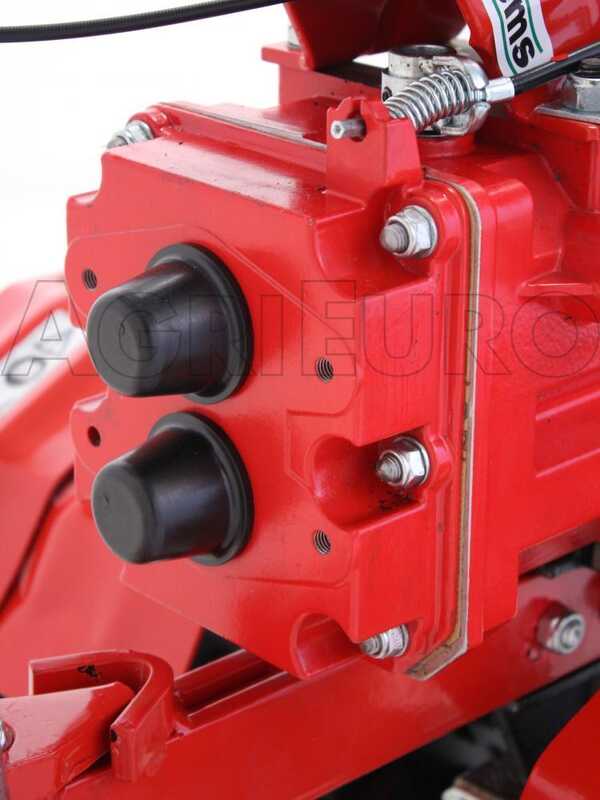

Two power take-offs

The power take-offs are easily accessible, located directly at the rear of the machine. Just remove the rubber stoppers to make them ready to work.

Normalised power take-off
(which is always rotating, even when the transmission is in the neutral position; this setting is ideal to operate additional equipment that can be attached to the power take-off)

Gearbox power take-off (useful for towing operations, for example by attaching a trolley with tracked wheels to the garden tiller, although it will not be compliant with the current road regulations)

Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine

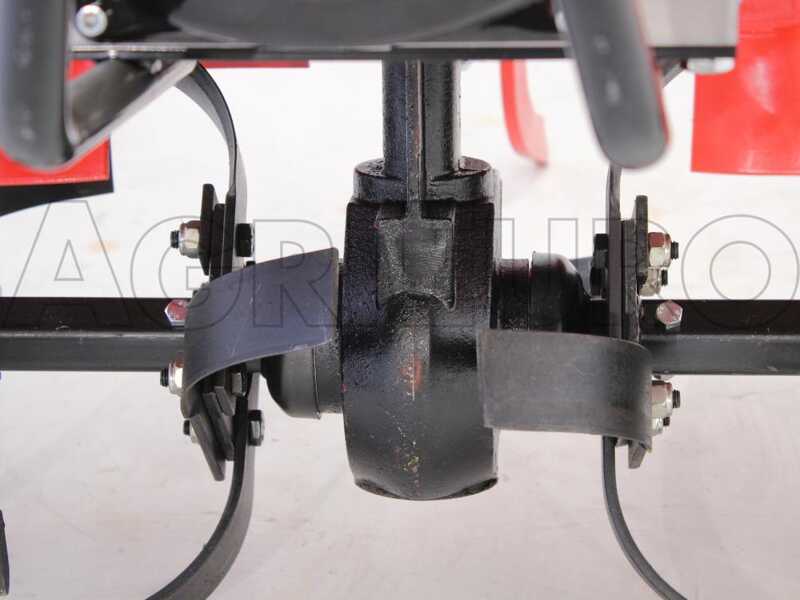

Transmission in oil bath

The transmission is among the sturdiest on the market.

Made with pinion and crown in oil bath.

Equipped with a quick inspection and repair opening.



Attention! Check that the gearbox oil is at the correct level before starting the machine.

Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine

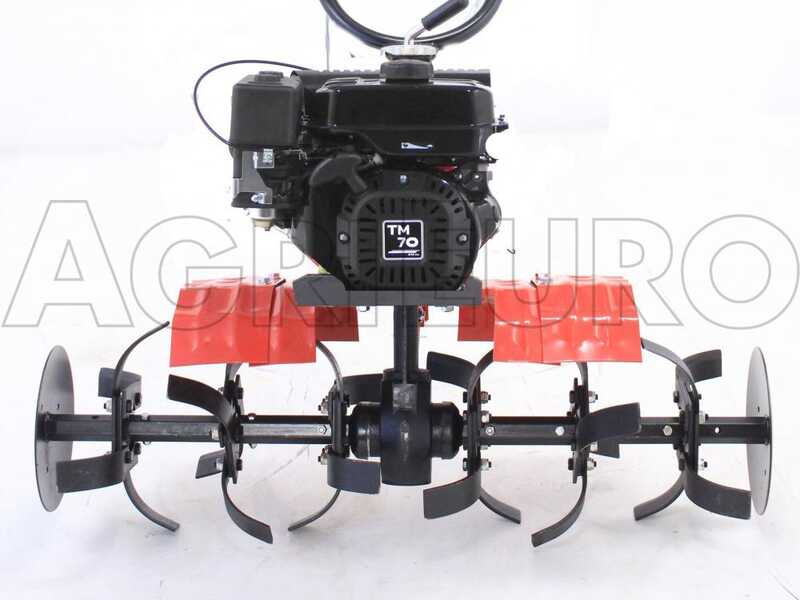

Adjustable tine from 95 cm to 65 cm

Sturdy tine mounted on an hexagonal-shaped central shaft, and provided with six elements with 4 steel rotary hoes each.

Tine working width: 95 cm

Hexagonal shaft diameter: 27 mm.

The tine mounted on this diesel garden tiller can be easily adjusted. Just remove the 2 most external elements and insert the suitable external crop protection discs to get a reduced working width of 65 cm.

It is also possible to purchase additional tine extensions to get a larger cutting width than the basic configuration of 95 cm and reach up to
125 cm of length with crop protection discs mounted.

Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine

Adjustable stake

The rear stake can be adjustable in height and can be positioned in rotating or fixed position.

The picture shows the stake mounted in standard position.

It can, for example, be assembled in the reverse position (with the bend turned to the front), to till harder or uncultivated ground.

Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine

Adjustable steering handles and controls

The steering handles are height and laterally adjustable thanks to the double adjusting lever system made of cast steel.

The controls are divided into:

  • upper red lever: this is the clutch lever which operates the machine according to the selected gear.
  • lower black lever on the right: engages the reverse gear.
  • throttle lever
Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

  • Honda GX 120/GX 160/GX 200
  • Honda GP160/GP 200
  • Loncin 120/160/196 cc
  • Axo 120/160/196 cc
  • Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine

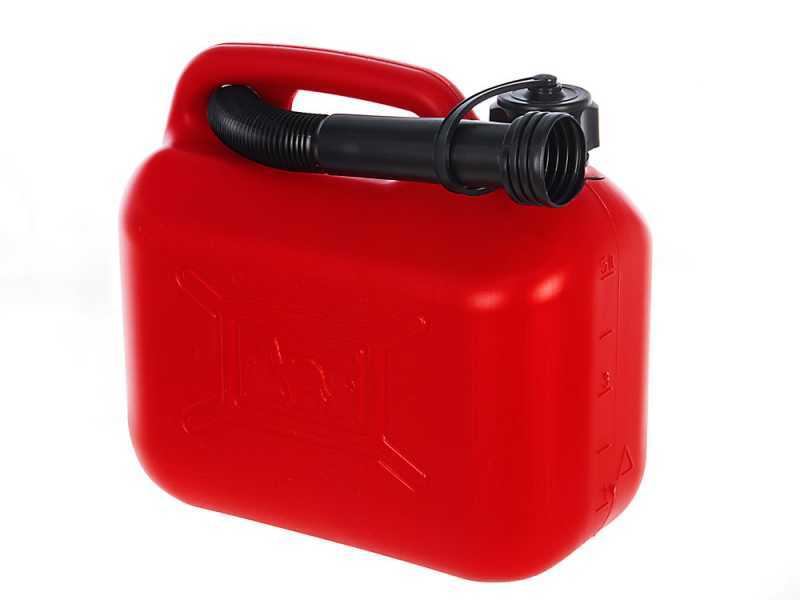

COMPLIMENTARY: Heavy-duty 5L Plastic Fuel Tank With Flexible Pouring Spout

Fuel tank: capacity 5 L

Professional ONU approved tank, made of certified plastic material.

With sealing cap equipped with comfortable anti-fall clamp.

Flexible pouring spout equipped with independent assembling sealing ring.
It allows a simple fuel dosage without the risk of spilling it.

The insides are made of exceptionally thick plastic, which makes these tanks especially sturdy and anti-drilling.

Furthermore, the plastic is red so as not to allow the penetration of light, ensuring the optimal fuel conservation.

Focus on the carrying handle and housing for the flexible pouring spout

WARNING: petrol and mixture tend to lose their characteristics and to deteriorate quickly when in contact with light. For this reason, traditional transparent tanks are strongly discouraged for these fuels (as well as for poor security reasons)

Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine

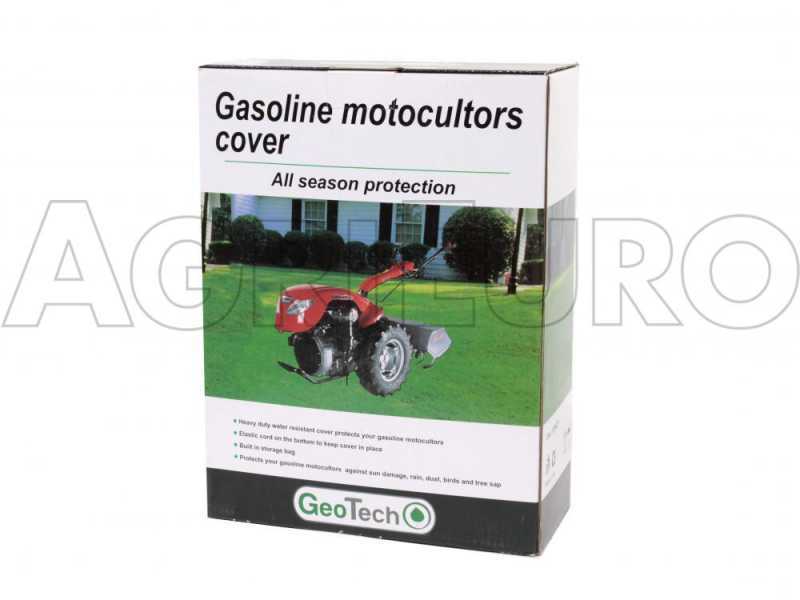

COMPLIMENTARY: Tarpaulin cover for lawn mowers

Essential for protecting your machine when stored.

This cloth is fast and easy to apply; within seconds your machine is protected from dust and moisture.

The cloth measuring 185 cm long by 80 cm wide by 105 cm in height.

Equipped with elastic on the lower edge to perfectly adhere to the bottom shape of the machine.

Easy to fold and store in its package, requiring minimal space!

Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine

Standard equipment

The garden tiller is shipped in its original packaging.

Instructions manual included.



The engine is supplied without oil. We recommend filling the tank before the first start-up.

The machine is shipped almost fully assembled (80%).
Installation of the tine and the steering handles must be completed.
ASSEMBLY TIME: 15 mins.

Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine Eurosystems Euro 102 - 7 HP Petrol Garden Tiller - Loncin TM 70 Engine
Feedback & Reviews
5,00
5,00
5,00
5,00
5,00
5,00
5,00
All customers' pictures
All customers' video
Ordina per:
Ordina per:
Ordina per:
Filtra le recensioni che citano:
Questions & Answers

General information

Legal Notice

  • Purchase Conditions
  • Payment Methods
  • Legal Warranty
  • Right of withdrawal
  • Privacy
  • Security
  • Cookies Policy
  • Cookie settings
  • Umbria 2014-2020 ERDF

AgriEuro special services

  • 5% Off from the Second Product
  • Double package
  • Free shipping
  • Service Centres
  • 30 Days Free Return
  • Assembly and Operating Tutorial Videos
  • After-sales Assistance
  • Spare parts
  • Premium Program Policy
  • AgriEuro Professional

My account

Language: English / EN

To change language, please click on the following abbreviations:

IT FR DE ES

Customer reviews

Newsletter

© Copyright 2007-2025 AgriEuro / All rights reserved
AgriEuro is a registered trademark of the company AGRIEURO S.R.L. / VAT reg. no. IT 01629170547
Technical Realization: Kaleido Srl
AgriEuro
All the advertised items on this website are subject to continuous technical updates by the manufacturing industries without prior notice (for improving managing procedures or production rationalisation).
For this, all data, descriptions and images on this portal are indicative as they may be subject to possible variations.
