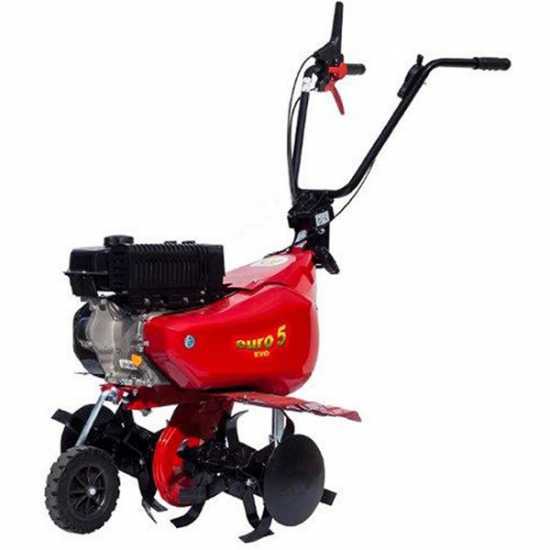

Name: Eurosystems Euro 5 EVO - 6 HP Petrol Garden Tiller - Loncin TM 60 OHV
Brand: Eurosystems
SKU: K4283
Price: 698.76 EUR
Availability: InStock
Rating: 4.78 (59 reviews)

Description

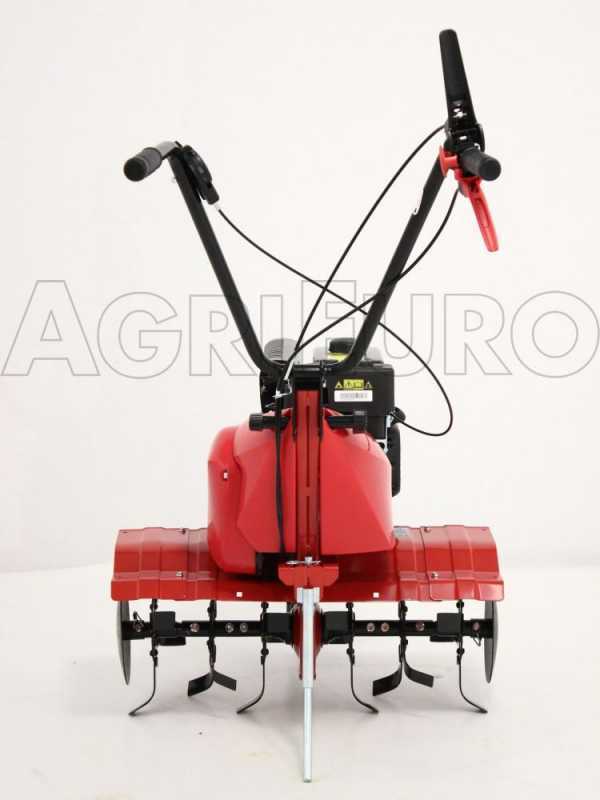

Eurosystems Euro 5 EVO Garden Tiller

This is a medium-sized garden tiller for hobby use fitted with TM 60 petrol engine with OHV technology,, exceptionally effective in low to medium intensity agricultural work, and for tilling work on medium-sized surfaces.

Versatile, sturdy and powerful, perfect for quickly preparing the seedbed, making finely crushed and well-ventilated soil soft and ready for cultivation. On medium-compact soils, the tines mounted on this garden tiller work deeply into the ground in a easy, quick and comfortable way.

The sturdy mechanics, power and elasticity of the engine allows to operate it on medium-sized surfaces, even on unploughed lawns.

COMPLIMENTARY:

GARDEN TILLER MAINTENANCE KIT AND COVER SHEET

Eurosystems Euro 5 EVO - 6 HP Petrol Garden Tiller - Loncin TM 60 OHV

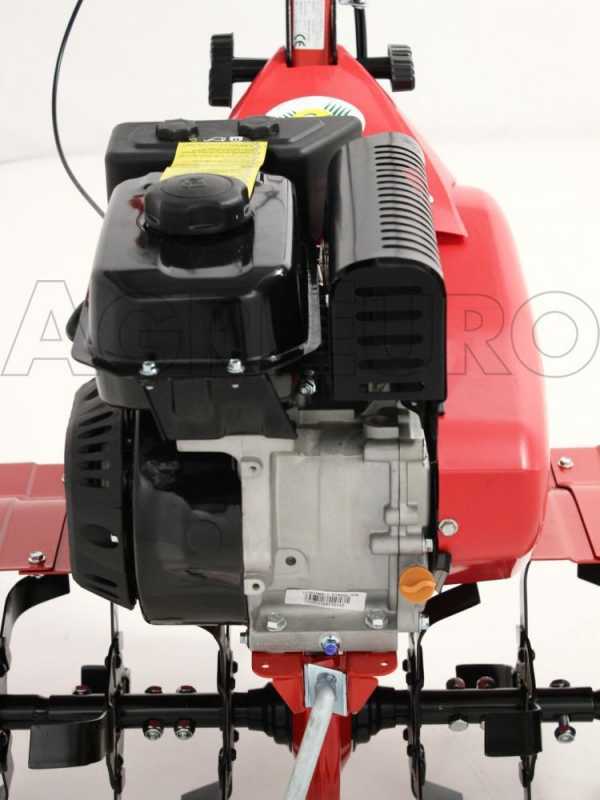

Loncin TM 60 engine

The Loncin TM 60 OHV is suitable for works where a certain amount of power is required, thanks to its 182 cc of cubic capacity.

Features:

Engine type:

Single cylinder 4-stroke - OHV

Cubic capacity:

182 cm³

New generation 4-stroke engine (with over head valves “OHV” technology). It is much more efficient and features significant low consumption than other flathead engines on the market.

Nominal Power: 6 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.5 Hp
It corresponds to the real power delivered by the motor shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting the unit.

Forward gear, transmission and side belt drive

Gears: a forward gear + a reverse gear adjustable by means of the controls on the steering handles.

Black lever for the forward gear, red lever for the reverse gear.

Robust oil-bath central chain drive.

Side belt drive protected by a sturdy openable housing.

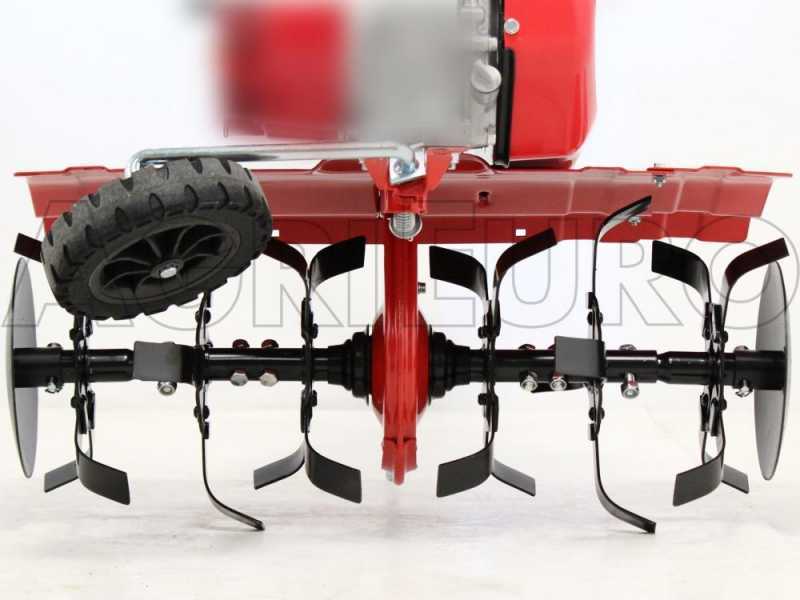

Tine with adjustable cutting width

Tine: 75 cm, with 6 rows of rotary hoes + side crop protection discs.

Easily adjustable to 50 cm.

The tine width adjustment is very easy: just need to insert or remove the most external element and place the crop protection disc.

The side protections are fixed by means of shaft locking pins and nut and bolt.

Additional features

Front transport wheel: to move around the machine, with the engine switched off, avoiding damage to delicate surfaces and floors.

Excellent for storing the garden tiller.

The wheel adjustment operation is extremely quick and easy.
Simply pull it out and turn it to the left to fix it in the raised position.
Once the wheel has been positioned, simply use the fastener to lock it in the "side" position.

Thanks to this system, the garden tiller can be set in its working mode.

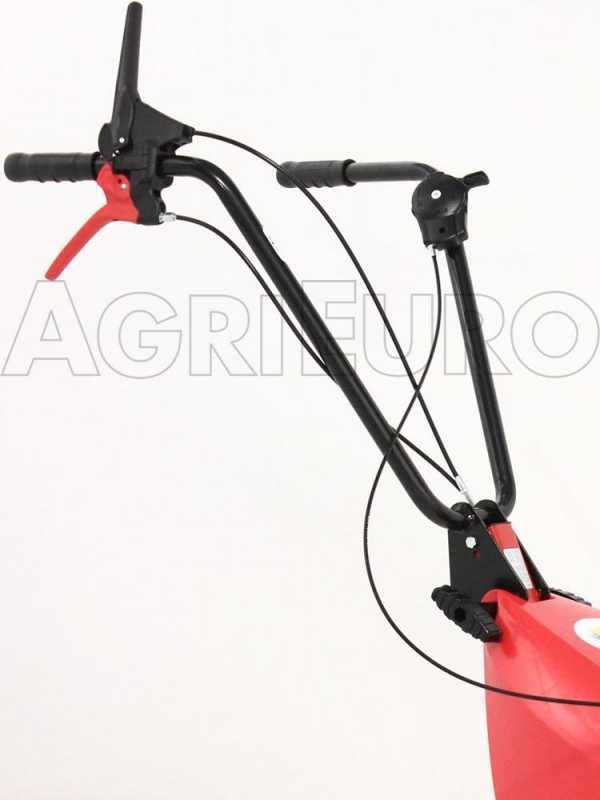

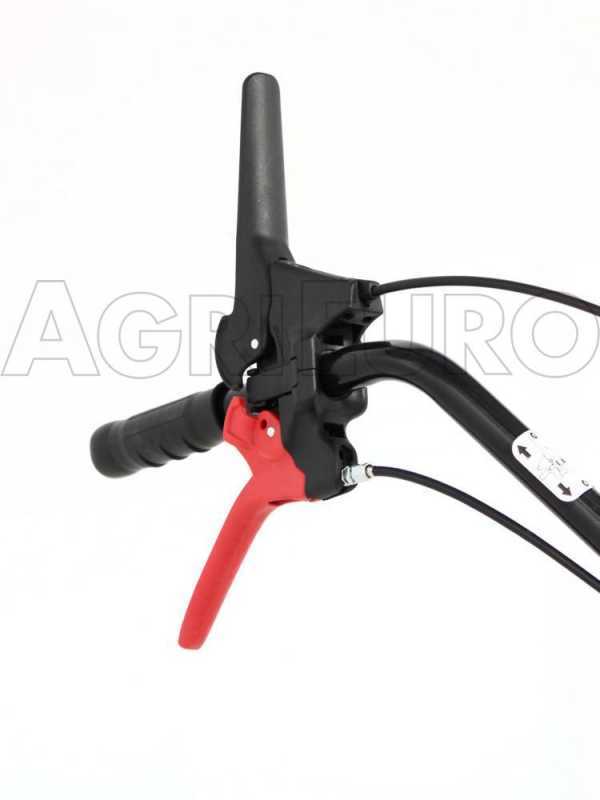

Focus on the steering handles (handlebars). All the main controls are placed in this area.

Black lever: it is the clutch lever that drives the tines and the machine’s movement.

Red lever: engages the reverse gear.

Focus on the throttle lever.

The adjustable rear stake is mounted on its its own axle. It has been further reinforced, in order to optimise the sturdiness of the machine.

Free items & Standard equipment

1° GIFT: Spare parts and maintenance kit for petrol engines

Universal spare parts and accessories maintenance kit for 4-stroke engine gardening machines.

WARNING: this kit is not suitable for all types of engines on the market. We do not supply sets other than those already published on this website nor do we guarantee their adaptability to machines not purchased on our website.

Included in the packaging are:

No. 01 original GeoTech spark plug

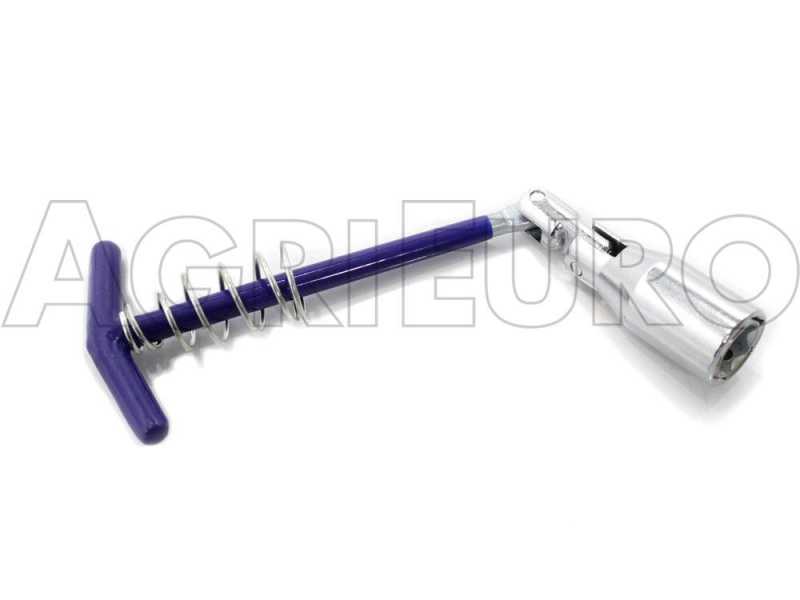

No. 01 professional spark plug wrench with jointed socket

2° GIFT: 600 ml oil bottles

COMPLIMENTARY: two sae 15 W 40 600 ml oil bottles. Specific lubricant for 4-stroke engine gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

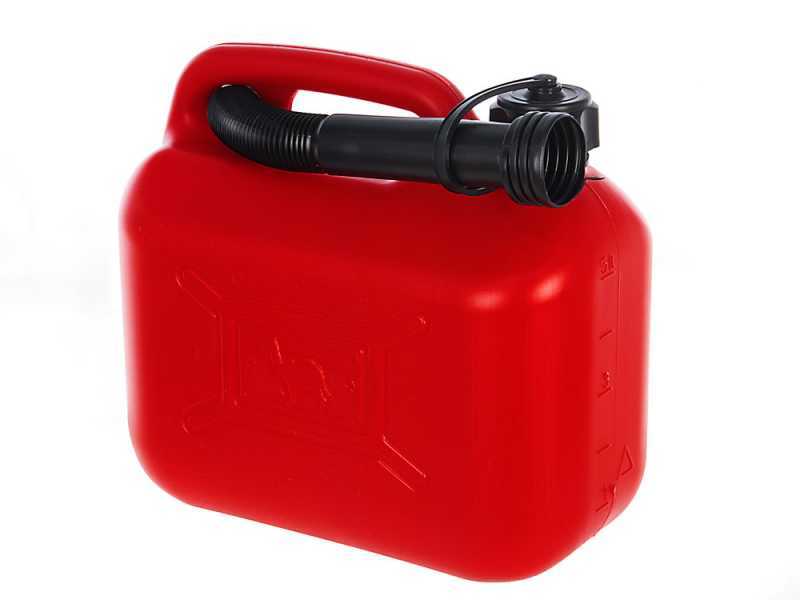

COMPLIMENTARY: Heavy-duty 5L Plastic Fuel Tank With Flexible Pouring Spout

Fuel tank: capacity 5 L

Professional ONU approved tank, made of certified plastic material.

With sealing cap equipped with comfortable anti-fall clamp.

Flexible pouring spout equipped with independent assembling sealing ring.
It allows a simple fuel dosage without the risk of spilling it.

The insides are made of exceptionally thick plastic, which makes these tanks especially sturdy and anti-drilling.

Furthermore, the plastic is red so as not to allow the penetration of light, ensuring the optimal fuel conservation.

Focus on the carrying handle and housing for the flexible pouring spout

WARNING: petrol and mixture tend to lose their characteristics and to deteriorate quickly when in contact with light. For this reason, traditional transparent tanks are strongly discouraged for these fuels (as well as for poor security reasons)

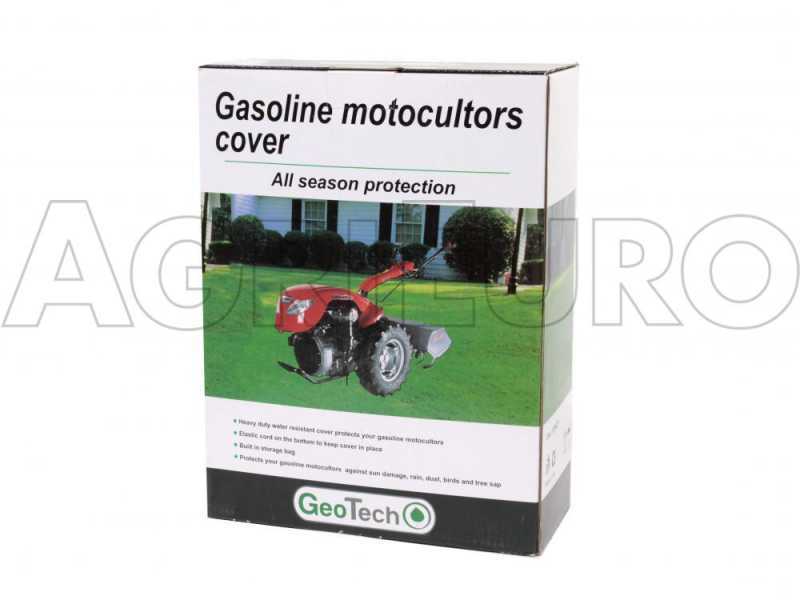

COMPLIMENTARY: Tarpaulin cover for lawn mowers

Essential for protecting your machine when stored.

This cloth is fast and easy to apply; within seconds your machine is protected from dust and moisture.

The cloth measuring 185 cm long by 80 cm wide by 105 cm in height.

Equipped with elastic on the lower edge to perfectly adhere to the bottom shape of the machine.

Easy to fold and store in its package, requiring minimal space!

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to educe machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.

COMPLIMENTARY: professional storage cover

Essential for protecting your machine when stored.

This cloth is fast and easy to apply; within seconds your machine is protected from dust and moisture.

The cloth measuring 185 cm long by 80 cm wide by 105 cm in height.

It features an elastic on the lower edge to adhere perfectly to the machine’s lower shape.

Easy to fold and store inside its packaging as it takes up very little space!

Standard equipment

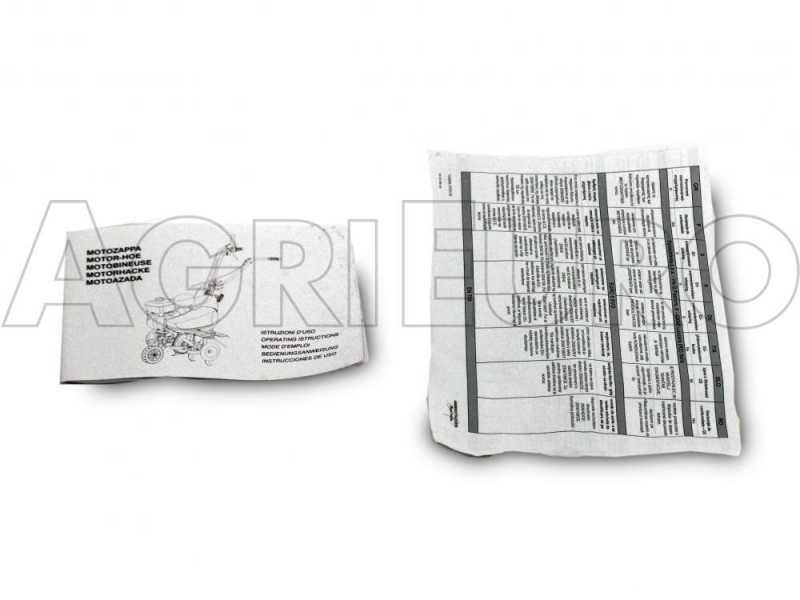

Instructions manual included in the packaging.

The garden tiller is shipped in its original packaging.
