HOME Soil tilling and land care Garden Tillers Petrol and Diesel Garden Tillers Petrol Garden Tillers Petrol-driven motor hoes - SMALL Eurosystems La Zappa - OHV 123

Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine

Limited
Questions & Answers (14)
ID: K503366

EAN: 8025004008663

MPN: 00947010200

Eurosystems
Catalog Eurosystems
8,9/10
After-sales assistance & Spare parts
46Pictures
9Videos
55Customer pics
Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine
Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine
Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine
Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine
Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine
Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine
+1000 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement spark plug kitReplacement spark plug kit
Noise-canceling earmuffsNoise-canceling earmuffs
Cotton glovesCotton gloves
Protective gogglesProtective goggles
AgriEuro BandanaAgriEuro Bandana
Standard milling cutter width
36 cm
Recommended surface
25 m²
Motor type
4-stroke
Motor brand
Loncin
Motor Model
OHV 123 cc
Cubic capacity
123 cm³
Nominal power
4 HP
Transmission type
Belt and worm screw
Gears
Single speed
Soil consistency
Soft
Manufacturing country
Italy
Product Features
Model:
La Zappa - OHV 123
Operating mode:
Spark ignition
Recommended surface:
25 m²
Soil consistency:
Soft
Soft soil:
✔
Starting mode:
Recoil
Manufacturing country:
Italy
Motor data
Motor brand:
Loncin
Motor Model:
OHV 123 cc
Motor type:
4-stroke
Cubic capacity:
123 cm³
No. of cylinders:
1
Nominal power:
4 HP
Rated power (HP):
3 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
1 L
Manufacturing country:
China
Transmission data
Transmission type:
Belt and worm screw
No. of forward speeds:
1
Gears:
Single speed
Operating mode:
Lever on the handlebar
Cutting data
Standard milling cutter width:
36 cm
Milling cutter diameter:
25 cm
No. of blade holders:
4
No. of blades:
16
Blade engagement:
Lever on the handle
Equipment
Milling cutter accessory:
Included as standard
CE Accident prevention system:
Yes
Transport wheel:
Yes
Rear stake:
Yes
Adjustable stake:
Yes
Furrower:
On request
Spring rotor:
On request
Blade rotor:
On request
16 cm milling cutter narrowing:
On request
Clutch:
Belt tensioner
Recoil start system (with rope):
Yes
Rubber-coated soft grip:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Engine maintenance kit:
For free
Engine oil bottle for free:
Yes
Instructions manual:
Yes
Dimensions and logistics
Net weight:
28 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
65 x 38 x 47 cm
Gross weight (packaging included) :
30 Kg
Assembly time:
15 minutes
Prompt Delivery
19 items in stock
Free Shipping
Estimated delivery: 13/02/2025 - 17/02/2025
Free returns (up to 30 days after receipt) *
€ 457,25
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

You're viewing:
Customers also viewed:
Description

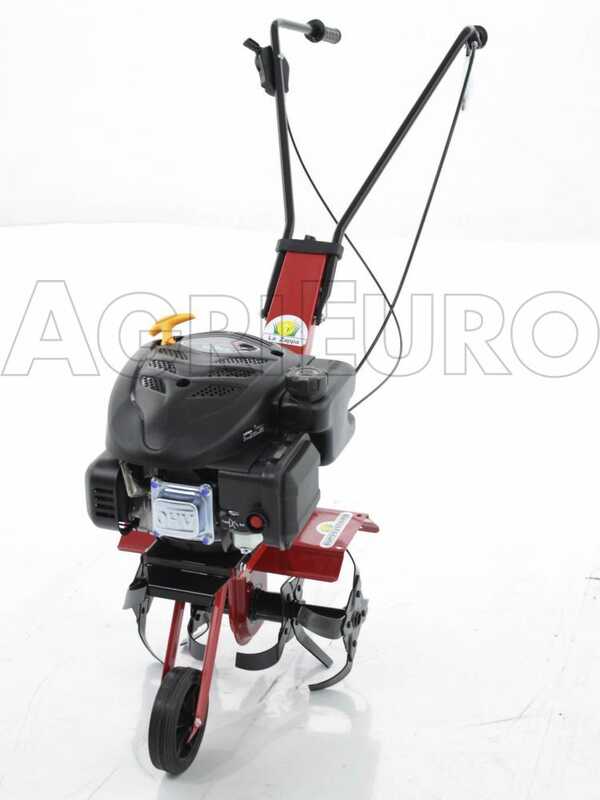

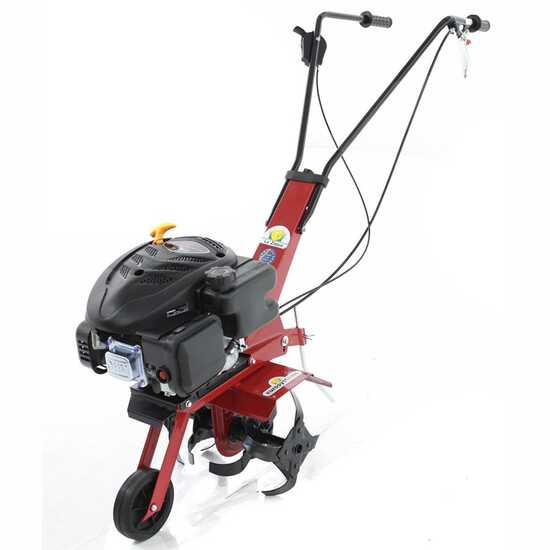

Eurosystems La Zappa Garden Tiller

The Eurosystems La Zappa garden tiller is a compact medium-sized, handy, powerful and highly-reliable machinery.

The engine performance of this garden tiller combined with its ease of use make it suitable for both hobbyists and professional users.

Special attention has been paid to the quality of the materials of the gearbox, as it features tines of such construction and robustness that make the machine easy to use in all types of soil.

Also remarkable are the ergonomics of the controls and the ease of use, coupled with safety at all times for the operator.

COMPLIMENTARY:

GARDEN TILLER ENGINE MAINTENANCE KIT

Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine
Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine

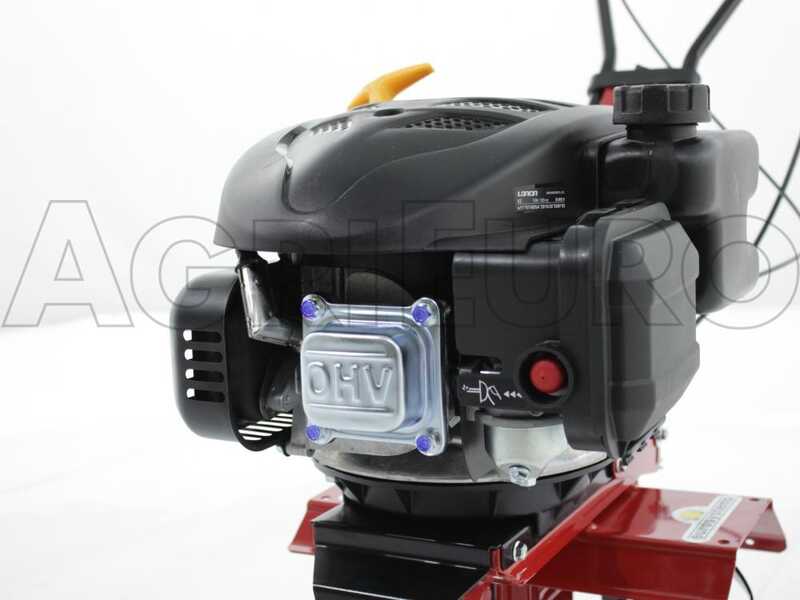

Loncin 123 cc OHV engine

This high performance Loncin 123 cc engine with OHV technology is suitable for works where a certain amount of power is required also thanks to the 212 cc cubic capacity.

Features:

Engine type:
Single cylinder 4-stroke - OHV
Cubic capacity:
123 cm³

New generation 4-stroke engine (with over head valves “OHV” technology). It is much more efficient and features significant low consumption than other flathead engines on the market.

Nominal Power: 4 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 3 Hp
It corresponds to the real power delivered by the motor shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine
Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine

Steering handles and controls

The controls of the garden tiller are all located on the steering handles.

The forward motion is controlled by means of the lower lever, which is equipped with a safety system.

The machine also features a throttle lever.

The steering handles are adjustable in height via the special lever.

Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine
Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine

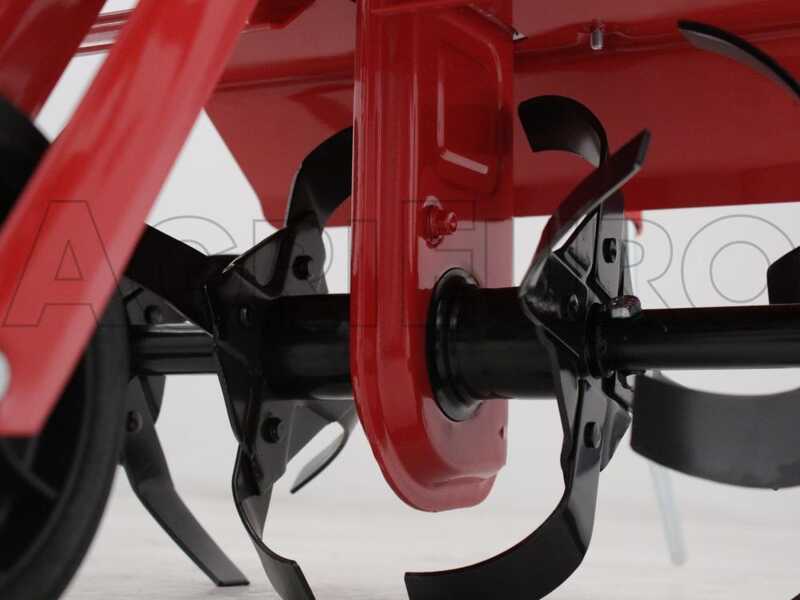

Transmission and 36 cm tine

Tine: 36 cm with 4 rows of rotary hoes.

Sturdy central worm drive in oil bath.

The belt transmission on the lower side on the engine is protected by a sturdy housing.

Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine
Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine

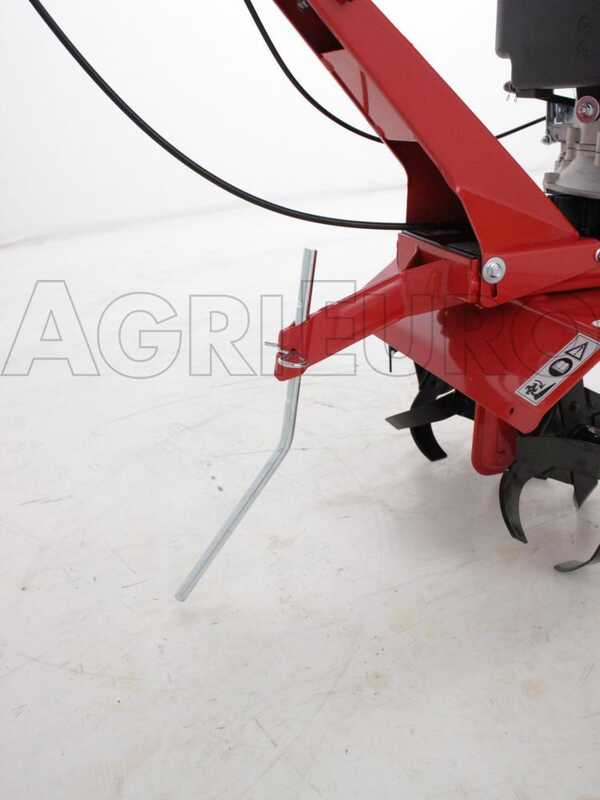

Adjustable stake and transfer wheel

The stake is height adjustable to enhance the garden tiller efficiency.

The transfer wheel can be easily removed by means of its support arm, a perfect solution for storing and transporting the machine.

Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine
Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine
Free items & Standard equipment

1° GIFT: Spare parts and maintenance kit for petrol engines

Universal spare parts and accessories maintenance kit for 4-stroke engine gardening machines.

WARNING: this kit is not suitable for all types of engines on the market. We do not supply sets other than those already published on this website nor do we guarantee their adaptability to machines not purchased on our website.

Included in the packaging are:

  • No. 01 original GeoTech spark plug

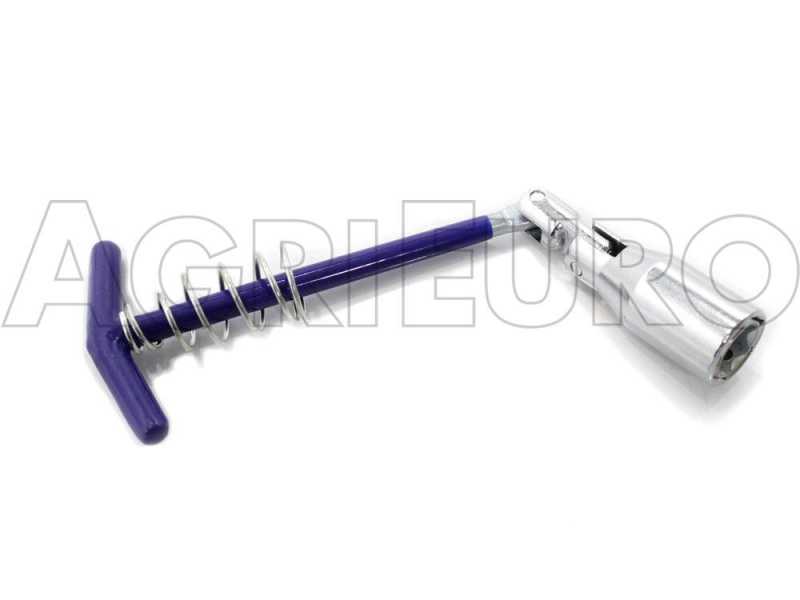

  • No. 01 professional spark plug wrench with jointed socket
Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine
Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine

2° GIFT: 600 ml oil bottles

COMPLIMENTARY: two sae 15 W 40 600 ml oil bottles. Specific lubricant for 4-stroke engine gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine
Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to educe machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.

Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine
Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine

Standard equipment

The garden tiller is shipped in its original packaging.

Instructions manual included in the packaging.

Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine
Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine Eurosystems La Zappa - 4 HP Petrol Garden Tiller - Loncin 123cc Engine
