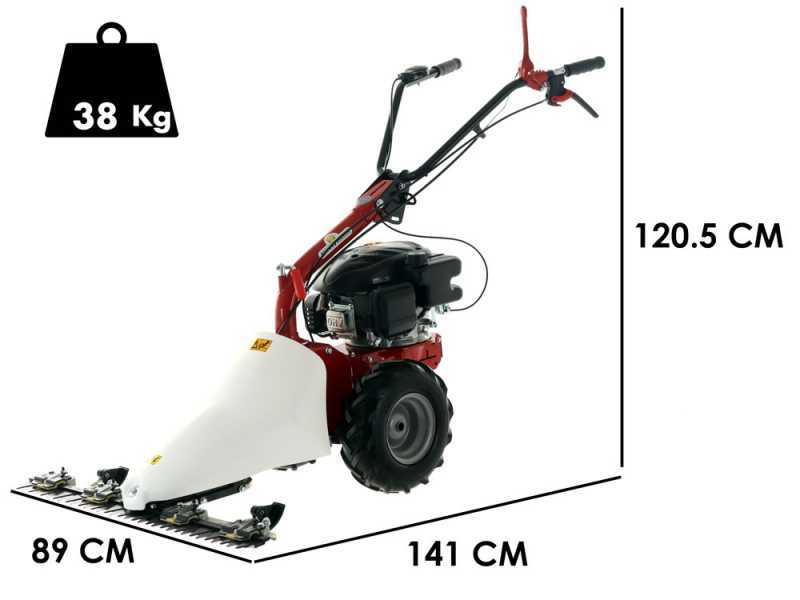

Eurosystems M210 - Twin blade mower - Loncin LC1P65FE

Ideal for mowing uncultivated and wild grass, even quite tall, highly appreciated especially for cutting grass to use for animal feeding.

The peculiarity of this type of double-blade scythe mowers is to preserve the integrity of the grass while mowing, making a single clean cut at the base of the stem. This way it guarantees the integrity of the mown grass, which can be used to feed livestock.
This self-propelled petrol scythe mower can work on all kinds of surfaces, uneven and on gentle slopes.

Eurosystems scythe mower with double blade cut, equipped with self-propelled sculpted pneumatic wheels, connected to an oil-bath worm screw transmission, equipped with a single forward gear. The 87 cm cutter bar accessory, provided on standard kit, features a double blade motion ( both the lower and upper blade move with reciprocating motion) .

This differentiates it from all the self-propelled scythe mowers with classic petrol engines that you can find on the market by various manufacturers, which are still all equipped with single-blade motion (only the upper blade moves, while the lower blade is fixed).

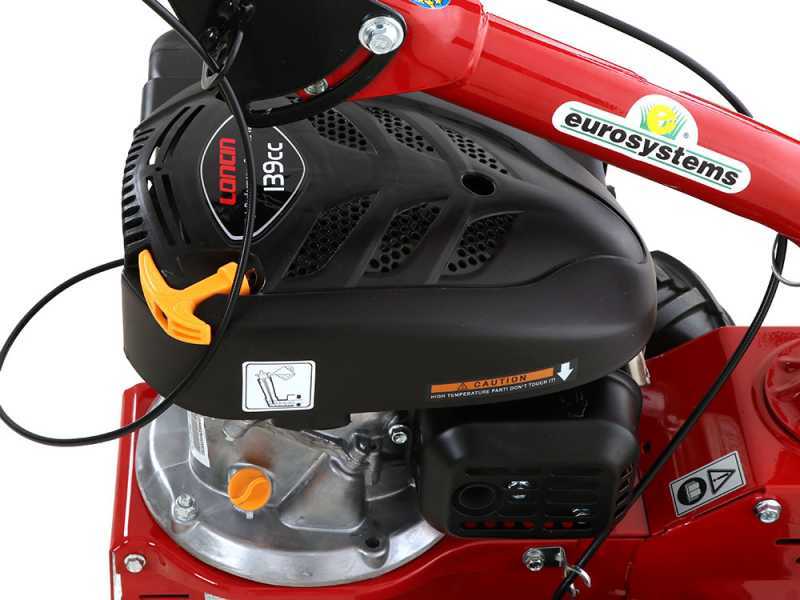

The LONCIN engine is lightweight, high-performing and suitable for works which require a quite high power.

Powered by a 4-stroke petrol engine 139 cc, belonging to the latest technology with overhead valve “OHV”, single cylinder and a forced air cooling system.

Fuel tank capacity: 0.9 L

Oil tank capacity: 0.55 L

Focus on the recoil start The electronic ignition transistor is used in order to get a reliable ignition, and engine oil flutter lubrication ensures a constant oil supplement for internal components, protecting the engine and extending its life.

Focus on the filter.

Nominal Power: 4.5 HP
The correct term would be "Commercial” Power, meaning the classic definition standard of power officially used until a few years ago by all leading engine manufacturers.

* This figure is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

Effective power: 3.6 Hp
It corresponds to the real power expressed by the motor shaft. This is the power indicated as official in the manual or in the technical data of the motor manufacturer.

* This technical data may vary for the same engine model depending on the rotational speed supplied by the engine applied to the equipment.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Before starting, please read carefully the instruction manual.

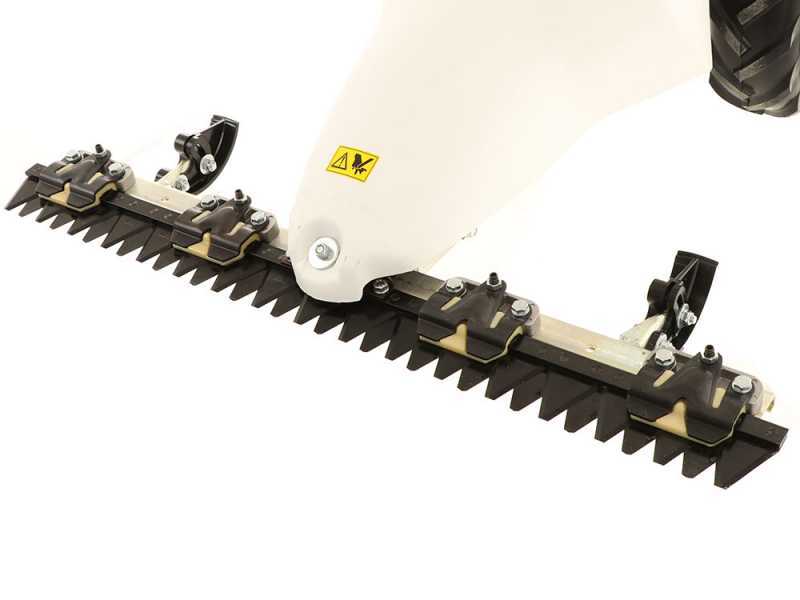

The bar consists of the lower and upper blade, both moving with reciprocating motion. This differentiates the cutter bar of this Eurosystems petrol scythe mower from classic machines that you can find on the market nowadays, which still feature a traditional single-blade movement (i.e. only the upper blade moves, while the lower blade is fixed and merely acts as a counter-blade).

Advantages of the double-blade cutting system:

• more effective cut on very tall, consistent grass with a large stem
• more effective cut on very low, thin and particularly young and soft grass
• The cut is considerably cleaner, it does not shred the grass
• More clean and high-quality result
• Greater work efficiency
• Greater cutting yield

The double blade system makes it practically vibration-free, making it an excellent choice in long work sessions.

Focus on the upper blade holders placed on the bar.

Cutting height adjustable through the inclination of the 2 rear slides.

The cutter bar is tilting.
In fact, it rotates around its own quick release pin on the machine body.
This system allows this self-propelled double-blade petrol scythe mower to work on any type of terrain, even quite uneven, being able to adapt to its imperfections.

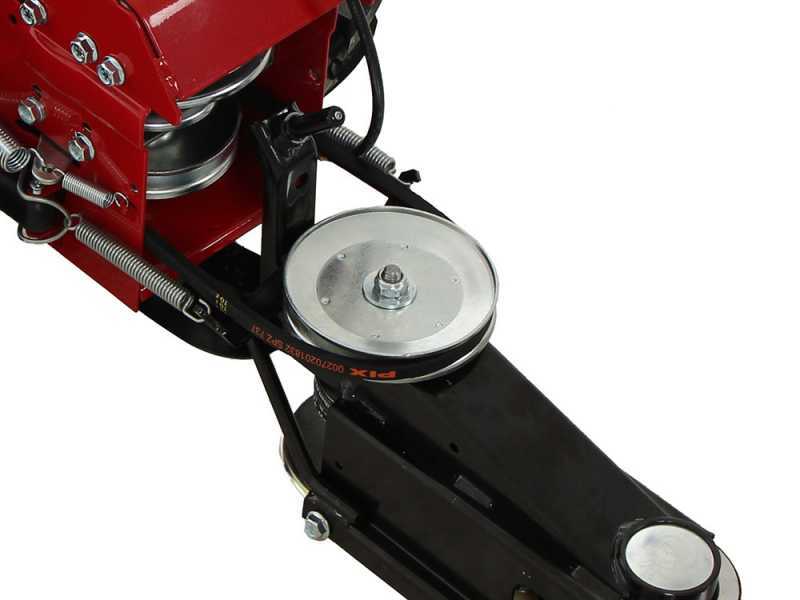

Belt transmission between the sickle bar and the machine body (protected by the large white front cover in the photo).
This allows you to extend the life of the cutter bar attachment (which is the most stressed while working, being the one that actually carries out the cutting operation in contact with the ground). In fact, the belt performs a function similar to that of a clutch (it can slip in case of blade impact, often avoiding wear or damage of the components).
However, we do not recommend getting into collisions with the machine or working on stony ground.

Another great advantage offered by the belt transmission is the blade engagement and disengagement lever. This double-blade scythe mower allows you to activate it only while working and then turn it off while moving (using the traction of the wheels with the fixed blade).

Oil-bah worm screw intermediate transmission.

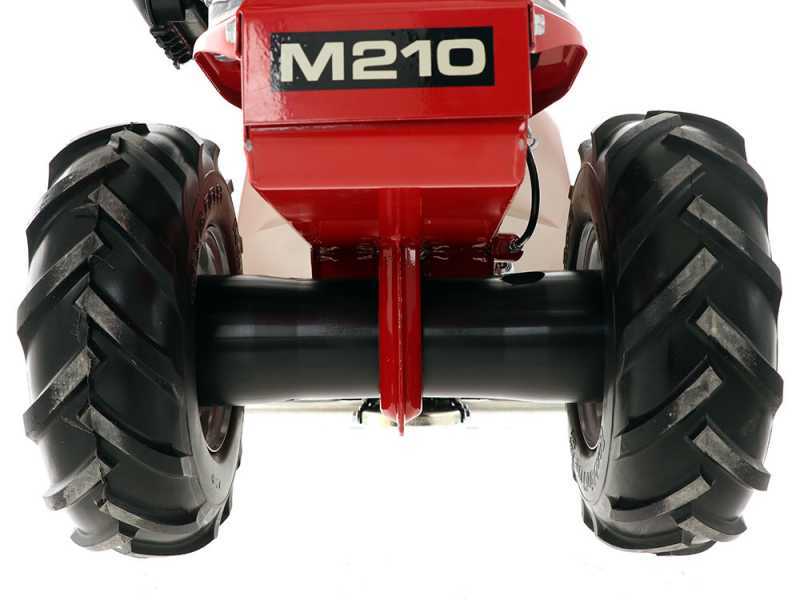

Tractor sculpted wheels.

They allow the scythe mower to move even on the most difficult surfaces while always maintaining perfect grip.

This petrol scythe mower has a single-speed gear.

The red metal lever is dedicated to engaging/disengaging the cutter bar.

The lower black lever moves the machine forward.

Throttle lever

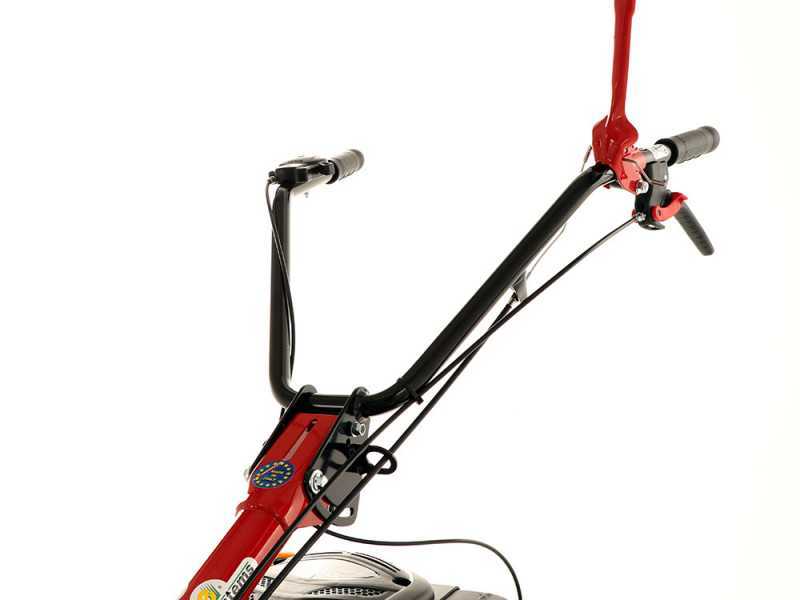

Focus on the handlebar height adjustment.

The steering handles (handlebars) are also adjustable laterally.
